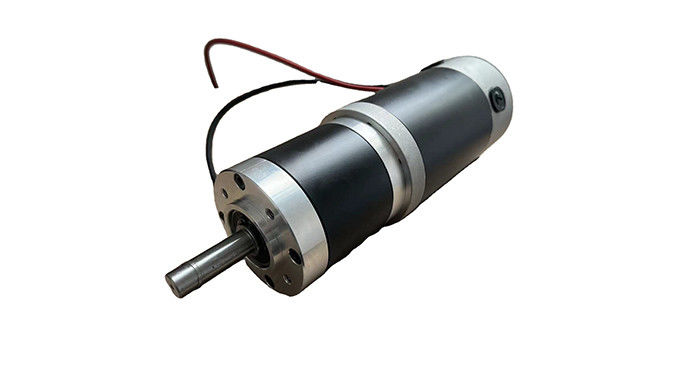

80PMB800K.90ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M

80PMB800K.90ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M

  • Highlight

    48 Volt Planetary Gear DC Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    5 Rpm Upto 3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    GEAR MOTOR
  • Torque
    Upto 120Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    80PMB800K.90ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

80PMB800K.90ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M



Brushed DC Planetary Gear Motor 80PMB800K.90ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



90ZYT Motor Main Technical Specification:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3600
Rated Torque N.m 1.5 2.2 3
Rated Speed Rpm 3000 3000 3000
Rated Current A 26 37 50
Output Power W 471 691 942
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199





80PMB800K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) 600N
Max. Shaft Axial Load 200N
Radial Play of Shaft (Near to Flange) ≤0.1 mm
Axial Play of Shaft ≤0.6 mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force 1000N
Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.55 1/5.31 1/6.60 8 N.m 12 N.m 90% 55.7±0.5 1100
1/13 1/19 1/23 30 N.m 45 N.m 81% 72.2±0.5 1500
1/26 1/30 1/37 60 N.m 90 N.m 81% 72.2±0.5 1500
1/50 1/74 1/92 1/111 1/138 80 N.m 120N.m 73% 88.5±0.5 1800



80PMB800K.90ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.55 5.31 6.60 13 19 23 26 30 37 50 74 92 111 135
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73%
No Load Speed Rpm 1014.08 677.97 545.45 276.92 189.47 156.52 138.46 120.00 97.30 72.00 48.65 39.13 32.43 26.67
Rated Torque Nm 4.79 7.17 8.00 15.80 23.09 27.95 31.59 36.45 44.96 54.75 80.00 80.00 80.00 80.00
Rated Speed Rpm 845.07 564.97 454.55 230.77 157.89 130.43 115.38 100.00 81.08 60.00 40.54 32.61 27.03 22.22



80PMB800K.90ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.55 5.31 6.60 13 19 23 26 30 37 50 74 92 111 135
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73%
No Load Speed Rpm 1014.08 677.97 545.45 276.92 189.47 156.52 138.46 120.00 97.30 72.00 48.65 39.13 32.43 26.67
Rated Torque Nm 7.03 8.00 8.00 23.17 30.00 30.00 46.33 53.46 60.00 80.00 80.00 80.00 80.00 80.00
Rated Speed Rpm 845.07 564.97 454.55 230.77 157.89 130.43 115.38 100.00 81.08 60.00 40.54 32.61 27.03 22.22



80PMB800K.90ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.55 5.31 6.60 13 19 23 26 30 37 50 74 92 111 135
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73%
No Load Speed Rpm 1014.08 677.97 545.45 276.92 189.47 156.52 138.46 120.00 97.30 72.00 48.65 39.13 32.43 26.67
Rated Torque Nm 8.00 8.00 8.00 30.0 30.0 30.0 60.00 60.00 60.00 80.00 80.00 80.00 80.00 80.00
Rated Speed Rpm 845.07 564.97 454.55 230.77 157.89 130.43 115.38 100.00 81.08 60.00 40.54 32.61 27.03 22.22







Gear Motor Drawing:
