    42mm DC Planetary Geared Reducer Motor

    ,

    42mm high torque DC Motor

    ,

    DC Planetary Geared Reducer Motor 100rpm

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customized For Different Power
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    GEAR MOTOR
  • Torque
    Upto 15Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    42JXL150K.42ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

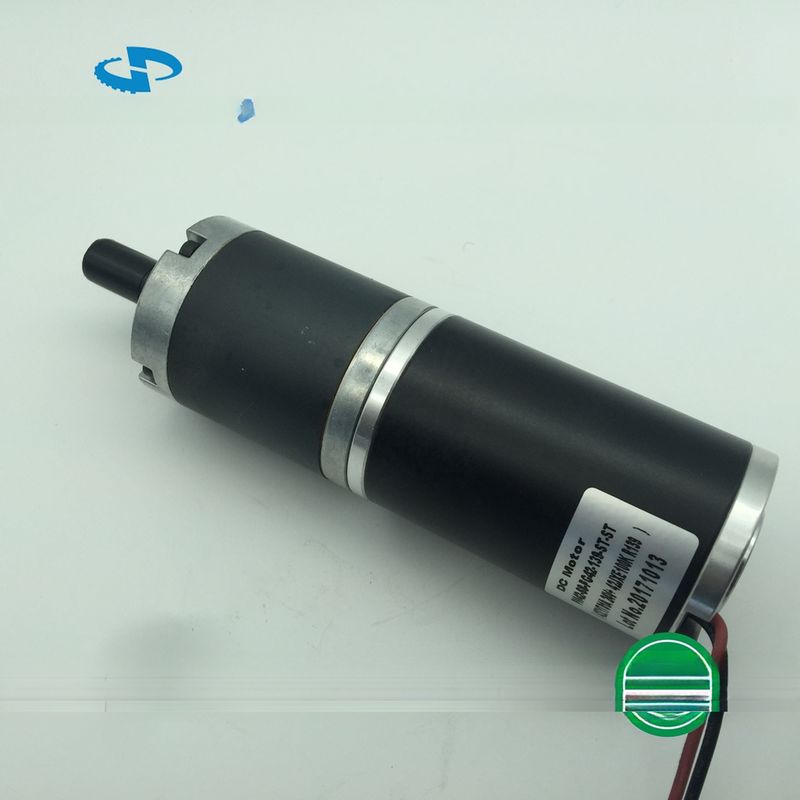

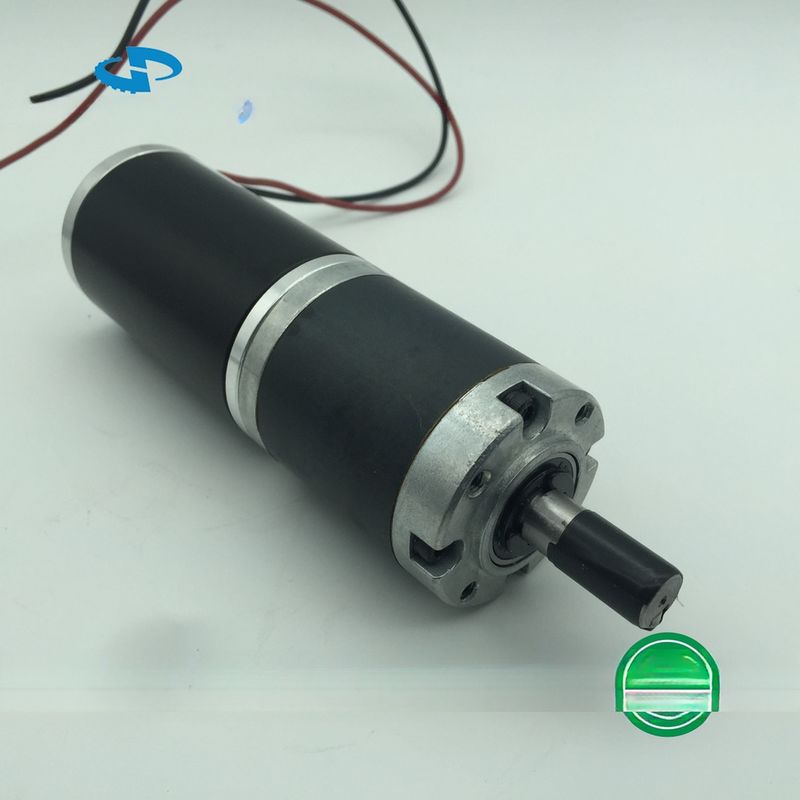

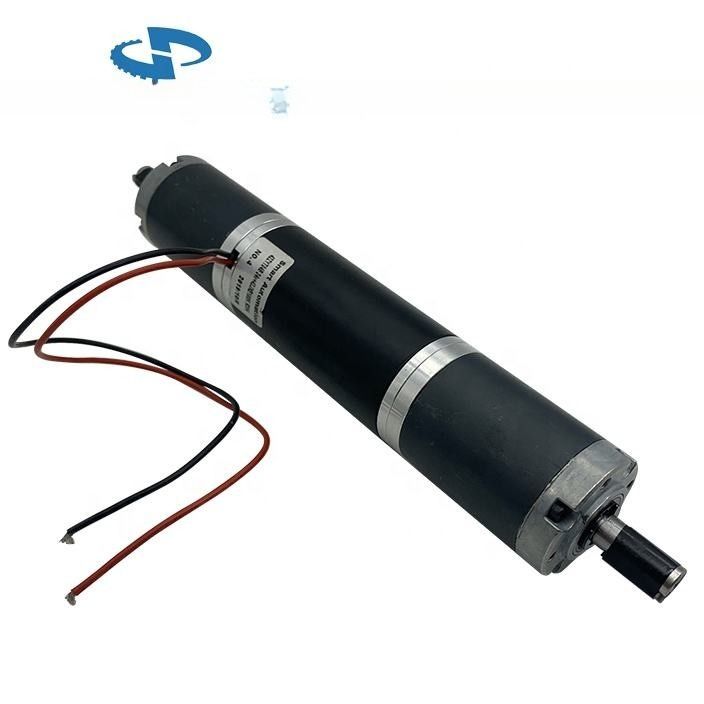

42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
  • 42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
Get Price Contact Now

Brushed DC Planetary Gear Motor 42JXL150K.42ZYT Series





Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation



BELOW ARE ONLY TYPICAL MODELS

WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.

Helical Gears, Low Noise version







42ZYT Motor Main Technical Specification:

Model Unit 42ZYT01A 42ZYT02A 42ZYT03A 42ZYT04A 42ZYT05A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 3800 4200 4200
Rated Torque mN.m 38 43 57 70 105
Rated Speed Rpm 3600 3600 3100 3600 3600
Rated Current A 0.86 0.98 1.2 1.6 2.3
Output Power W 14.5 16.2 18.50 26.5 40
Weight G 390 460 500 540 700
Motor Length Mm 70 80 85 90 115





42JXL150K Planetary Gearbox Specifications:



Ring Material Powder Metal
Bearing at Output all bearings
Max. Radial Load (12mm from Flange) ≤ 200N
Max. Shaft Axial Load ≤ 100N
Radial Play of Shaft (Near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤ 150N



42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version 0

*Helical Gear Low Noise



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.71 1/5.18 1.5N.m 4.0 N.m 90% 31.5±0.5 244
1/14 1/19 1/27 4.0 N.m 12 N.m 81% 42.1±0.5 314

1/49 1/59 1/68

1/82 1/95 1/115

 10 N.m 25 N.m 73% 52.5±0.5 433

1/181 1/218 1/253

1/305 1/354 1/426

1/495 1/596

 15 N.m 38 N.m 66% 62.9±0.5 519





42JXL150K.42ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.1 0.2 0.4 0.6 0.8 1.4 1.6 1.9 2.3 2.6 3.2 4.5 5.5 6.3 7.6 8.9 10.7 12.4 14.9
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL150K.42ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.1 0.2 0.5 0.7 0.9 1.5 1.9 2.1 2.6 3.0 3.6 5.1 6.2 7.2 8.7 10.0 12.1 14.0 15.0
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL150K.42ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1024.3 733.6 271.4 200.0 140.7 77.6 64.4 55.9 46.3 40.0 33.0 21.0 17.4 15.0 12.5 10.7 8.9 7.7 6.4
Rated Torque Nm 0.2 0.3 0.6 0.9 1.2 2.0 2.5 2.8 3.4 4.0 4.8 6.8 8.2 9.5 11.5 13.3 15.0 15.0 15.0
Rated Speed Rpm 835.6 598.5 221.4 163.2 114.8 63.3 52.5 45.6 37.8 32.6 27.0 17.1 14.2 12.3 10.2 8.8 7.3 6.3 5.2



42JXL150K.42ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.2 0.3 0.8 1.1 1.5 2.5 3.0 3.5 4.2 4.9 5.9 8.4 10.1 11.7 14.1 15.0 15.0 15.0 15.0
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL150K.42ZYT05A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.4 0.5 1.2 1.6 2.3 3.8 4.5 5.2 6.3 7.3 8.8 12.5 15.0 15.0 15.0 15.0 15.0 15.0 15.0
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



Gear Motor Drawing:





42JXL150K.42ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version 1





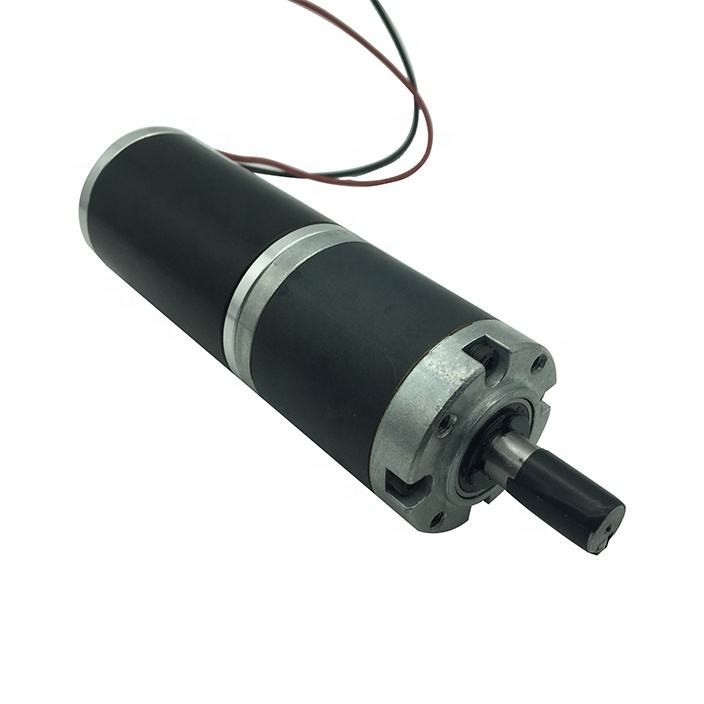

Motor picture



42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version

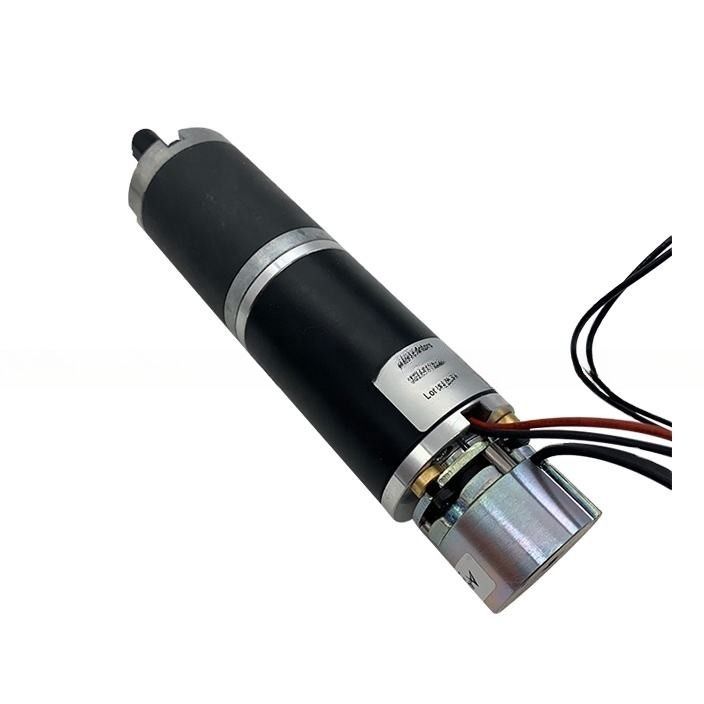

Option : Brake integrated

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version







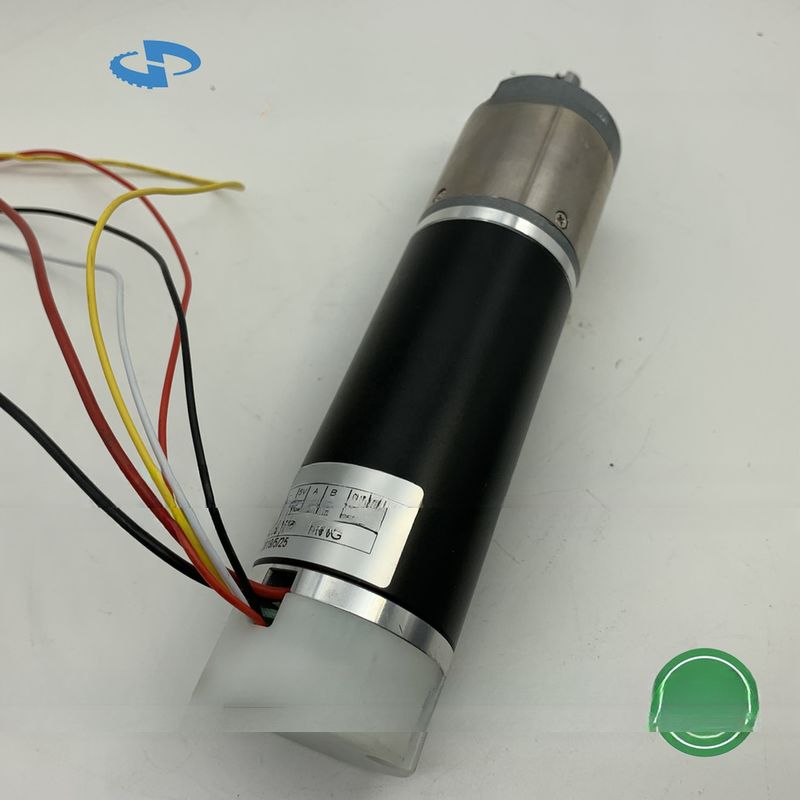

Option : Encoder integrated

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version



Option: double gearboxes

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version
