Brushed DC Planetary Gear Motor 60JXE450K.76ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



76ZYT Motor Main Technical Specification:

Model Unit 76ZYT01A 76ZYT02A 76ZYT03A 76ZYT04A 76ZYT05A 76ZYT06A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3900 3800 3800

3800

3800



 3800 3800
Rated Torque N.m 0.31 0.50 0.70

0.8

0.80



 0.90 1.0
Rated Speed Rpm 3300 3200 3200 3200 3200 3200
Rated Current A 6.0 9.0 12.5 15.0 16.5 18.0
Output Power W 107 167 217 268 301 335
Weight Kg 1.5 2.0 2.5 2.85 3.0 3.15
Motor Length Mm 98 118 138 150 160 171



60JXE450K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) ≤400N
Max. Shaft Axial Load ≤120N
Radial Play of Shaft (Near to Flange) ≤0.08mm
Axial Play of Shaft ≤0.4mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤300N



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.6 1/4.25 1/5.33 4 N.m 12 N.m 90% 40.3±0.5 520
1/13 1/15 1/18 1/23 1/28 18 N.m 50 N.m 81% 53.8±0.5 710
1/43 1/52 1/61 1/72 1/96 1/121 36 N.m 100 N.m 73% 67.2±0.5 900

1/154 1/187 1/220 1/260 1/307

1/409 1/514 1/645 1/809

 45 N.m 110N.m 66% 80.6±0.5 1100





60JXE450K.76ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1083.3 917.6 731.7 300.0 260.0 216.7 169.6 139.3 90.7 75.0 63.9 54.2 40.6 32.2 25.3 20.9 17.7 15.0 12.7 9.5 7.6 6.0 4.8
Rated Torque Nm 1.0 1.2 1.5 3.3 3.8 4.5 5.8 7.0 9.7 11.8 13.8 16.3 21.7 27.4 31.5 38.3 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 916.7 776.5 619.1 253.8 220.0 183.3 143.5 117.9 76.7 63.5 54.1 45.8 34.4 27.3 21.4 17.6 15.0 12.7 10.7 8.1 6.4 5.1 4.1



60JXE450K.76ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1055.6 894.1 712.9 292.3 253.3 211.1 165.2 135.7 88.4 73.1 62.3 52.8 39.6 31.4 24.7 20.3 17.3 14.6 12.4 9.3 7.4 5.9 4.7
Rated Torque Nm 1.6 1.9 2.4 5.3 6.1 7.3 9.3 11.3 15.7 19.0 22.3 26.3 35.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0



60JXE450K.76ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1055.6 894.1 712.9 292.3 253.3 211.1 165.2 135.7 88.4 73.1 62.3 52.8 39.6 31.4 24.7 20.3 17.3 14.6 12.4 9.3 7.4 5.9 4.7
Rated Torque Nm 2.3 2.7 3.4 7.4 8.5 10.2 13.0 15.9 22.0 26.6 31.2 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0



60JXE450K.76ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1055.6 894.1 712.9 292.3 253.3 211.1 165.2 135.7 88.4 73.1 62.3 52.8 39.6 31.4 24.7 20.3 17.3 14.6 12.4 9.3 7.4 5.9 4.7
Rated Torque Nm 2.6 3.1 3.8 8.4 9.7 11.7 14.9 18.0 25.1 30.4 35.6 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0



60JXE450K.76ZYT05A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1055.6 894.1 712.9 292.3 253.3 211.1 165.2 135.7 88.4 73.1 62.3 52.8 39.6 31.4 24.7 20.3 17.3 14.6 12.4 9.3 7.4 5.9 4.7
Rated Torque Nm 2.9 3.4 4.0 9.5 10.9 13.1 16.8 18.0 28.3 34.2 36.0 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0



60JXE450K.76ZYT06A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1055.6 894.1 712.9 292.3 253.3 211.1 165.2 135.7 88.4 73.1 62.3 52.8 39.6 31.4 24.7 20.3 17.3 14.6 12.4 9.3 7.4 5.9 4.7
Rated Torque Nm 3.2 3.8 4.0 10.5 12.2 14.6 18.0 18.0 31.4 36.0 36.0 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0









Gear Motor Drawing:



60JXE450K.76ZYT Big Torque Pmdc Brush Dc Motor Planetary Gear Motors 12v 24v 36v 3Nm 5Nm 8Nm 10Nm 45Nm 0

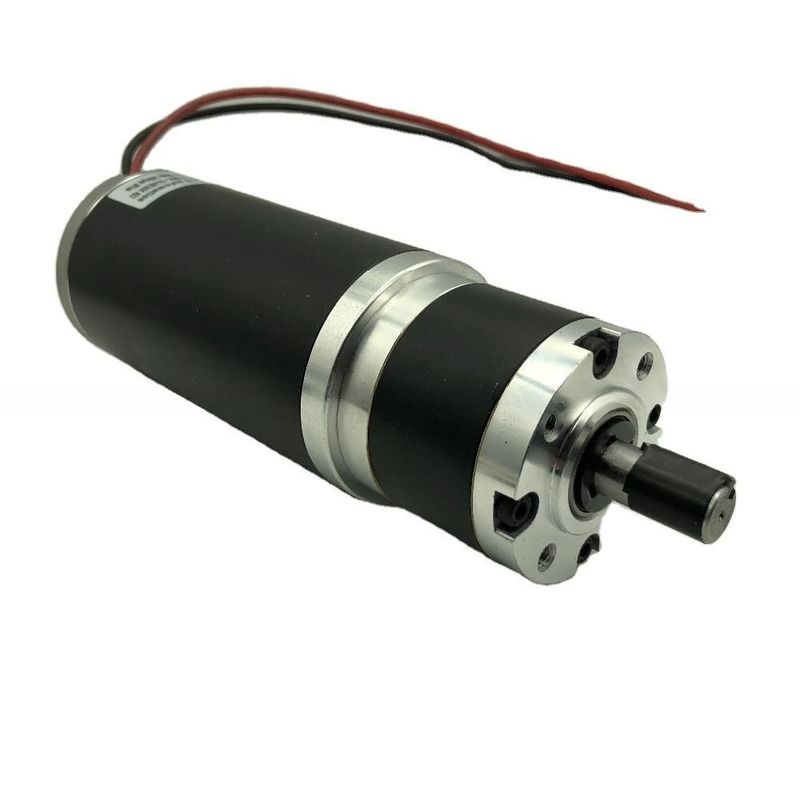

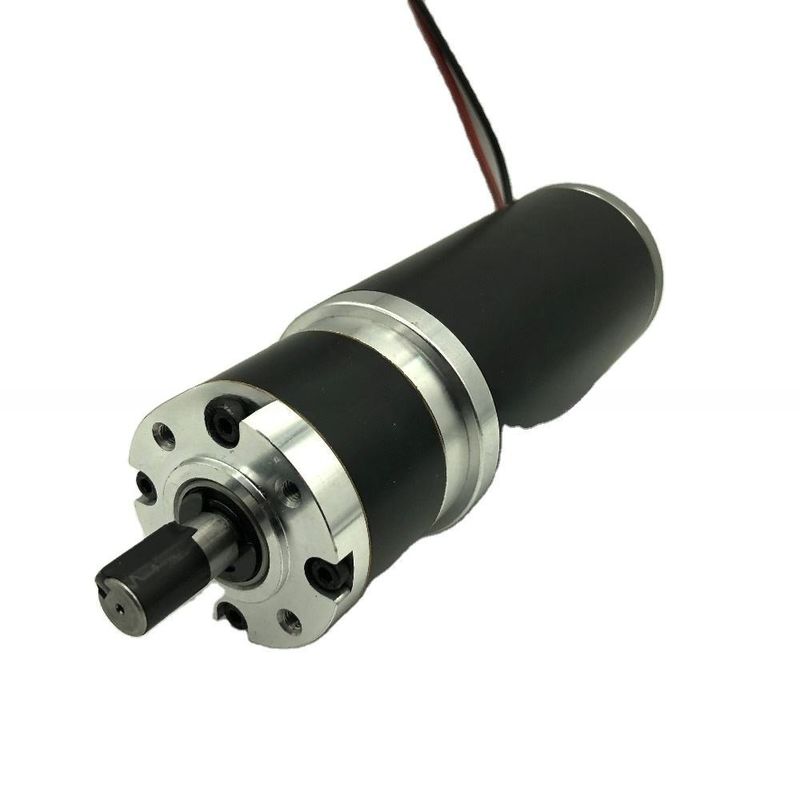

Motor picture:
