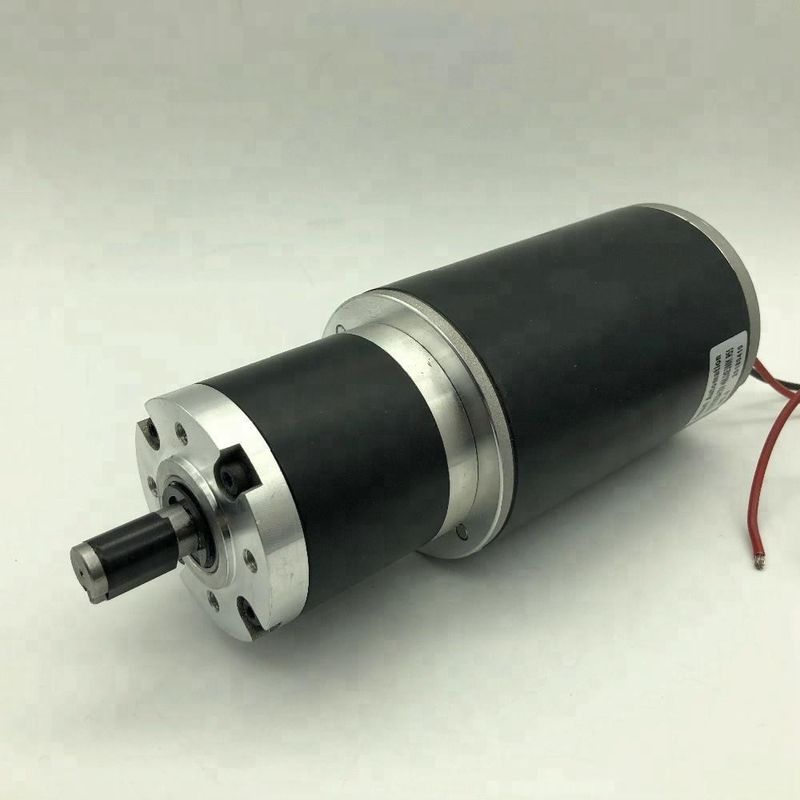

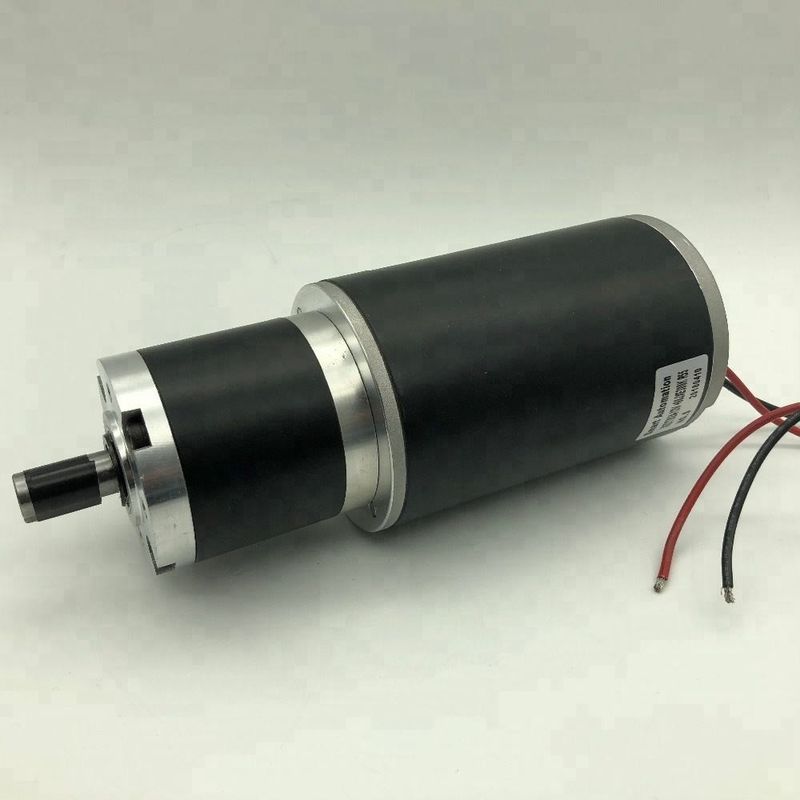

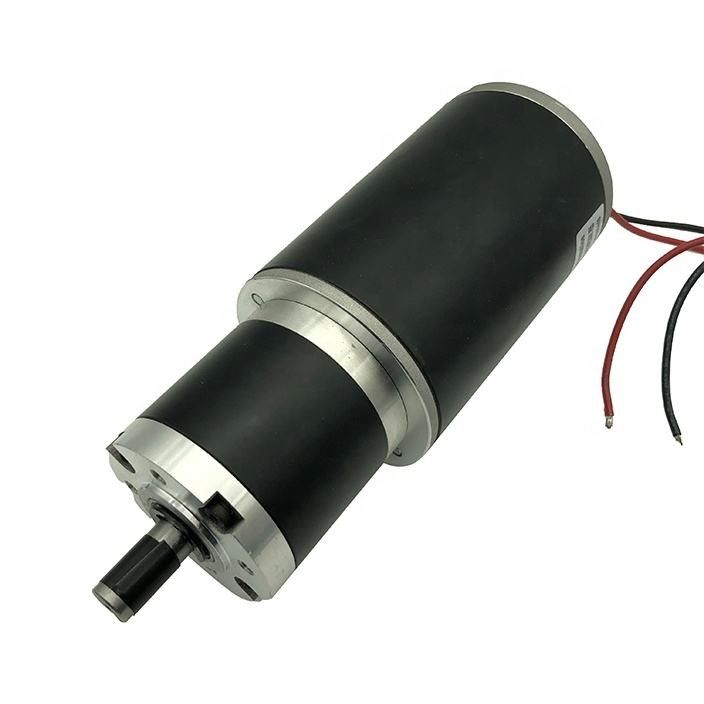

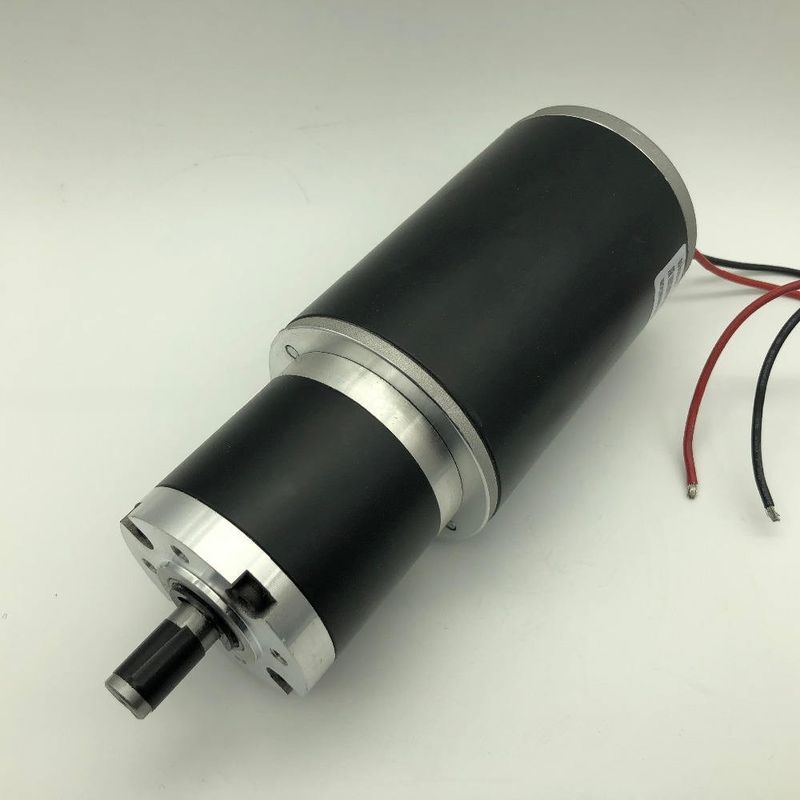

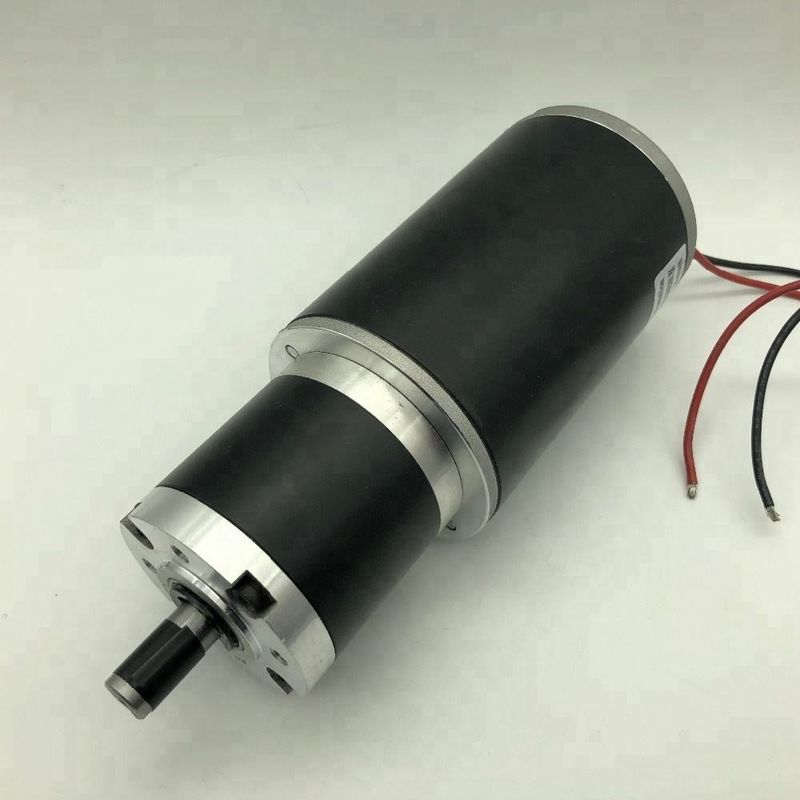

60JXE450K.80ZYT SERIES High Power 24v 48v DC Motor High Torque  Low Speed

60JXE450K.80ZYT SERIES High Power 24v 48v DC Motor High Torque Low Speed

  • Highlight

    60JXE450K.80ZYT high power dc motor

    ,

    high power dc motor with planetary gearhead

    ,

    60JXE450K.80ZYT 48v dc motor high torque

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    GEAR MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    60JXE450K.80ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

60JXE450K.80ZYT SERIES High Power 24v 48v DC Motor High Torque Low Speed

Brushed DC Planetary Gear Motor 60JXE450K.80ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



80ZYT Motor Main Technical Specification:

Model Unit 80ZYT01A 80ZYT02A 80ZYT03A 80ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 3600 3500 3500
Rated Torque N.m 0.6 0.8 1.0 1.2
Rated Speed Rpm 3150 3150 3050 3050
Rated Current A 10.0 13.5 15.5 20.0
Output Power W 200 265 320 383
Weight Kg 2.5 3 3.5 4.0
Motor Length Mm 120 140 160 175



60JXE450K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) ≤400N
Max. Shaft Axial Load ≤120N
Radial Play of Shaft (Near to Flange) ≤0.08mm
Axial Play of Shaft ≤0.4mm
Backlash at No-load) 2.5°
Max Shaft Press Fit Force ≤300N



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.6 1/4.25 1/5.33 4 N.m 12 N.m 90% 40.3±0.5 520
1/13 1/15 1/18 1/23 1/28 18 N.m 50 N.m 81% 53.8±0.5 710
1/43 1/52 1/61 1/72 1/96 1/121 36 N.m 100 N.m 73% 67.2±0.5 900

1/154 1/187 1/220 1/260 1/307

1/409 1/514 1/645 1/809

45 N.m 110N.m 66% 80.6±0.5 1100





60JXE450K.80ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 1.9 2.3 2.9 6.3 7.3 8.7 11.2 13.6 18.8 22.8 26.7 31.5 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 875.0 741.2 591.0 242.3 210.0 175.0 137.0 112.5 73.3 60.6 51.6 43.8 32.8 26.0 20.5 16.8 14.3 12.1 10.3 7.7 6.1 4.9 3.9





60JXE450K.80ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 2.6 3.1 3.8 8.4 9.7 11.7 14.9 18.0 25.1 30.4 35.6 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 875.0 741.2 591.0 242.3 210.0 175.0 137.0 112.5 73.3 60.6 51.6 43.8 32.8 26.0 20.5 16.8 14.3 12.1 10.3 7.7 6.1 4.9 3.9





60JXE450K.80ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 972.2 823.5 656.7 269.2 233.3 194.4 152.2 125.0 81.4 67.3 57.4 48.6 36.5 28.9 22.7 18.7 15.9 13.5 11.4 8.6 6.8 5.4 4.3
Rated Torque Nm 3.2 3.8 4.8 10.5 12.2 14.6 18.0 18.0 31.4 36.0 36.0 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 847.2 717.6 572.2 234.6 203.3 169.4 132.6 108.9 70.9 58.7 50.0 42.4 41.7 25.2 19.8 16.3 13.9 11.7 9.9 7.5 5.9 4.7 3.8





60JXE450K.80ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 972.2 823.5 656.7 269.2 233.3 194.4 152.2 125.0 81.4 67.3 57.4 48.6 36.5 28.9 22.7 18.7 15.9 13.5 11.4 8.6 6.8 5.4 4.3
Rated Torque Nm 3.9 4.0 4.0 12.6 14.6 17.5 18.0 18.0 36.0 36.0 36.0 36.0 36.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 847.2 717.6 572.2 234.6 203.3 169.4 132.6 108.9 70.9 58.7 50.0 42.4 41.7 25.2 19.8 16.3 13.9 11.7 9.9 7.5 5.9 4.7 3.8







Gear Motor Drawing:
