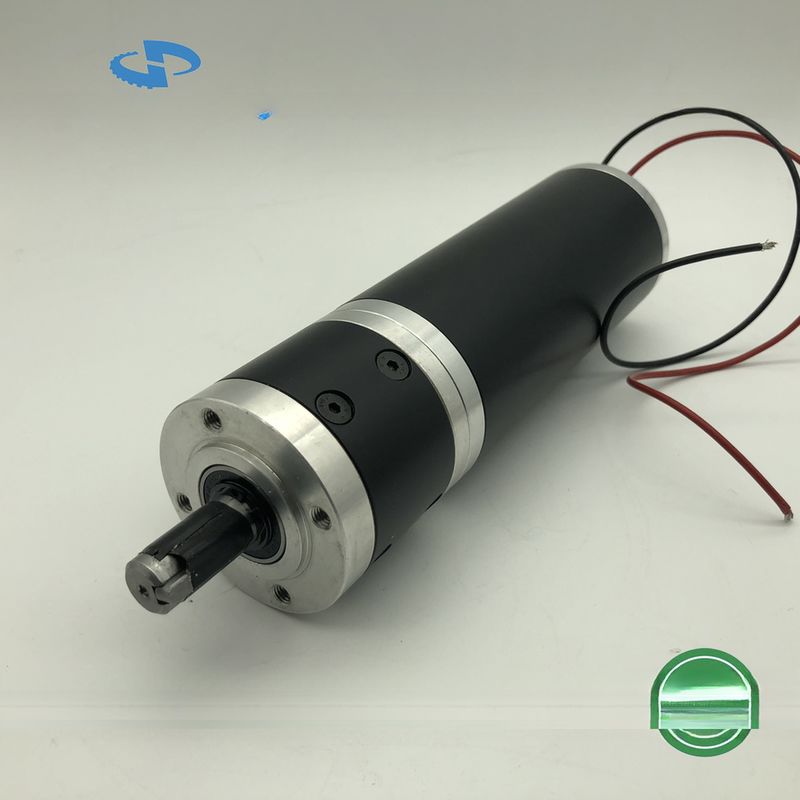

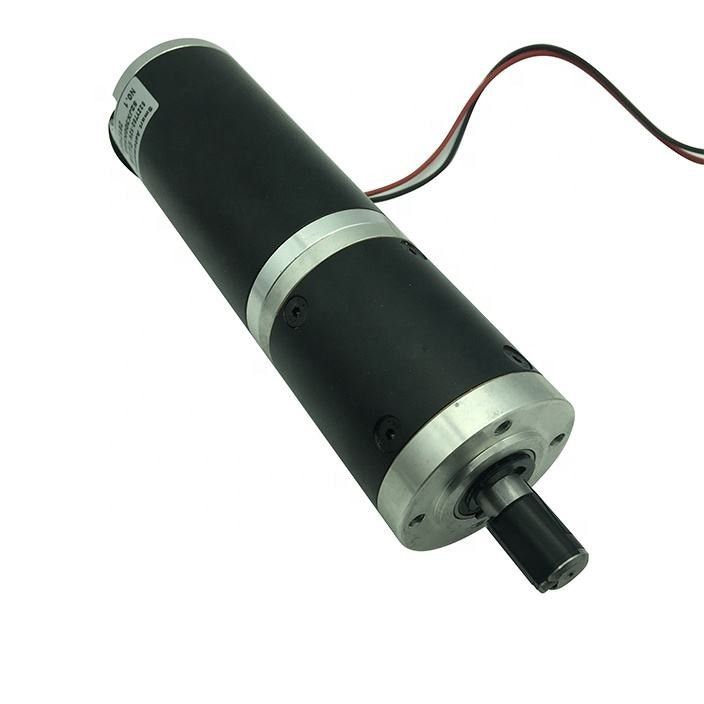

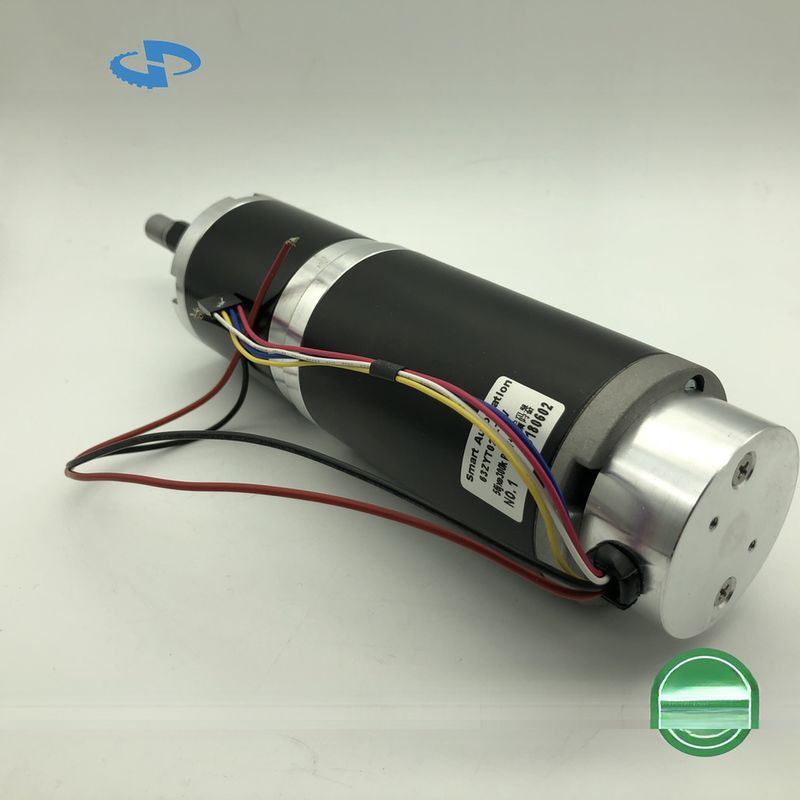

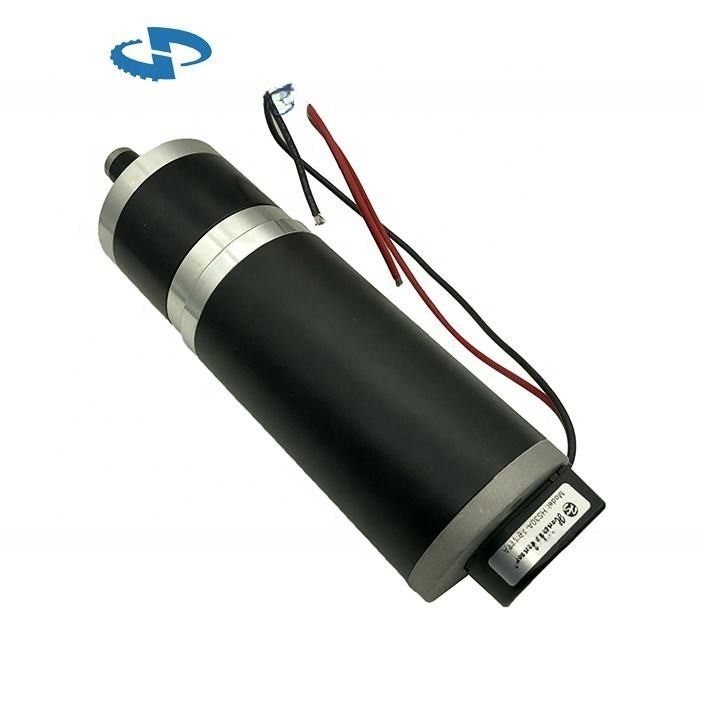

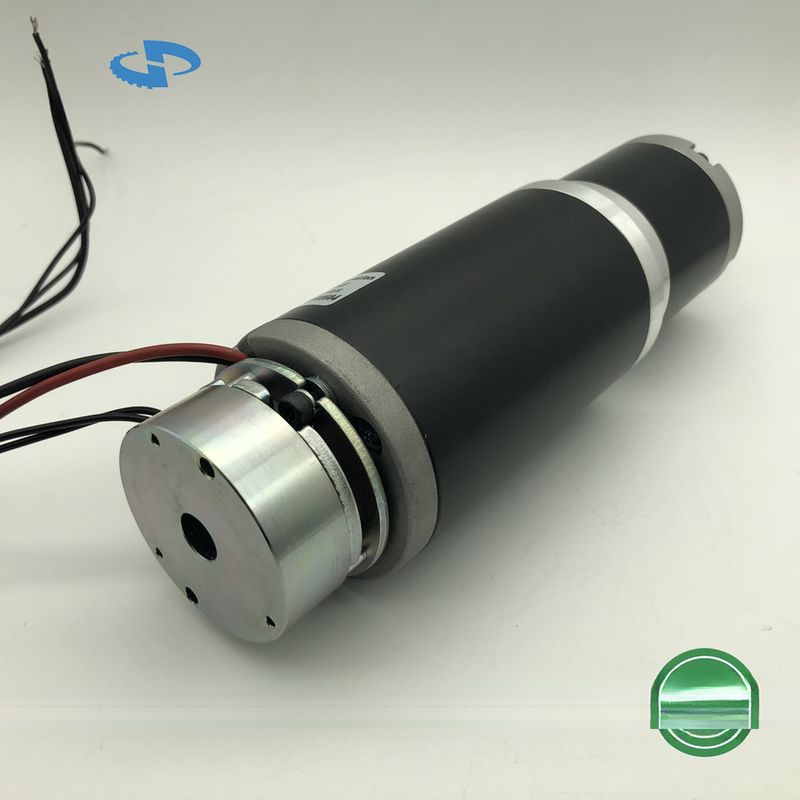

OD52mm 52JXE300K.52ZYT PM DC Planetary Gear Motors 12 volt 24 volt 36 volt 48 volt 3Nm 5Nm 8Nm 10Nm upto 20Nm

OD52mm 52JXE300K.52ZYT PM DC Planetary Gear Motors 12 volt 24 volt 36 volt 48 volt 3Nm 5Nm 8Nm 10Nm upto 20Nm

  • Highlight

    52JX300K.52ZYT dc planetary gear motors

    ,

    planetary gear motor 24v 5rpm

    ,

    52JX300K.52ZYT planetary gear motor 24v

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    5rpm~1000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, FAN, Home Appliance, Machinery
  • Type
    GEAR MOTOR
  • Torque
    1N.m~30N.m
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    52JXE300K.52ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

OD52mm 52JXE300K.52ZYT PM DC Planetary Gear Motors 12 volt 24 volt 36 volt 48 volt 3Nm 5Nm 8Nm 10Nm upto 20Nm

Brushed DC Planetary Gear Motor 52JXE300K.52ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



Motor Main Technical Specification:

Model Unit 52ZYT01A 52ZYT02A 52ZYT03A 52ZYT04A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 4200 4200
Rated Torque N.m 0.11 0.20 0.27 0.35
Rated Speed Rpm 3700 3500 3600 3600
Rated Current A 2.5 4.2 5.8 7.4
Output Power W 42.5 73 102 132
Weight Kg 0.85 1.0 1.15 1.30
Motor Length Mm 95 110 125 140





52JXE300K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) 250N
Max. Shaft Axial Load 100N
Radial Play of Shaft (Near to Flange) ≤0.08mm
Axial Play of Shaft ≤0.4mm
Backlash at No-load) 2.5°
Max Shaft Press Fit Force 300N





Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.6 1/4.3 2.0N.m 6.0N.m 90% 45.7±0.5 442
1/13 1/15 1/18 8.0N.m 25N.m 81% 57.2±0.5 574
1/47 1/55 1/65 1/77 16.0N.m 50N.m 73% 68.5±0.5 702
1/168 1/198 1/234 1/276 1/326 20N.m 60N.m 66% 79.8±0.5 837



52JXE300K.52ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 47 55 65 77 168 198 234 276 326
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 66% 66% 66% 66% 66%
No Load Speed Rpm 1166.7 976.7 323.1 280.0 233.3 89.4 76.4 64.6 54.5 25.0 21.2 17.9 15.2 12.9
Rated Torque Nm 0.4 0.4 1.2 1.3 1.6 3.8 4.4 5.2 6.2 12.2 14.4 17.0 20.0 20.0
Rated Speed Rpm 1027.8 860.5 284.6 246.7 205.6 78.7 67.3 56.9 48.1 22.0 18.7 15.8 13.4 11.3



52JXE300K.52ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 47 55 65 77 168 198 234 276 326
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 66% 66% 66% 66% 66%
No Load Speed Rpm 1166.7 976.7 323.1 280.0 233.3 89.4 76.4 64.6 54.5 25.0 21.2 17.9 15.2 12.9
Rated Torque Nm 0.6 0.8 2.1 2.4 2.9 6.9 8.0 9.5 11.2 20.0 20.0 20.0 20.0 20.0
Rated Speed Rpm 972.2 814.0 269.2 233.3 194.4 74.5 63.6 53.8 45.5 20.8 17.7 15.0 12.7 10.7



52JXE300K.52ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 47 55 65 77 168 198 234 276 326
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 66% 66% 66% 66% 66%
No Load Speed Rpm 1166.7 976.7 323.1 280.0 233.3 89.4 76.4 64.6 54.5 25.0 21.2 17.9 15.2 12.9
Rated Torque Nm 0.9 1.0 2.8 3.3 3.9 9.3 10.8 12.8 15.2 20.0 20.0 20.0 20.0 20.0
Rated Speed Rpm 1000.0 837.2 276.9 240.0 200.0 76.6 65.5 55.4 46.8 21.4 18.2 15.4 13.0 11.0



52JXE300K.52ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 47 55 65 77 168 198 234 276 326
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 66% 66% 66% 66% 66%
No Load Speed Rpm 1166.7 976.7 323.1 280.0 233.3 89.4 76.4 64.6 54.5 25.0 21.2 17.9 15.2 12.9
Rated Torque Nm 1.1 1.4 3.7 4.3 5.1 12.0 14.1 16.0 16.0 20.0 20.0 20.0 20.0 20.0
Rated Speed Rpm 1000.0 837.2 276.9 240.0 200.0 76.6 65.5 55.4 46.8 21.4 18.2 15.4 13.0 11.0



Gear Motor Drawing:
