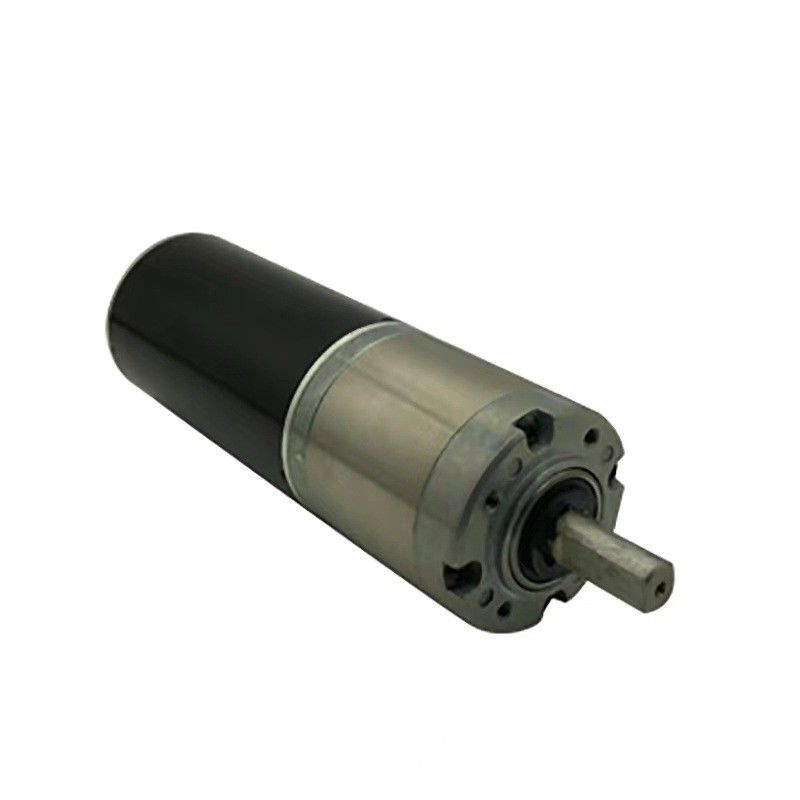

36JXL50K.36ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

36JXL50K.36ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

Products - Brush DC Planetary Gear Motor
  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customized For Different Power
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    GEAR MOTOR
  • Torque
    Upto 15Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    36JXL50K.36ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

36JXL50K.36ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

  • 36JXL50K.36ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
Get Price Contact Now

Brushed DC Planetary Gear Motor 36JXL50K.36ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Option: Customized Voltage Performance Mounting and Shaft



36ZYT Motor Main Technical Specification:

Model Unit 36ZYT01A 36ZYT02A 36ZYT03A
Rated Voltage VDC

24v (option for 12v up to 48vdc)


No Load Speed Rpm 3800 3800 3800
Rated Speed Rpm 3000 3000 3000
Rated Torque mN.m 20 30 40
Rated Current A 0.4 0.6 0.8
Output Power W 6.3 9.4 12.6
Weight g 260 300 340
Motor Length Mm 60 70 80



36JXL50K Planetary Gearbox Specifications:

Ring Material Powder Metal
Bearing at Output all bearings
Max. Radial Load (10mm from Flange) ≤ 100N
Max. Shaft Axial Load ≤ 50N
Radial Play of Shaft (Near to Flange) ≤0.07mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤ 120N



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/14 1/19 1/22 1/27 1/35 2.0 N.m 6 N.m 81% 38.4±0.5 240
1/49 1/59 1/68 1/82 1/95 1/115 4.0 N.m 10 N.m 73% 45.7±0.5 280

1/181 1/218 1/253 1/305 1/354

1/426 1/495 1/596

 5 N.m 12 N.m 66% 53.0±0.5 330



36JXL50K.36ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 271.4 200.0 172.7 140.7 108.6 77.6 64.4 55.9 46.3 40.0 33.0 21.0 17.4 15.0 12.5 10.7 8.9 7.7 6.4
Rated Torque Nm 0.2 0.3 0.4 0.4 0.6 0.7 0.9 1.0 1.2 1.4 1.7 2.4 2.9 3.3 4.0 4.7 5.0 5.0 5.0
Rated Speed Rpm 214.3 157.9 136.4 111.1 85.7 61.2 50.8 44.1 36.6 31.6 26.1 16.6 13.8 11.9 9.8 8.5 7.0 6.1 5.0





36JXL50K.36ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 271.4 200.0 172.7 140.7 108.6 77.6 64.4 55.9 46.3 40.0 33.0 21.0 17.4 15.0 12.5 10.7 8.9 7.7 6.4
Rated Torque Nm 0.3 0.5 0.5 0.7 0.9 1.1 1.3 1.5 1.8 2.1 2.5 3.6 4.3 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 214.3 157.9 136.4 111.1 85.7 61.2 50.8 44.1 36.6 31.6 26.1 16.6 13.8 11.9 9.8 8.5 7.0 6.1 5.0





36JXL50K.36ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 271.4 200.0 172.7 140.7 108.6 77.6 64.4 55.9 46.3 40.0 33.0 21.0 17.4 15.0 12.5 10.7 8.9 7.7 6.4
Rated Torque Nm 0.5 0.6 0.7 0.9 1.1 1.4 1.7 2.0 2.4 2.8 3.4 4.8 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 214.3 157.9 136.4 111.1 85.7 61.2 50.8 44.1 36.6 31.6 26.1 16.6 13.8 11.9 9.8 8.5 7.0 6.1 5.0





Gear Motor Drawing:



36JXL50K.36ZYT Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version 0
