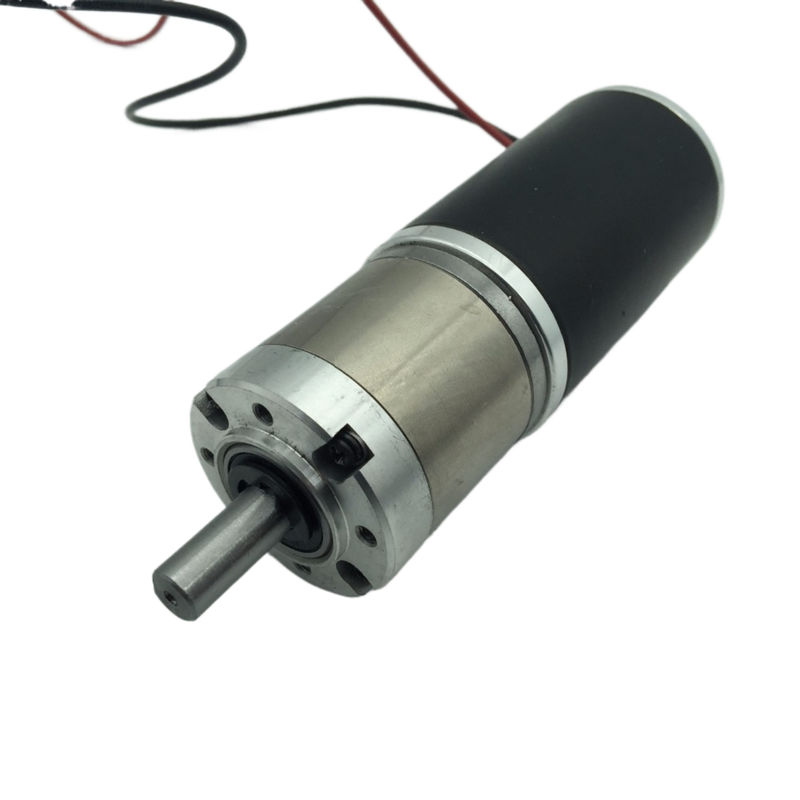

36JXL50K.38ZYN Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

36JXL50K.38ZYN Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

Products - Brush DC Planetary Gear Motor
  • Highlight

    Low Noise Planetary Gear Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customized For Different Power
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    GEAR MOTOR
  • Torque
    Upto 15Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    36JXL50K.38ZYN
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

36JXL50K.38ZYN Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version

  • 36JXL50K.38ZYN Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version
Get Price Contact Now

Brushed DC Planetary Gear Motor 36JXL50K.38ZYN Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Option: Customized Voltage Performance Mounting and Shaft



38ZYN Motor Main Technical Specification:

Model Unit 38ZYN01A 38ZYN02A 38ZYN03A 38ZYN04A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 3950 3950 3950 3950
Rated Torque mN.m 55 70 100 120
Rated Speed Rpm 3300 3250 3200 3200
Rated Current A 1.13 1.42 2.0 2.4
Output Power W 19 23.8 33.5 40
Weight G 260 300 350 390
Motor Length Mm 60 70 80 90





36JXL50K Planetary Gearbox Specifications:

Ring Material Powder Metal
Bearing at Output all bearings
Max. Radial Load (10mm from Flange) ≤ 100N
Max. Shaft Axial Load ≤ 50N
Radial Play of Shaft (Near to Flange) ≤0.07mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤ 120N



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/14 1/19 1/22 1/27 1/35 2.0 N.m 6 N.m 81% 38.4±0.5 240
1/49 1/59 1/68 1/82 1/95 1/115 4.0 N.m 10 N.m 73% 45.7±0.5 280

1/181 1/218 1/253 1/305 1/354

1/426 1/495 1/596

 5.0 N.m 12 N.m 66% 53.0±0.5 330





36JXL50K.38ZYN01A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 282.1 207.9 179.5 146.3 112.9 80.6 66.9 58.1 48.2 41.6 34.3 21.8 18.1 15.6 13.0 11.2 9.3 8.0 6.6
Rated Torque Nm 0.6 0.8 1.0 1.2 1.6 2.0 2.4 2.7 3.3 3.8 4.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 235.7 173.7 150.0 122.2 94.3 67.3 55.9 48.5 40.2 34.7 28.7 18.2 15.1 13.0 10.8 9.3 7.7 6.7 5.5





36JXL50K.38ZYN02A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 282.1 207.9 179.5 146.3 112.9 80.6 66.9 58.1 48.2 41.6 34.3 21.8 18.1 15.6 13.0 11.2 9.3 8.0 6.6
Rated Torque Nm 0.8 1.1 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 232.1 171.1 147.7 120.4 92.9 66.3 55.1 47.8 39.6 34.2 28.3 18.0 14.9 12.8 10.7 9.2 7.6 6.6 5.5





36JXL50K.38ZYN03A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 282.1 207.9 179.5 146.3 112.9 80.6 66.9 58.1 48.2 41.6 34.3 21.8 18.1 15.6 13.0 11.2 9.3 8.0 6.6
Rated Torque Nm 1.1 1.5 1.8 2.0 2.0 3.6 4.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 228.6 168.4 145.5 118.5 91.4 65.3 54.2 47.1 39.0 33.7 27.8 17.7 14.7 12.6 10.5 9.0 7.5 6.5 5.4





36JXL50K.38ZYN04A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 22 27 35 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 282.1 207.9 179.5 146.3 112.9 80.6 66.9 58.1 48.2 41.6 34.3 21.8 18.1 15.6 13.0 11.2 9.3 8.0 6.6
Rated Torque Nm 1.4 1.8 2.0 2.0 2.0 4.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Rated Speed Rpm 228.6 168.4 145.5 118.5 91.4 65.3 54.2 47.1 39.0 33.7 27.8 17.7 14.7 12.6 10.5 9.0 7.5 6.5 5.4





Gear Motor Drawing:



36JXL50K.38ZYN Brushed DC Planetary Gear Motor 12v 24v, with Helical Gears Low Noise version 0
