Brushed DC Planetary Gear Motor 42JXL100K.42ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



42ZYT Motor Main Technical Specification:

Model Unit 42ZYT01A 42ZYT02A 42ZYT03A 42ZYT04A 42ZYT05A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 3800 4200 4200
Rated Torque mN.m 38 43 57 70 105
Rated Speed Rpm 3600 3600 3100 3600 3600
Rated Current A 0.86 0.98 1.2 1.6 2.3
Output Power W 14.5 16.2 18.50 26.5 40
Weight G 390 460 500 540 700
Motor Length Mm 70 80 85 90 115





42JXL100K Planetary Gearbox Specifications:

Ring Material Powder Metal
Bearing at Output all bearings
Max. Radial Load (12mm from Flange) ≤ 200N
Max. Shaft Axial Load ≤ 100N
Radial Play of Shaft (Near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤ 150N



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/14 1/19 1/27 4.0 N.m 12 N.m 81% 42.1±0.5 314
1/49 1/59 1/68 1/82 1/95 1/115 8.0 N.m 25 N.m 73% 52.5±0.5 433

1/181 1/218 1/253

1/305 1/354 1/426

1/495 1/596

 10 N.m 30 N.m 66% 62.9±0.5 519



42JXL100K.42ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.4 0.6 0.8 1.4 1.6 1.9 2.3 2.6 3.2 4.5 5.5 6.3 7.6 8.9 10.0 10.0 10.0
Rated Speed Rpm 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL100K.42ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.5 0.7 0.9 1.5 1.9 2.1 2.6 3.0 3.6 5.1 6.2 7.2 8.7 10.0 10.0 10.0 10.0
Rated Speed Rpm 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL100K.42ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 271.4 200.0 140.7 77.6 64.4 55.9 46.3 40.0 33.0 21.0 17.4 15.0 12.5 10.7 8.9 7.7 6.4
Rated Torque Nm 0.6 0.9 1.2 2.0 2.5 2.8 3.4 4.0 4.8 6.8 8.2 9.5 10.0 10.0 10.0 10.0 10.0
Rated Speed Rpm 221.4 163.2 114.8 63.3 52.5 45.6 37.8 32.6 27.0 17.1 14.2 12.3 10.2 8.8 7.3 6.3 5.2



42JXL100K.42ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.8 1.1 1.5 2.5 3.0 3.5 4.2 4.9 5.9 8.4 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Rated Speed Rpm 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



42JXL100K.42ZYT05A Planetary Gear Motor Specifications:

Reduction ratio Unit 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 1.2 1.6 2.3 3.8 4.5 5.2 6.3 7.3 8.8 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Rated Speed Rpm 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0



Gear Motor Drawing:

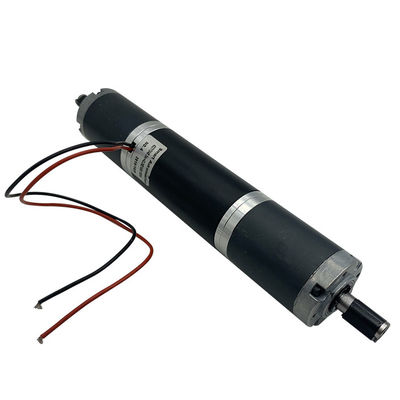

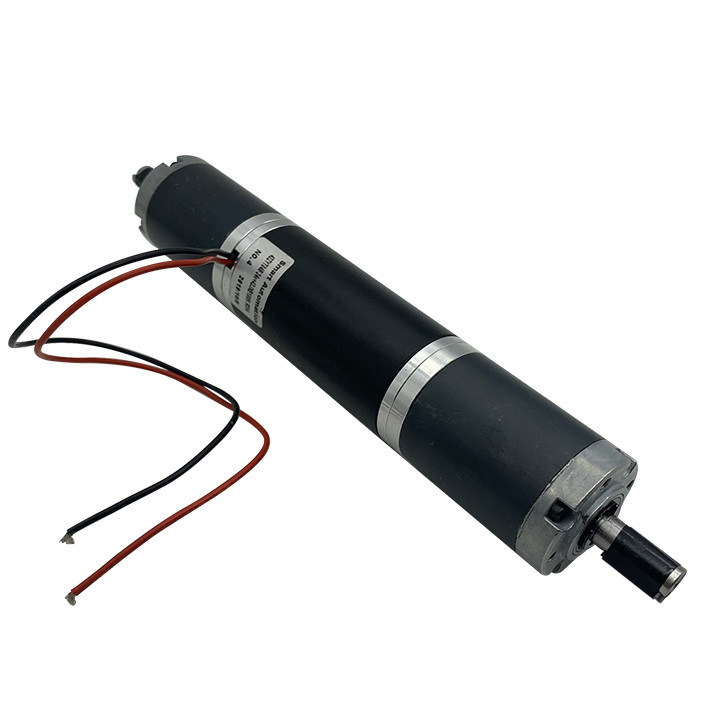

Motor picture



42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version





Option : Brake integrated

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version







Option : Encoder integrated

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version



Option: double gearboxes

42mm small size high torque Dc Planetary Geared Reducer Motor, with Helical Gears Low Noise version
