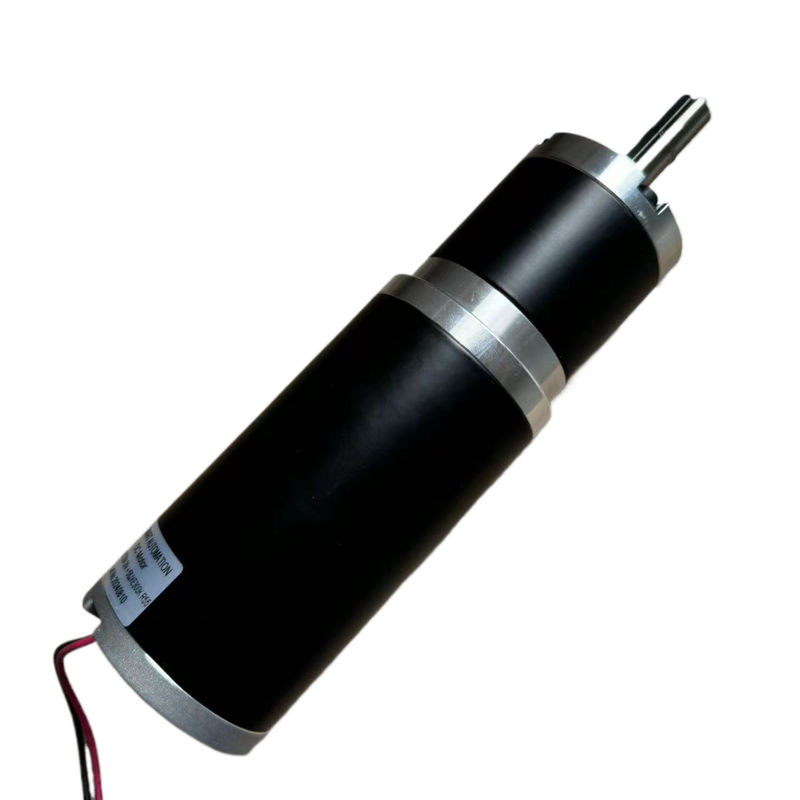

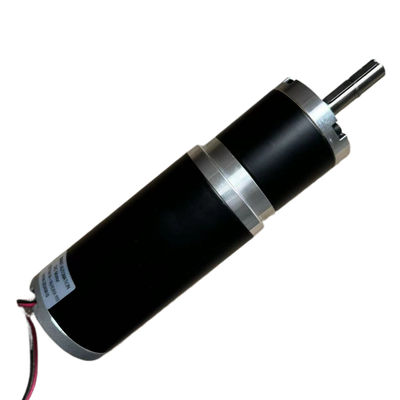

Brushed DC Planetary Gear Motor 60JXE450K.63ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

认证:CE 和 ROHS Certifications: CE and ROHS



63ZYT Motor Main Technical Specification:

Model Unit 63ZYT01A 63ZYT01B 63ZYT02A 63ZYT03A 63ZYT03B 63ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 4700 3600 3600 4700 3600
Torque N.m 0.15 0.20 0.31 0.40 0.40 0.50
Rated Speed Rpm 3200 4000 3100 3000 4000 3000
Rated Current A 2.8 5.5 5.8 7.0 10.5 9.0
Output Power W 50 84 100 125 168 157
Weight Kg 1 1 1.2 1.35 1.35 1.5
Motor Length Mm 95 95 110 125 125 140



60JXE450K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) ≤400N
Max. Shaft Axial Load ≤120N
Radial Play of Shaft (Near to Flange) ≤0.08mm
Axial Play of Shaft ≤0.4mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤300N
Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.6 1/4.25 1/5.33 4 N.m 12 N.m 90% 40.3±0.5 520
1/13 1/15 1/18 1/23 1/28 18 N.m 50 N.m 81% 53.8±0.5 710
1/43 1/52 1/61 1/72 1/96 1/121 36 N.m 100 N.m 73% 67.2±0.5 900

1/154 1/187 1/220 1/260 1/307

1/409 1/514 1/645 1/809

 45 N.m 110N.m 66% 80.6±0.5 1100



60JXE450K.63ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 0.5 0.6 0.7 1.6 1.8 2.2 2.8 3.4 4.7 5.7 6.7 7.9 10.5 13.2 15.2 18.5 21.8 25.7 30.4 40.5 45.0 45.0 45.0
Rated Speed Rpm 888.9 752.9 600.4 246.2 213.3 177.8 139.1 114.3 74.4 61.5 52.5 44.4 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0 4.0





60JXE450K.63ZYT01B Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1305.6 1105.9 881.8 361.5 313.3 261.1 204.3 167.9 109.3 90.4 77.0 65.3 49.0 38.8 30.5 25.1 21.4 18.1 15.3 11.5 9.1 7.3 5.8
Rated Torque Nm 0.6 0.8 1.0 2.1 2.4 2.9 3.7 4.5 6.3 7.6 8.9 10.5 14.0 17.7 20.3 24.7 29.0 34.3 40.5 45.0 45.0 45.0 45.0
Rated Speed Rpm 1111.1 941.2 750.5 307.7 266.7 222.2 173.9 142.9 93.0 76.9 65.6 55.6 41.7 33.1 26.0 21.4 18.2 15.4 13.0 9.8 7.8 6.2 4.9





60JXE450K.63ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 1.0 1.2 1.5 3.3 3.8 4.5 5.8 7.0 9.7 11.8 13.8 16.3 21.7 27.4 31.5 38.3 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 861.1 729.4 581.6 238.5 206.7 172.2 134.8 110.7 72.1 59.6 50.8 43.1 32.3 25.6 20.1 16.6 14.1 11.9 10.1 7.6 6.0 4.8 3.8





60JXE450K.63ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 1.3 1.5 1.9 4.2 4.9 5.8 7.5 9.1 12.6 15.2 17.8 21.0 28.0 35.3 40.7 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 833.3 705.9 562.9 230.8 200.0 166.7 130.4 107.1 69.8 57.7 49.2 41.7 31.3 24.8 19.5 16.0 13.6 11.5 9.8 7.3 5.8 4.7 3.7





60JXE450K.63ZYT03B Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1305.6 1105.9 881.8 361.5 313.3 261.1 204.3 167.9 109.3 90.4 77.0 65.3 49.0 38.8 30.5 25.1 21.4 18.1 15.3 11.5 9.1 7.3 5.8
Rated Torque Nm 1.3 1.5 1.9 4.2 4.9 5.8 7.5 9.1 12.6 15.2 17.8 21.0 28.0 35.3 40.7 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 1111.1 941.2 750.5 307.7 266.7 222.2 173.9 142.9 93.0 76.9 65.6 55.6 41.7 33.1 26.0 21.4 18.2 15.4 13.0 9.8 7.8 6.2 4.9





60JXE450K.63ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.25 5.33 13 15 18 23 28 43 52 61 72 96 121 154 187 220 260 307 409 514 645 809
Efficiency   90% 90% 90% 81% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 847.1 675.4 276.9 240.0 200.0 156.5 128.6 83.7 69.2 59.0 50.0 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6 4.4
Rated Torque Nm 1.6 1.9 2.4 5.3 6.1 7.3 9.3 11.3 15.7 19.0 22.3 26.3 35.0 36.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0
Rated Speed Rpm 833.3 705.9 562.9 230.8 200.0 166.7 130.4 107.1 69.8 57.7 49.2 41.7 31.3 24.8 19.5 16.0 13.6 11.5 9.8 7.3 5.8 4.7 3.7





Gear Motor Drawing:
