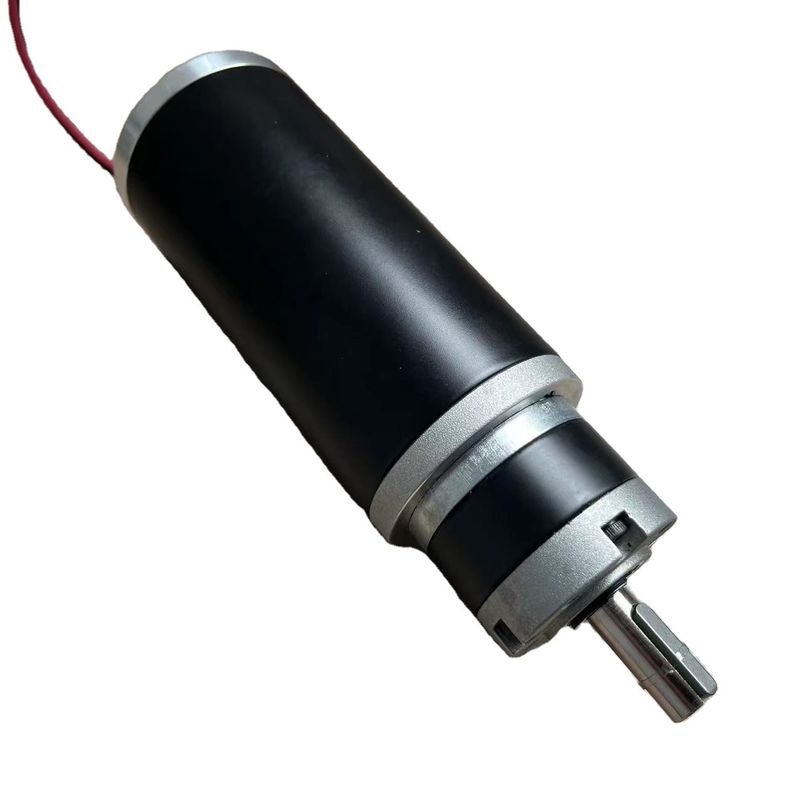

Brushed DC Planetary Gear Motor 42JXL150K.52ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



52ZYT Motor Main Technical Specification:

Model Unit 52ZYT01A 52ZYT02A 52ZYT03A 52ZYT04A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 4200 4200
Rated Torque N.m 0.11 0.20 0.27 0.35
Rated Speed Rpm 3700 3500 3600 3600
Rated Current A 2.5 4.2 5.8 7.4
Output Power W 42.5 73 102 132
Weight Kg 0.85 1.0 1.15 1.30
Motor Length Mm 95 110 125 140



42JXL150K Planetary Gearbox Specifications:

Ring Material Powder Metal
Bearing at Output all bearings
Max. Radial Load (12mm from Flange) ≤ 200N
Max. Shaft Axial Load ≤ 100N
Radial Play of Shaft (Near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤ 150N



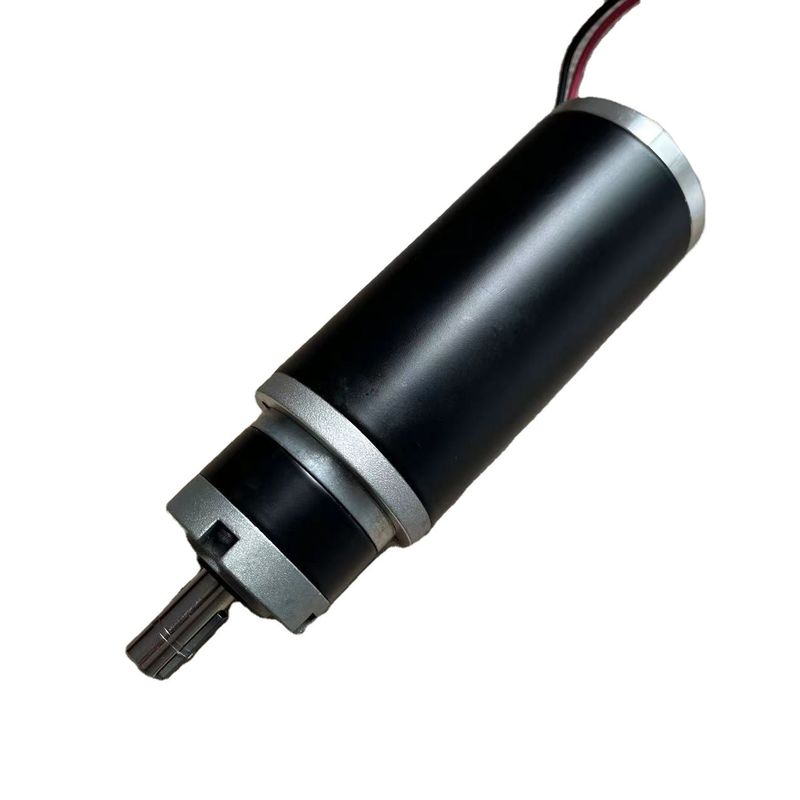

42JXL150K. 52ZYT SERIES High Power 24v 48v DC Motor High Torque Low Speed 0

*Helical Gear Low Noise



Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.71 1/5.18 1.5N.m 4.0 N.m 90% 31.5±0.5 244
1/14 1/19 1/27 4.0 N.m 12 N.m 81% 42.1±0.5 314

1/49 1/59 1/68

1/82 1/95 1/115

 10 N.m 25 N.m 73% 52.5±0.5 433

1/181 1/218 1/253

1/305 1/354 1/426

1/495 1/596

 15 N.m 38 N.m 66% 62.9±0.5 519







42JXL150K.52ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.4 0.5 1.2 1.7 2.4 3.9 4.7 5.5 6.6 7.6 9.2 13.1 15.0 15.0 15.0 15.0 15.0 15.0 15.0
Rated Speed Rpm 997.3 714.3 264.3 194.7 137.0 75.5 62.7 54.4 45.1 38.9 32.2 20.4 17.0 14.6 12.1 10.5 8.7 7.5 6.2





42JXL150K.52ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.7 0.9 2.3 3.1 4.0 7.2 8.6 9.9 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
Rated Speed Rpm 943.4 675.7 250.0 184.2 129.6 71.4 59.3 51.5 42.7 36.8 30.4 19.3 16.1 13.8 11.5 9.9 8.2 7.1 5.9





42JXL150K.52ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 0.9 1.3 3.1 4.0 4.0 9.7 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0





42JXL150K.52ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.71 5.18 14 19 27 49 59 68 82 95 115 181 218 253 305 354 426 495 596
Efficiency   90% 90% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1132.1 810.8 300.0 221.1 155.6 85.7 71.2 61.8 51.2 44.2 36.5 23.2 19.3 16.6 13.8 11.9 9.9 8.5 7.0
Rated Torque Nm 1.3 1.5 4.0 4.0 4.0 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
Rated Speed Rpm 970.4 695.0 257.1 189.5 133.3 73.5 61.0 52.9 43.9 37.9 31.3 19.9 16.5 14.2 11.8 10.2 8.5 7.3 6.0





Gear Motor Drawing:
