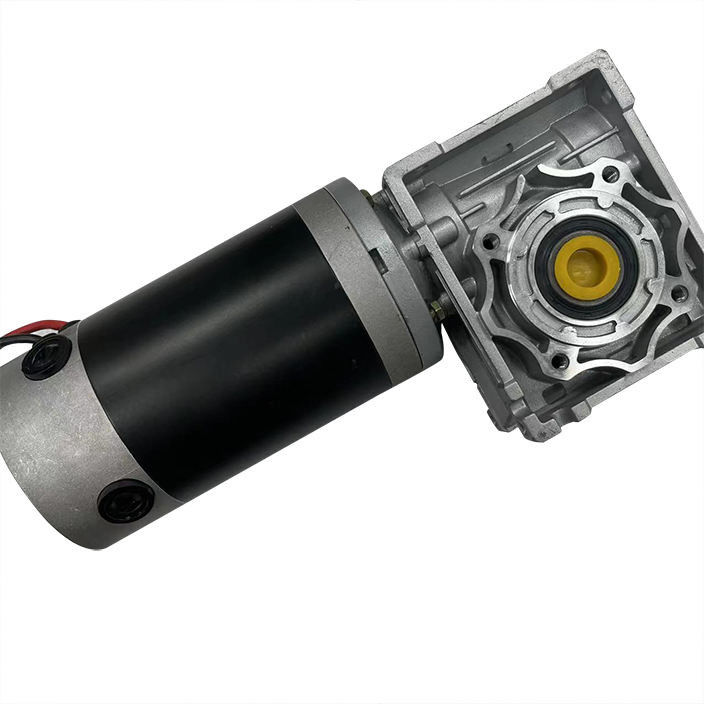

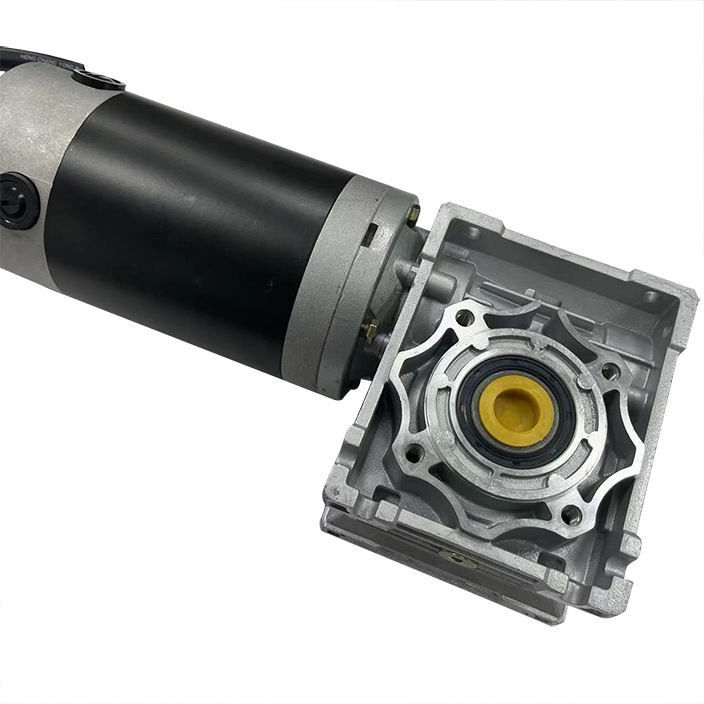

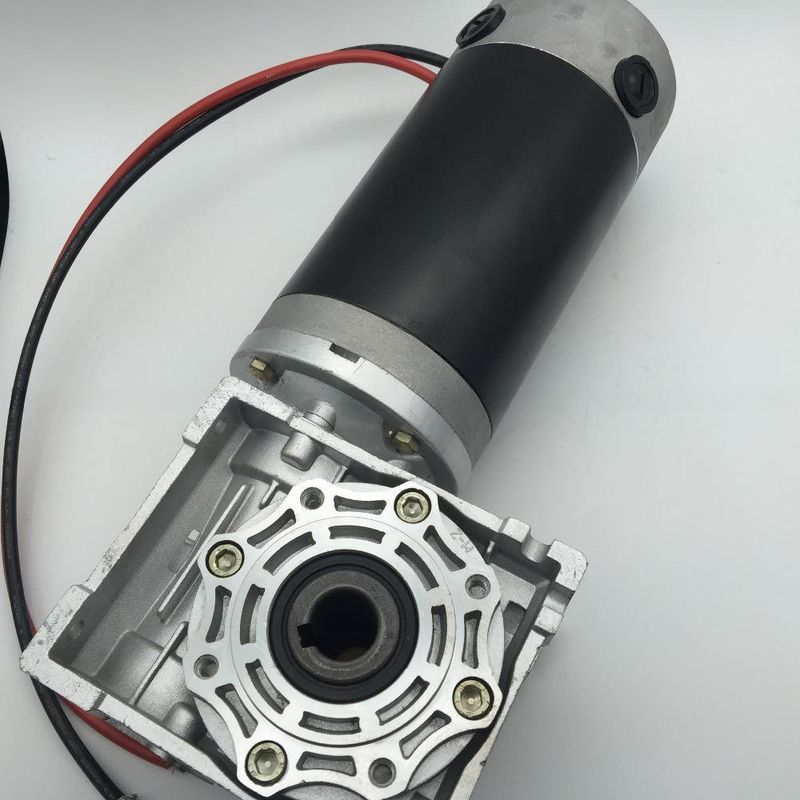

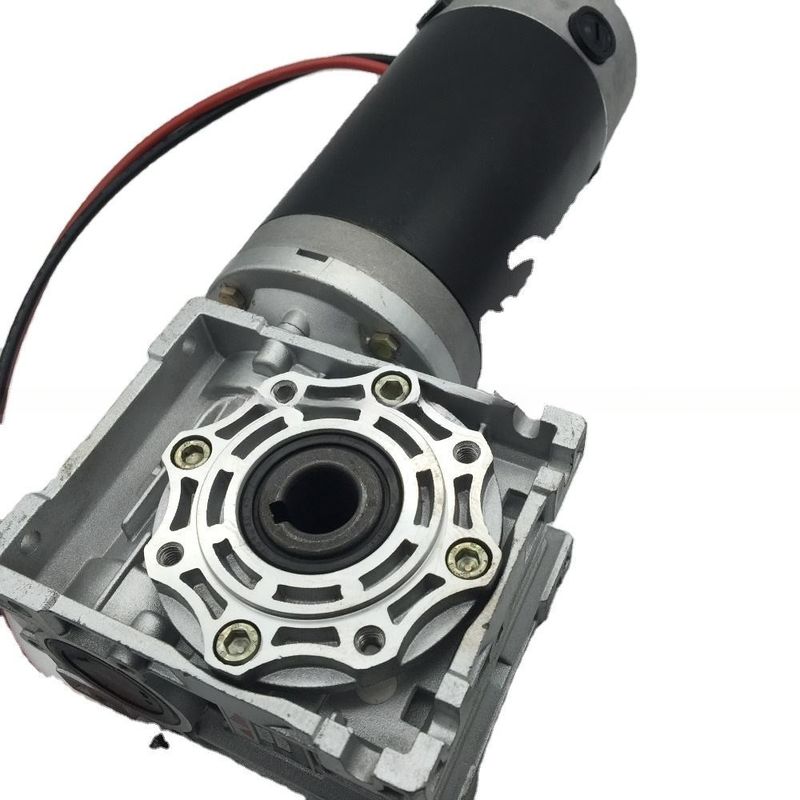

NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v

NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v

Products - Brush DC Worm Gear Motor
  • Highlight

    NMRV050.90ZYT electric worm gearmotor

    ,

    electric worm gearmotor 12v 24v 36v

    ,

    NMRV050.90ZYT worm drive electric motor

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    GEAR MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    NMRV050.90ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v

  • NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
  • NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
  • NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
  • NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
Get Price Contact Now

NMRV050.90ZYT SERIES PM DC WORM GEAR MOTOR



90ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3600
Rated Torque N.m 1.5 2.2 3
Rated Speed Rpm 3000 3000 3000
Rated Current A 26 37 50
Output Power W 471 691 942
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199



NMRV050.90ZYT01A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 6.7 9.5 12.7 18.0 22.5 28.1 31.5 39.0 45.0 49.5 60.0 60.0



NMRV050.90ZYT02A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 9.9 14.0 18.7 26.4 33.0 41.2 46.2 57.2 66.0 72.6 88.0 88.0



NMRV050.90ZYT03A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 13.5 19.1 25.5 36.0 45.0 56.2 63.0 78.0 90.0 99.0 120.0 120.0



Gear Motor Drawing:



NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v 0
