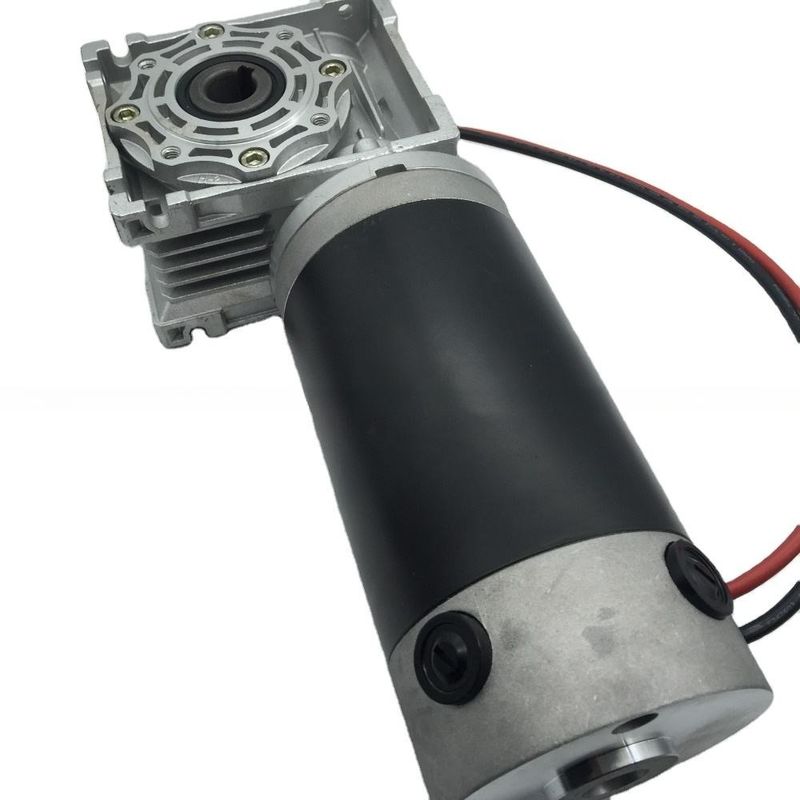

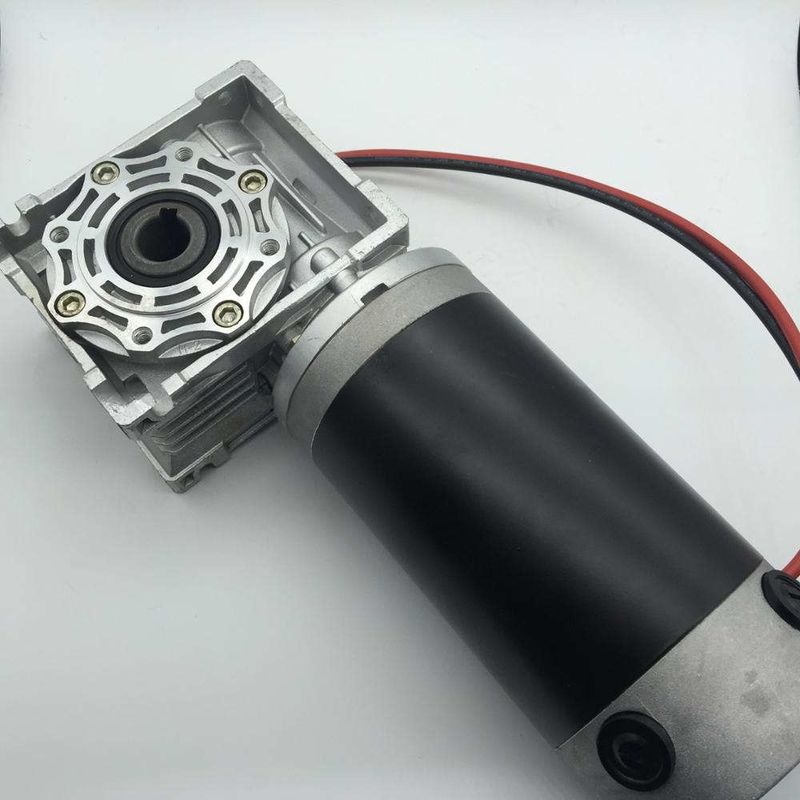

NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt

NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt

Products - Brush DC Worm Gear Motor
  • Highlight

    NMRV040.90ZYT electric worm gear motor

    ,

    NMRV040.90ZYT motorized worm gear

    ,

    motorized worm gear 12 Volt

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    GEAR MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt

  • NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt
  • NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt
Get Price Contact Now

NMRV040.90ZYT SERIES PM DC WORM GEAR MOTOR



90ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01L 90ZYT02L 90ZYT03L
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 2300 2300 2300
Rated Torque N.m 1.5 2.0 3.0
Rated Speed Rpm 1850 1800 1800
Rated Current A 16.5 21 32
Output Power W 290 377 565
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199







NMRV040.90ZYT01LWorm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 460 306 230 153 115 92 76 57 46 28 28 23
Rated Speed Rpm 370 246 185 123 92 74 61 46 37 30 23 18
Rated Torque N.m 6.8 9.6 12.8 18.0 22.5 28.1 31.5 39.0 45.0 49.5 60.0 60.0



NMRV040.90ZYT02L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 460 306 230 153 115 92 76 57 46 38 28 23
Rated Speed Rpm 360 240 180 120 90 72 60 45 36 30 22 18
Rated Torque N.m 9.0 12.8 17.0 24.0 30.0 37.5 42.0 52.0 60.0 66.0 80.0 80.0



NMRV040.90ZYT03L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 460 306 230 153 115 92 76 57 46 38 28 23
Rated Speed Rpm 360 240 180 120 90 72 60 45 36 30 22 18
Rated Torque N.m 13.5 19.1 25.5 36.0 45.0 56.3 63.0 78.0 90.0 99.0 120.0 120.0





Gear Motor Drawing:



NMRV040.90ZYT Big Torque Motorized Worm Gear DC Electric Worm Gear Motor 12 Volt 24 Volt 0





NMRV040.90ZYT big torque 12v 24v 36v 48v DC Electric Worm Gear Motor 12 volt 24 volt Specification















NMRV040.90ZYT big torque 12v 24v 36v 48v DC Electric Worm Gear Motor 12 volt 24 volt Specification
