NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A

NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A

Products - Brush DC Worm Gear Motor
  • Highlight

    worm gear motor 12v high torque 1.68A

    ,

    dc worm gear motor 12v 1.68A

    ,

    NMRV.90 ZYT dc worm gear motor 12v

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    1.68A
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    GEAR MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

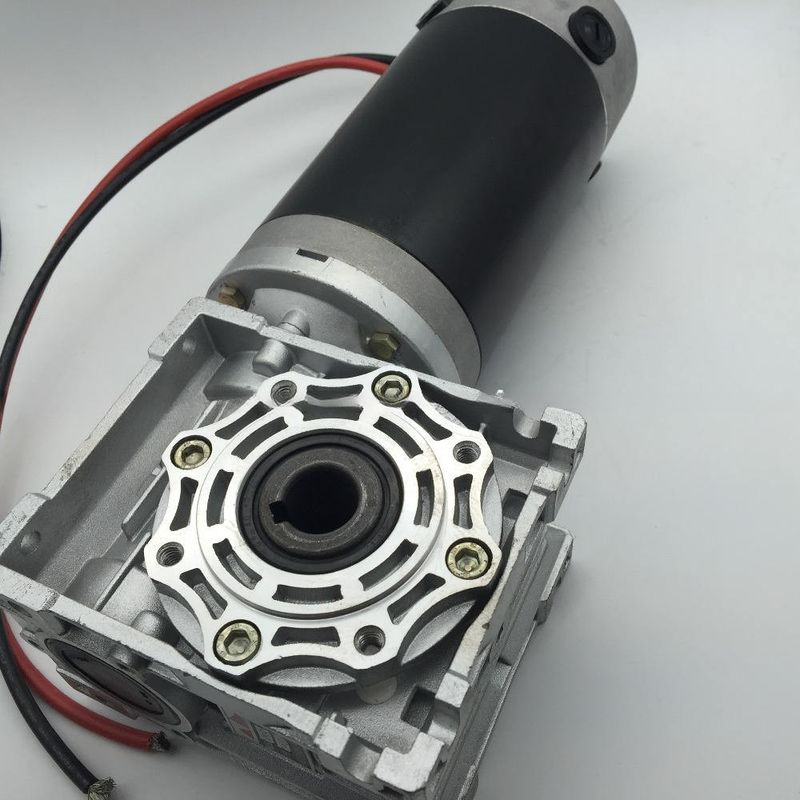

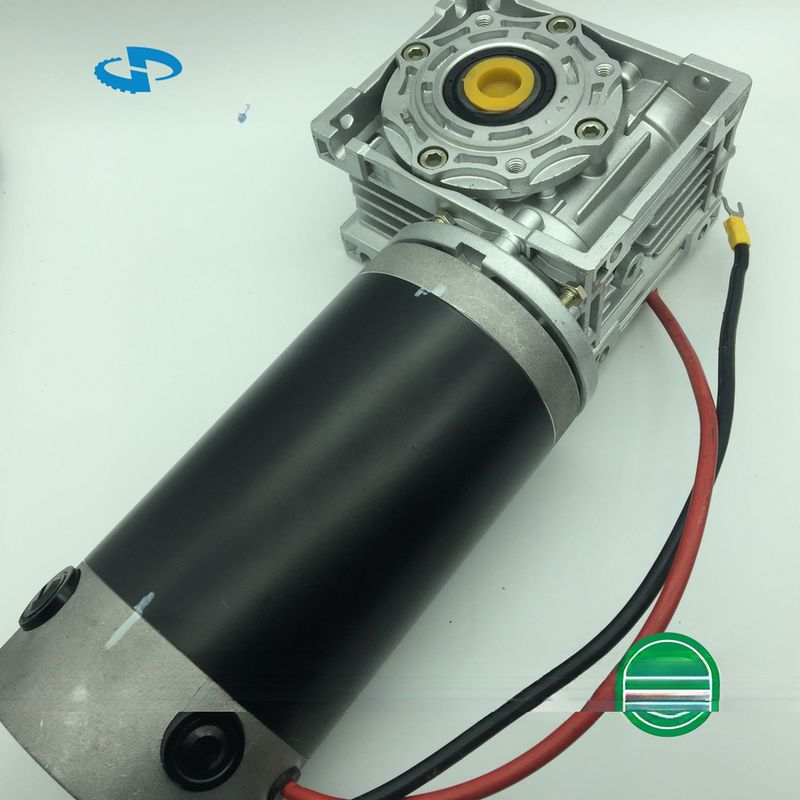

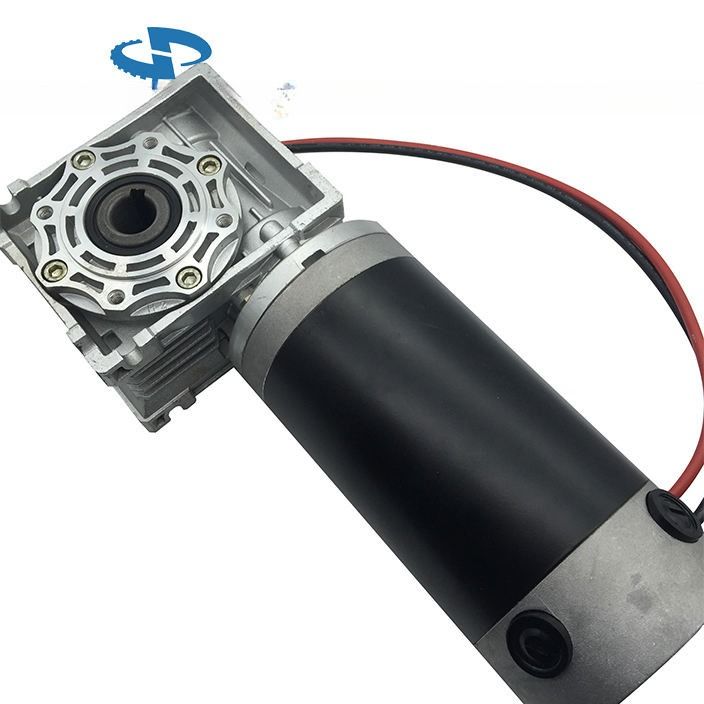

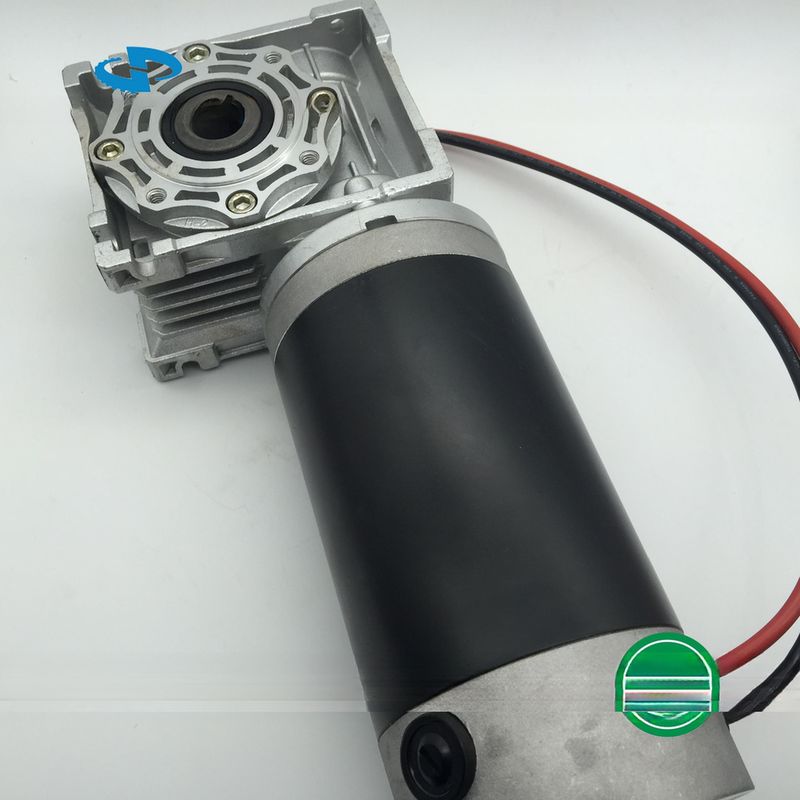

NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A

  • NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A
  • NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A
  • NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A
  • NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A
Get Price Contact Now

NMRV040.90ZYT SERIES PM DC WORM GEAR MOTOR



90ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01L 90ZYT02L 90ZYT03L
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 2600 2600 2600
Rated Torque N.m 1.2 1.6 1.8
Rated Speed N.m 2000 2000 2000
Rated Current A 14 19 21
Output Power W 252 336 379
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199



NMRV040.90ZYT01LWorm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 520 346 260 173 130 104 86 65 52 43 32 26
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 4.8 7 9 12.9 16.8 19.5 21.6 26.4 30 32.4 38.4 42



NMRV040.90ZYT02L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 520 346 260 173 130 104 86 65 52 43 32 26
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 6.4 9.3 12 17.2 22.4 26 28.8 35.2 40 43.2 51.2 56



NMRV040.90ZYT03L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 520 346 260 173 130 104 86 65 52 43 32 26
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 45 48.6 57.6 63





Gear Motor Drawing:

NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A 0



NMRV050.90ZYT SERIES PM DC WORM GEAR MOTOR



90ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3500 3500 3500
Rated Torque N.m 1.2 1.6 1.8
Rated Speed N.m 3000 3000 3000
Rated Current A 20.5 27 30.5
Output Power W 377 503 565
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199



NMRV050.90ZYT01A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 4.8 7 9 12.9 16.8 19.5 21.6 26.4 30 32.4 38.4 42



NMRV050.90ZYT02A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 6.4 9.3 12 17.2 22.4 26 28.8 35.2 40 43.2 51.2 56



NMRV050.90ZYT03A Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 46 48.6 57.6 63



Gear Motor Drawing:



NMRV.90 ZYT DC Electric Worm Gear Motor 12V High Torque 1.68A 1





NMRV.90ZYT Large Torque Big Power DC Electric Worm Gear Motor
