63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr

63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr

Products - Brush DC Worm Gear Motor
  • Highlight

    63WG.63ZYT 24v dc worm gear motor

    ,

    24v dc worm gear motor 100cpr

    ,

    63WG.63ZYT worm drive dc motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    1.68A
  • Speed(RPM)
    100rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, AUTOMATIC DOOR
  • Type
    Micro Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr

  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
  • 63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr
Get Price Contact Now

63WG.63ZYT SERIES PM DC WORM GEAR MOTOR

63ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



63ZYT Motor Main Technical Specification:

Model Unit 63ZYT01A 63ZYT02A 63ZYT03A 63ZYT04A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
Rated Speed Rpm 3200 3100 3000 3000
Rated Torque N.m 0.15 0.31 0.40 0.50
Rated Current A 2.8 5.8 7.0 9.0
Output Power W 50 100 125 157
No Load Speed Rpm 3600 3600 3600 3600
Weight Kg 1 1.2 1.35 1.5
Motor Length Mm 95 110 125 140







63WG Worm Gearbox Specification:

Reduction ratio   10 15 30
Efficiency   0.65 0.55 0.45
Continuous torque Ncm Up to 1000(metallic gears,) Up to 400(non-metallic gears)
Weight of gearbox kg 0.4
Axial load/radial load N 300/350



63WG.63ZYT01A Series Worm Gear Motor Specification:

Reduction ratio   10 15 30
Transmission Efficiency   65﹪ 55﹪ 45﹪
No Load Speed Rpm 360 240 120
Rated Speed Rpm 320 206 100
Rated Torque N.m 0.9 1.2 2.0



63WG.63ZYT02A Series Worm Gear Motor Specification:

Reduction ratio   10 15 30
Transmission Efficiency   65﹪ 55﹪ 45﹪
No Load Speed Rpm 360 240 120
Rated Speed Rpm 320 206 100
Rated Torque N.m 2.0 2.5 4.1

63WG.63ZYT03A Series Worm Gear Motor Specification:

Reduction ratio   10 15 30
Transmission Efficiency   65﹪ 55﹪ 45﹪
No Load Speed Rpm 360 240 120
Rated Speed Rpm 320 206 100
Rated Torque N.m 2.6 3.3 5.4



63WG.63ZYT04A Series Worm Gear Motor Specification:

Reduction ratio   10 15 30
Transmission Efficiency   65﹪ 55﹪ 45﹪
No Load Speed Rpm 360 240 120
Rated Speed Rpm 320 206 100
Rated Torque N.m 3.2 4.1 6.7





Drawing:





63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr 0



63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr

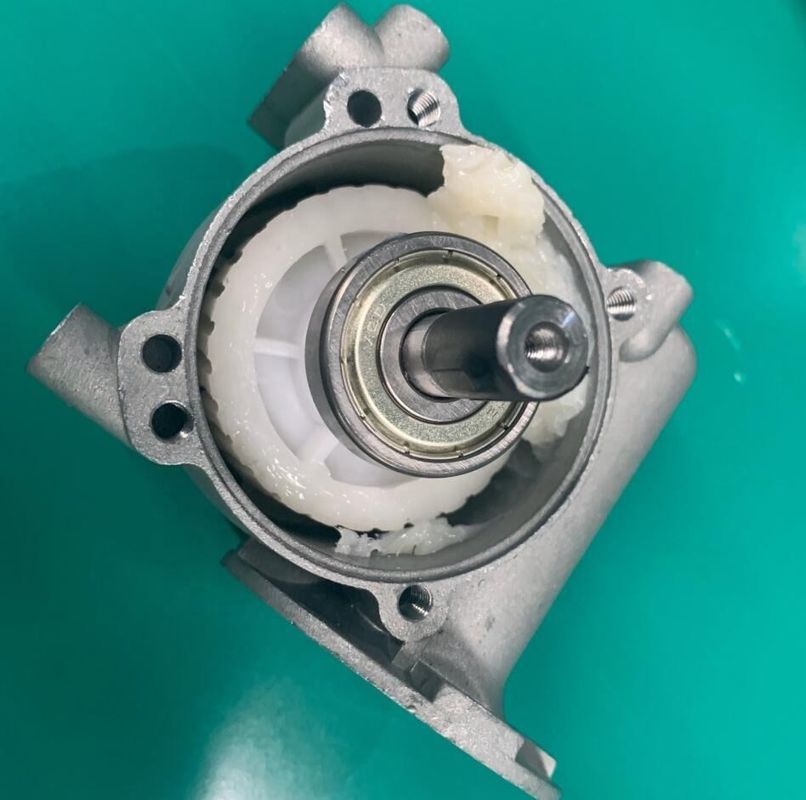

plastic gear

63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr 2

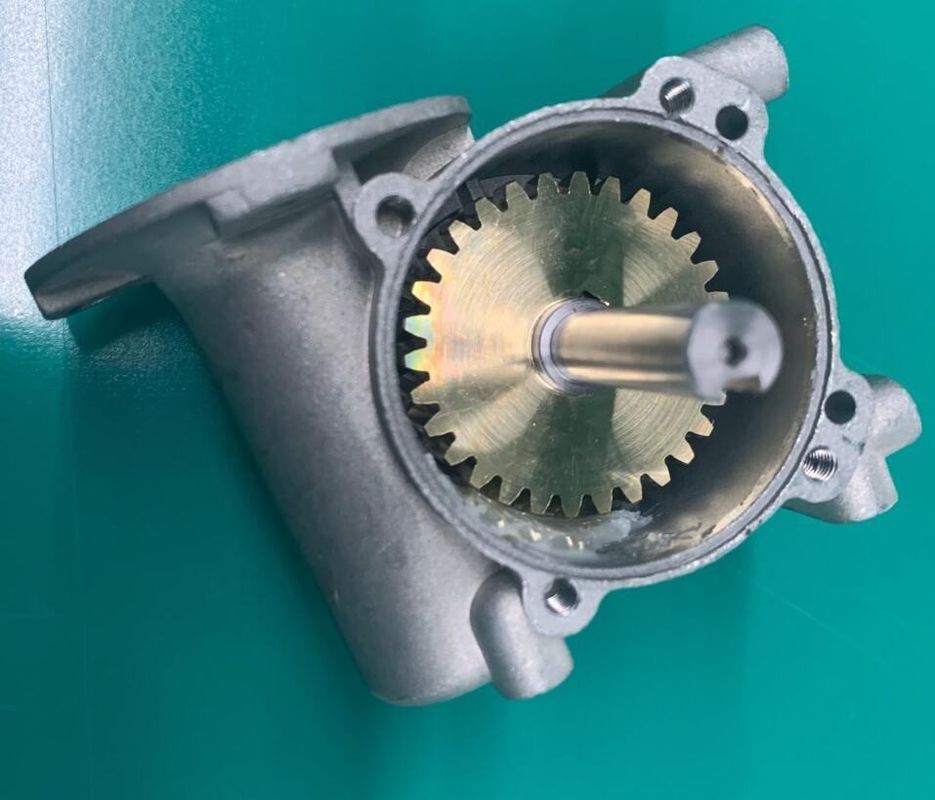

copper gear



63WG.63ZYT 12V 24V DC Worm Drive Gear Motor Option with Optical Encoder 100cpr To 2000cpr 3

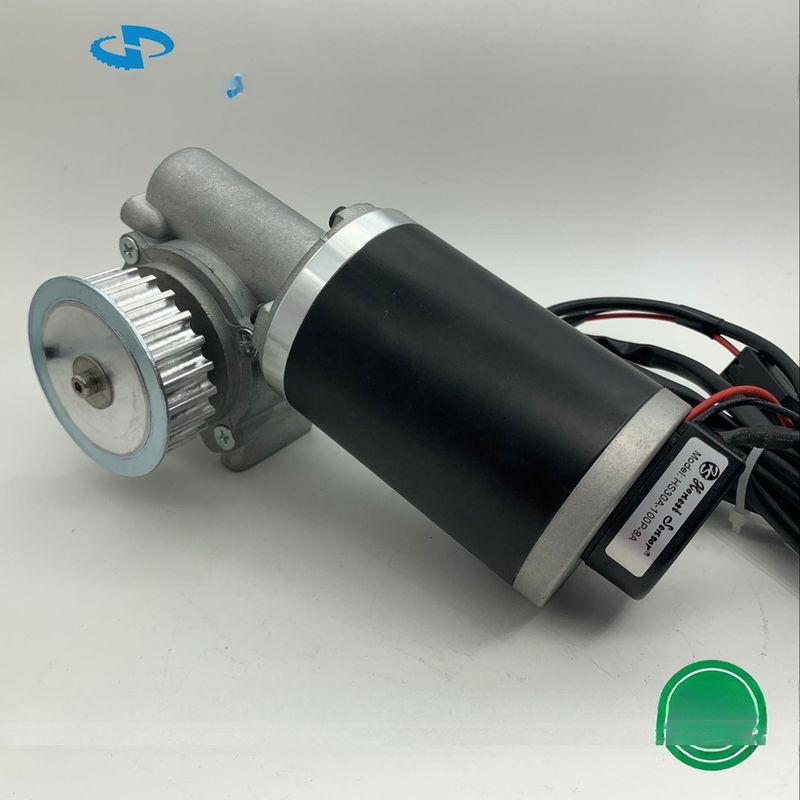

Option for optical encoder

63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr







63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cpr
