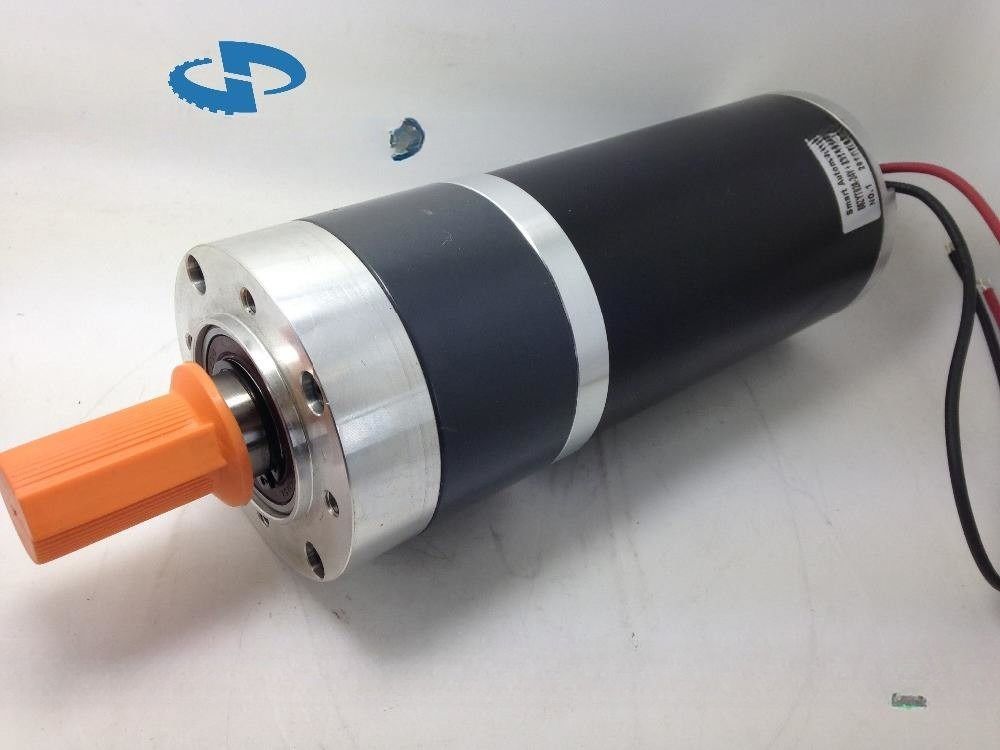

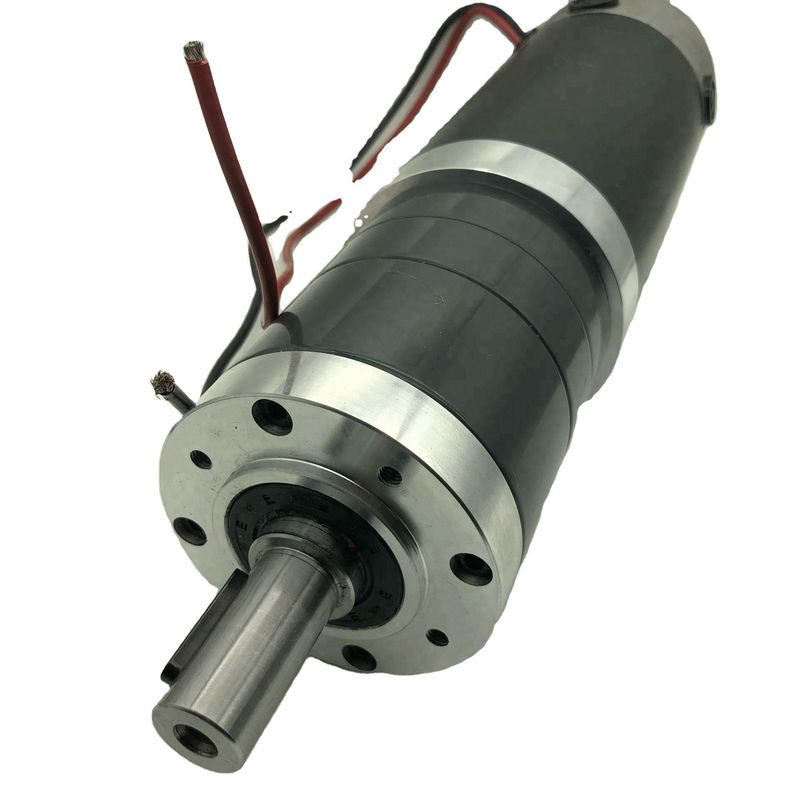

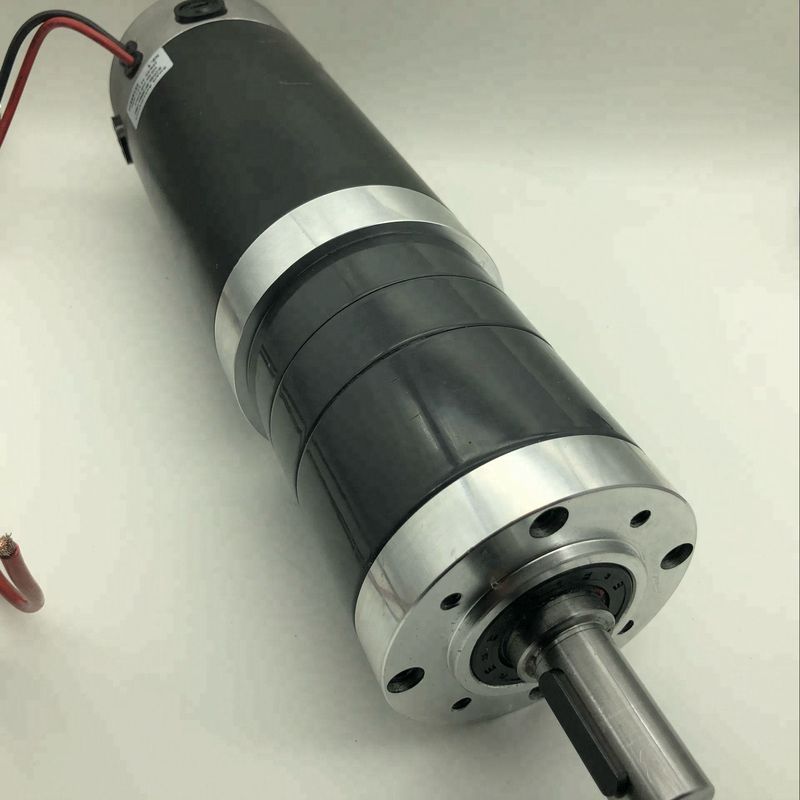

82PLG.80ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M

82PLG.80ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M

  • Highlight

    82PLG.80ZYT planetary gear dc motor

    ,

    planetary gear dc motor 120N.m

    ,

    12 volt planetary gear motor 120N.m

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    5 Rpm Upto 3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    GEAR MOTOR
  • Torque
    Upto 120Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

82PLG.80ZYT Large Torque 12 Volt 24 Volt 36 Volt 48 Volt Planetary Gear DC Motor Rated Torque Upto 120N.M

82PLG.80ZYT large torque planetary gear dc motor, rated torque upto 120N.m



82PLG.80ZYT SERIES LARGE TORQUE VERSION PLANETARY GEAR MOTOR (with rated torque up to 120N.m)

82PLG.80ZYT SERIES Gear Motor Drawing:



82PLG.80ZYT large torque planetary gear dc motor, rated torque upto 120N.m







80ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 2- poles Protection class IP 40 Insulation class: B CE and ROHS certified

Model Rated voltage V No load speed rpm No load current A Rated speed rpm Rated torque N.m Output power W Rated current A Stall torque N.m Stall current A Motor Length mm
80ZYT01A-12V 12 3600 1.25 2900 0.6 182 19.2

3.0



91.2 120
80ZYT01A-24V 24 3600 0.72 2900 0.6 182 9.5 3.0 44 120
80ZYT02A-12V 12 3600 1.35 2900 0.8 243 29 4.5 160 140
80ZYT02A-24V 24 3600 0.85 2900 0.8 243 14 4.5 78 140
80ZYT03A-12V 12 3600 1.5 3000 1.0 314 36.5 6.1 216 160
80ZYT03A-24V 24 3600 1.0 3000 1.0 314 18.0 6.1 106 160

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder







82PLG Planetary Gearbox Specification:



*Helical gears at first stage



Reduction ratio 1/3.65 1/5.36 1/6.55 1/8.63 1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67 1/81.1 1/91.3 1/102.9
Number of gear trains 1 1 1 1 2 2 2 2 2 2 2 3 3 3
Gearbox Length (L) (mm) 58.3 58.3 58.3 58.3 80.5 80.5 80.5 80.5 80.5 80.5 80.5 103.2 103.2 103.2
Transmission efficiency 90% 90% 90% 90% 81% 81% 81% 81% 81% 81% 81% 73% 73% 73%
Max. rated transmission torque (N.m) 20 20 20 20 60 60 60 60 60 60 60 120 120 120
Max. permissible load in short time (N.m) 40 40 40 40 120 120 120 120 120 120 120 240 240 240
Reduction ratio 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393
Number of gear trains 3 3 3 3 3 3 3 3
Gearbox Length (L) (mm) 103.2 103.2 103.2 103.2 103.2 103.2 103.2 103.2
Transmission efficiency 73% 73% 73% 73% 73% 73% 73% 73%
Max. rated transmission torque (N.m) 120 120 120 120 120 120 120 120
Max. permissible load in short time (N.m) 240 240 240 240 240 240 240 240





82PLG.80ZYT large torque planetary gear dc motor, rated torque upto 120N.m
