63mm 60JXE300K.63ZYT Seires High Torque DC Planetary Geared Motor 12vdc 24vdc 36vdc 48vdc With Planet Reducer Up To 30Nm

63mm 60JXE300K.63ZYT Seires High Torque DC Planetary Geared Motor 12vdc 24vdc 36vdc 48vdc With Planet Reducer Up To 30Nm

  • Highlight

    63mm 24 volt dc planetary geared motor

    ,

    planetary dc motor with planet reducer

    ,

    63mm planetary dc motor 45Nm

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    5 Rpm Upto 3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, Machine, Robot
  • Type
    GEAR MOTOR
  • Torque
    Upto 30Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    60JXE300K.63ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

63mm 60JXE300K.63ZYT Seires High Torque DC Planetary Geared Motor 12vdc 24vdc 36vdc 48vdc With Planet Reducer Up To 30Nm

Brushed DC Planetary Gear Motor 60JXE300K.63ZYT Series



Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS



63ZYT Motor Main Technical Specification:

Model Unit 63ZYT01A 63ZYT01B 63ZYT02A 63ZYT03A 63ZYT03B 63ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 4700 3600 3600 4700 3600
Rated Torque N.m 0.15 0.20 0.31 0.40 0.40 0.50
Rated Speed Rpm 3200 4000 3100 3000 4000 3000
Rated Current A 2.8 5.5 5.8 7.0 10.5 9.0
Output Power W 50 84 100 125 168 157
Weight Kg 1 1 1.2 1.35 1.35 1.5
Motor Length Mm 95 95 110 125 125 140







60JXE300K Planetary Gearbox Specifications:

Ring Material Metal
Bearing at Output Ball bearings
Max. Radial Load (10mm from Flange) ≤250N
Max. Shaft Axial Load ≤100N
Radial Play of Shaft (Near to Flange) ≤0.08mm
Axial Play of Shaft ≤0.4mm
Backlash at No-load) ≤2.5°
Max Shaft Press Fit Force ≤300N
Reduction Ratio Max Nominal Torque Permitted Max Momentary Torque Permitted Efficiency L(mm) Weight(g)
1/3.6 1/4.3 3.0N.m 9.0N.m 90% 37.8±0.5 489
1/13 1/15 1/18 1/23 12.0N.m 36N.m 81% 49.5±0.5 681
1/47 1/55 1/65 1/77 1/96 1/121 24.0N.m 72N.m 73% 60.8±0.5 871
1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 30N.m 90N.m 66% 71.9±0.5 1066









60JXE300K.63ZYT01A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 837.2 276.9 240.0 200.0 156.5 76.6 65.5 55.4 46.8 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6
Rated Torque Nm 0.5 0.6 1.6 1.8 2.2 2.8 5.1 6.0 7.1 8.4 10.5 13.2 15.2 18.5 21.8 25.7 30.0 30.0 30.0 30.0
Rated Speed Rpm 888.9 744.2 246.2 213.3 177.8 139.1 68.1 58.2 49.2 41.6 33.3 26.4 20.8 17.1 14.5 12.3 10.4 7.8 6.2 5.0



60JXE300K.63ZYT01B Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1305.6 1093.0 361.5 313.3 261.1 204.3 100.0 85.5 72.3 61.0 49.0 38.8 30.5 25.1 21.4 18.1 15.3 11.5 9.1 7.3
Rated Torque Nm 0.6 0.8 2.1 2.4 2.9 3.7 6.9 8.0 9.5 11.2 14.0 17.7 20.3 24.7 29.0 30.0 30.0 30.0 30.0 30.0
Rated Speed Rpm 1111.1 930.2 307.7 266.7 222.2 173.9 85.1 72.7 61.5 51.9 41.7 33.1 26.0 21.4 18.2 15.4 13.0 9.8 7.8 6.2



60JXE300K.63ZYT02A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 837.2 276.9 240.0 200.0 156.5 76.6 65.5 55.4 46.8 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6
Rated Torque Nm 1.0 1.2 3.3 3.8 4.5 5.8 10.6 12.4 14.7 17.4 21.7 24.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
Rated Speed Rpm 861.1 720.9 238.5 206.7 172.2 134.8 66.0 56.4 47.7 40.3 32.3 25.6 20.1 16.6 14.1 11.9 10.1 7.6 6.0 4.8



60JXE300K.63ZYT03A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 837.2 276.9 240.0 200.0 156.5 76.6 65.5 55.4 46.8 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6
Rated Torque Nm 1.3 1.5 4.2 4.9 5.8 7.5 13.7 16.1 19.0 22.5 24.0 24.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
Rated Speed Rpm 833.3 697.7 230.8 200.0 166.7 130.4 63.8 54.5 46.2 39.0 31.3 24.8 19.5 16.0 13.6 11.5 9.8 7.3 5.8 4.7



60JXE300K.63ZYT03B Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1305.6 1093.0 361.5 313.3 261.1 204.3 100.0 85.5 72.3 61.0 49.0 38.8 30.5 25.1 21.4 18.1 15.3 11.5 9.1 7.3
Rated Torque Nm 1.3 1.5 4.2 4.9 5.8 7.5 13.7 16.1 19.0 22.5 24.0 24.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
Rated Speed Rpm 1111.1 930.2 307.7 266.7 222.2 173.9 85.1 72.7 61.5 51.9 41.7 33.1 26.0 21.4 18.2 15.4 13.0 9.8 7.8 6.2



60JXE300K.63ZYT04A Planetary Gear Motor Specifications:

Reduction ratio Unit 3.6 4.3 13 15 18 23 47 55 65 77 96 121 154 187 220 260 307 409 514 645
Efficiency   90% 90% 81% 81% 81% 81% 73% 73% 73% 73% 73% 73% 66% 66% 66% 66% 66% 66% 66% 66%
No Load Speed Rpm 1000.0 837.2 276.9 240.0 200.0 156.5 76.6 65.5 55.4 46.8 37.5 29.8 23.4 19.3 16.4 13.8 11.7 8.8 7.0 5.6
Rated Torque Nm 1.6 1.9 5.3 6.1 7.3 9.3 17.2 20.1 23.7 24.0 24.0 24.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
Rated Speed Rpm 833.3 697.7 230.8 200.0 166.7 130.4 63.8 54.5 46.2 39.0 31.3 24.8 19.5 16.0 13.6 11.5 9.8 7.3 5.8 4.7







Gear Motor Drawing:



63mm 60JXE300K.63ZYT Seires High Torque DC Planetary Geared Motor 12vdc 24vdc 36vdc 48vdc With Planet Reducer Up To 30Nm 0





* With 45Nm rated torque gearbox OPTION

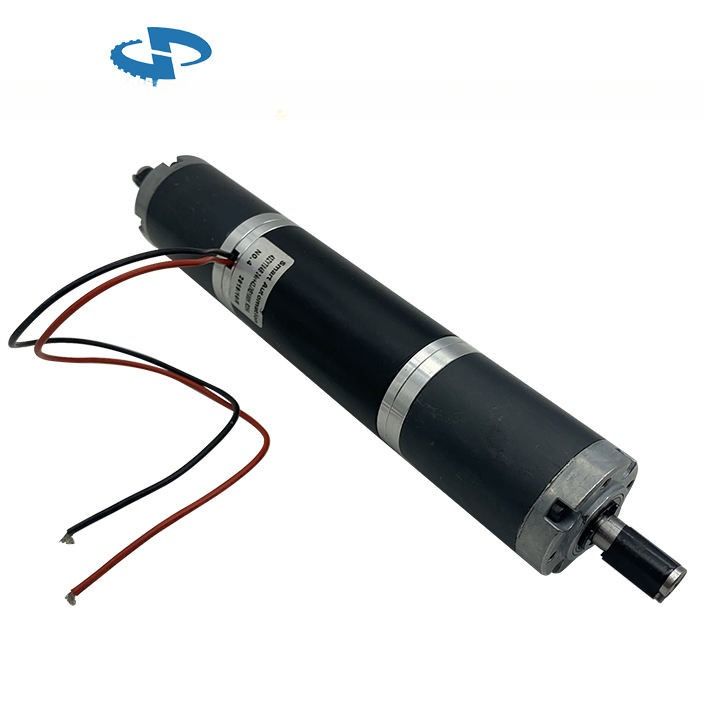

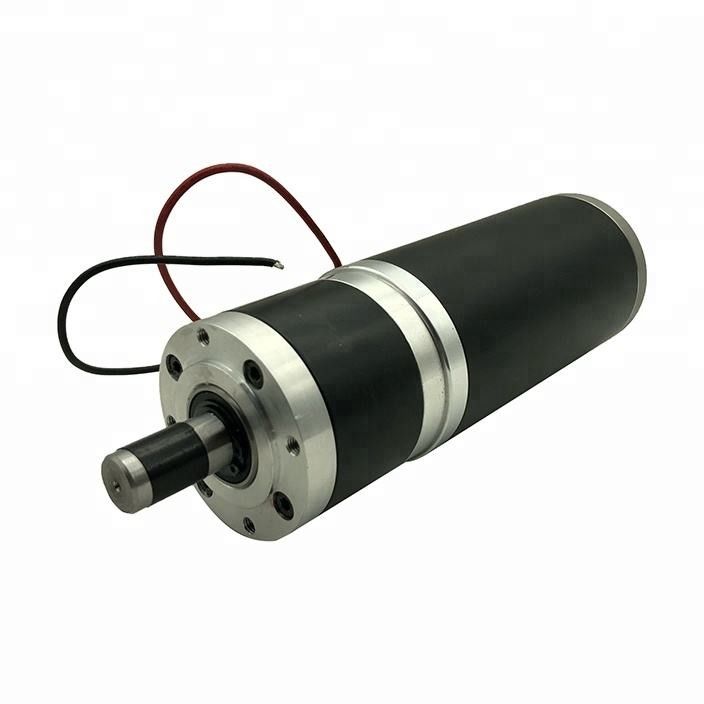

Motor pictures





63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w

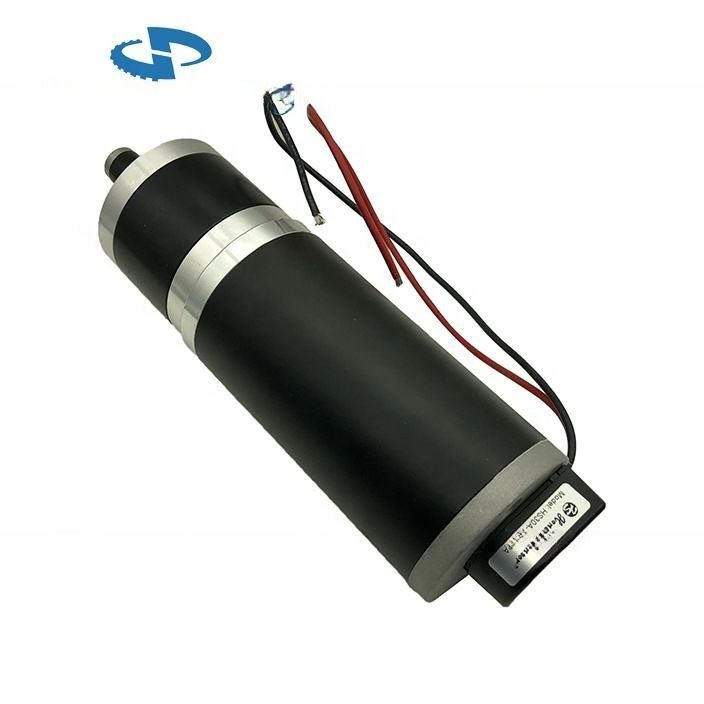

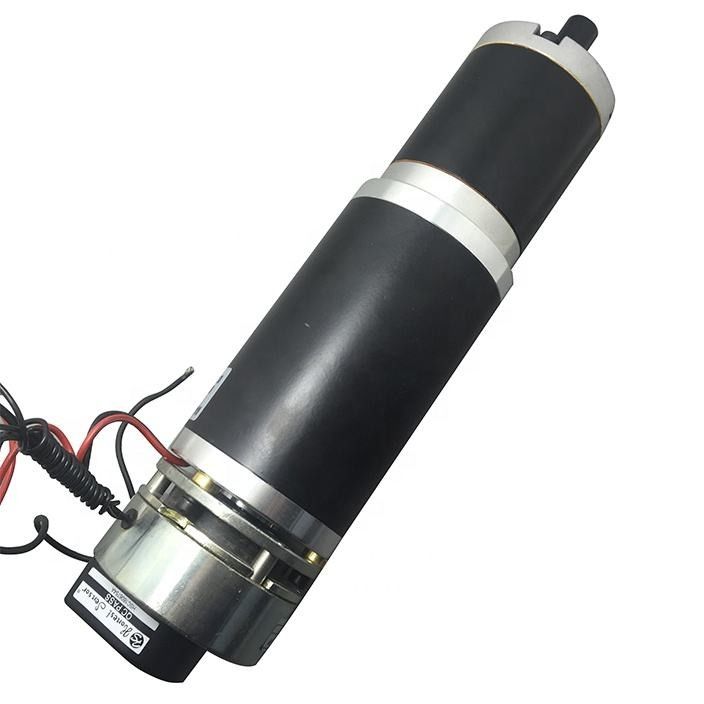

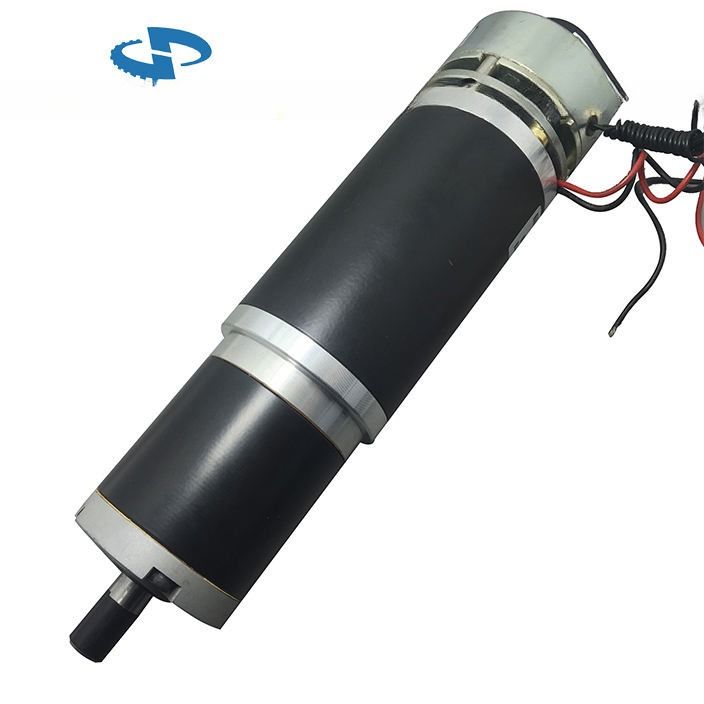

Options for encoder and brake

63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w















63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w





























MORE : BRUSHLESS VERSION





63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w63mm high torque pm dc planetary gear motor with planet reducer gearbox rated 12v 24v 48v power 30w 50w 100w 200w
