Highlight
130BLS Series Brushless Dc Motor
,Rated Torque Brushless Dc Motor
,14.5Nm Brushless Dc Motor
-
Warranty3years
-
PortShanghai
-
Speed(RPM)3000rpm 4000rpm Or Customed
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Machine, Robot
-
TypeMicro Motor
-
TorqueUpto 14.5Nm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number130BLS Series
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

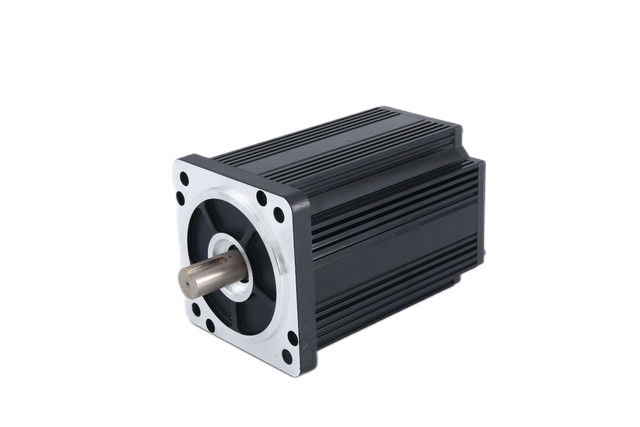

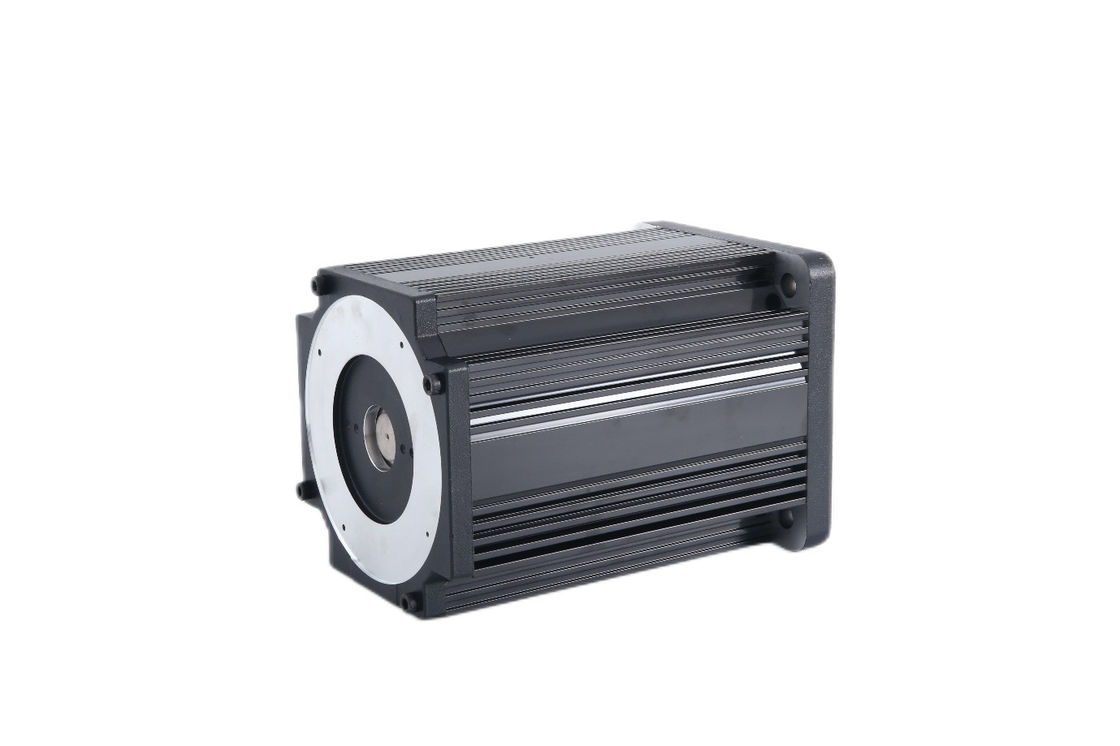

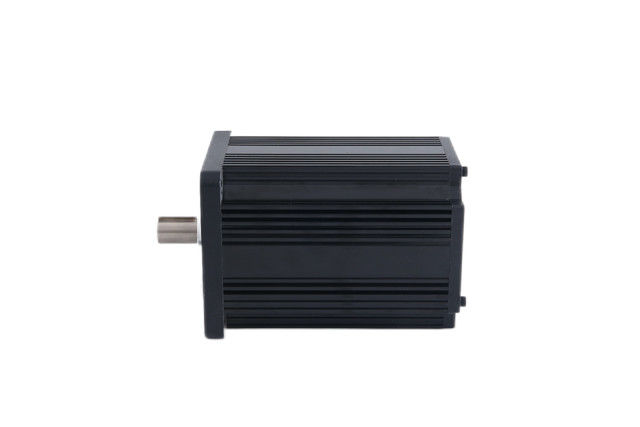

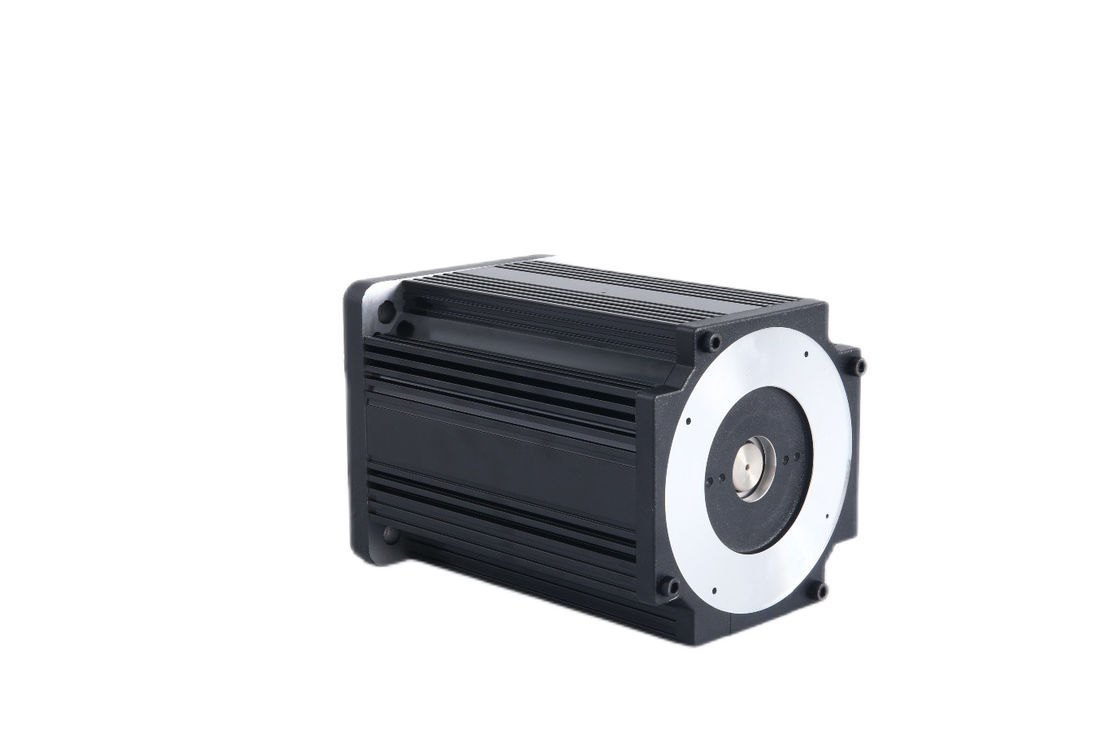

130BLS Series Brushless Dc Motor Rated Torque Up To 14.5Nm
130BLS Series Brushless Dc Motor
Brushless Motor Specification
| Item | Specification |
| Winding type | Y connection |
| Hall effect angle | 120° (electrical angle) |
| Shaft run out | 0.025mm |
| Radial play | 0.025mm@450g |
| End play | 0.025mm@450g |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation resistance | 100MΩMin.500VDC |
| Model | 130BLS01A | 130BLS02A | |
| Number of phase | 3 | ||
| Number of pole | 8 | ||
| Voltage | V | 72 (Customizable) | |
| No load speed | rpm | 3500 | 3500 |
| Rated torque | Nm | 9.5 | 14.5 |
| Rated Speed | rpm | 3000 | 3000 |
| Rated Current | A | 52 | 78 |
| Rated Power | W | 3000 | 4500 |
| Length | mm | 190 | 240 |
Dimensions
