Dia. 57mm 57BL 57HBL Series Nema 23 Brushless DC Motor High Torque Low Cost 1500rpm 3000rpm 4000rpm 50w 100w 150w 200w
-
Highlight
57BL Series nema 23 dc motor
,57mm nema 23 dc motor 3000rpm
,57BL Series nema 23 Brushless DC Motor
-
Warranty3years
-
PortShanghai
-
Speed(RPM)3000rpm 4000rpm Or Customed
-
Continuous Current(A)Customed
-
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Machine, Robot
-
TypeBrushless Motor
-
TorqueUpto 0.5Nm Without Gearhead
-
ConstructionBrushless
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
Dia. 57mm 57BL 57HBL Series Nema 23 Brushless DC Motor High Torque Low Cost 1500rpm 3000rpm 4000rpm 50w 100w 150w 200w

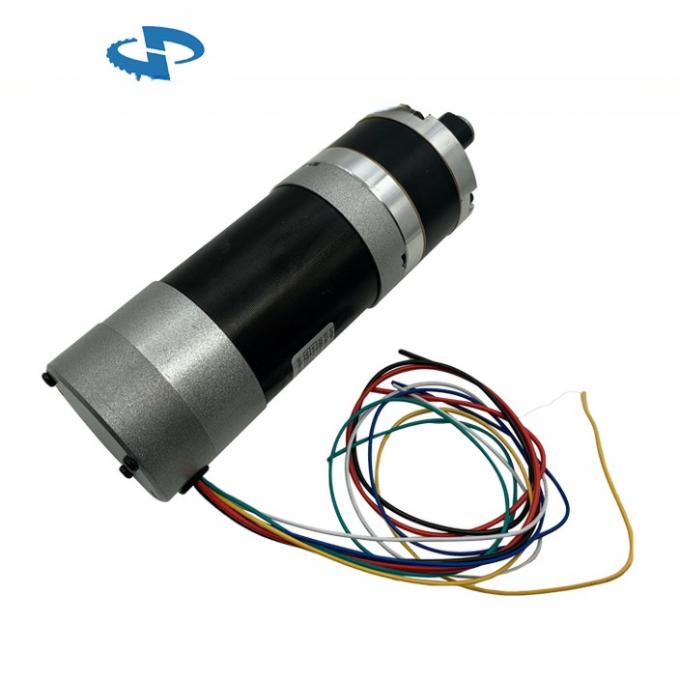

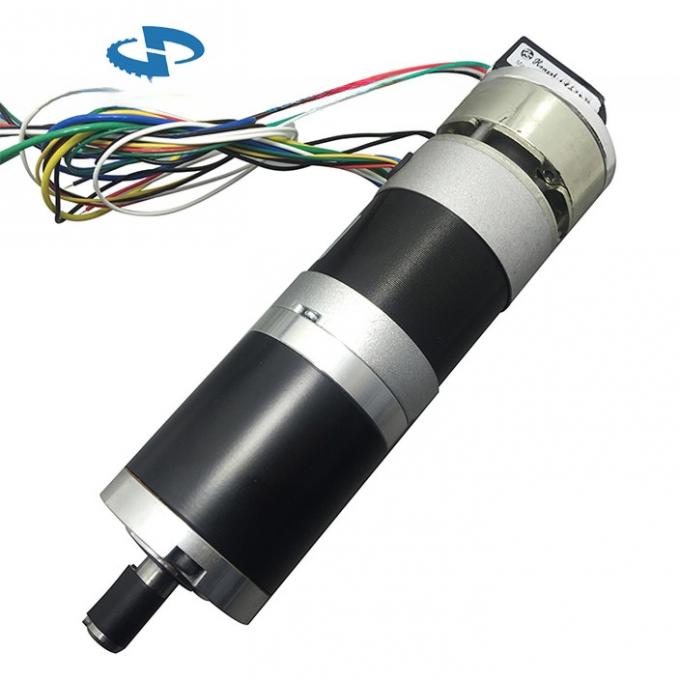

size 57mm nema 23 57BL 3 phas Brushless Dc Motor Customized 30w upto 300w Option Integrated PWM Controller Driver Gearbo
Size 57mm 12V 24V 36V 48V 60V Brushless Dc Motors
BELOW ARE ONLY STANDARD MODELS
WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,
AND MOTOR ADDERS AS ENCODER, GEARBOX, BRAKE...ETC
57BL Series Brushless Dc Motors
57HBL Series Brushless Dc Motors
Pictures:

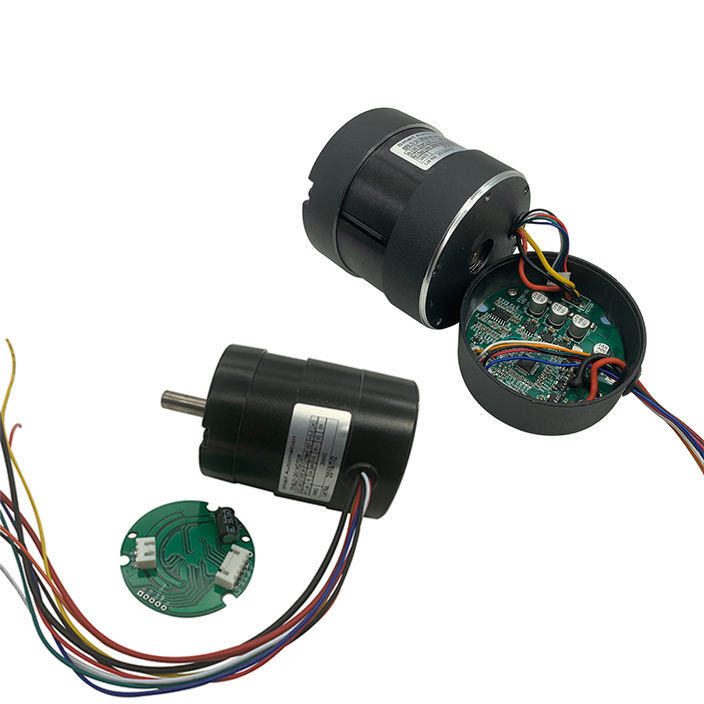

Controller integrated version
57HBL-IE Series 57mm Controller Integrated Brushless Dc Motor
Technique Specification
| Model | 57HBL75-IE | 57HBL95-IE | 57HBL115-IE | 57HBL135-IE | |
| Number of phase | 3 | ||||
| Number of pole | 4 (Option for 8) | ||||
| Rated Voltage | V | 24v (Option for 12v 36v 48v) | |||
| No load speed | rpm | 4000 | 4000 | 3500 | 3000 |
| Rated torque | Nm | 0.145 | 0.28 | 0.43 | 0.49 |
| Rated Speed | rpm | 3000 | 3000 | 2500 | 2200 |
| Rated Current | A | 2.5 | 5 | 6 | 6 |
| Rated Power | W | 45 | 88 | 113 | 113 |
| Weight | Kg | 0.55 | 0.85 | 1.15 | 1.55 |
| Length | mm | 75 | 95 | 115 | 135 |
Planetary gear motor data sheet
56JXE300K.57BL Series Planetary Gear Motor (rated torque upto 30Nm)
56JXE450K.57HBL Series Planetary Gear Motor(rated torque upto 45Nm)

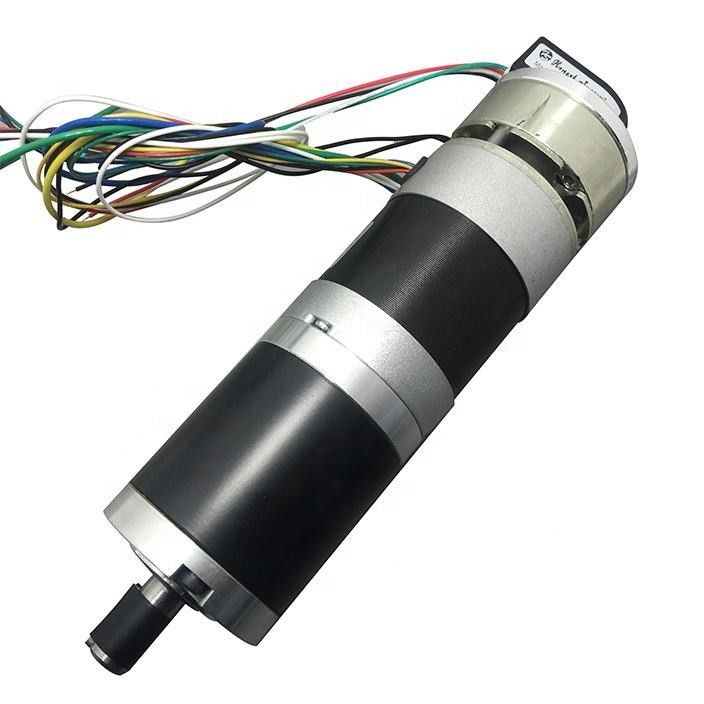

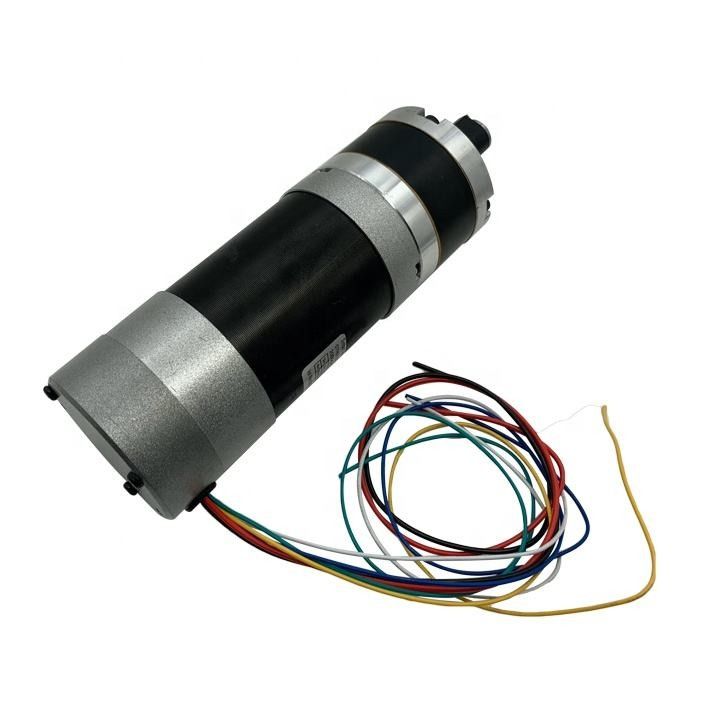

Planetary Geared Version
Brakes Encoder Integrated
