42RBL 42mm Cylindrical Body DC Brushless Motor BLDC Motors Option With Gearhead Brake Encoder Assembled

42RBL 42mm Cylindrical Body DC Brushless Motor BLDC Motors Option With Gearhead Brake Encoder Assembled

  • Highlight

    42RBL DC Brushless Motor

    ,

    Cylindrical Body DC Brushless Motor

    ,

    bldc motor 24v with Gearhead Brake

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    3000~6300rpm Or Customized
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Machine
  • Type
    Micro Motor
  • Torque
    Customed
  • Construction
    Series Wound
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

42RBL 42mm Cylindrical Body DC Brushless Motor BLDC Motors Option With Gearhead Brake Encoder Assembled

42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Int



42RBL Series round type 42mm Brushless Dc Motor

Belows are only standard models,

for customized specification pls contact us.





42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated

42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated





Technique Specification

Model 42RBL01A 42RBL02A 42RBL03A 42RBL04A
Number of phase 3
Number of pole 8
Voltage V 24v(Option for 12v up to 48vdc)
No load speed rpm 5200 5200 5200 5200
Rated torque Nm 0.018 0.08 0.15 0.2
Rated Speed rpm 4000 4000 4000 4000
Rated Current A 0.5 2 4.2 5.7
Rated Power W 7.6 33.5 62 85
Weight Kg 0.25 0.4 0.7 0.8
Length mm 30 60 85 93





42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated







Option : driver / controller Integrated

Model 42RBL01-IE 42RBL02-IE 42RBL03-IE 42RBL04-IE
Number of phase 3
Number of pole 8
Voltage V 24v
No load speed rpm 4000 4000 4000 4000
Rated torque mNm 20 80 150 200
Rated Speed rpm 3000 3000 3000 2500
Rated Current A 0.4 1.5 2.7 2.9
Rated Power W 6.3 25 47 52
Weight Kg 0.25 0.4 0.7 0.8
Length mm 32 62 87 97





























42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated

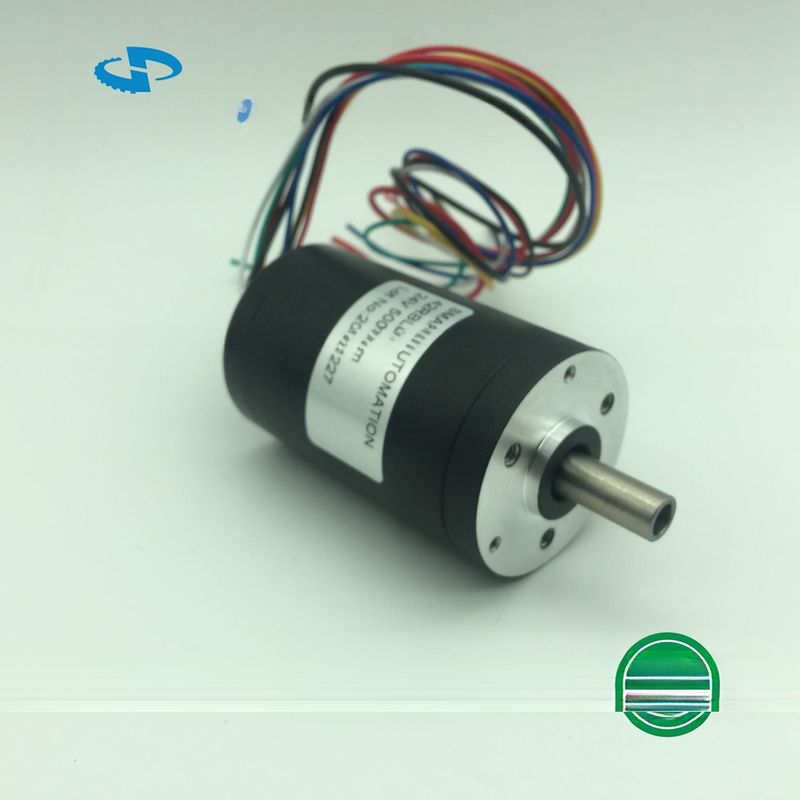

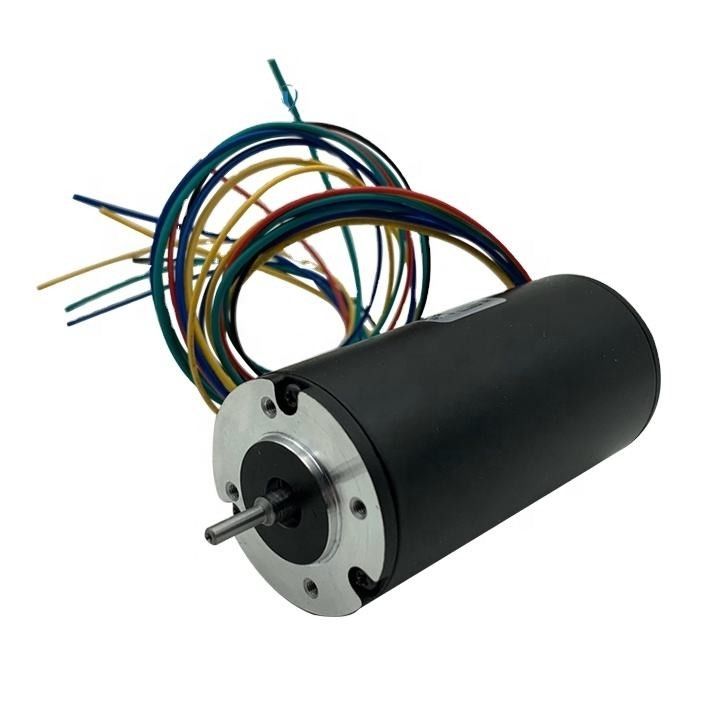

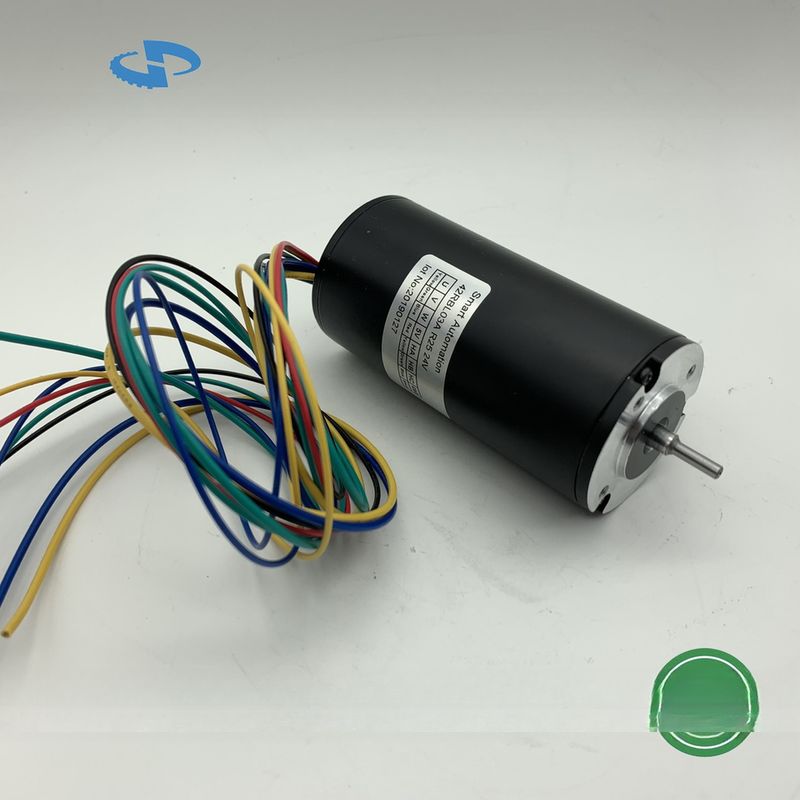

Motor pictures

42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated

42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated

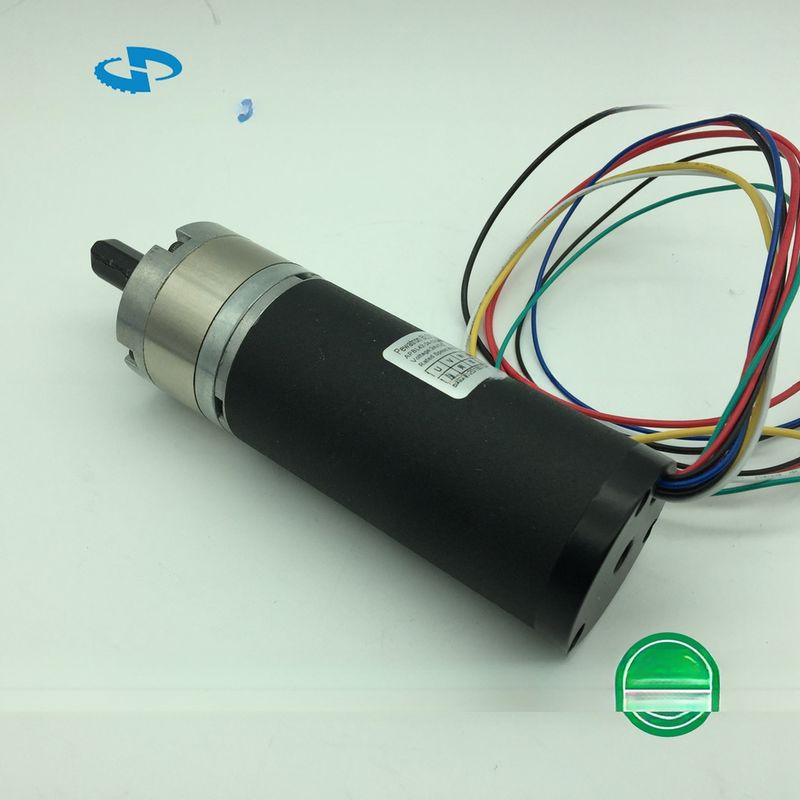

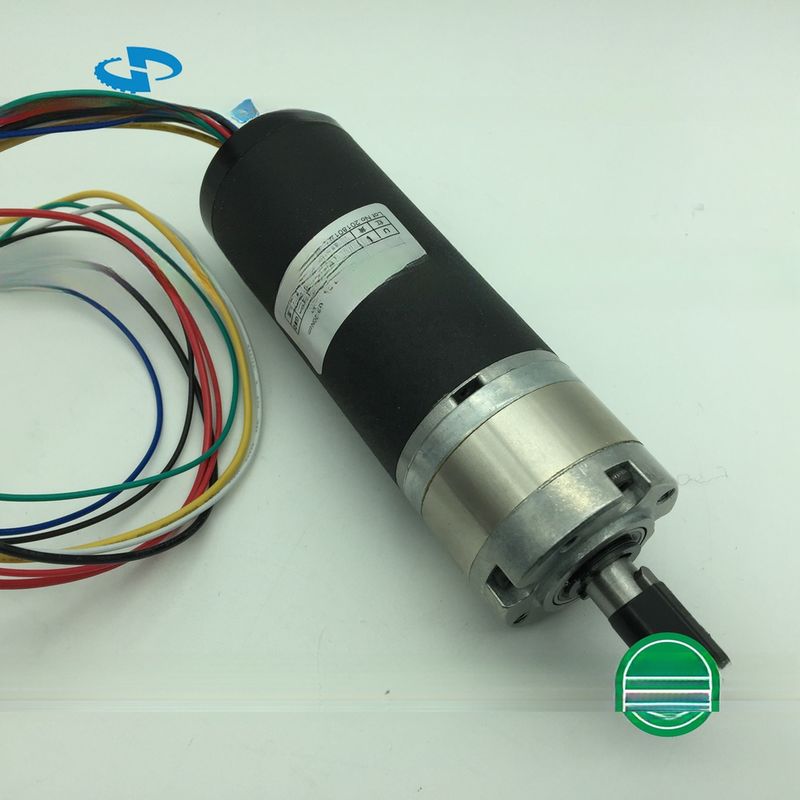

Option: Geared version with planetary gearbox (helical gear low noise)



42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated



42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated

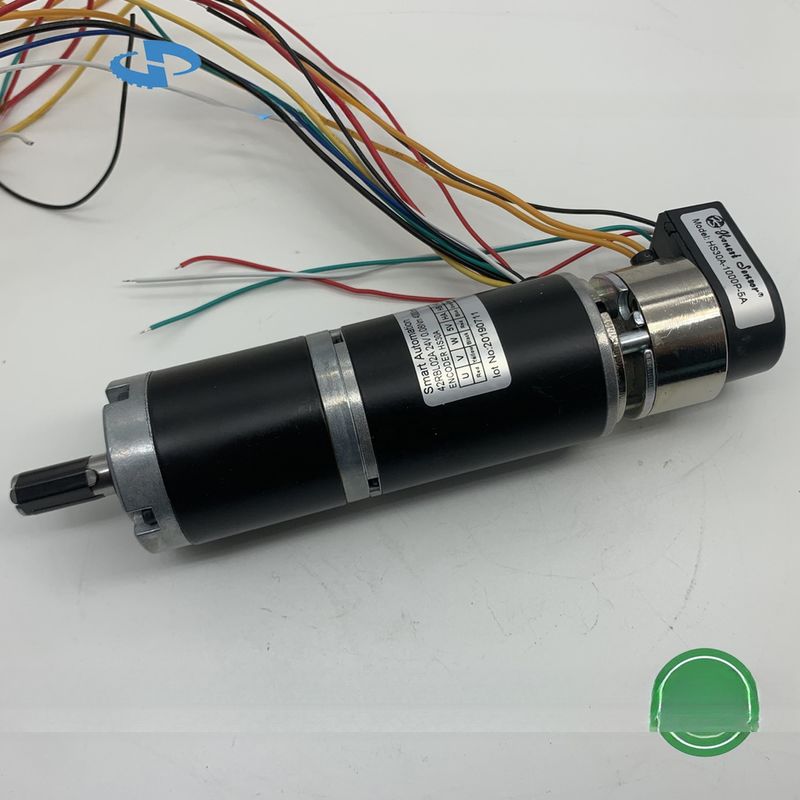

Option: Brakes / Encoder Integrated



42RBL 42mm Cylindrical Body Dc Brushless Motor, OPTION BLDC with Gearhead Brake Encoder Assembled, Driver/Controller Integrated





Option: Hollow Shaft Version
