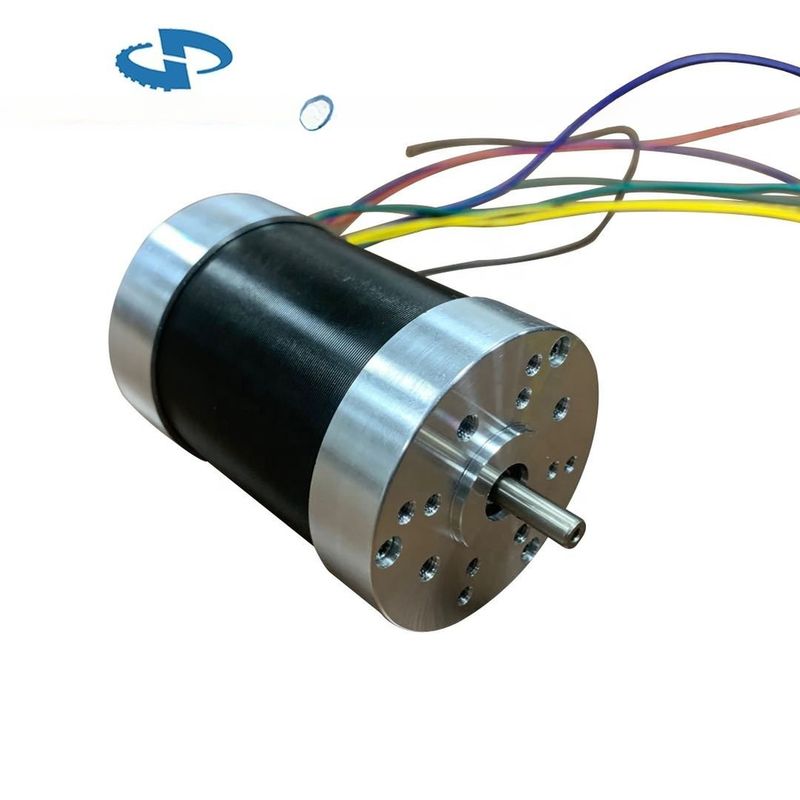

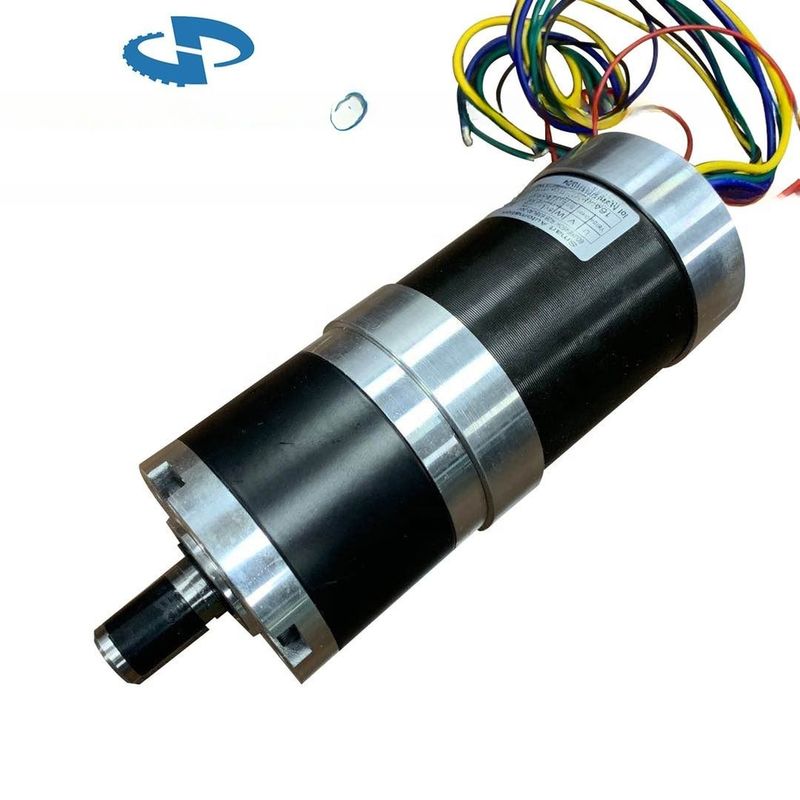

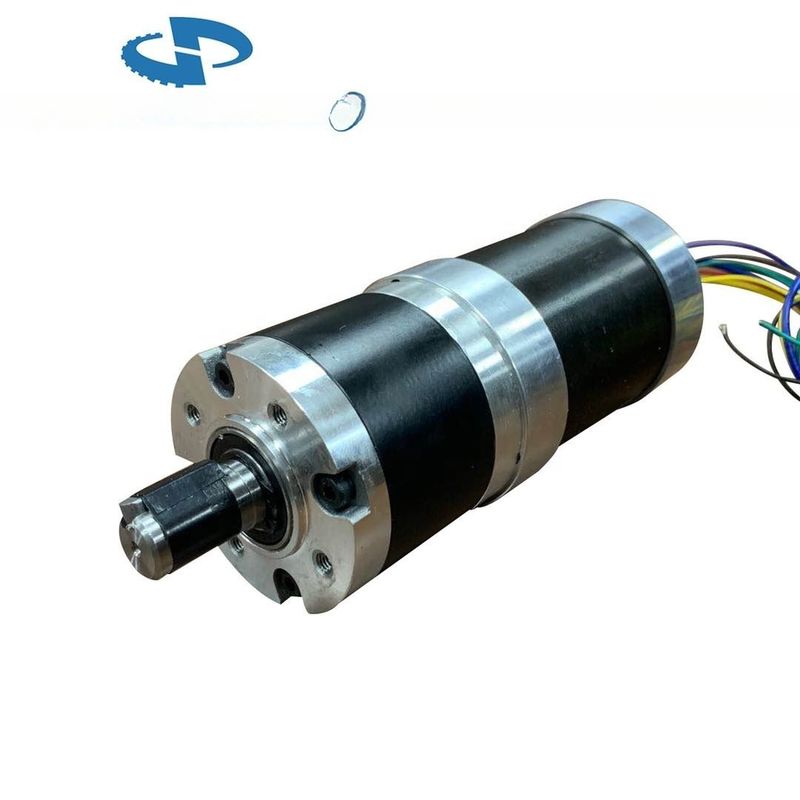

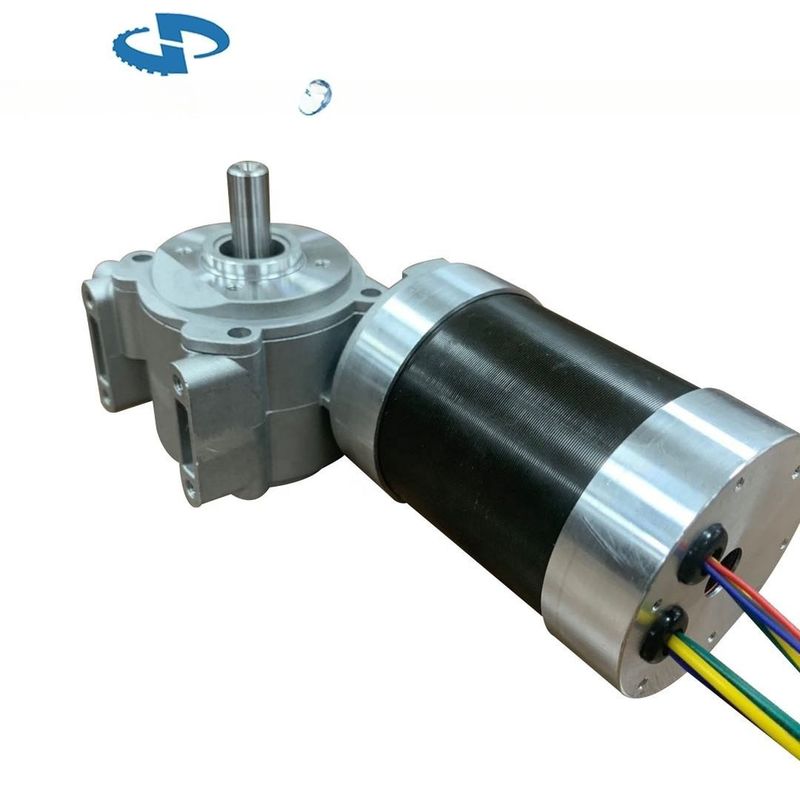

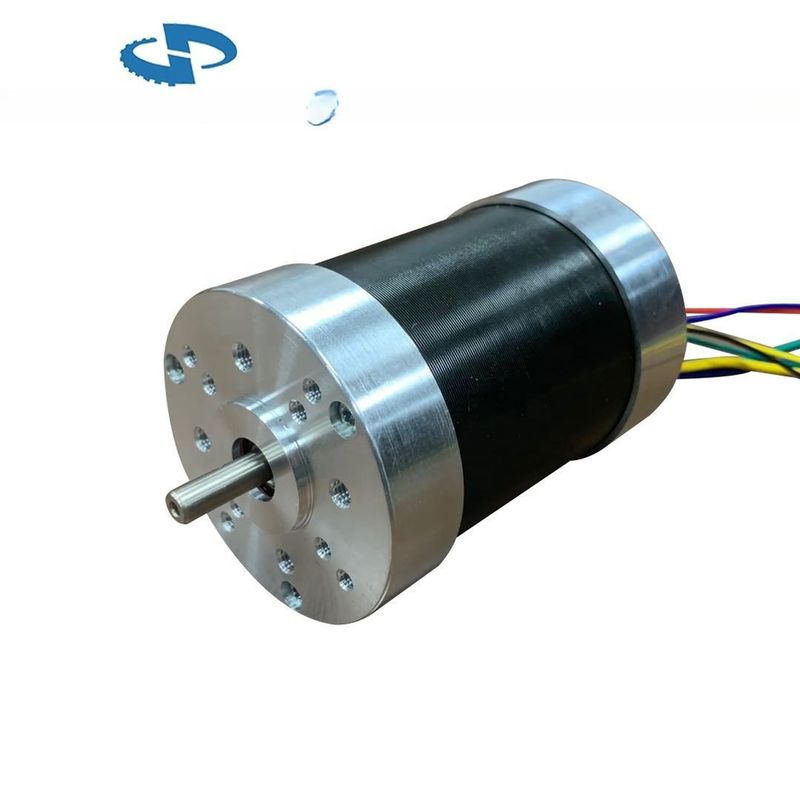

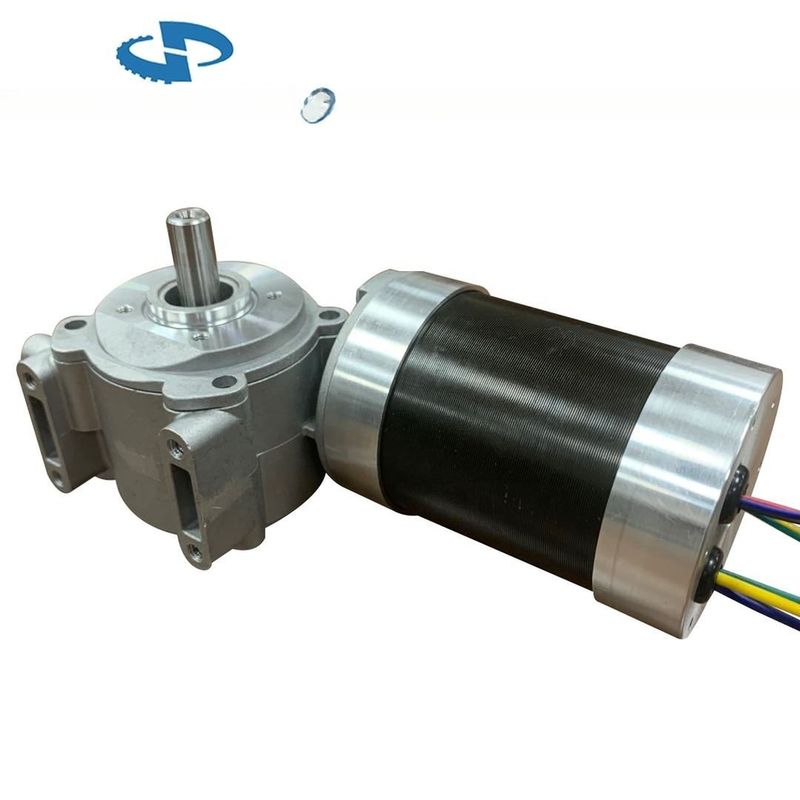

Size 63mm 63RBL Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt

Size 63mm 63RBL Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt

  • Highlight

    63mm Brushless Dc Motor

    ,

    63RBL Brushless Dc Motor

    ,

    24 volt brushless motor 0.8Nm

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    3000rpm 4000rpm Or Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    Micro Motor
  • Torque
    Upto 0.8Nm Without Gearhead
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

Size 63mm 63RBL Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt

63RBL Series 63mm Brushless Dc Motor, Rated Torque upto 0.8Nm

63RBL Series 63mm Brushless Dc Motor



Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.05mm@450g
End play 0.05mm@450g
Max. radial force 150N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC



Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/14AWG PHASE U
7 Green PHASE V
8 Blue PHASE W



63RBL Series 63mm Brushless Dc Motor, Rated Torque upto 0.8Nm

Dimensions

63RBL Series 63mm Brushless Dc Motor, Rated Torque upto 0.8Nm





63RBL Series 63mm Brushless Dc Motor, Rated Torque upto 0.8Nm
