Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor

Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor

Products - Brushless DC Motor
  • Highlight

    86mm 48v brushless dc motor

    ,

    86mm nema 34 bldc motor

    ,

    86BLS nema 34 bldc motor 3000rpm

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    3000rpm Or Customized
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, MACHINE Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    Brushless Motor
  • Torque
    Upto 3Nm
  • Construction
    Series Wound
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor

  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
  • Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
Get Price Contact Now

86BLS Series Nema 34 Brushless Dc Motor



86BLS General specification

Item Specification
Winding type Star
Hall effect angle 120° (Electrical angle)
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max. radial force 220N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC



86BLS Specification

Model 86BLS-70 86BLS-80 86BLS-90 86BLS-105 86BLS-130 86BLS-135
Number of phase 3
Number of pole 8
Voltage V 48v (Option for 12v 24v up to 320vdc)
No load speed rpm 3500 3500 3500 3500 3500 3500
Rated torque Nm 0.7 1.0 1.3 1.8 2.5 3.0
Rated Speed rpm 3000 3000 3000 3000 3000 3000
Rated Current A 6 8.6 11 15 21 25
Rated Power W 220 314 408 565 785 942
Weight Kg 1.7 2.1 2.5 3.1 4.1 4.3
Length mm 70 80 90 105 130 135



Drawing:



Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor 0



86mm Nema34 86BLS High Power Brushless Dc Motor 12v 24v 36v 48v 300w 400w 500w 800w 1000w

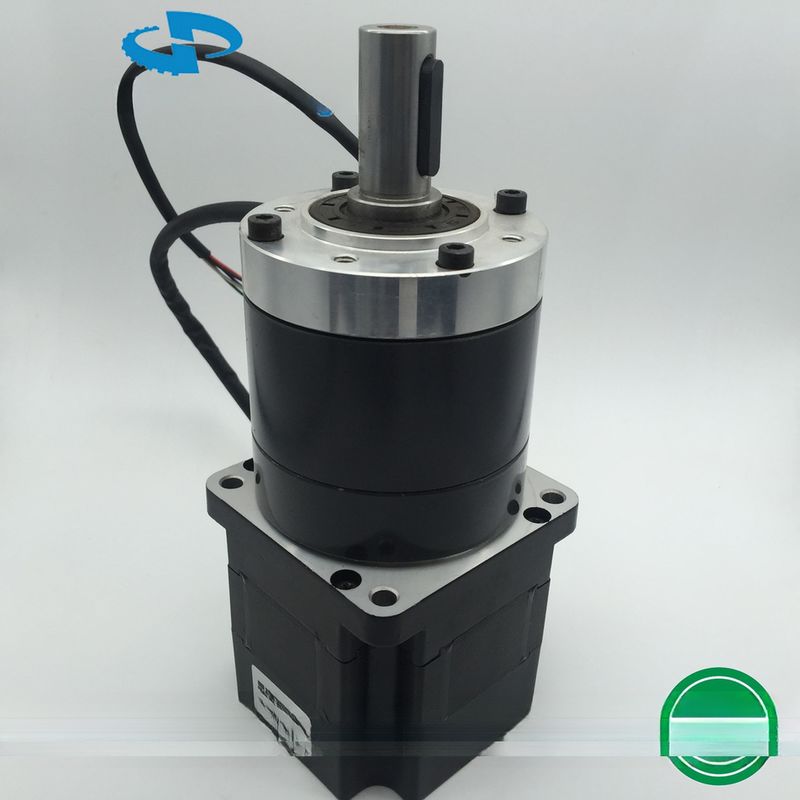

Planetary gear verion

86mm Nema34 86BLS High Power Brushless Dc Motor 12v 24v 36v 48v 300w 400w 500w 800w 1000w

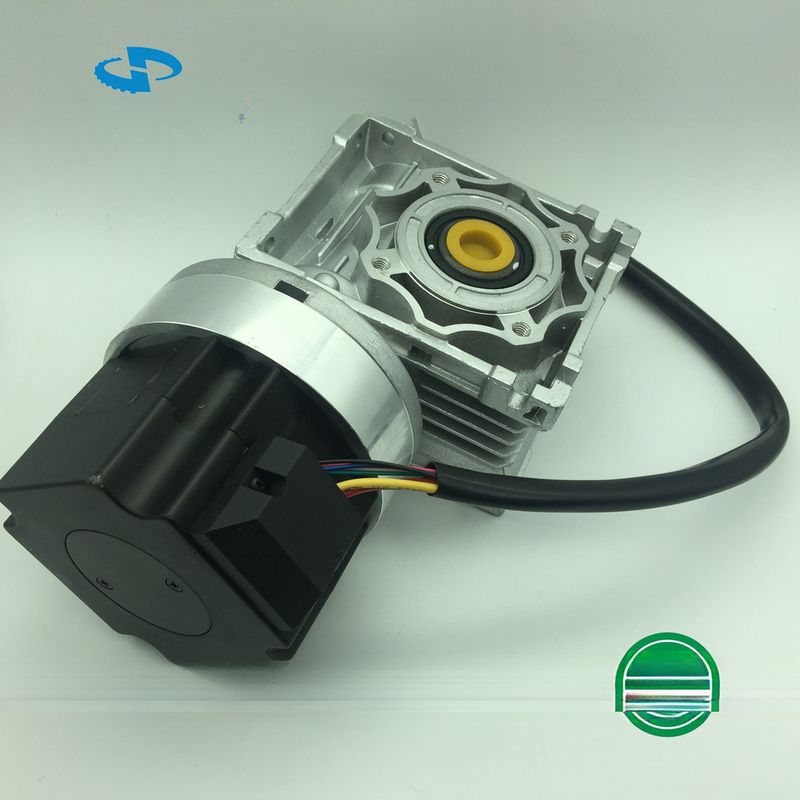

Worm gear version

86mm Nema34 86BLS High Power Brushless Dc Motor 12v 24v 36v 48v 300w 400w 500w 800w 1000w

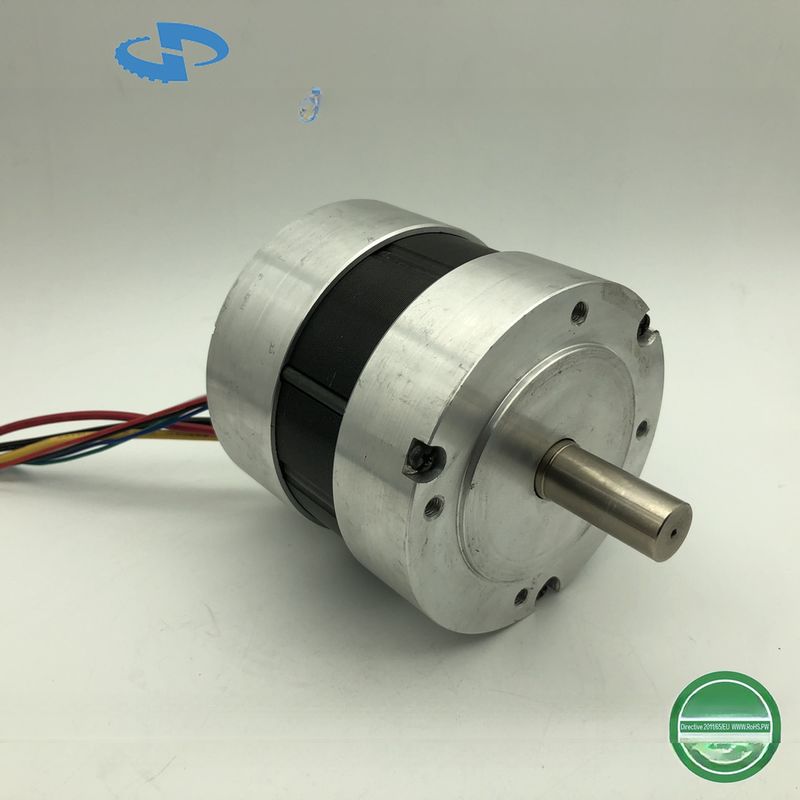

Round Type



86mm Nema34 86BLS High Power Brushless Dc Motor 12v 24v 36v 48v 300w 400w 500w 800w 1000w



86mm Nema34 86BLS High Power Brushless Dc Motor 12v 24v 36v 48v 300w 400w 500w 800w 1000w
