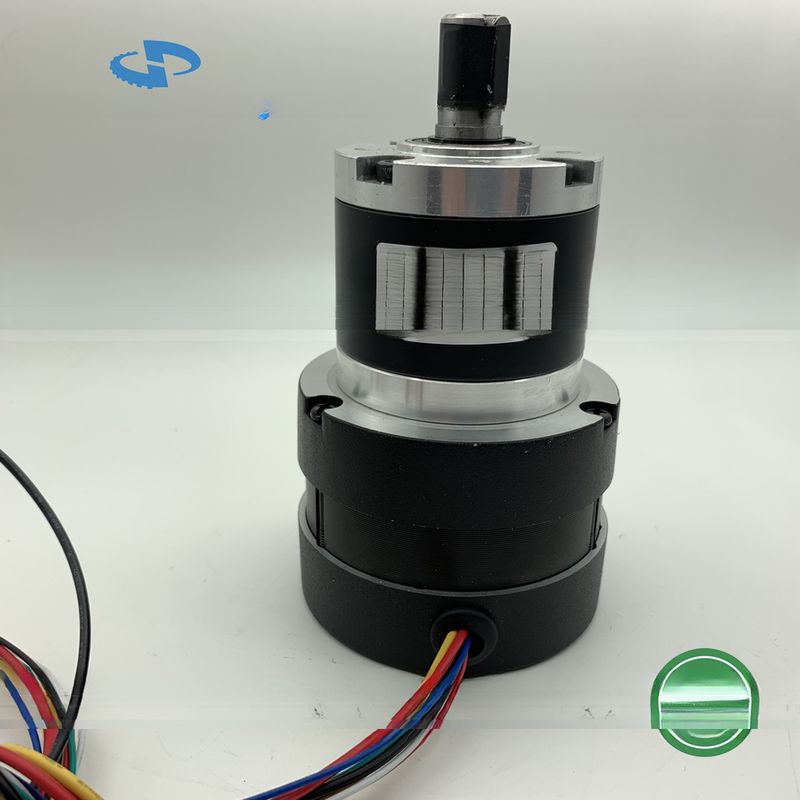

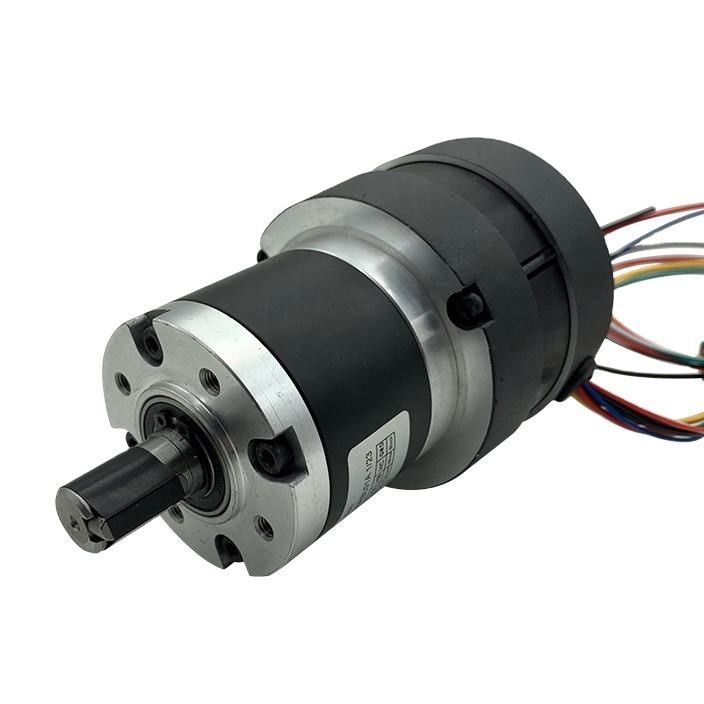

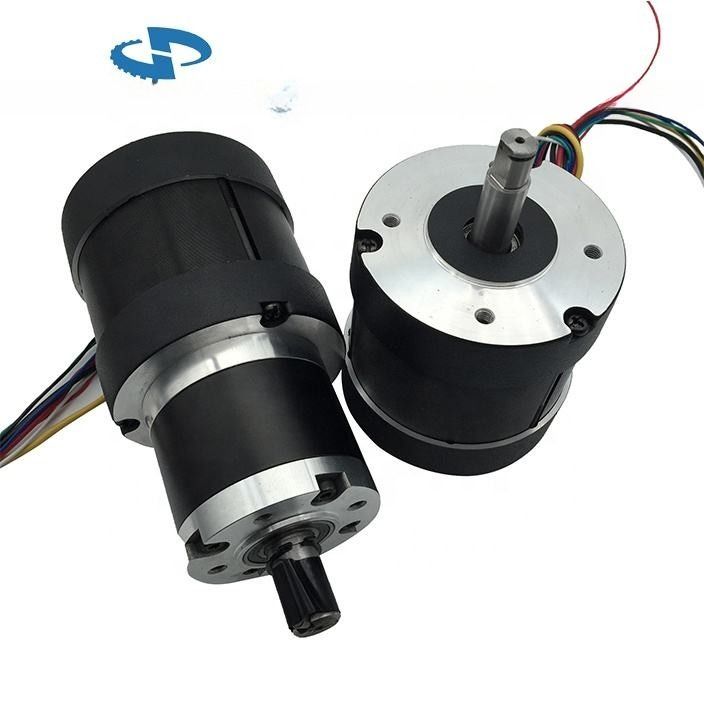

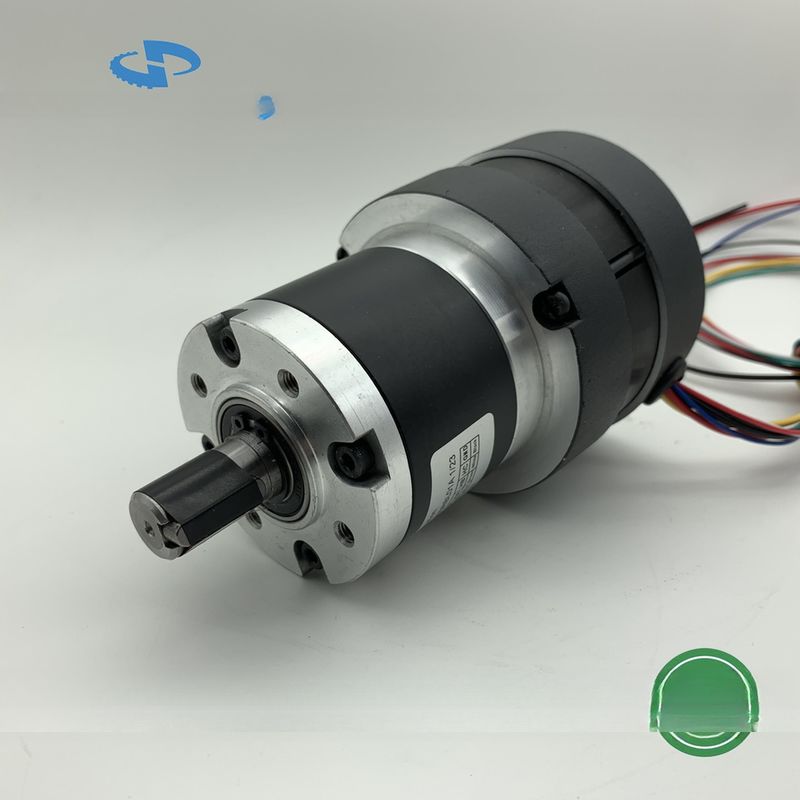

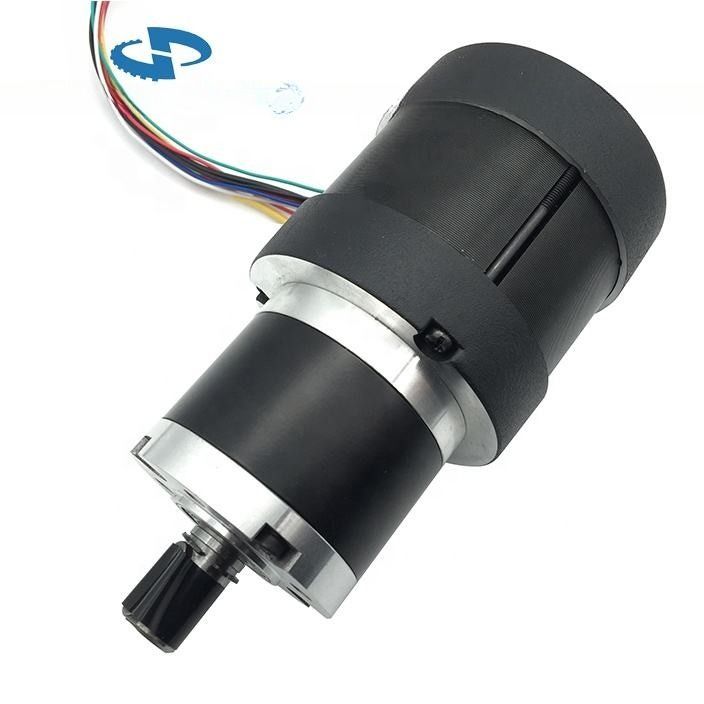

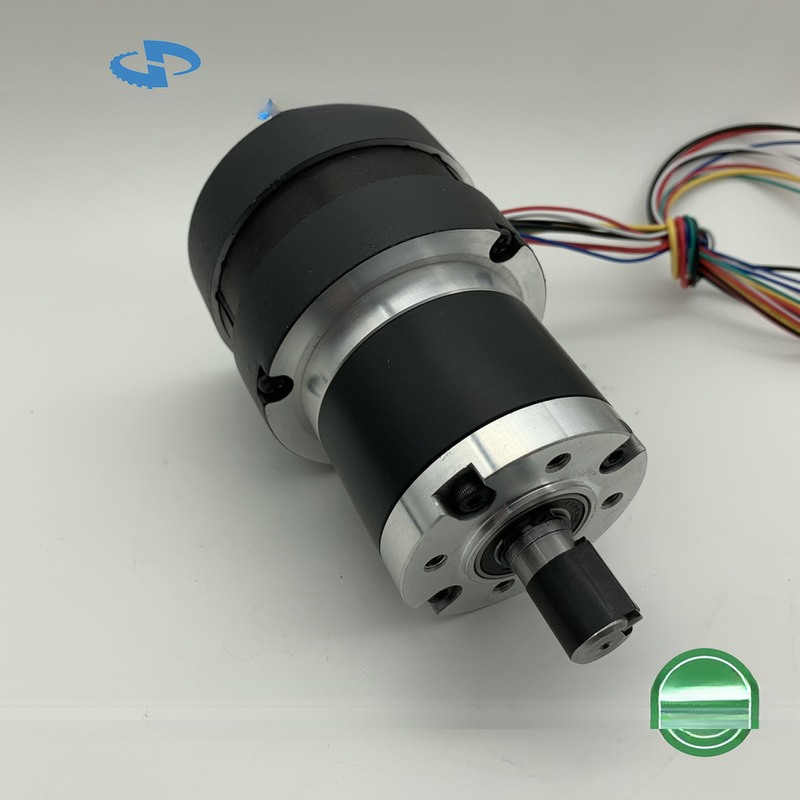

60JXE450K.80RBL Economical Planetary Geared BLDC Motors 12 v 24 v 48 v 220 v100w 200w 300w 400w
-
Highlight
60JXE450K.80RBL Planetary Gear Motors
,Planetary Gear Motors 48v 100w
,60JXE450K.80RBL BLDC Motors
-
Warranty3years
-
PortShanghai
-
CurrentCustomized
-
Speed(RPM)1rpm-1000 Rpm
-
Continuous Current(A)Customed
-
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Machine
-
TypeMicro Motor
-
TorqueCustomed
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
60JXE450K.80RBL Economical Planetary Geared BLDC Motors 12 v 24 v 48 v 220 v100w 200w 300w 400w
60XE450K.80RBL Economical Planetary Gear BLDC Motors 24v 48v 100w 200w 300w 400w
Below are only typical models.
We make customed voltage, performance, shaft, mounting...etc
We make integrated controller, encoder, gearbox, brake...etc
80RBL SERIES
General
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120° (electrical angle) |
| Shaft run out | 0.025mm |
| Radial play | 0.06mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 200N@10mm from the flange |
| Max.axial force | 60N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation resistance | 100MΩMin.500VDC |
Electric connection
OPTION CONTROLLER INTEGRATED
