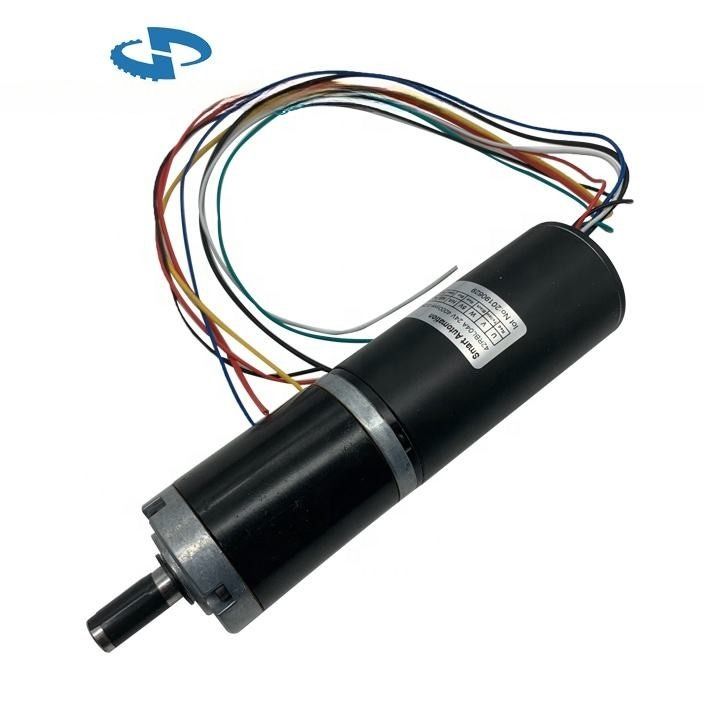

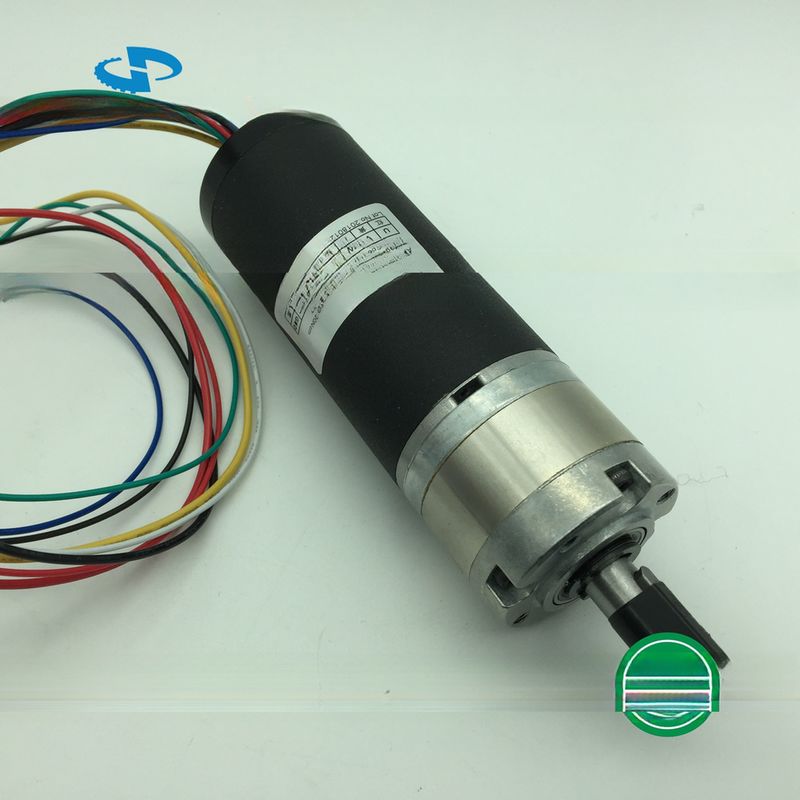

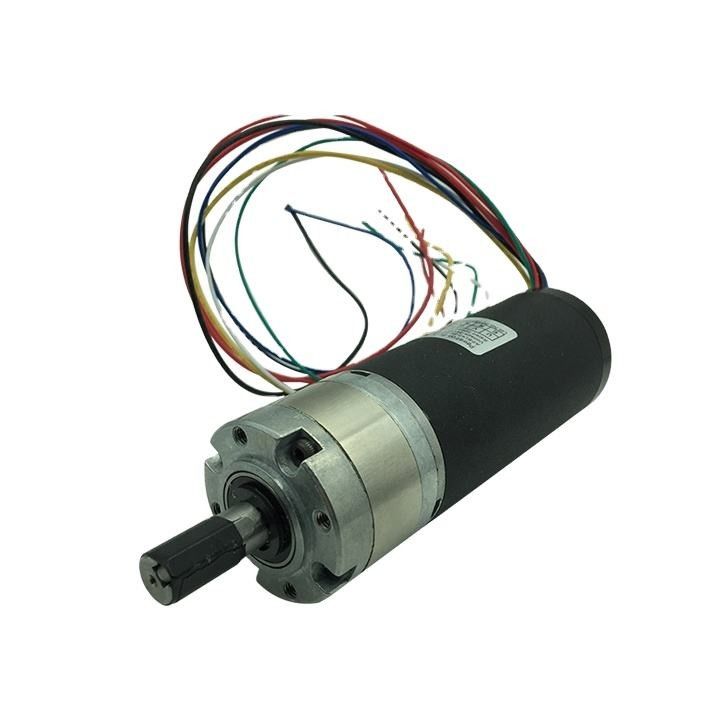

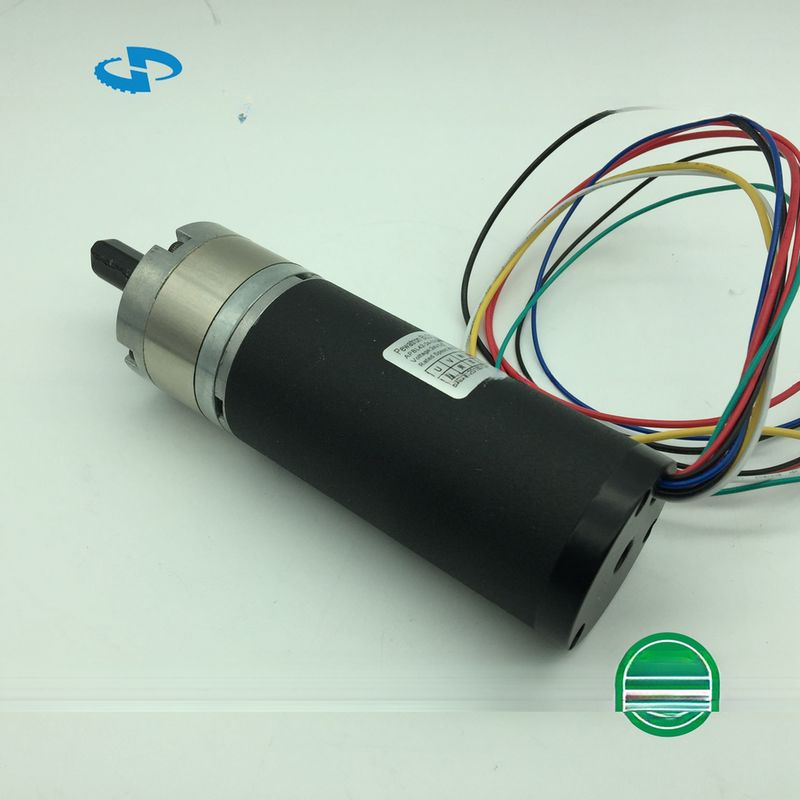

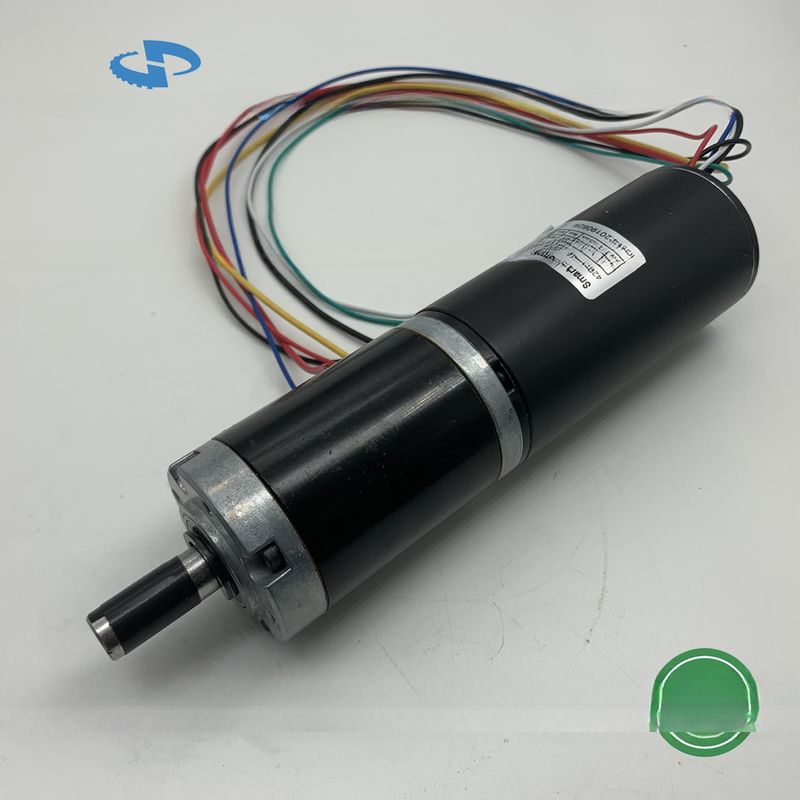

42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w

42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w

Products - Brushless DC Planetary Gear Motor
  • Highlight

    42JXE100K.42RBLelectric dc brushless motor

    ,

    electric dc brushless motor 25w

    ,

    42JXE100K.42RBL brushless electric motor

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    Micro Motor
  • Torque
    Up To 10Nm 20Nm
  • Construction
    Series Wound
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w

  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
  • 42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
Get Price Contact Now

42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise

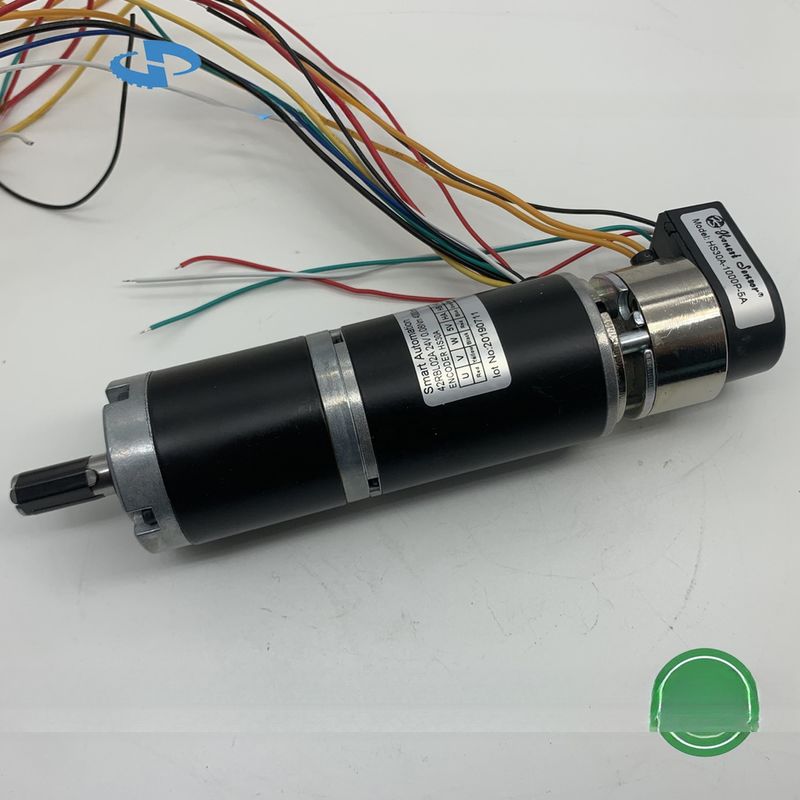

size 42mm electric dc brushless motor, 12v 24v 36v option for planetary gearhead, optical encoder, electric brake assembly







General specification:

Item Specification
Winding type Delta
Hall effect angle 120degree electrical angle
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max.radial force 15N@10mm from the flange
Max.axial force 10N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Electric connection:

Lead NO. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/20AWG PHASE U
7 Green PHASE V
8 Blue PHASE W









42JXE100K.42RBL Planetary Gear Motor Series

(helical gear version)

42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise





42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise



42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise





42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise
