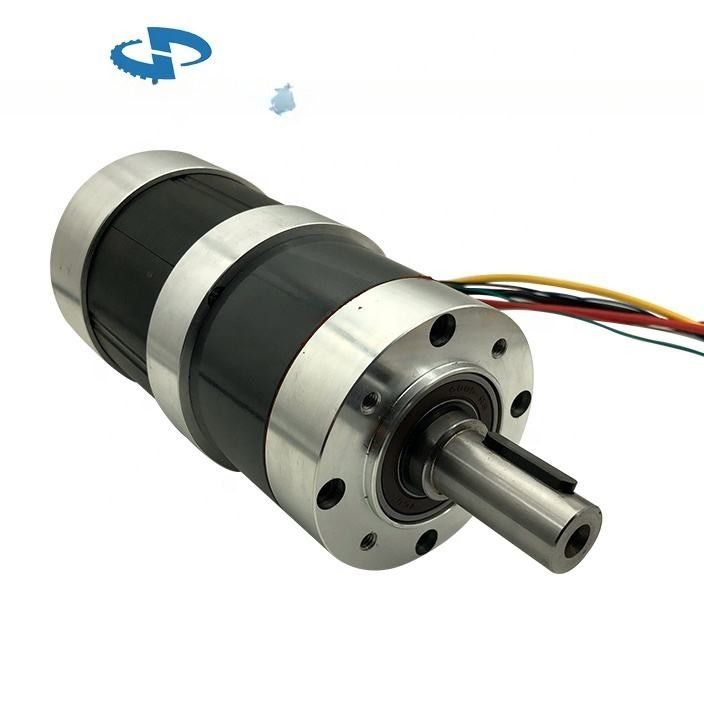

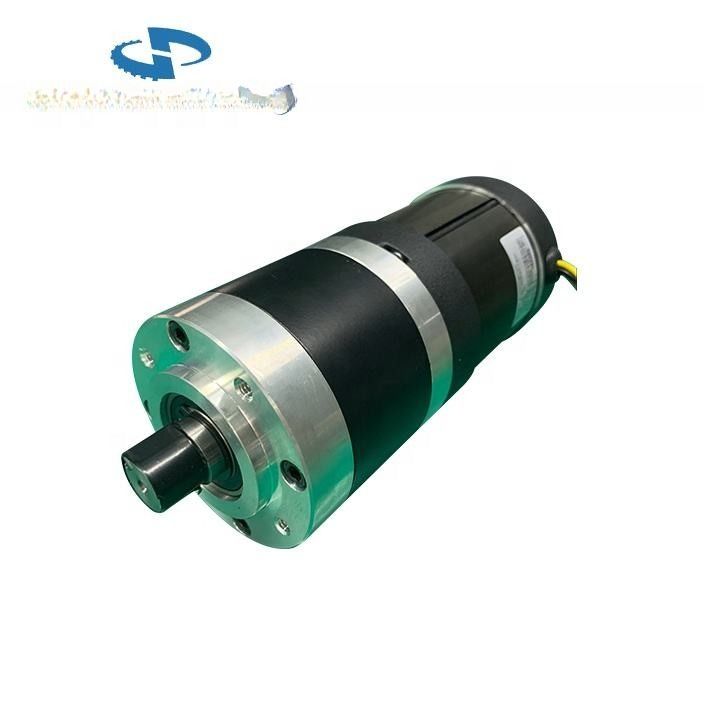

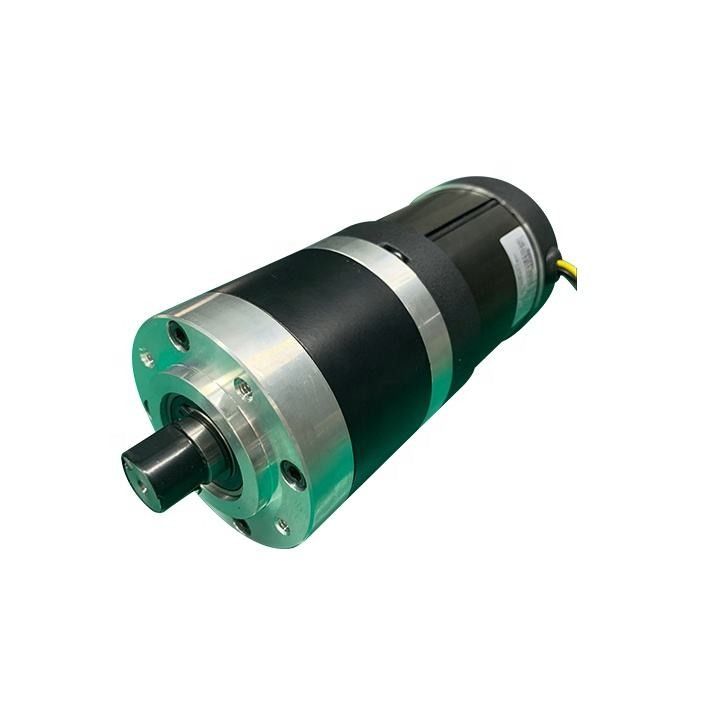

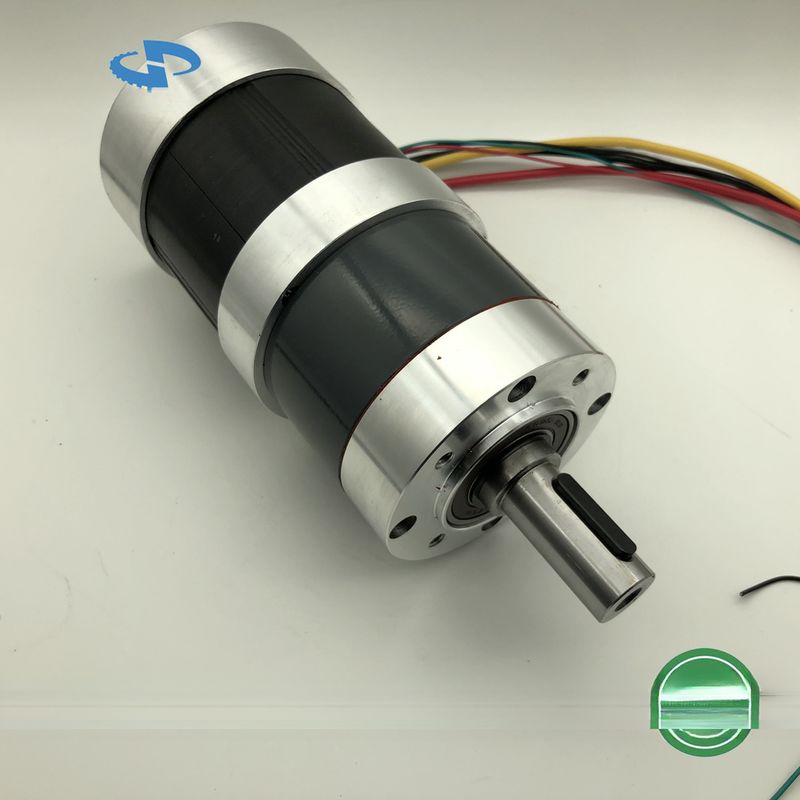

80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor

80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor

Products - Brushless DC Planetary Gear Motor
  • Highlight

    80PMB800K.80RBL bldc gear motor 24v

    ,

    bldc gear motor 24v 80Nm

    ,

    80PMB800K.80RBL brushless dc gearmotor

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    1.68A
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    Brushless Motor
  • Torque
    Up To 80Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor

  • 80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor
  • 80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor
  • 80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor
  • 80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor
  • 80PMB800K.80RBL Direct Driving BLDC Geared Motor 12v 24v 36v 48v High Torque Big Power upto 80Nm Brushless DC Gearmotor
Get Price Contact Now

80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque upto 80Nm



Below are only typical models.

We make customed voltage, performance, shaft, mounting...etc

We make integrated controller, encoder, gearbox, brake...etc







80RBL Series Round Type 80mm Brushless Dc Motor





Electric connection

80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque upto 80Nm


Technique Specification



Model



80RBL-55



80RBL-60

 80RBL-70 80RBL-80



80RBL-90



80RBL-100



80RBL-120
Number of phase 3
Number of pole 4 (8)
Voltage V 24v (Option for 12v 36v 48v 60v up to 230vdc)
No load speed rpm 4000 4000 4000 4000 4000 4000 4000
Rated torque Nm



0.4

 0.5 0.8 1.0 1.2 1.5 1.8
Rated Speed rpm



3000

 3000 3000 3000



3000



3000



3000
Rated Current A 7 8 14 17 21 26 31
Rated Power W 126 157 252 315 378 473 568
Weight Kg 1.1 1.2 1.5 1.7 2.0 2.3 2.9
Length mm 55 60 70 80 90 100 120











PLANETARY GEARED VERSION





80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque upto 80Nm





80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque upto 80Nm







80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque upto 80Nm
