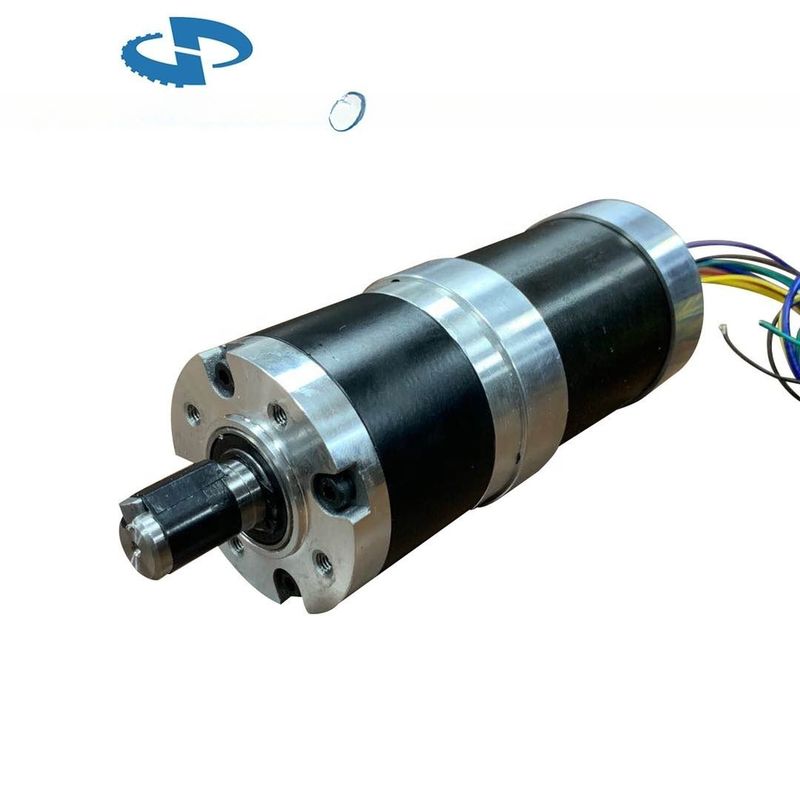

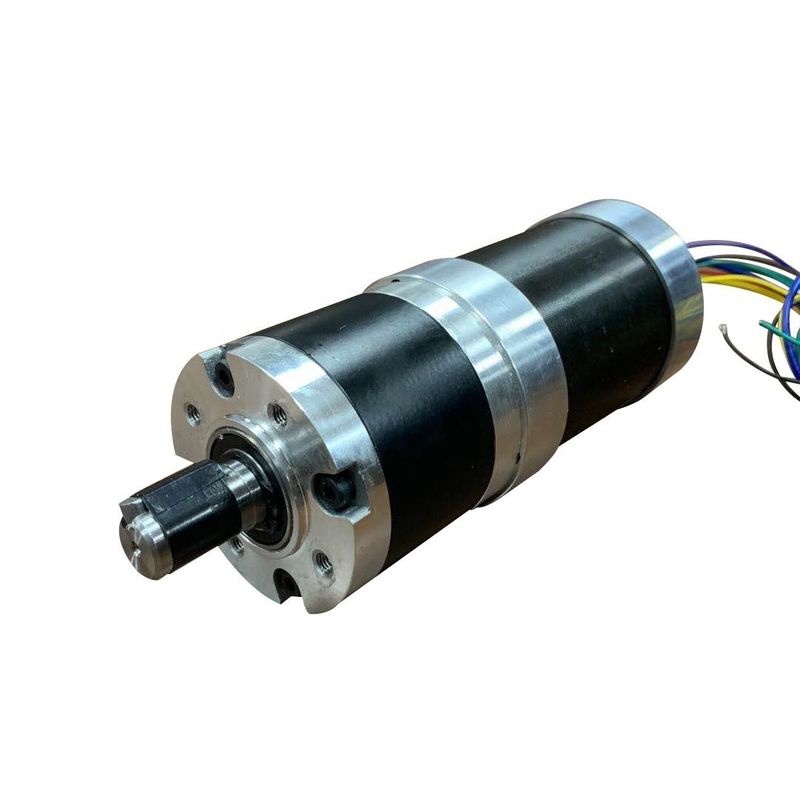

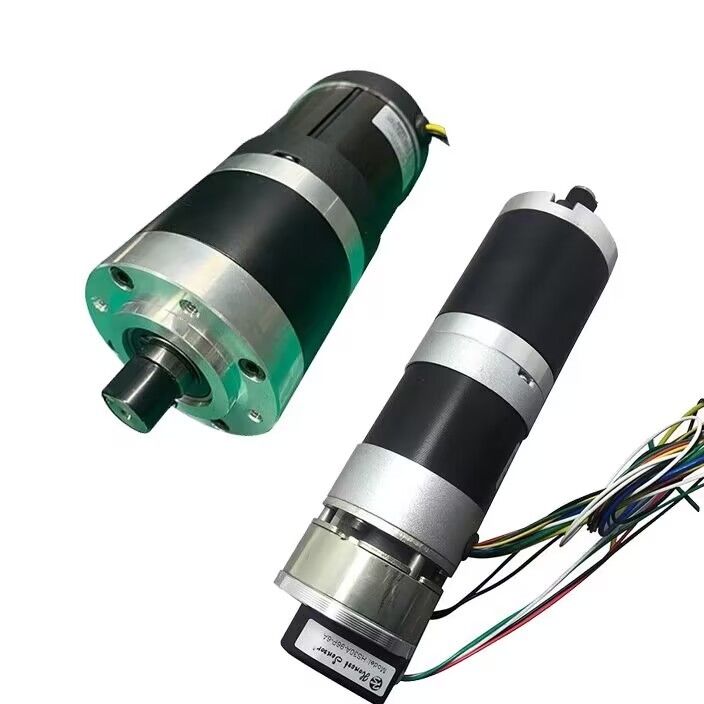

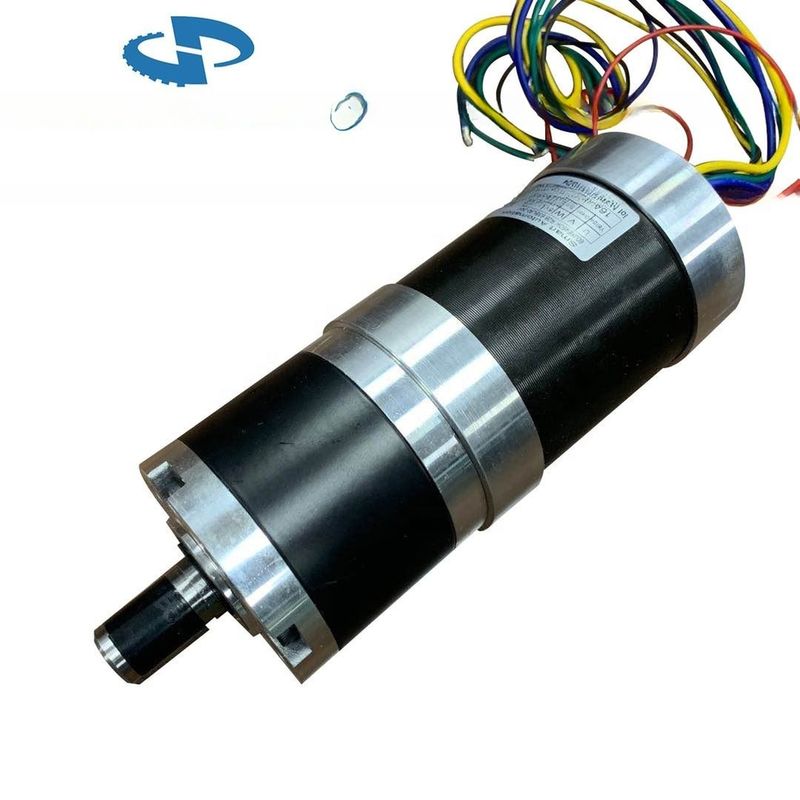

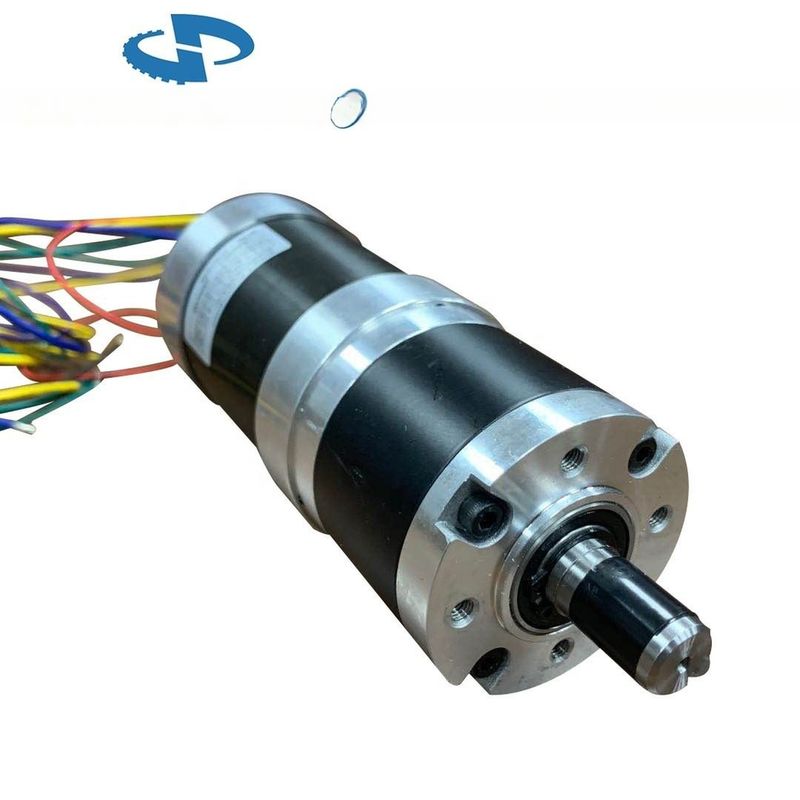

Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm
-
Highlight
60JXE450K.63RBL Brushless DC Planetary Gear Motor
,bldc gear motor 12v 200w 45Nm
,60JXE450K.63RBL bldc gear motor 12v
-
Warranty3years
-
PortShanghai
-
Current / Phase1.68A
-
Speed(RPM)1rpm-1500rpm
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Machine, Robot
-
TypeMicro Motor
-
TorqueUpto 45N.m Rated
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm
60JXE450K.63RBL Series Brushless DC Planetary Gear Motor, 12v 24v 48v 50w 100w 200w upto 45Nm
Brushless DC Planetary Gear Motor 60JXE450K.63RBL Series
Motor Main Specifications:
Bearing: High Quality Ball Bearing
IP54 Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS
Electric connection
| Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
| 1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | ||
| 4 | Green | HALL B | ||
| 5 | Blue | HALL C | ||
| 6 | Yellow | UL1007/14AWG | PHASE U | |
| 7 | Green | PHASE V |
Technique Specification
|
Reduction ratio |
Rated tolerance torque |
Max momentary tolerance torque |
Efficiency |
L (mm) |
Weight(g) |
| 1/3.6 1/4.25 1/5.33 | 4 N.m | 12 N.m | 90% | 40.3±0.5 | 520 |
| 1/13 1/15 1/18 1/23 1/28 | 18 N.m | 36 N.m | 81% | 53.8±0.5 | 710 |
| 1/43 1/52 1/61 1/72 1/96 1/121 | 36 N.m | 72 N.m | 73% | 67.2±0.5 | 900 |
|
1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 1/809 |
45 N.m | 90N.m | 66% | 80.6±0.5 | 1100 |
Drawing:
