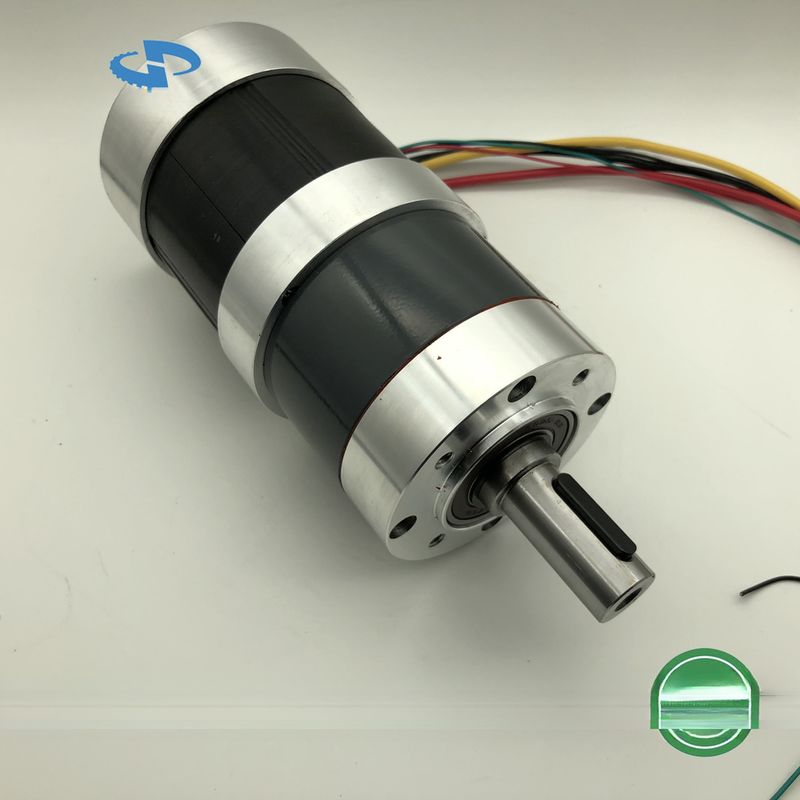

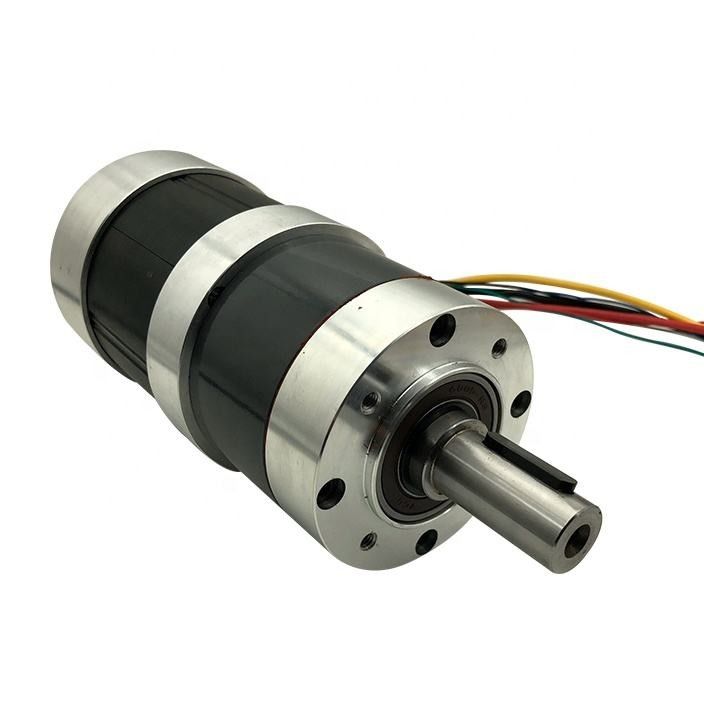

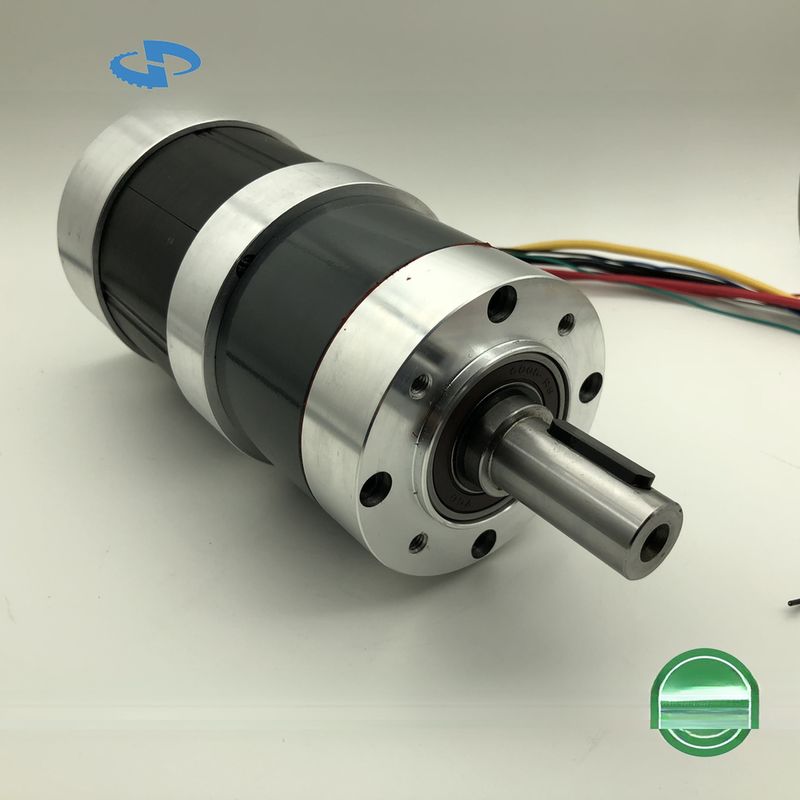

86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt

86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt

Products - Brushless DC Planetary Gear Motor
  • Highlight

    86mm geared brushless motor

    ,

    120Nm bldc gear motor 48v

    ,

    82PN.86BL bldc gear motor 48v

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    Customized For Different Power
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Michine
  • Type
    SERVO MOTOR
  • Torque
    Customed
  • Construction
    Series Wound
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt

  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
  • 86mm 82PN.86BL Geared Brushless Dc Motor Large Torque Big Power 120Nm BLDC Gear Motor 24 volt 48 volt
Get Price Contact Now

86mm High Power Brushless Dc Gear Motor upto 120Nm, helical gears big torque low noise



82PN.86BL Brushless Dc Planetary Gear Motor

86RBL Technique Specification

Model

86RBL01A /

86BLS01A

 86RBL02A / 86BLS02A 86RBL03A / 86BLS03A
Number of phase 3
Number of pole 8
Voltage V 48v (Option for 12v 24v up to 230vdc)
No load speed rpm 3600 3600 3600
Rated torque Nm 1.0 1.8 2.5
Rated Speed rpm 3000 3000 3000
Rated Current A 8.6 14.8 20
Rated Power W 314 565 785
Weight Kg 2.2 3.2 4.2
Length mm 80 105 130































Planetary Gearbox Specifications

Gearbox Model: 82PN (Helical Gear)

Reduction ratio Rated tolerance torque Max momentary tolerance torque Efficiency L(mm)
1/3.65 1/5.36 1/6.55 1/8.63 20N.m 40 N.m 90% 58.3±0.5
1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67 60 N.m 120 N.m 81% 80.5±0.5
1/81.1 1/91.3 1/102.9 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393 120N.m 240 N.m 73% 103.2±0.5



Drawing



86mm High Power Brushless Dc Gear Motor upto 120Nm, helical gears big torque low noise

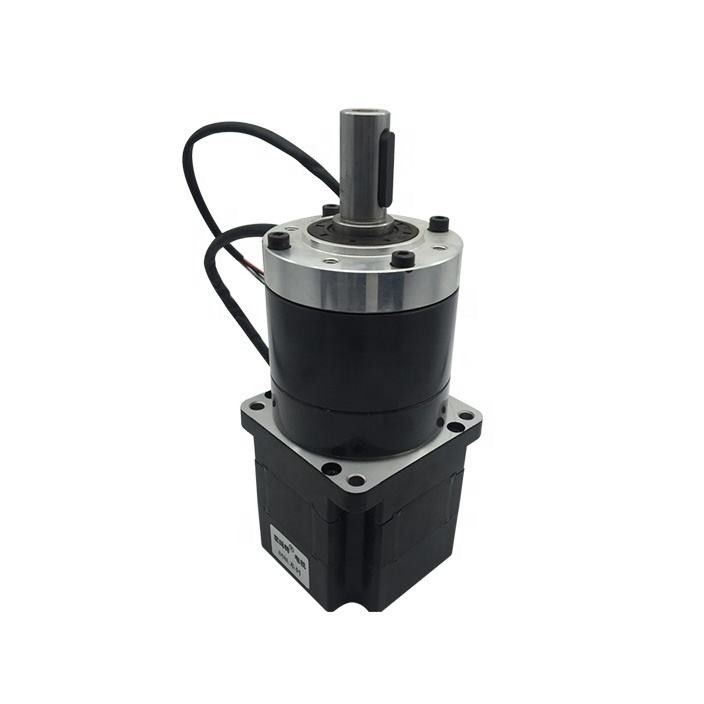

86BLS Squre flange



86mm High Power Brushless Dc Gear Motor upto 120Nm, helical gears big torque low noise

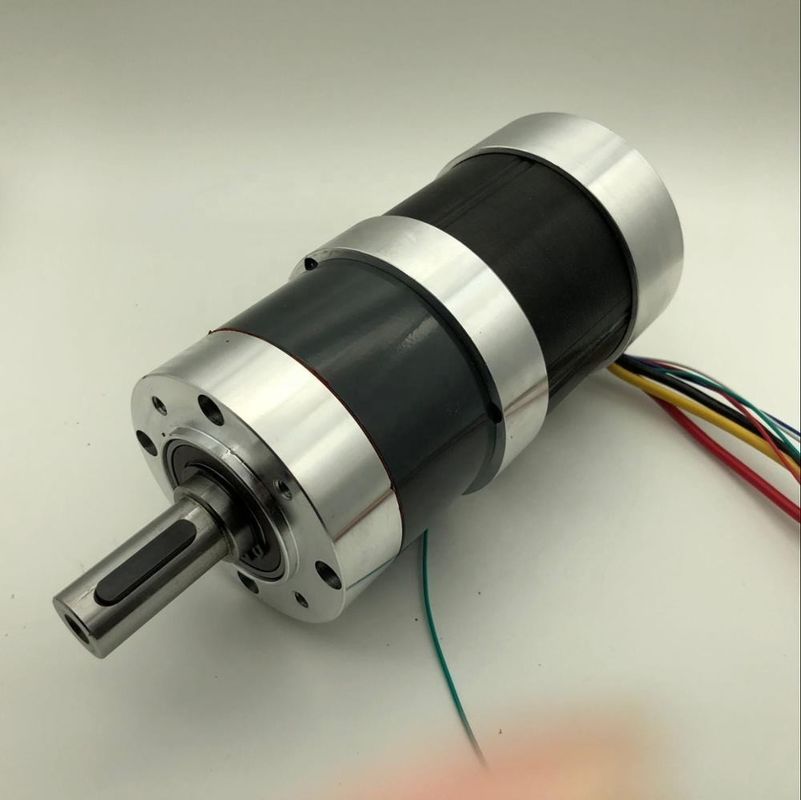

86RBL ROUND FLANGE

86mm High Power Brushless Dc Gear Motor upto 120Nm, helical gears big torque low noise
