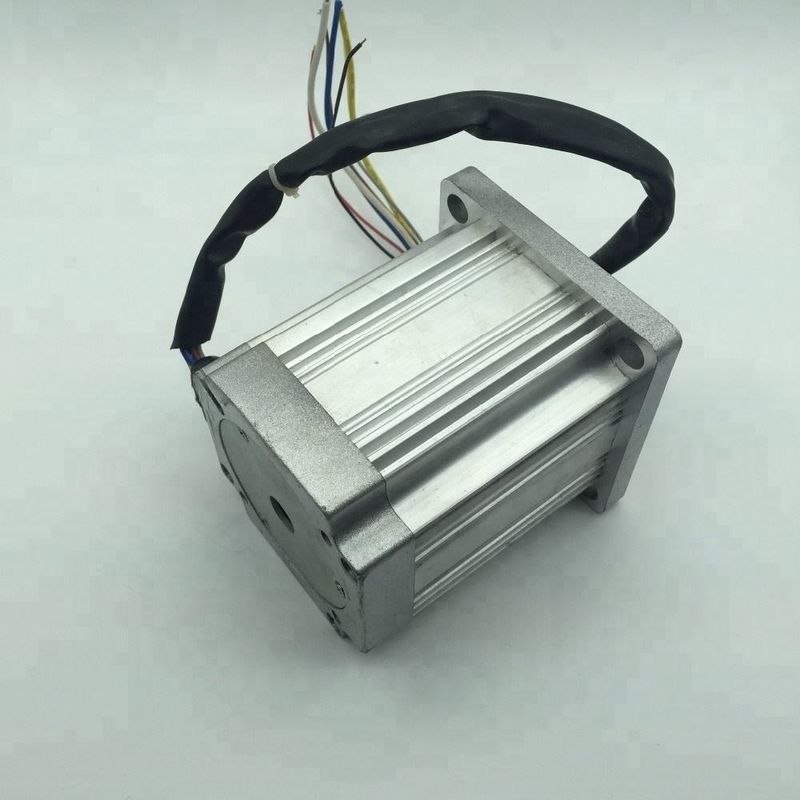

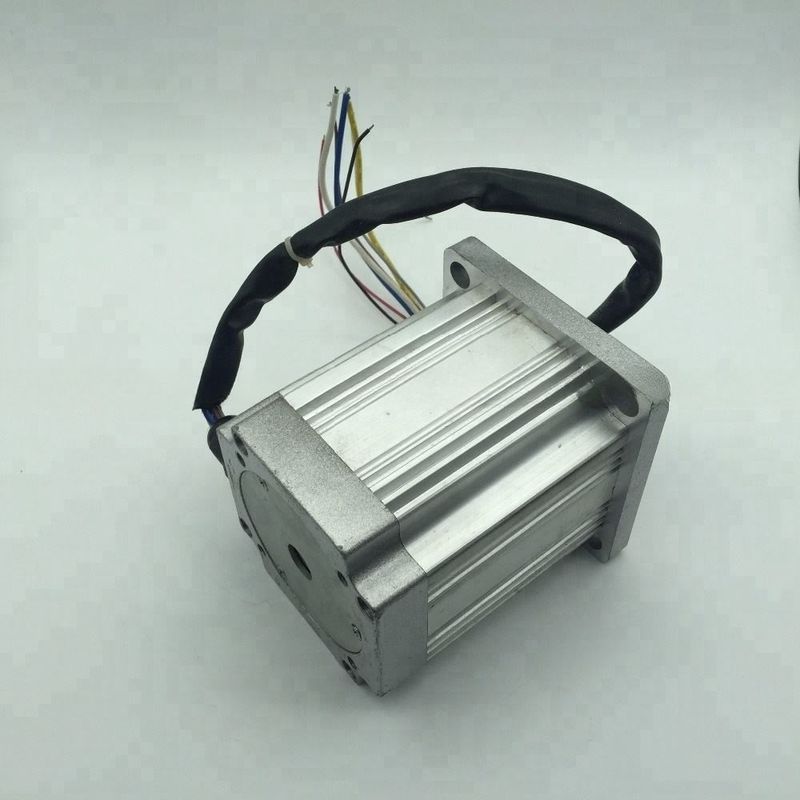

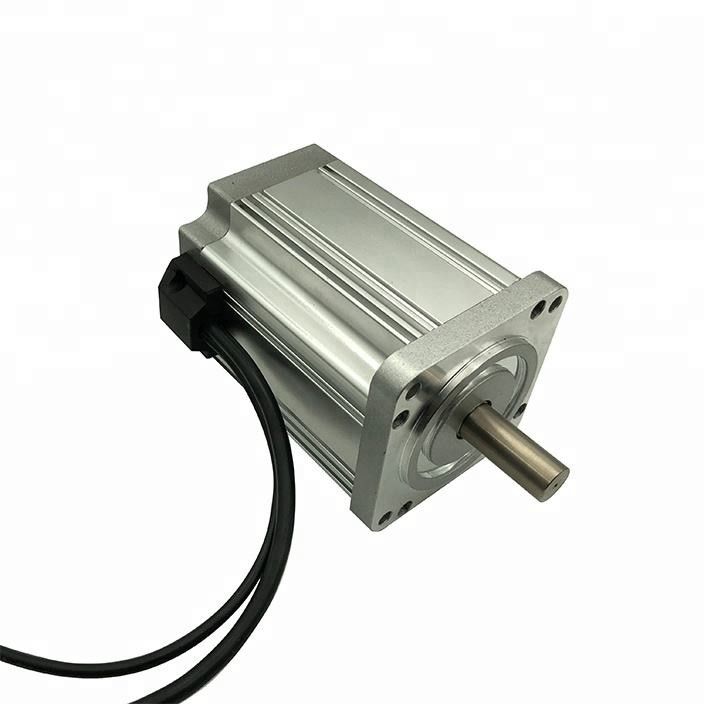

80x80mm 12 v 24 v 36 v 48 v DC Electric Brushless Motor High Torque High Speed IP54 IP56 IP65 Water-proof 150w 200w 300w

80x80mm 12 v 24 v 36 v 48 v DC Electric Brushless Motor High Torque High Speed IP54 IP56 IP65 Water-proof 150w 200w 300w

  • Highlight

    80x80mm 24v dc electric motor

    ,

    24v dc electric motor ip54 150w

    ,

    80x80mm 24v dc motor high torque high speed

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    3000rpm OR Customed
  • Continuous Current(A)
    Customed
  • Usage
    Electric Bicycle, FAN, Home Appliance, SMART HOME
  • Type
    Brushless Motor
  • Torque
    Upto 1.5Nm
  • Construction
    Series Wound
  • Commutation
    Brushless
  • Protect Feature
    IP54
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

80x80mm 12 v 24 v 36 v 48 v DC Electric Brushless Motor High Torque High Speed IP54 IP56 IP65 Water-proof 150w 200w 300w

size 80 x 80mm 24 v dc electric motor ip54 ip56, rated 24volt 150w 200w 300w



BELOW ARE ONLY TYPICAL MODELS

WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,

AND MOTOR ADDERS FOR ENCODER, GEARBOX, BRAKE...ETC







80BLS Series Brushless Dc Motor

General specification

Item Specification
Winding type Delta
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max. radial force 200N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC



Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Blue HALL A
4 Green HALL B
5 White HALL C
6 Red UL1007/18AWG PHASE U
7 Yellow PHASE V
8 Black PHASE W



Technique Specification

Model 80BLS01A 80BLS02A 80BLS03A 80BLS04A
Number of phase 3
Number of pole 8
Voltage V 24v(Option for 12v up to 230vdc)
No load speed rpm 4200 4200 4200 4200
Rated torque Nm 0.3 0.65 1 1.3
Rated Speed rpm 3000 3000 3000 3000
Rated Current A 6.5 12.5 18 20.5
Rated Power W 94 200 315 410
Weight Kg 1.6 2.2 3 3.8
Length mm 85 105 115 145
