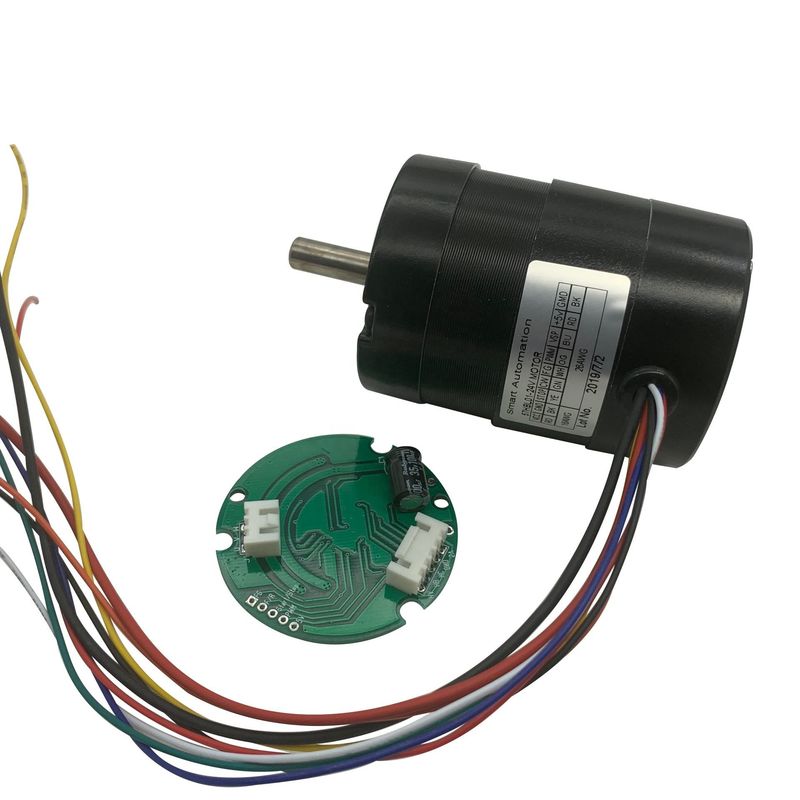

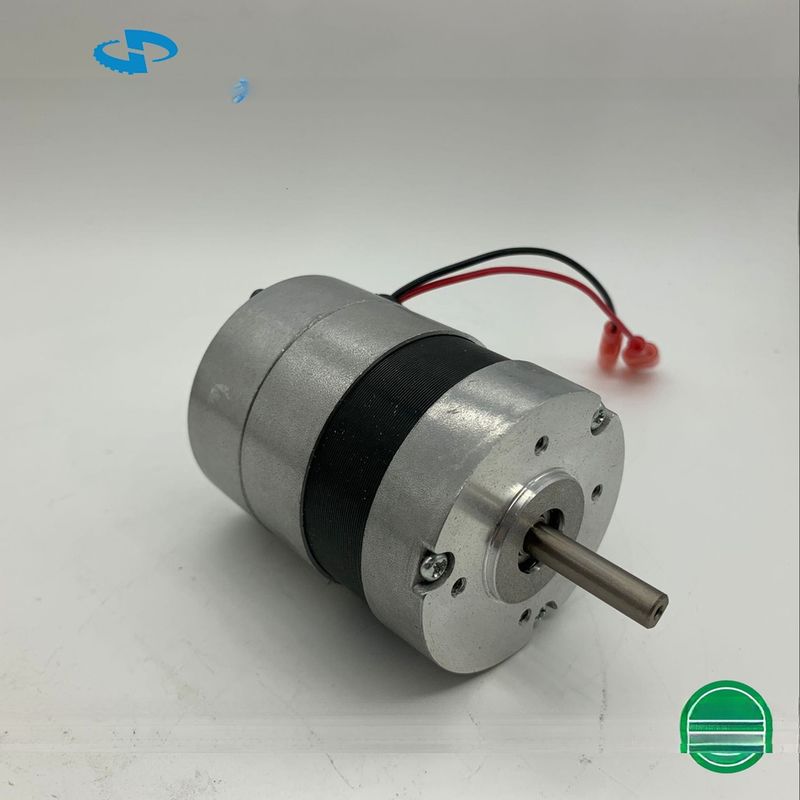

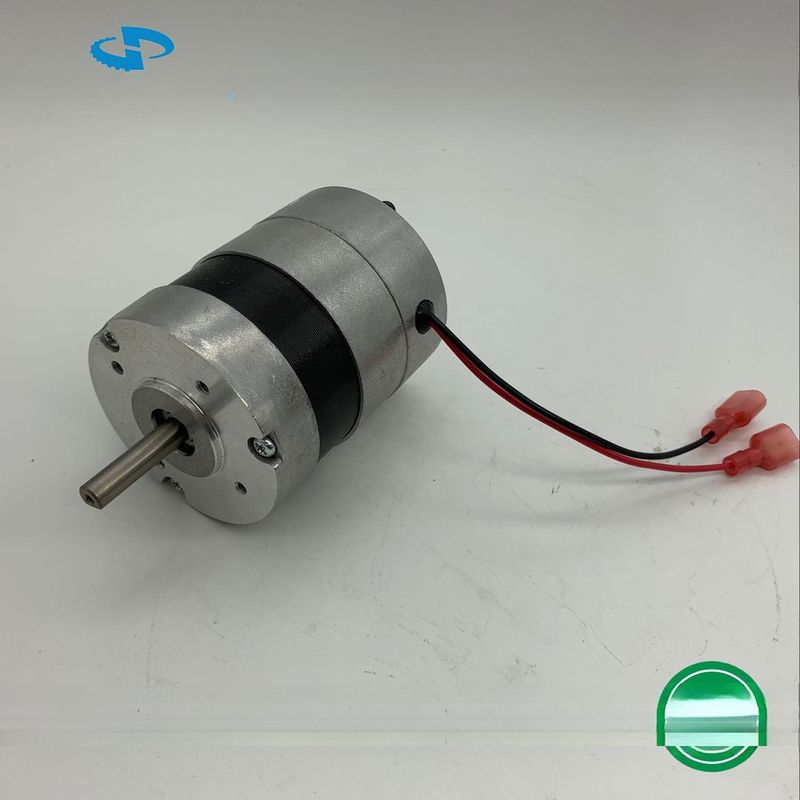

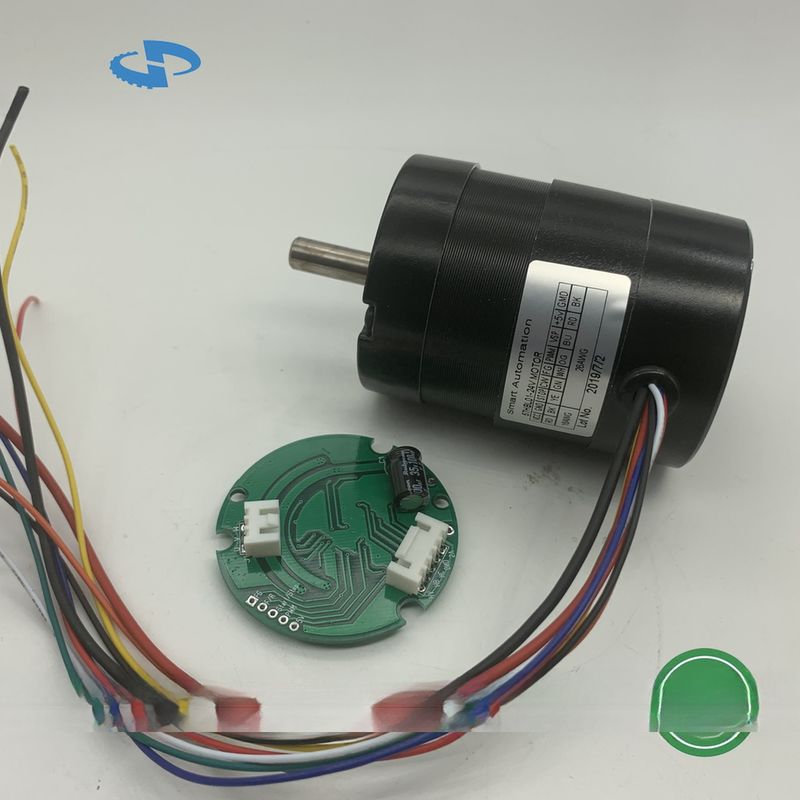

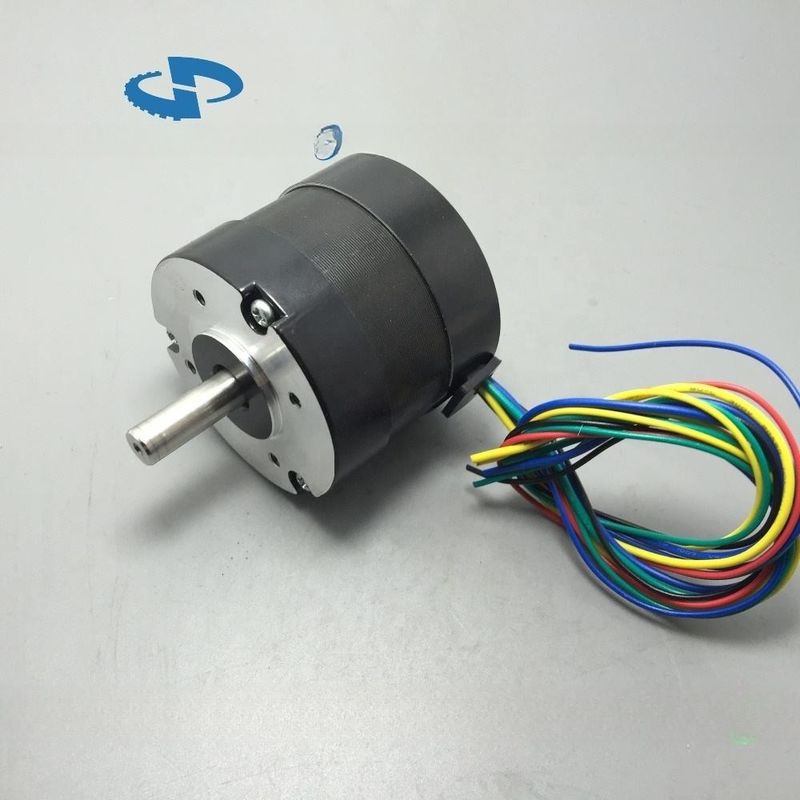

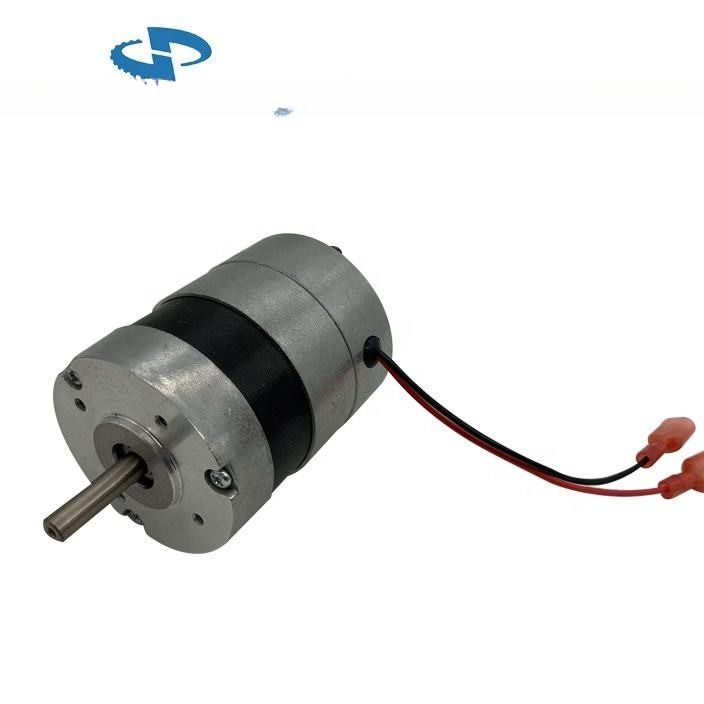

57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt

57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt

Products - Brushless DC Motor
  • Highlight

    brushless dc motor with integrated controller

    ,

    brushless dc motor with integrated speed controller

    ,

    1.68A motor brushless 24v

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    3000rpm 4000rpm Or Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    Micro Motor
  • Torque
    Upto 0.5Nm Without Gearhead
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt

  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
  • 57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
Get Price Contact Now

12v 18v 24v Brushless Dc Solar Motor for solar fan Option Controller Integrated PWM Speed Control



57BL-IE Series Controller Integrated Brushless Dc Motor



General specification

Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.025mm@450g
End play 0.025mm@450g
Max. radial force 100N@10mm from the flange
Max. axial force 15N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC





Technique Specification

Model 57BL65-IE 57BL75-IE 57BL95-IE 57BL115-IE 57BL135-IE
Number of phase 3
Number of pole 4 (Option for 8)
Voltage V 24v(Option for 12v 36v 48v)
No load speed rpm 4000 4000 4000 4000 3500
Rated torque Nm 0.055 0.11 0.22 0.32 0.42
Rated Speed rpm 3000 3000 3000 3000 2500
Rated Current A 1 1.9 3.8 5.5 6
Rated Power W 17.5 35 70 100 110
Weight Kg 0.33 0.55 0.80 1.05 1.30
Length mm 65 75 95 115 135



























Dimensions & Control Diagram



12v 18v 24v Brushless Dc Solar Motor for solar fan Option Controller Integrated PWM Speed Control
