57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w

57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w

Products - Brushless DC Motor
  • Highlight

    Controller Integrated 36v brushless Dc Motor

    ,

    57BL-IE 36 volt brushless dc motor

    ,

    57BL-IE brushless dc motor 36v

  • Warranty
    3years
  • Port
    Shanghai
  • Speed(RPM)
    1000-3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    Micro Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w

  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
  • 57BL-IE Controller Integrated BLDC 12 Volt 24 Volt 36 Volt 40 Volt 48 Volt Brushless DC Motor 15w 20w 30w 50w 75w 100w
Get Price Contact Now

57BL-IE Controller Integrated 24v 36v brushless Dc Motor Electronics Include 30w 50w 100w



57HBL-IE Series 57mm Controller Integrated Brushless Dc Motor



General specification

Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.025mm@450g
End play 0.025mm@450g
Max. radial force 100N@10mm from the flange
Max. axial force 15N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC





Technique Specification

Model 57HBL75-IE 57HBL95-IE 57HBL115-IE 57HBL135-IE
Number of phase 3
Number of pole 4 (Option for 8)
Rated Voltage V 24v (Option for 12v 36v 48v)
No load speed rpm 4000 4000 3500 3000
Rated torque Nm 0.145 0.28 0.43 0.49
Rated Speed rpm 3000 3000 2500 2200
Rated Current A 2.5 5 6 6
Rated Power W 45 88 113 113
Weight Kg 0.55 0.85 1.15 1.55
Length mm 75 95 115 135



Dimensions & Control Diagram

57BL-IE Controller Integrated 24v 36v brushless Dc Motor Electronics Include 30w 50w 100w

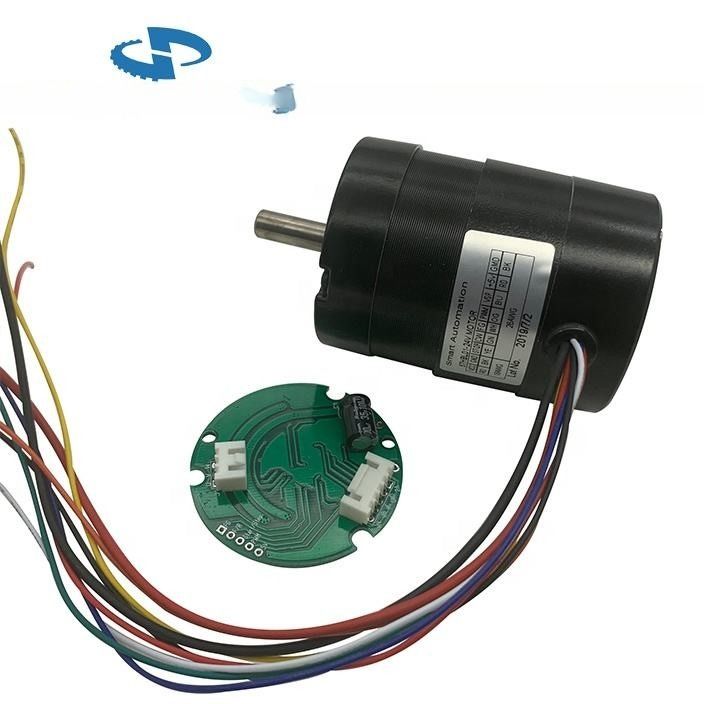

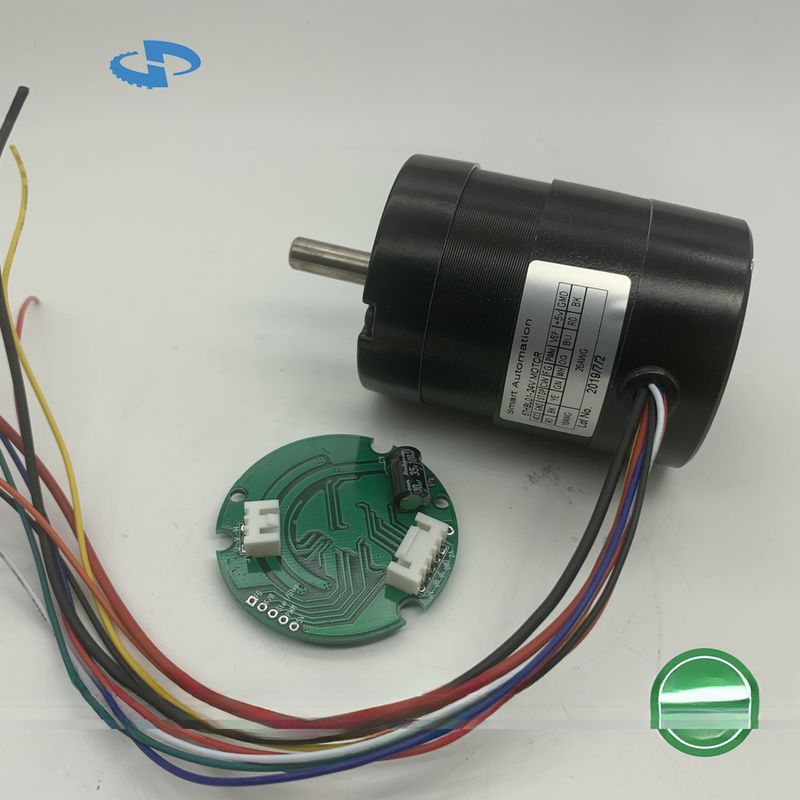

Motor with controller integrated



57BL-IE Controller Integrated 24v 36v brushless Dc Motor Electronics Include 30w 50w 100w

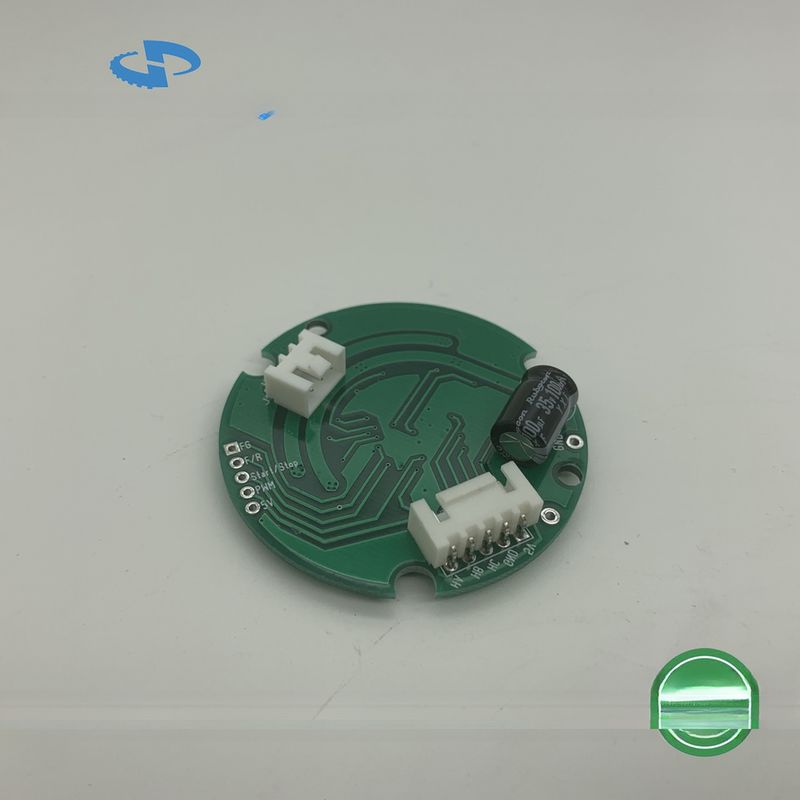

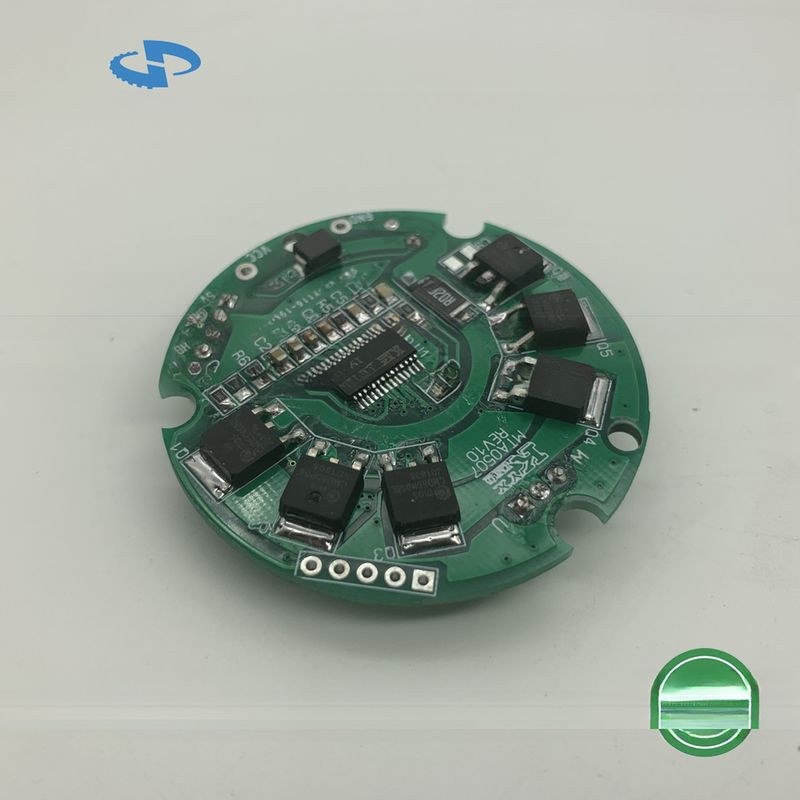

Controller (integrated into motor)

57BL-IE Controller Integrated 24v 36v brushless Dc Motor Electronics Include 30w 50w 100w
