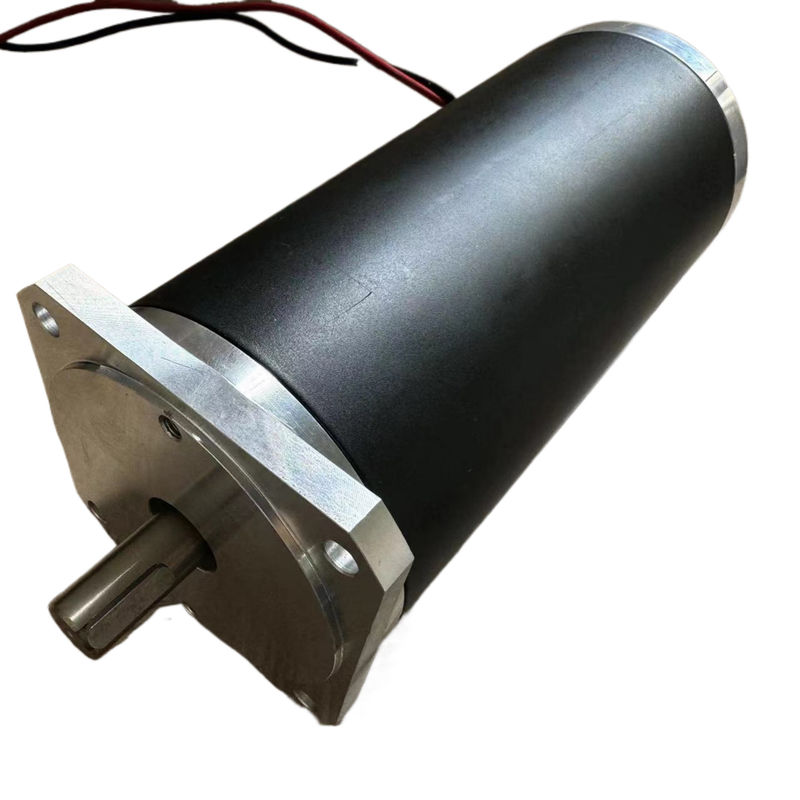

90ZYT-S Series Brush  High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

90ZYT-S Series Brush High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

  • Highlight

    1Nm Brush DC Electric Motor

    ,

    3000rpm Brush DC Electric Motor

    ,

    400w Brush DC Electric Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    1000rpm 2000rpm~3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, FAN, Home Appliance, Machine
  • Type
    SERVO MOTOR
  • Torque
    1-2Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    90ZYT-S
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

90ZYT-S Series Brush High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

90ZYT-S Series Brushed Dc Motor



90ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT-S01A 90ZYT-S01B 90ZYT-S02A 90ZYT-S02B 90ZYT-S03A 90ZYT-S03B
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 2300 3600 2300 3600 2300
Rated Torque N.m 1.5 1.5 2.2 2.0 3.0 3.0
Rated Speed rpm 3000 1850 3000 1800 3000 1800
Rated Current A 26 16 37 20 50 30
Output Power W 471 290 691 377 942 565
Weight Kg 3.5 3.5 4 4 4.5 4.5
Motor Length Mm 155 155 180 180 199 199


Drawing:



90ZYT-S Series Brush  High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm 0



Speed-Torque Curve:
