OD63mm Gr63 Dunker Equivalent High Torque Permanent Magnet Brushed DC Motor  Gr63x25 Gr63x55 12v 24v 48v 50w 100w 200w

OD63mm Gr63 Dunker Equivalent High Torque Permanent Magnet Brushed DC Motor Gr63x25 Gr63x55 12v 24v 48v 50w 100w 200w

  • Highlight

    OD63mm high torque brushed motor

    ,

    high torque brushed motor 30w 5rpm

    ,

    OD63mm Permanent Magnet Brushed DC Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    3000rpm Or Customized 5rpm~10000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot Machine
  • Type
    Brush Motor
  • Torque
    0.1~0.7Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    100
  • Price
    To be negotiated
  • Packaging Details
    Standard Export Package
  • Delivery Time
    10-30 days
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

OD63mm Gr63 Dunker Equivalent High Torque Permanent Magnet Brushed DC Motor Gr63x25 Gr63x55 12v 24v 48v 50w 100w 200w

63ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



63ZYT Motor Main Technical Specification:

Model Unit 63ZYT01A 63ZYT01B 63ZYT01C 63ZYT02A 63ZYT03A 63ZYT03B 63ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 4700 10000

3600



3600 4700 3600
Rated Torque N.m 0.15 0.20 0.20

0.31



0.40 0.40 0.50
Rated Speed Rpm 3200 4000 9500 3100 3000 4000 3000
Rated Current A 2.8 5.5 12.0 5.8 7.0 10.5 9.0
Output Power W 50 84 200 100 125 168 157
Weight Kg 1 1 1

1.2



1.35 1.35 1.5
Motor Length Mm 95 95 95

110



125 125 140



Drawing:

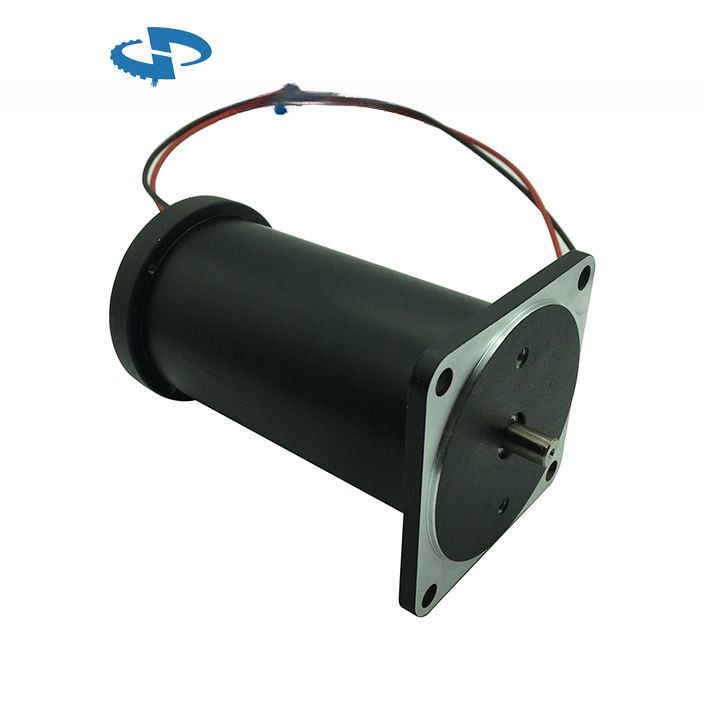

Black color

Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w

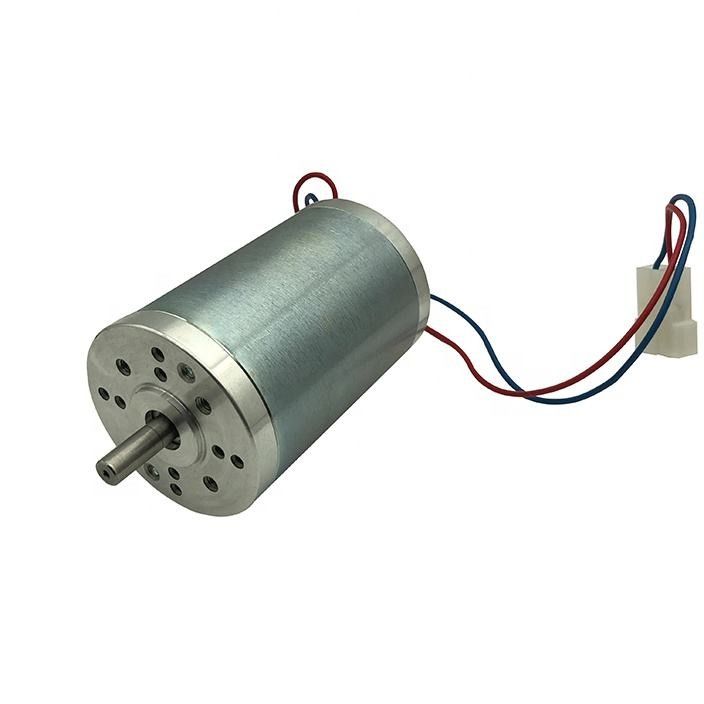

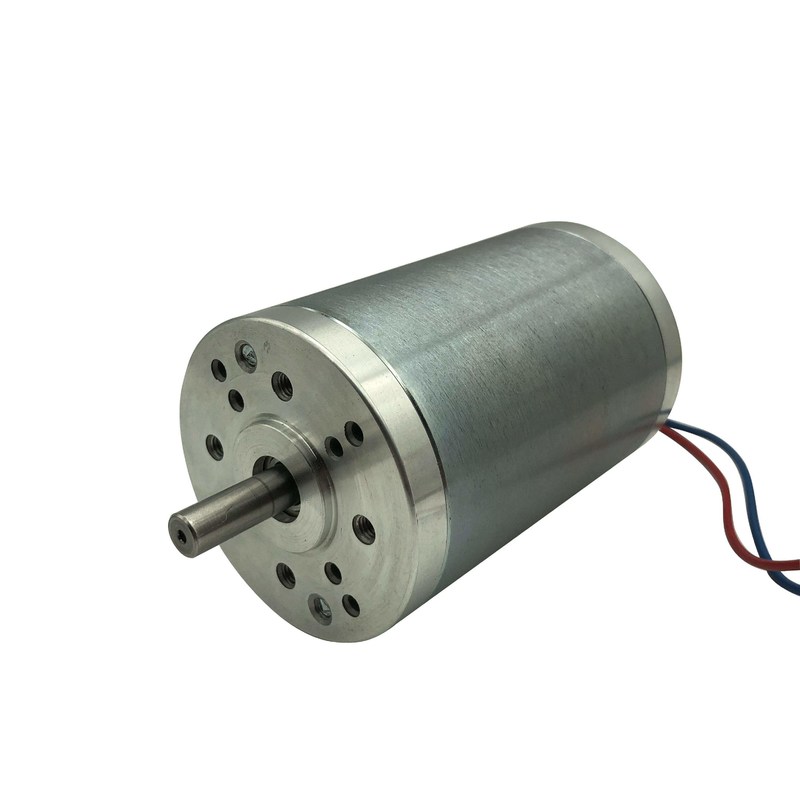

Silver color

Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w



Detailed Models



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w







MODEL 63ZYT01B

Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w





MODEL 63ZYT01C

Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w











MODEL 63ZYT02A





Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w





MODEL 63ZYT02B



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w





MODEL 63ZYT02C



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w





MODEL 63ZYT03A



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w





MODEL 63ZYT03B

Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w



The motor can be customed :

12vdc-60vdc, speed 1300rpm--10000rpm, torque 0.1Nm--0.75 Nm, power upto 500w

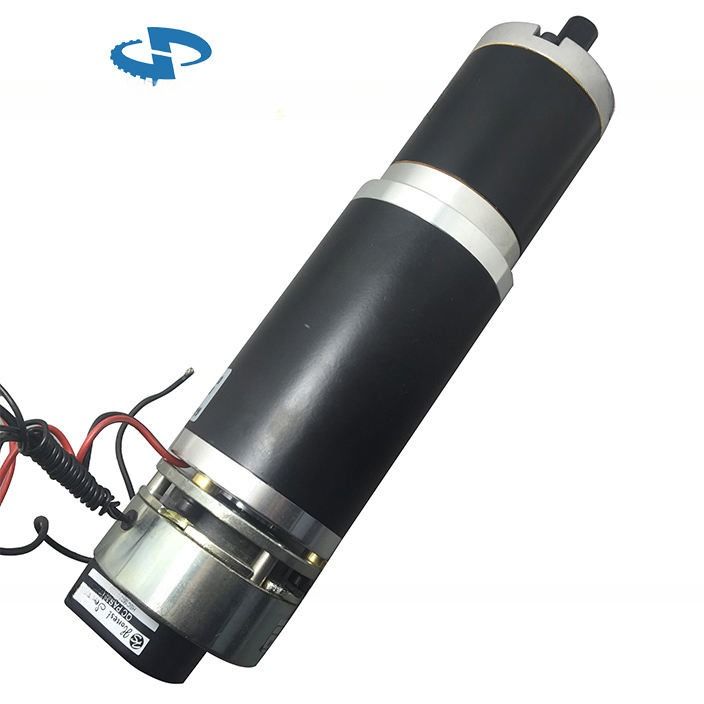

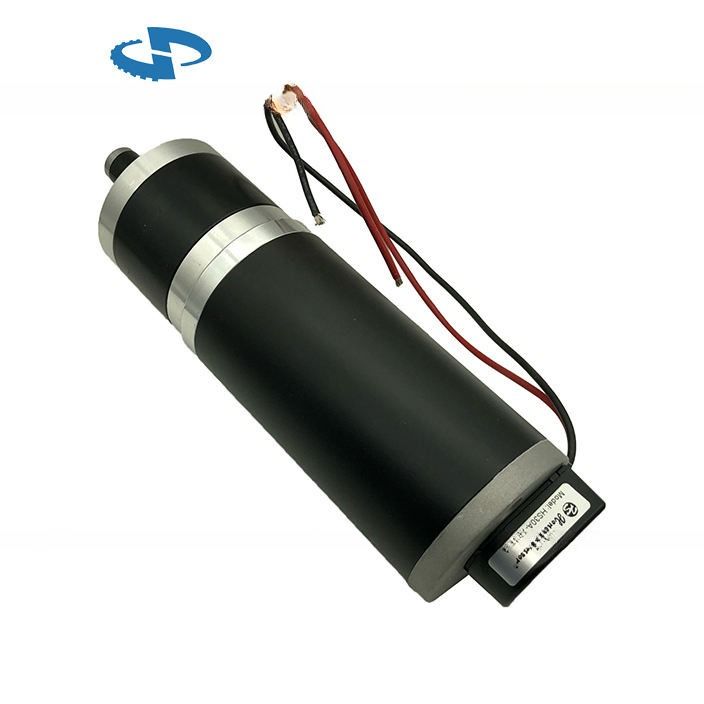

Planetary Geared Version







Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w

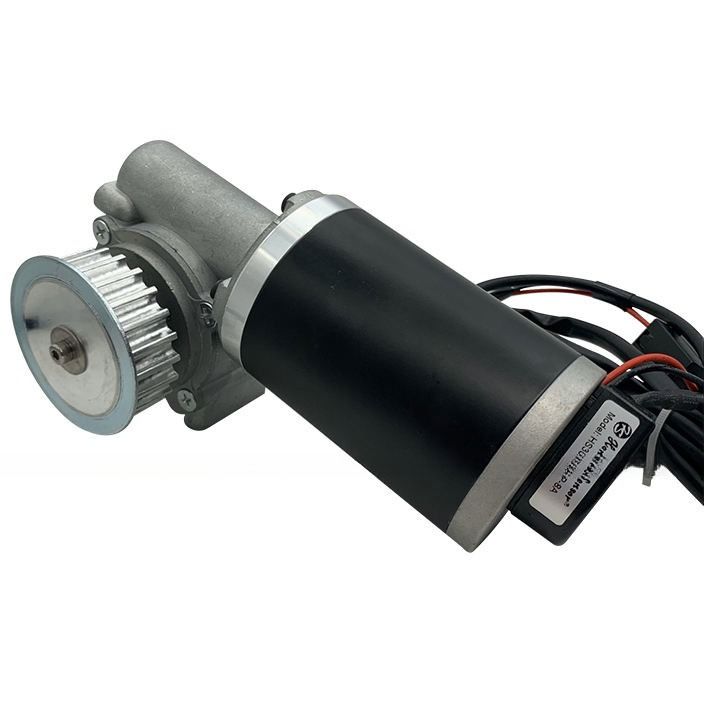

Option for encoder, brakes, and worm gearbox





Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w



Diameter 63mm Gr63 Series Brush Dc Motor Customized Voltage Performance Shaft Mounting  Power 30w upto 300w













WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.









main applications of BRUSHED DC MOTOR

Industry Content Industry Content
Medical equipment Hand-held surgical instruments Aerospace Industry Electric seat adjustment post

Surgical robot Flight recorders

Micro-injection pump; Peristaltic pump Autopilot

Dialyzer Air-conditioning system

Automatic dosing system Space Robot

Radiation therapy equipment

Diagnostic equipment and testing instruments
Robot Humanoid robot Auto industry Adjustable shock absorbers

Service robots Emission abatement system

Teaching Robots Electronic steering



Electronic tachometer



Industrial Automation Precision Positioning System Communications Equipment Antenna System

Handling System Copier / printer / plotter

transmission system Recorder

Industrial robots Professional Camera
Electronic / Semiconductor Equipment Fast Feeders Instrumentation Microscope

SMT Positioning device Laser leveling system

Lithography Precision measuring instrument

A wafer processing system Meteorological Analyzer
Power Tools Professional power tool battery Financial Business Machines Reader

Electric screwdriver Dollar banknote handling equipment

Pistols ATM

Pruning machine Ticket Printer
Household / Consumer Goods Model Trains



Security Technology

Motion detection system

Game Surveillance Cameras

Golf Cart Access Control System




Household robots

Automatic doors
