size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version

size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version

Products - Brushed DC Motor
  • Highlight

    52mm Brushed Electric DC Moto

    ,

    52ZYT brushed dc electric motor

    ,

    brushed dc electric motor 200w

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    3000RPM~4000RPM
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, MACHINE, Robot
  • Type
    Micro Motor
  • Torque
    Upto 400mNm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    52ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version

  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
  • size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version
Get Price Contact Now

52ZYT Series Brushed Dc Motor



52ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Motor Main Technical Specification:

Model Unit 52ZYT01A 52ZYT02A 52ZYT03A 52ZYT04A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 4200 4200
Rated Torque N.m 0.11 0.20 0.27 0.35
Rated Speed Rpm 3700 3500 3600 3600
Rated Current A 2.5 4.2 5.8 7.4
Output Power W 42.5 73 102 132
Weight Kg 0.85 1.0 1.15 1.30
Motor Length Mm 95 110 125 140





Drawing:



size 52mm 52ZYT Series Brushed Electrical Micro PM DC Motor Equivalent To Gr53 Up To 200w Replaceable Brushes Version 0





Speed-Torque Curve:

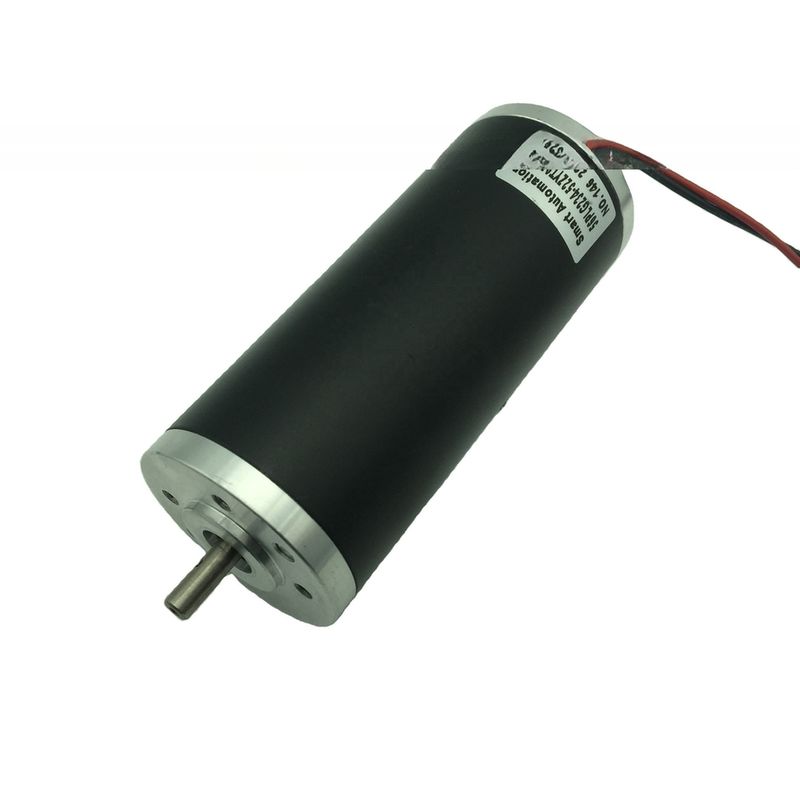

standard version

52ZYT series 52mm Brushed Electric Dc Motor Equivalent to Gr53 upto 200w

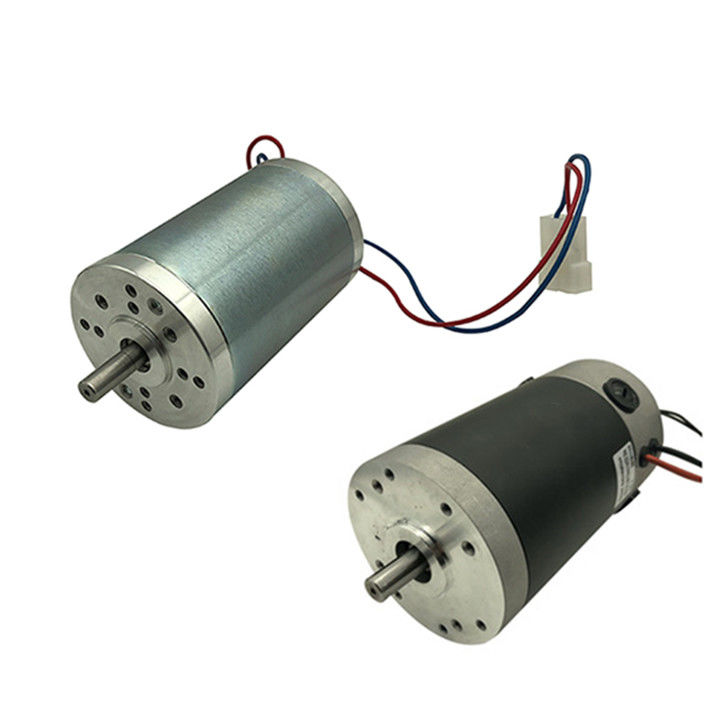

Replaceable brushes version



52ZYT series 52mm Brushed Electric Dc Motor Equivalent to Gr53 upto 200w

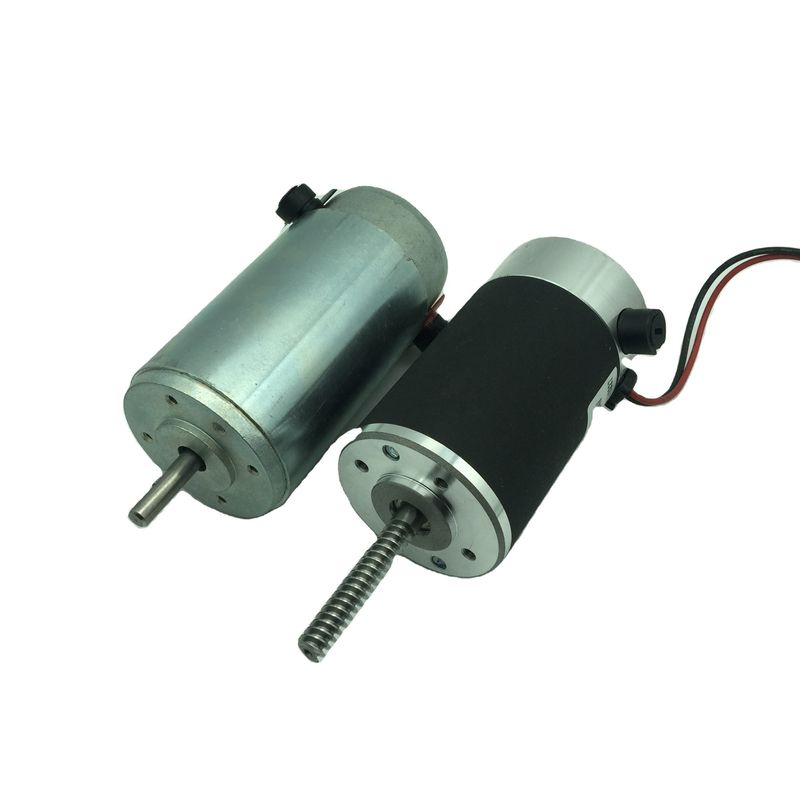

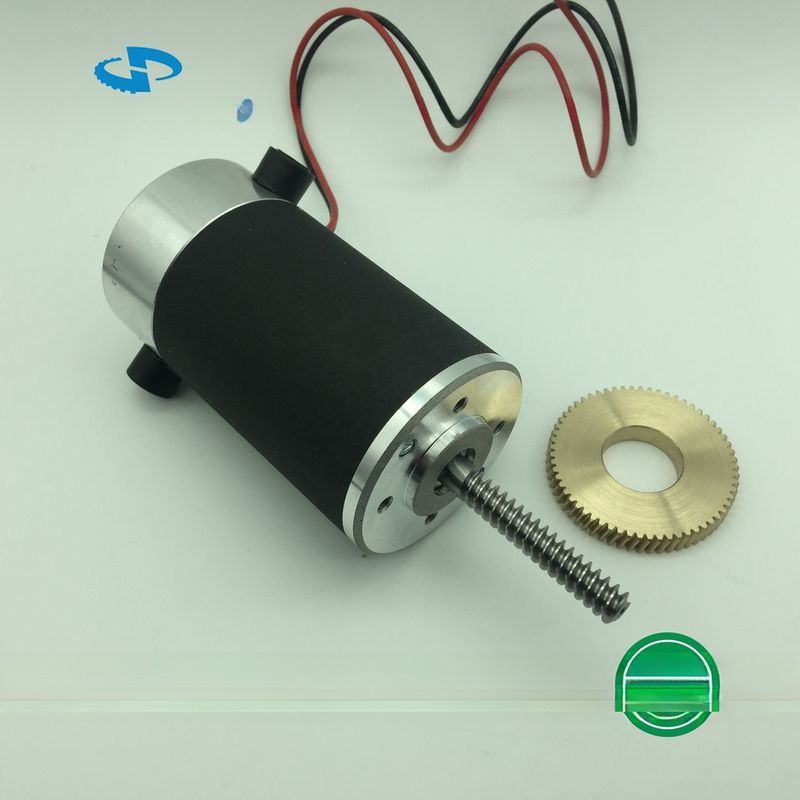

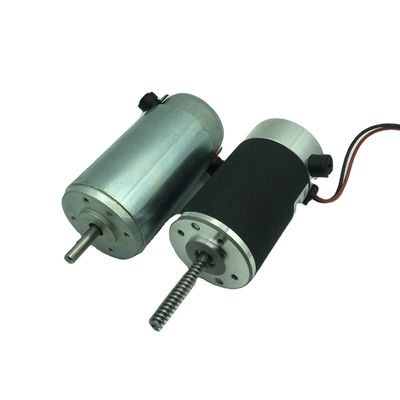

Worm Shaft version

52ZYT series 52mm Brushed Electric Dc Motor Equivalent to Gr53 upto 200w

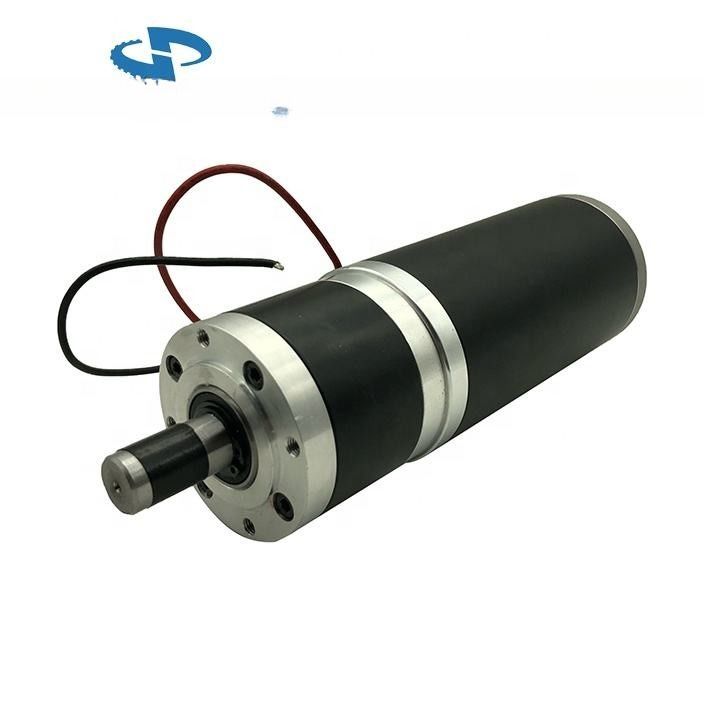

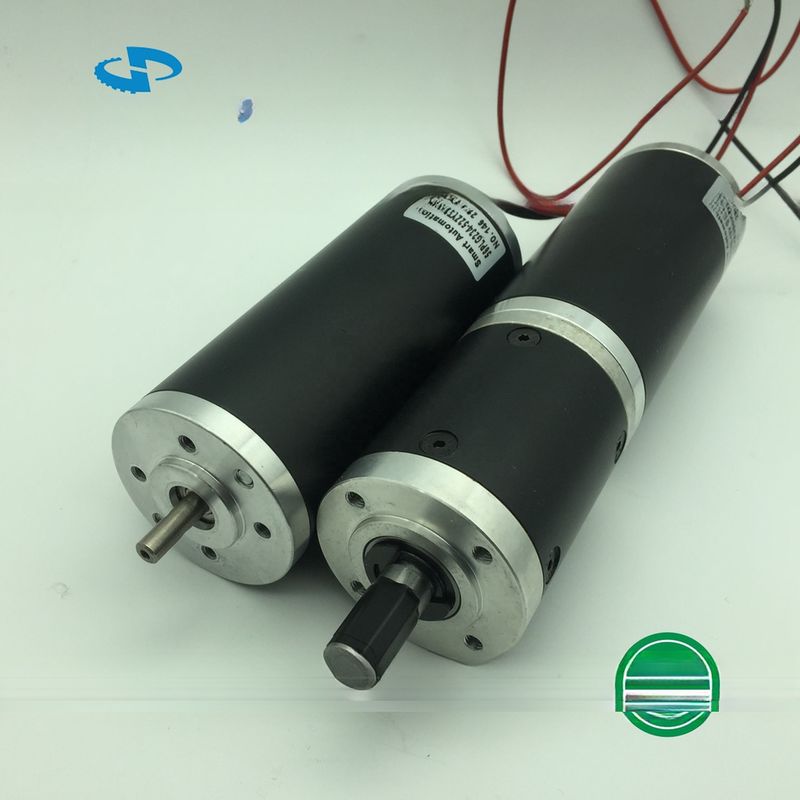

Geared version

52ZYT series 52mm Brushed Electric Dc Motor Equivalent to Gr53 upto 200w
