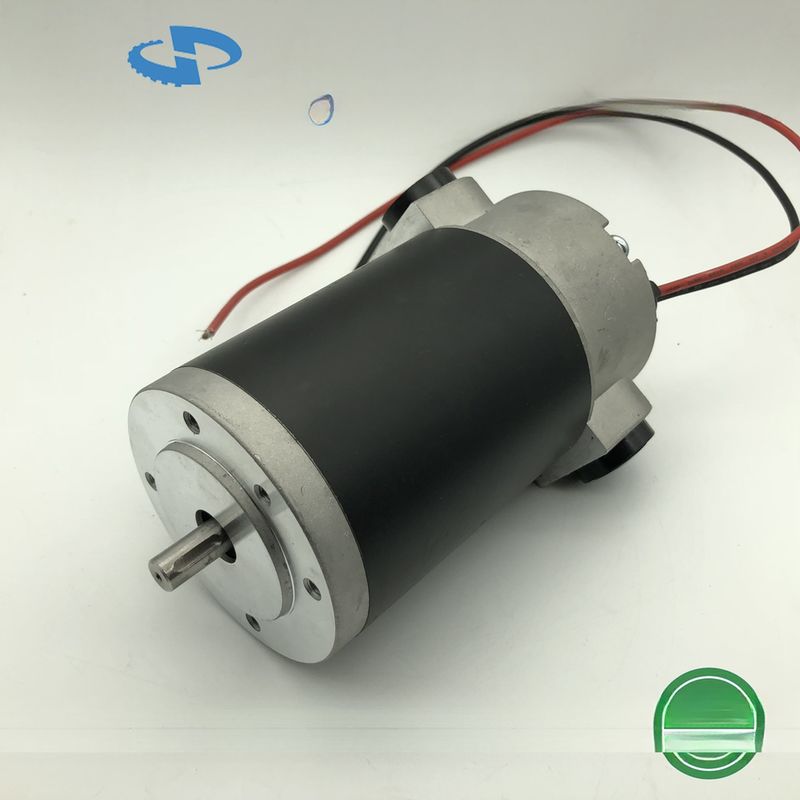

80mm 80zyt Equivalent To GR80 PM DC Motor Brushed PMDC Motor 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm

80mm 80zyt Equivalent To GR80 PM DC Motor Brushed PMDC Motor 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm

  • Highlight

    GR80 pmdc brushed motor

    ,

    pmdc brushed motor 100w 3000rpm

    ,

    GR80 Permanent Magnet Brush Dc Motors

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    1500rpm 3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    Dc Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

80mm 80zyt Equivalent To GR80 PM DC Motor Brushed PMDC Motor 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm

80ZYT Series Brushed Dc Motor



80ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



80ZYT Motor Main Technical Specification:

Model Unit 80ZYT01A 80ZYT02A 80ZYT03A 80ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 3600 3500 3500
Rated Torque N.m 0.6 0.8 1.0 1.2
Rated Speed Rpm 3150 3150 3050 3050
Rated Current A 10.0 13.5 15.5 20.0
Output Power W 200 265 320 383
Weight Kg 2.5 3 3.5 4.0
Motor Length Mm 120 140 160 175



Drawing:
