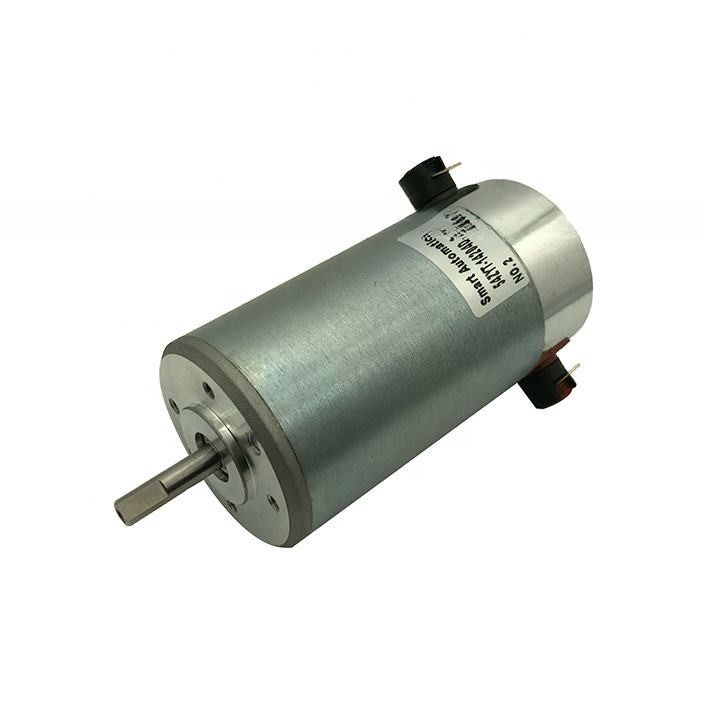

O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001

O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001

  • Highlight

    O.D 54mm pittman servo motors

    ,

    pittman 24vdc motor IE 1

    ,

    O.D 54mm pittman 24vdc motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customed
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, FAN, Home Appliance, Machine
  • Type
    Brush Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    54ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors, OPTION 12v upto 60v



Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



54ZYT Motor Main Technical Specification:

Model Unit 54ZYT01A 54ZYT02A 54ZYT03A 54ZYT04A
Rated Voltage VDC 24v (option for 12v up to 90vdc)
No Load Speed Rpm 3630 2990 3150 3160
Rated Torque N.m 0.184 0.219 0.261 0.353
Rated Speed Rpm 3200 2580 2770 2810
Rated Current A 3.5 3.3 4.3 5.8
Output Power W 62 59 76 104
Weight Kg 1 1.12 1.28 1.55
Motor Length Mm 103.5 113 126 145







Drawing:





O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60v

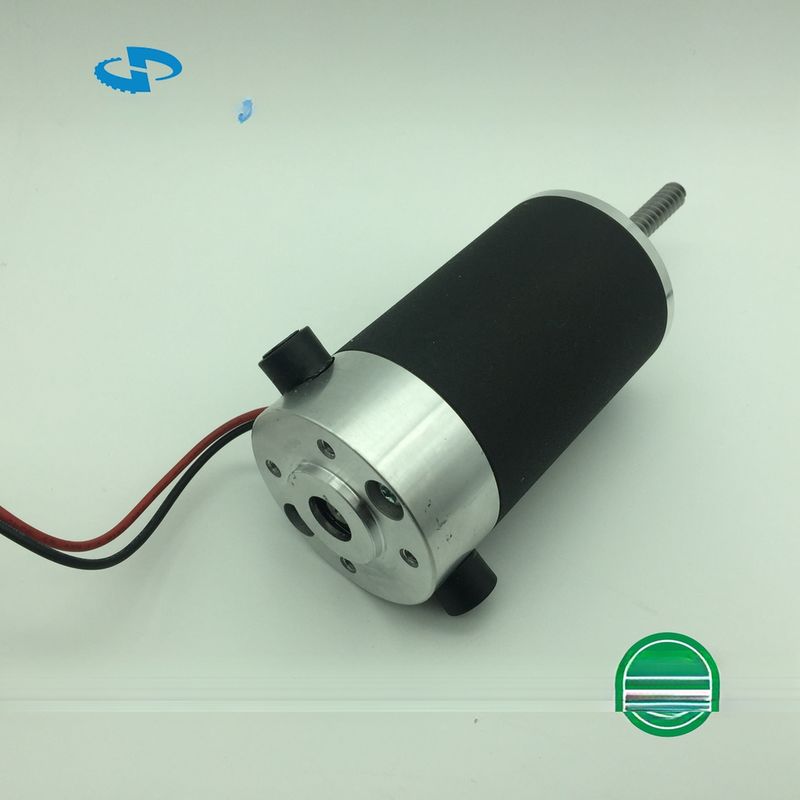

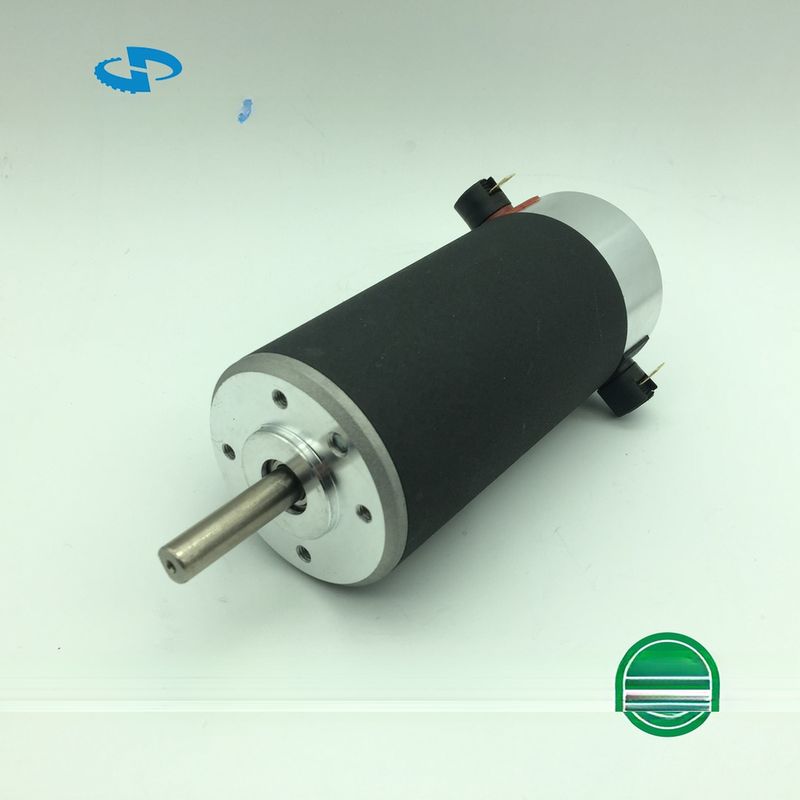

Black color

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60vO.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60v

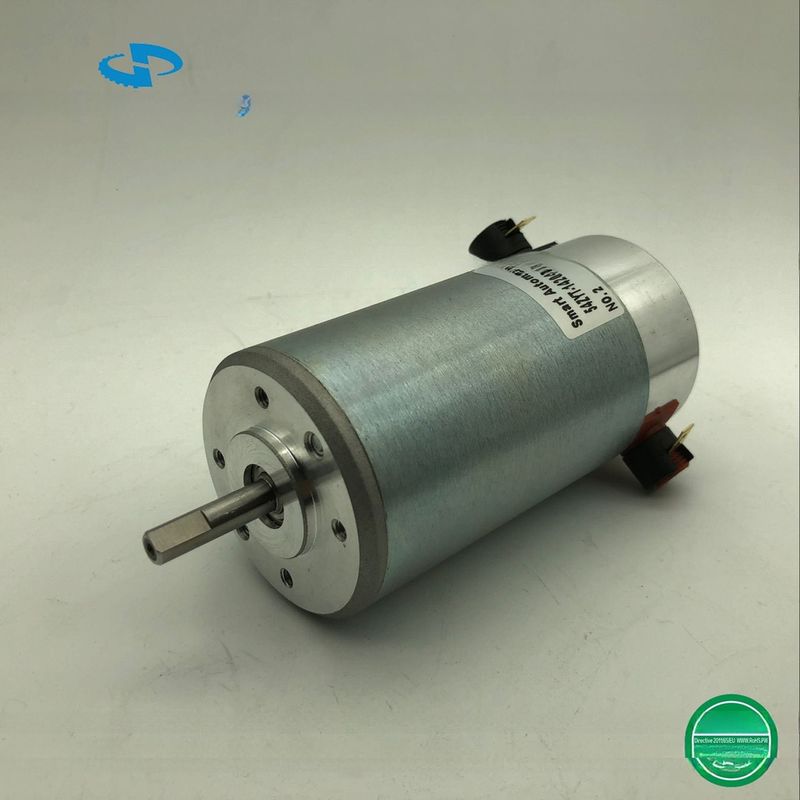

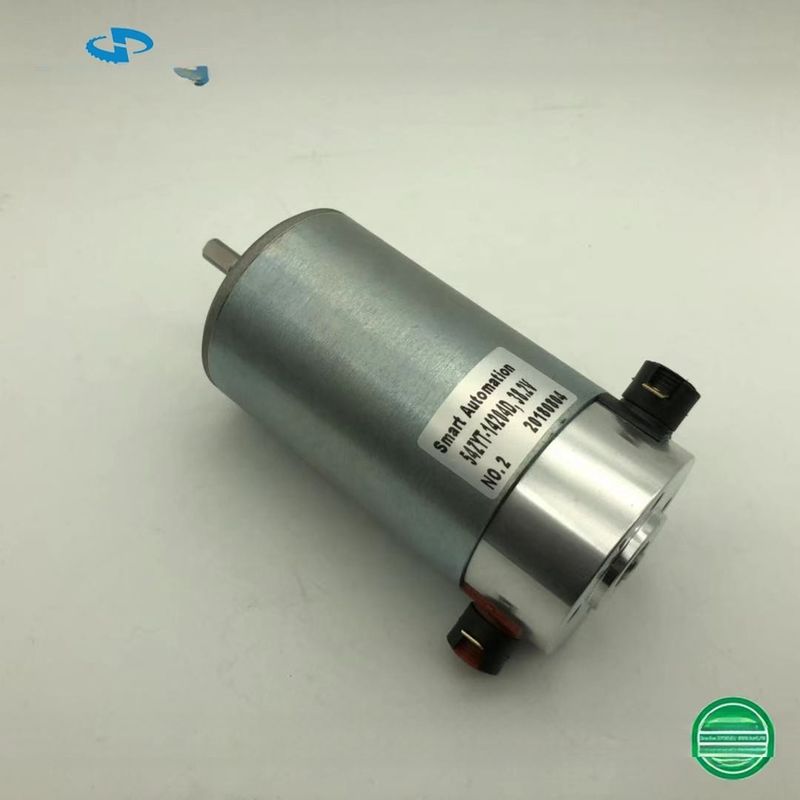

Silver color

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60vO.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60v

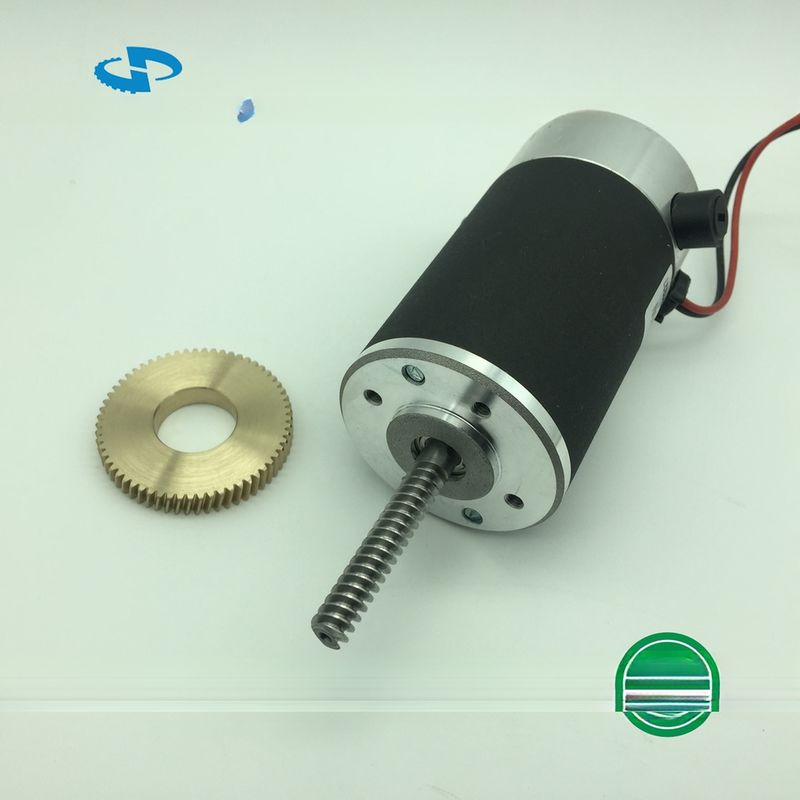

Special worm shaft

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60v













Packaging

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors,  OPTION 12v upto 60v
