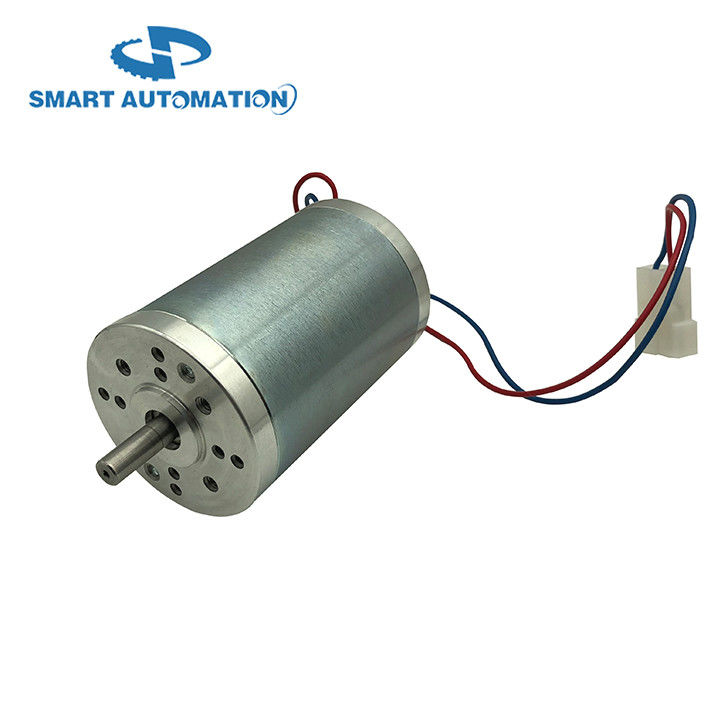

63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor

63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor

Products - Brushed DC Motor
  • Highlight

    Permanent Magnet Brushed DC Motor

    ,

    High Torque Brushed DC Motor

    ,

    IP67 Brushed DC Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    3000rpm Or Customized 5rpm~10000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot Machine
  • Type
    Brush Motor
  • Torque
    0.1~0.7Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    63ZYT-IP67
  • Minimum Order Quantity
    100
  • Price
    To be negotiated
  • Packaging Details
    Standard Export Package
  • Delivery Time
    10-30 days
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor

  • 63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor
  • 63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor
Get Price Contact Now

63ZYT-IP67 Series Brushed Dc Motor



63ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP67

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



63ZYT Motor Main Technical Specification:

Model Unit 63ZYT01A-IP67 63ZYT02A-IP67 63ZYT03A-IP67 63ZYT04A-IP67
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 3600 3600 3600
Rated Torque N.m 0.15 0.31 0.40 0.50
Rated Speed Rpm 3200 3100 3000 3000
Rated Current A 2.8 5.8 7.0 9.0
Output Power W 50 100 125 157
Weight Kg 1 1.2 1.35 1.5
Motor Length Mm 103 118 133 148


Drawing:

63ZYT-IP67 Series Brushed Dc Motor High Torque Permanent Magnet Brushed DC Motor 0





Speed-Torque Curve:
