Highlight
Replaceable Brushes Brushed Dc Motor
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)3000RPM~4000RPM
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, MACHINE, Robot
-
TypeMicro Motor
-
TorqueUpto 400mNm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number52ZYT-R
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

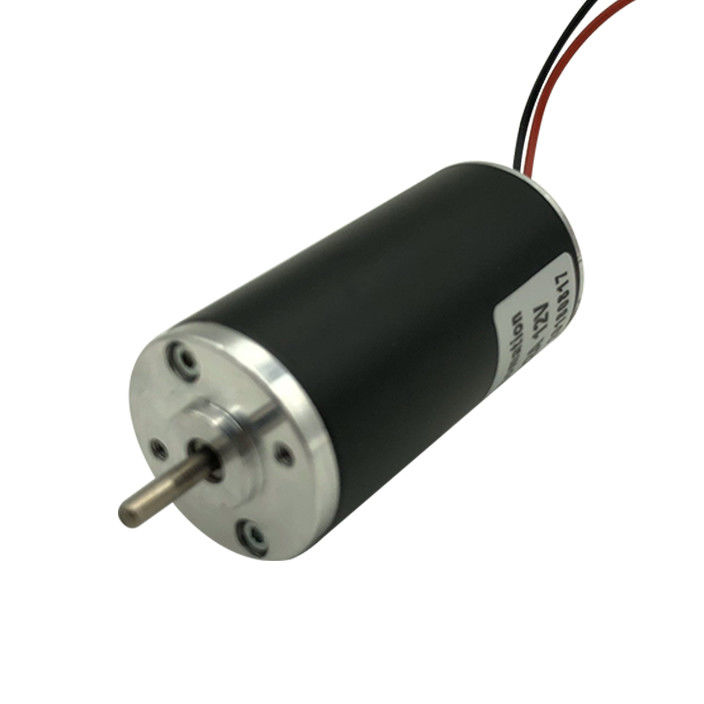

52ZYT-R Replaceable Brushes Series Brushed Dc Motor
52ZYT-R Replaceable Brushes Series Brushed Dc Motor
Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
52ZYT-R Motor Main Technical Specification:
| Model | Unit | 52ZYT-R01A | 52ZYT-R02A | 52ZYT-R03A | 52ZYT-R04A |
| Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
| No Load Speed | Rpm | 4200 | 4200 | 4200 | 4200 |
| Rated Torque | N.m | 0.11 | 0.20 | 0.27 | 0.35 |
| Rated Speed | Rpm | 3700 | 3500 | 3600 | 3600 |
| Rated Current | A | 2.5 | 4.2 | 5.8 | 7.4 |
| Output Power | W | 42.5 | 73 | 102 | 132 |
| Weight | Kg | 0.85 | 1.0 | 1.15 | 1.30 |
| Motor Length | Mm | 95 | 110 | 125 | 140 |
Drawing:
Speed-Torque Curve:
