42ZYT Series Brushed Dc Motor 15w 20w 3100rpm 3500rpm 12 Volt 24 Volt PM DC Motor PMDC Motor 12volt 24volt 36volt 40volt

42ZYT Series Brushed Dc Motor 15w 20w 3100rpm 3500rpm 12 Volt 24 Volt PM DC Motor PMDC Motor 12volt 24volt 36volt 40volt

Products - Brushed DC Motor
  • Highlight

    3500rpm Brushed Dc Motor

    ,

    15w Brushed Dc Motor

    ,

    24 Volt Brushed Dc Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    3100~3700rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machineary
  • Type
    Micro Motor
  • Torque
    57mNm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    42ZYT
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

42ZYT Series Brushed Dc Motor 15w 20w 3100rpm 3500rpm 12 Volt 24 Volt PM DC Motor PMDC Motor 12volt 24volt 36volt 40volt

  • 42ZYT Series Brushed Dc Motor 15w 20w 3100rpm 3500rpm 12 Volt 24 Volt PM DC Motor PMDC Motor 12volt 24volt 36volt 40volt
Get Price Contact Now

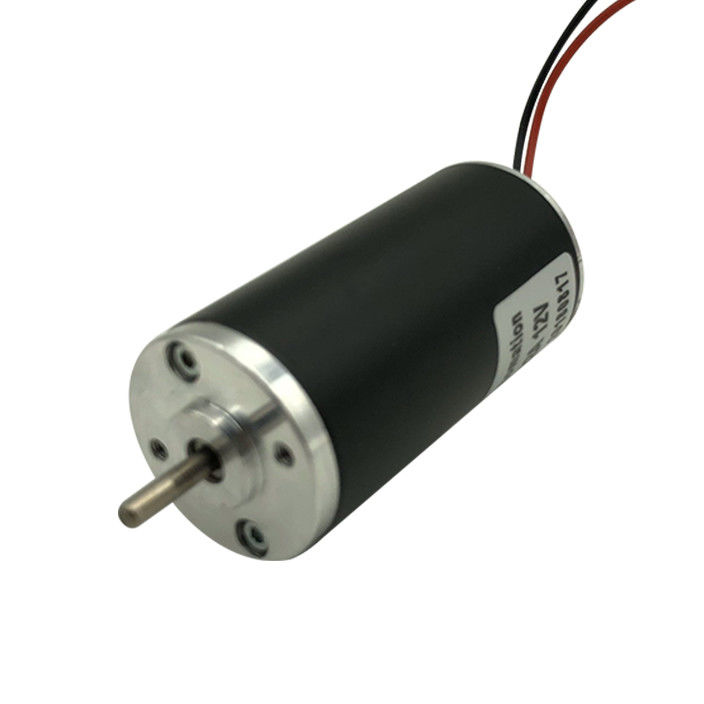

42ZYT Series Brushed Dc Motor



42ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

nsulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



42ZYT Motor Main Technical Specification:

Model Unit 42ZYT01A 42ZYT02A 42ZYT03A 42ZYT04A 42ZYT04B 42ZYT04C 42ZYT05A 42ZYT05B
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 4200 4200 3800 4200 5500 10000 4200 5400
Rated Torque mN.m 38 43 57 70 80 100 105 150
Rated Speed Rpm 3600 3600 3100 3600 4700 9000 3600 4500
Rated Current A 0.86 0.98 1.2 1.6 2.4 6 2.3 4
Output Power W 14.3 16.2 18.5 26.4 39.4 94.2 39.6 70.7
Weight G 390 460 500 540 540 540 700 700
Motor Length Mm 70 80 85 90 90 90 115 115



Drawing:





Speed-Torque Curve:
