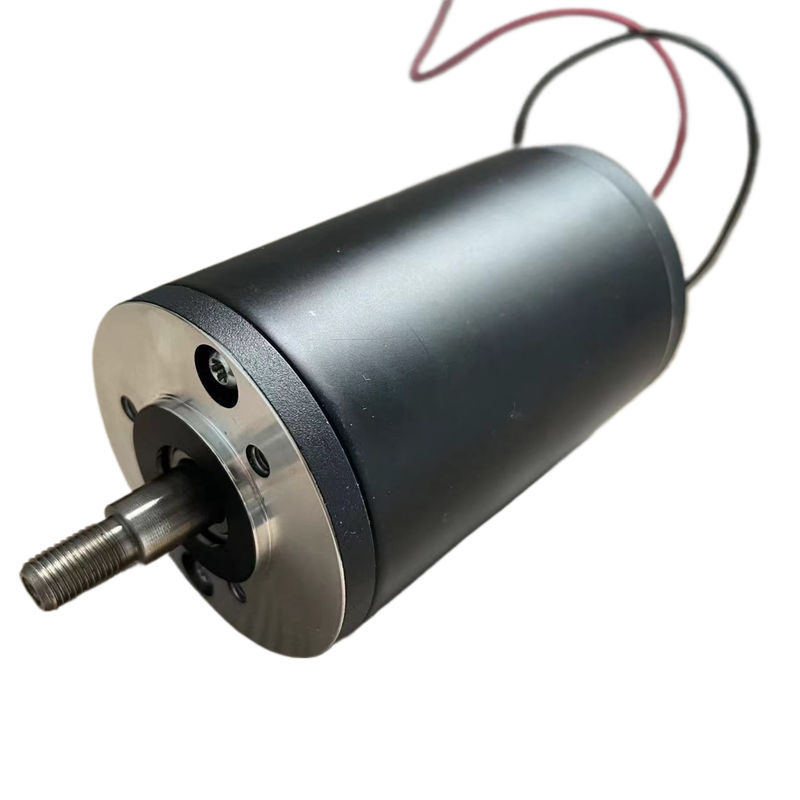

70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w

70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w

Products - Brushed DC Motor
  • Highlight

    48v 70mm DC Brushed Motor

    ,

    24v 70mm DC Brushed Motor

    ,

    12v 70mm DC Brushed Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    3000rpm Or Customized 5rpm~10000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot Machine
  • Type
    Brush Motor
  • Torque
    0.1~0.7Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    70ZYT Series
  • Minimum Order Quantity
    100
  • Price
    To be negotiated
  • Packaging Details
    Standard Export Package
  • Delivery Time
    10-30 days
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w

  • 70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
  • 70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
Get Price Contact Now

70ZYT Series Brushed Dc Motor



70ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Option: Customized Voltage Performance Mounting and Shaft





70ZYT Motor Main Technical Specification:



Model Unit 70ZYT01A 70ZYT02A 70ZYT03A 70ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 3600 3600 3600
Rated Torque N.m 0.1 0.25 0.35 0.5
Rated Speed Rpm 3000 3000 3000 3000
额定电流 Rated Current A 1.8 4.6 6.4 9.2
Output Power W 31 78.5 110 157
Weight Kg 0.85 1.25 1.45 1.65
Motor Length mm 79 99 109 129



Drawing:



70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w 0
