Highlight
32ZYN Series Brushed DC Motor
,NdFeB Magnet Brushed DC Motor
,32mm Brushed DC Motor
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)Customed
-
Continuous Current(A)Customed
-
UsageFAN, Home Appliance, Robot
-
TypeDc Motor
-
TorqueUPTO 50mNm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number32ZYN Series
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

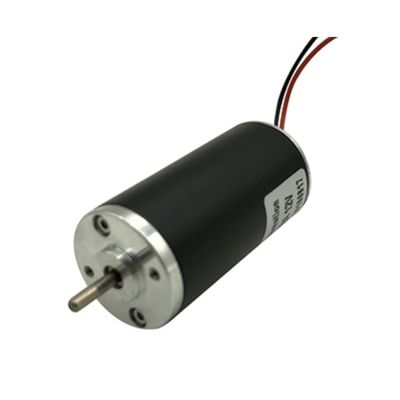

O.D 32mm 32ZYN Series NdFeB Magnet Dc Brushed Motor
32ZYN Series NdFeB Magnets Brushed Dc Motor
32ZYN Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: NdFeB Magnet, 2- Poles
Protection Class: IP50 (Option IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
32ZYN Motor Main Technical Specification:
| Model | Unit | 32ZYN01A | 32ZYN02A | 32ZYN03A |
| Rated Voltage | VDC | 24v (option for 12v up to 48vdc) | ||
| No Load Speed | Rpm | 3700 | 3700 | 3700 |
| Rated Torque | mN.m | 30 | 40 | 50 |
| Rated Speed | Rpm | 3000 | 3000 | 3000 |
| Rated Current | A | 0.6 | 0.75 | 0.95 |
| Output Power | W | 9.4 | 12.6 | 15.7 |
| Weight | G | 200 | 240 | 280 |
| Motor Length | Mm | 60 | 70 | 80 |
Drawing:
