Highlight
12v Brushed DC Motor
,48v Brushed DC Motor
,24v Brushed DC Motor
-
Warranty3years
-
PortShanghai
-
CurrentCustomized
-
Speed(RPM)3000rpm Or Customized
-
Continuous Current(A)Customed
-
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot Machine
-
TypeBrush Motor
-
Torque20-40mNm
-
ConstructionPermanent Magnet
-
CommutationBrush
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number36ZYT Series Dc Brushed Motor
-
Minimum Order Quantity100
-
PriceTo be negotiated
-
Packaging DetailsStandard Export Package
-
Delivery Time10-30 days
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

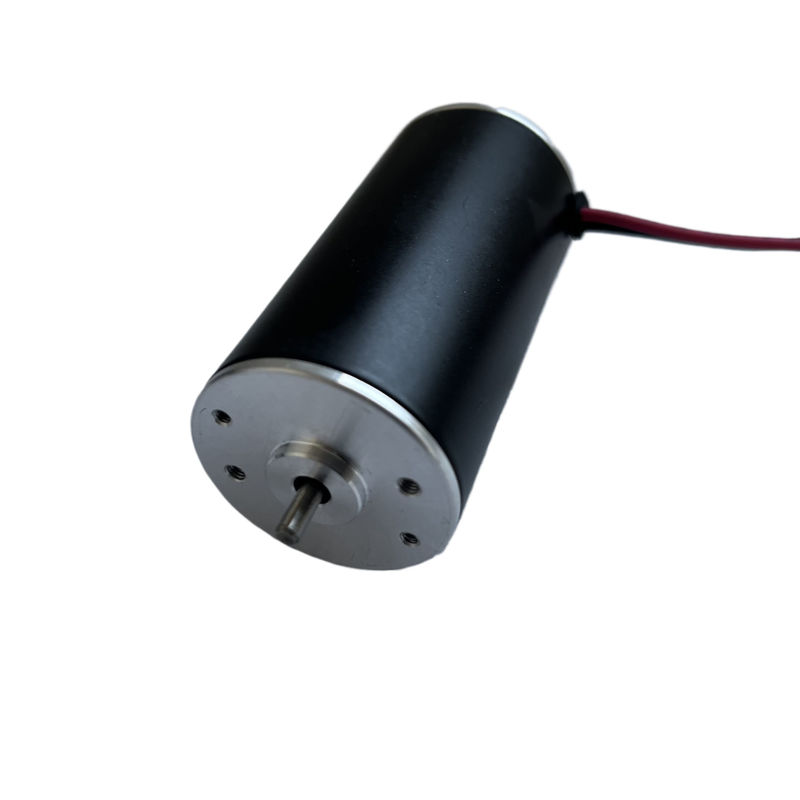

36ZYT Series Dc Brushed Motor12v 24v 48v
36ZYT SERIES BRUSHED DC MOTOR
Motor Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Motor Main Characteristics:
| Model | Unit | 36ZYT01A | 36ZYT02A | 36ZYT03A |
| Rated Voltage | VDC |
24v (option for 12v up to 48vdc)
|
||
| Rated Speed | Rpm | 3000 | 3000 | 3000 |
| Rated Torque | mN.m | 20 | 30 | 40 |
| No Load Speed | Rpm | 3800 | 3800 | 3800 |
| Weight | g | 260 | 300 | 340 |
| Motor Length | Mm | 60 | 70 | 80 |
| Output Power | W | 6.3 | 9.4 | 12.6 |
Drawing:
