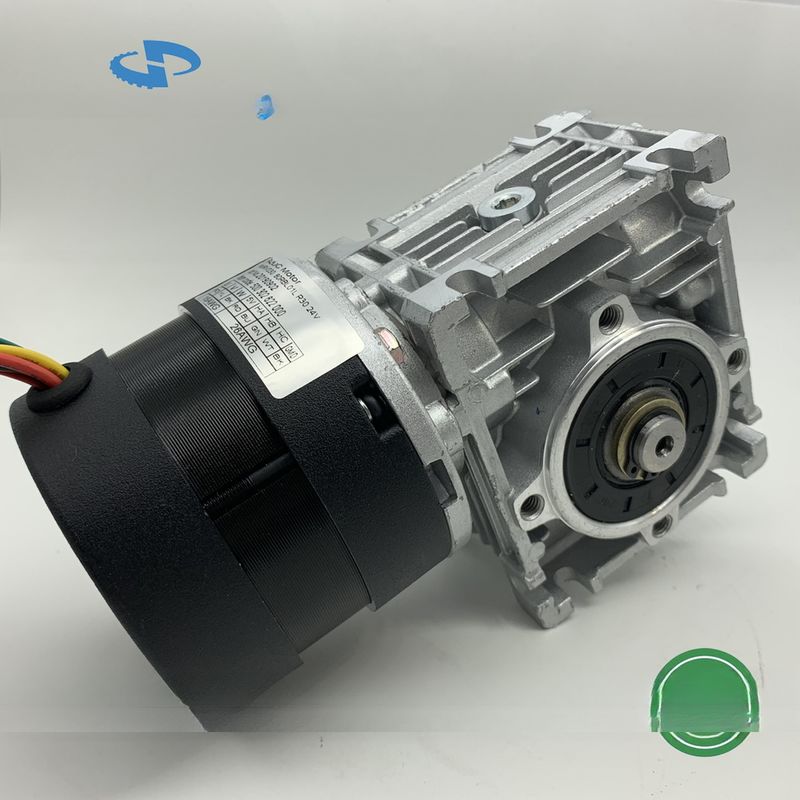

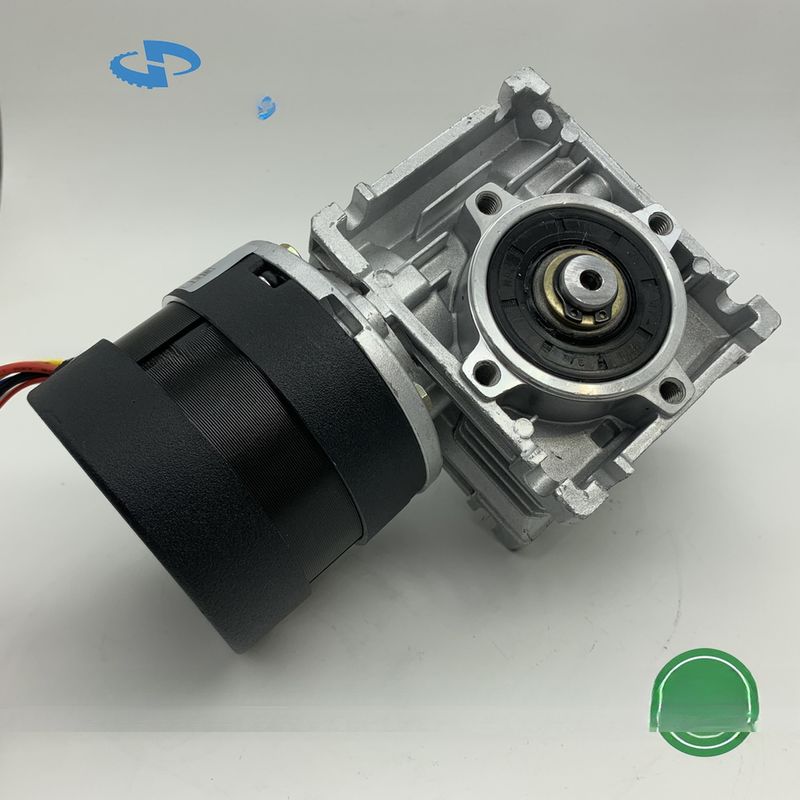

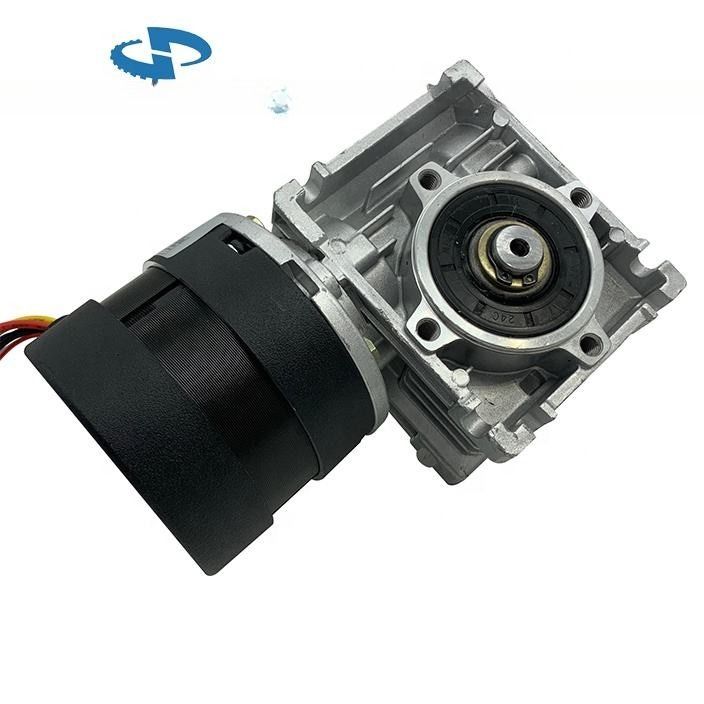

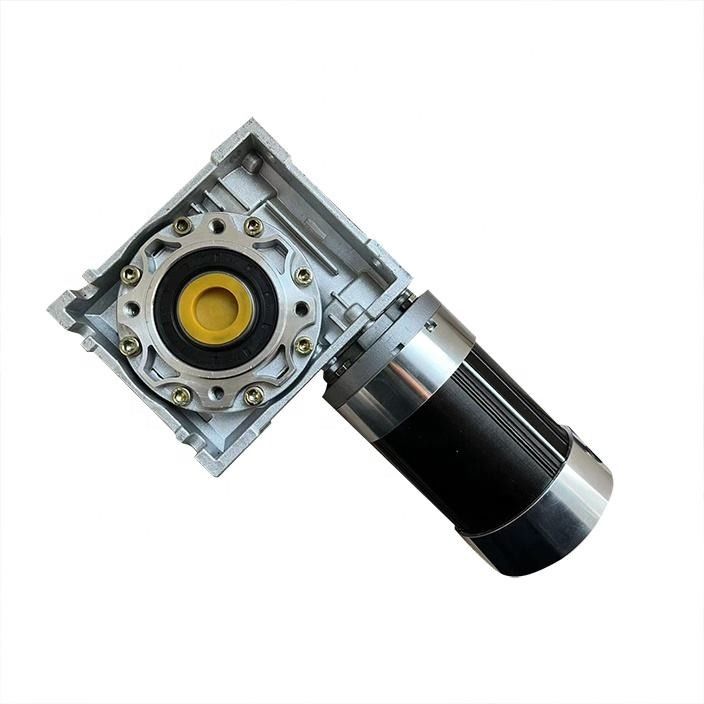

NMRV030.80RBL NMRV040.80RBL Series High Torque Brushless DC Worm Gear BLDC Motor With RV Reducer High Torque Big Power

NMRV030.80RBL NMRV040.80RBL Series High Torque Brushless DC Worm Gear BLDC Motor With RV Reducer High Torque Big Power

  • Highlight

    NMRV030.80BL DC Worm Gear

    ,

    NMRV040.80BL BLDC Motor

    ,

    NMRV040.80BL BLDC Motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    1 Rpm Upto 1000rpm
  • Continuous Current(A)
    Customed
  • Usage
    BOAT, Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    Micro Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

NMRV030.80RBL NMRV040.80RBL Series High Torque Brushless DC Worm Gear BLDC Motor With RV Reducer High Torque Big Power

NMRV030.80RBL Brushless Dc Worm Gear Motor



80RBL Motor Main Technical Specification:

Model 80RBL-60L 80RBL-70L 80RBL-80L 80RBL-90L 80RBL-100L 80RBL-120L
Number of phase 3
Number of pole 4 (Option 8 )
Voltage V 24v(Option for 12v 36v 48v to 230vdc)
No load speed rpm 2500 2500 2500 2500 2500 2500
Rated torque Nm 0.5 0.8 1.0 1.2 1.5 1.8
Rated Speed rpm 1500 1500 1500 1500 1500 1500
Rated Current A 4.3 7 8.8 10.5 13 16
Rated Power W 80 126 158 190 237 285
Length mm 60 70 80 90 100 120





NMRV030.80RBL-60L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 2 2.9 3.7 5.4 7 8.1 9 11 12 13 16







NMRV030.80RBL-70L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 3.2 4.6 6 8.6 11.2 13 14.4 17.6 20 21.6 25.6



NMRV030.80RBL-80L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 4 5.8 7.5 10.8 14 16.2 18 22 25 27 32



NMRV030.80RBL-90L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 4.8 7.0 9 12.9 16.8 19.5 21.6 26.4 30 32.4 38.4







NMRV030.80RBL-100L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 6 8.7 11.2 16.2 21 24.3 27 33 37.5 40.5 48



NMRV030.80RBL-120L Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31
Rated Speed Rpm 300 200 150 100 75 60 50 37 30 25 18
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 45 48.6 57.6





Drawing



NMRV030.80RBL NMRV040.80RBL Series High Torque Brushless DC Worm Gear BLDC Motor With RV Reducer High Torque Big Power 0





NMRV040.80RBL Brushless Dc Worm Gear Motor



80RBL Motor Main Technical Specification:

Model 80RBL-60M 80RBL-70M 80RBL-80M 80RBL-90M 80RBL-100M 80RBL-120M
Number of phase 3
Number of pole 4 (Option 8 )
Voltage V 24v(Option for 12v 36v 48v to 230vdc)
No load speed rpm 3100 3100 3100 3100 3100 3100
Rated torque Nm 0.5 0.8 1.0 1.2 1.5 1.8
Rated Speed rpm 2200 2200 2200 2200 2200 2200
Rated Current A 6.5 10.5 13 15.5 19.5 23
Rated Power W 115 185 231 277 347 416
Length mm 60 70 80 90 100 120





NMRV040.80RBL-60M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 2 2.9 3.7 5.4 7 8.1 9 11 12.5 13.5 16 17.5







NMRV040.80RBL-70M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 3.2 4.6 6 8.6 11.2 13 14.4 17.6 20 21.6 25.6 28



NMRV040.80RBL-80M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 4 5.8 7.5 10.8 14 16.2 18 22 25 27 32 35



NMRV040.80RBL-90M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 4.8 7.0 9 12.9 16.8 19.5 21.6 26.4 30 32.4 38.4 42





NMRV040.80RBL-100M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 6 8.7 11.2 16.2 21 24.3 27 33 37.5 40.5 48 52.5



NMRV040.80RBL-120M Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 620 413 310 206 155 124 103 77 62 51 38 31
Rated Speed Rpm 440 293 220 146 110 88 73 55 44 36 27 22
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 45 48.6 57.6 63





Drawing



NMRV030.80RBL NMRV040.80RBL Series High Torque Brushless DC Worm Gear BLDC Motor With RV Reducer High Torque Big Power 1
