NMRV050.86BLS Series Brushless Dc Worm Gear Motor

NMRV050.86BLS Series Brushless Dc Worm Gear Motor

Products - Brushless DC Worm Gear Motor
  • Highlight

    86BL Brushless DC Worm Gear Motor

    ,

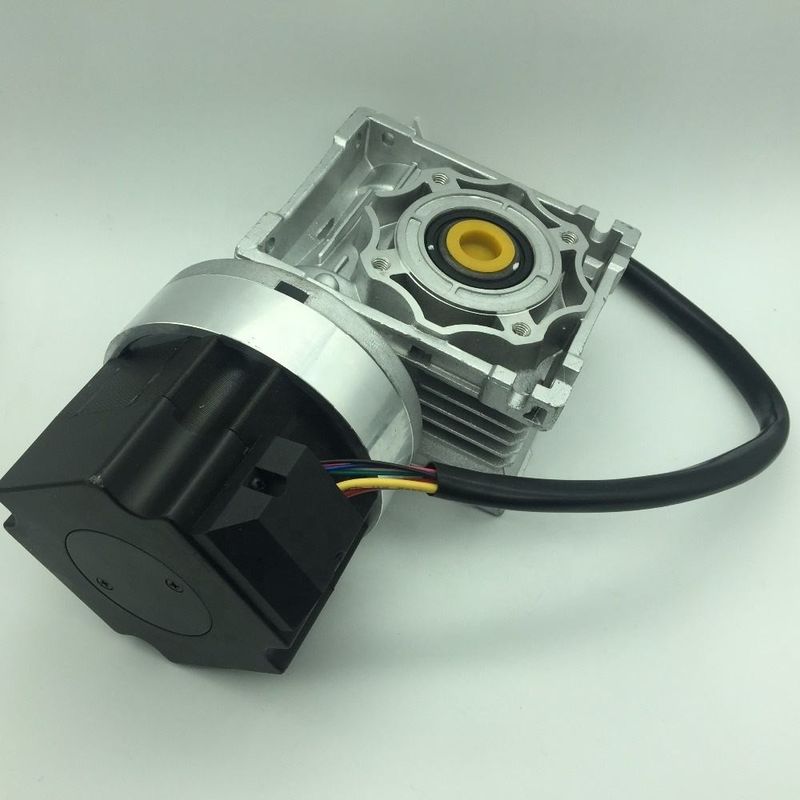

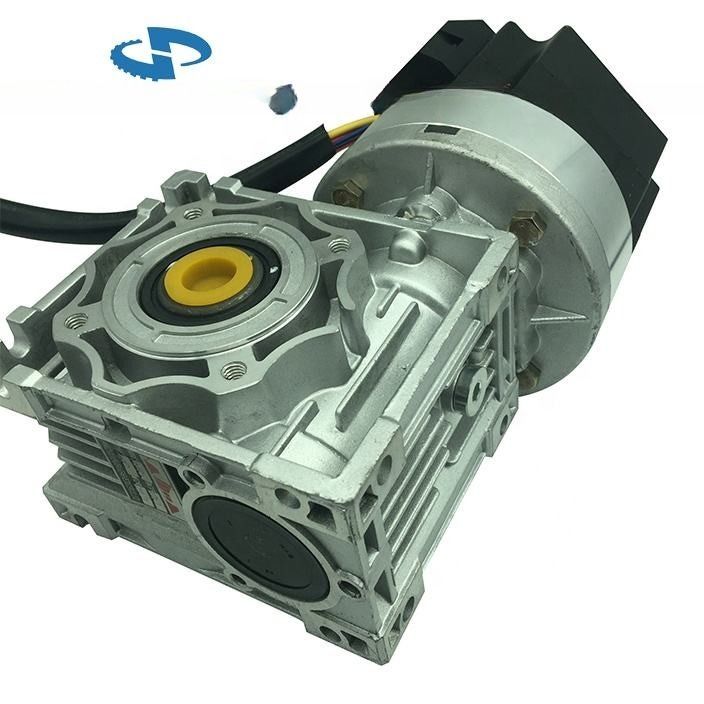

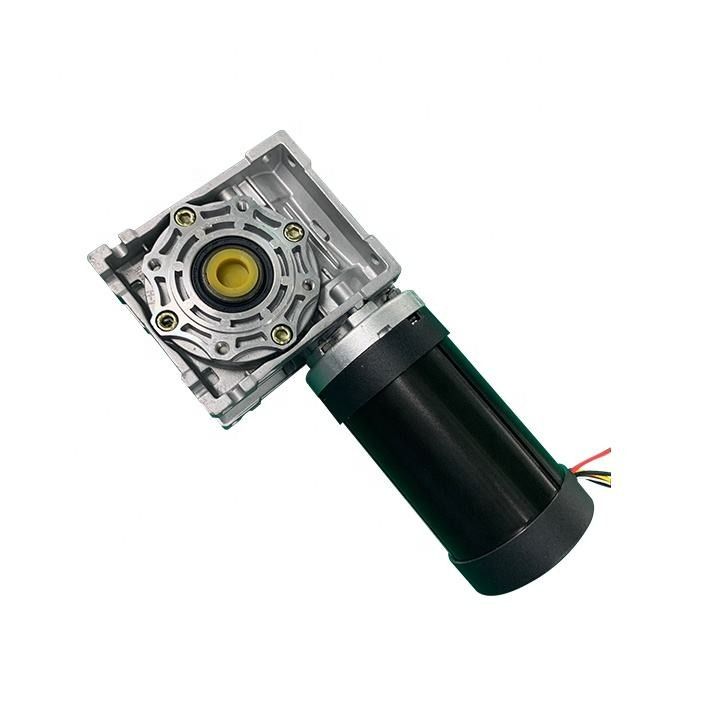

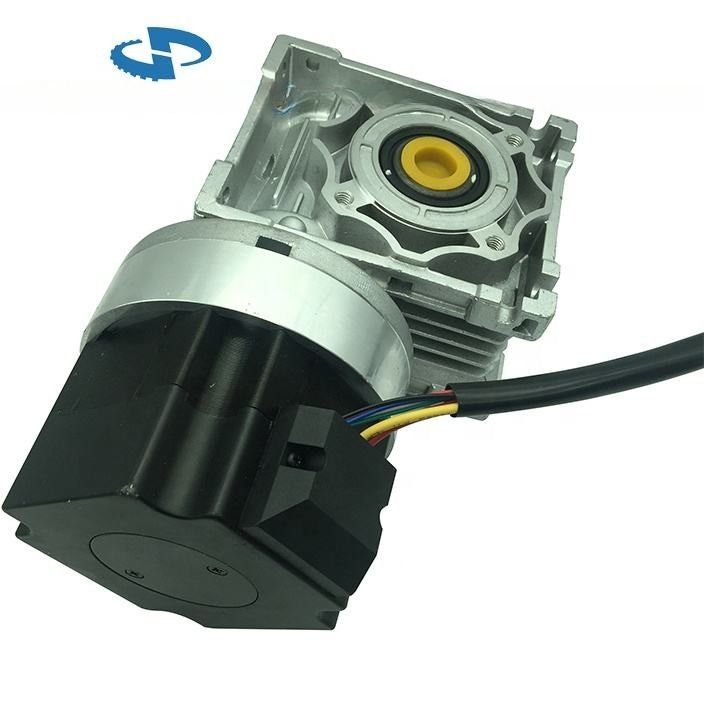

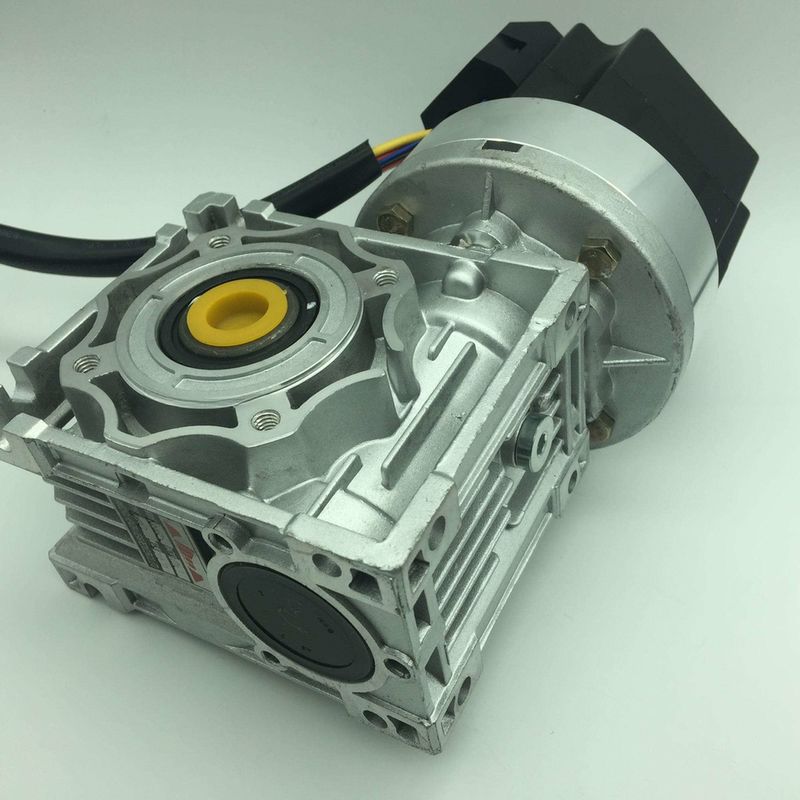

    high torque worm gear motor with NMRV050 Gearbox

    ,

    86BL high torque worm gear motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    1.68A
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, MACHINE
  • Type
    SERVO MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    NMRV050.86BLS
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

NMRV050.86BLS Series Brushless Dc Worm Gear Motor

  • NMRV050.86BLS Series Brushless Dc Worm Gear Motor
  • NMRV050.86BLS Series Brushless Dc Worm Gear Motor
  • NMRV050.86BLS Series Brushless Dc Worm Gear Motor
  • NMRV050.86BLS Series Brushless Dc Worm Gear Motor
  • NMRV050.86BLS Series Brushless Dc Worm Gear Motor
Get Price Contact Now

NMRV050.86BLS Series Brushless Dc Worm Gear Motor



General specification

Item Specification
Winding type Star
Hall effect angle 120° (度Electrical angle)
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max. radial force 220N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC



Technical Specification

Model 86BLS-70 86BLS-80 86BLS-90 86BLS-105 86BLS-130 86BLS-135
Number of phase 3
Number of pole 8
Voltage V 48v (Option for 12v 24v up to 320vdc)
No load speed rpm 3500 3500 3500 3500 3500 3500
Rated torque Nm 0.7 1.0 1.3 1.8 2.5 3.0
Rated Speed rpm 3000 3000 3000 3000 3000 3000
Rated Current A 6 8.6 11 15 21 25
Rated Power W 220 314 408 565 785 942
Weight Kg 1.7 2.1 2.5 3.1 4.1 4.3
Length mm 70 80 90 105 130 135





NMRV050.86BLS-70 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 2.8 4 5.2 7.5 9.8 11.3 12.6 15.4 17.5 18.9 22.4 24.5



NMRV050.86BLS-80 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 4 5.8 7.5 10.8 14 16.2 18 22 25 27 32 35



NMRV050.86BLS-90 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 5.2 7.6 9.7 14 18.2 21.1 23.4 28.6 32.5 35.1 41.6 45.5



NMRV050.86BLS-105 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 45 48.6 57.6 63



NMRV050.86BLS-130 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 10 14.6 18.7 27 35 40.6 45 55 62.5 67.5 80 87.5



NMRV050.86BLS-135 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 700 466 350 233 175 140 116 87 70 58 43 35
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37 30
Rated Torque N.m 12 17.5 22.5 32.4 42 48.7 54 66 75 81 96 105





Gear Motor Dimensions



NMRV050.86BLS Series Brushless Dc Worm Gear Motor 0





NMRV050 GEAR BOX













86BL High Power Brushless DC Worm Gear Motor, with NMRV050 Gearbox
