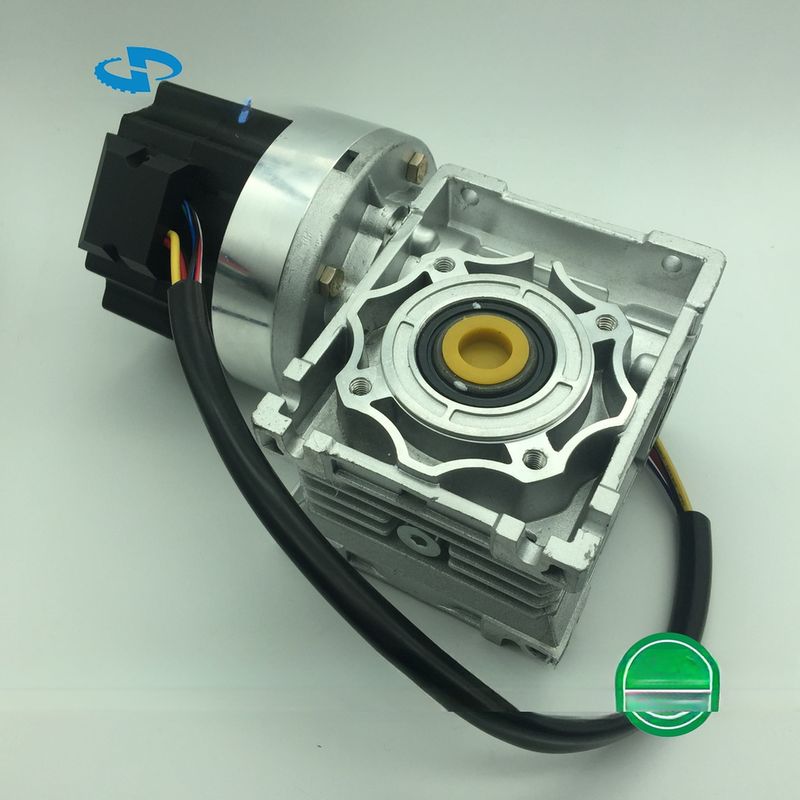

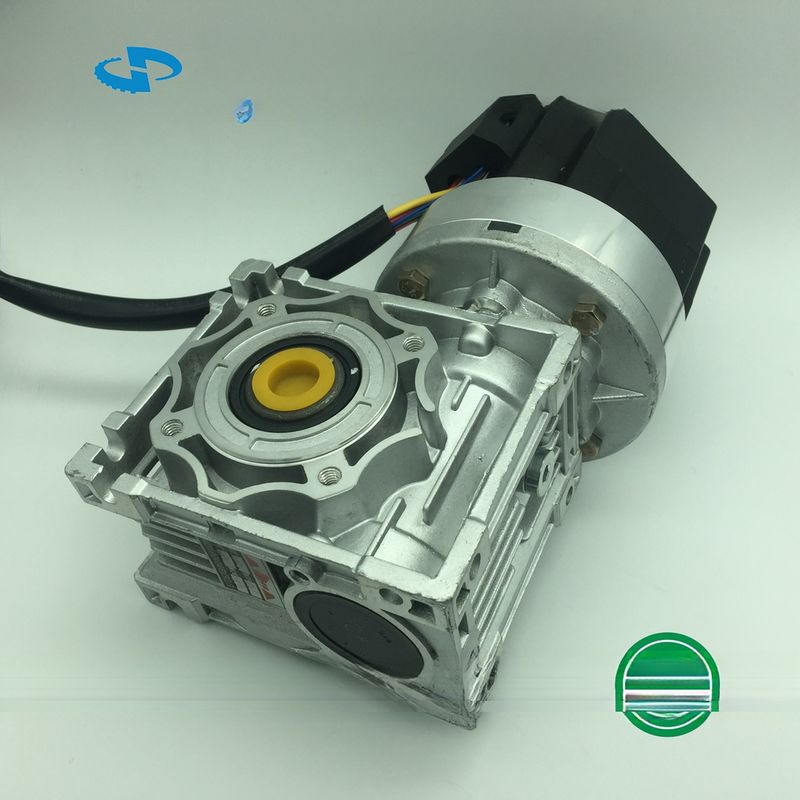

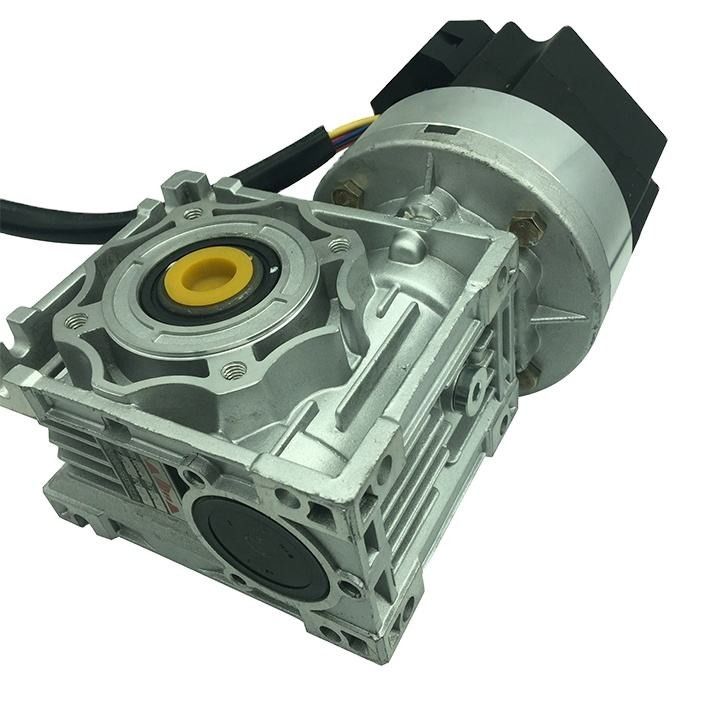

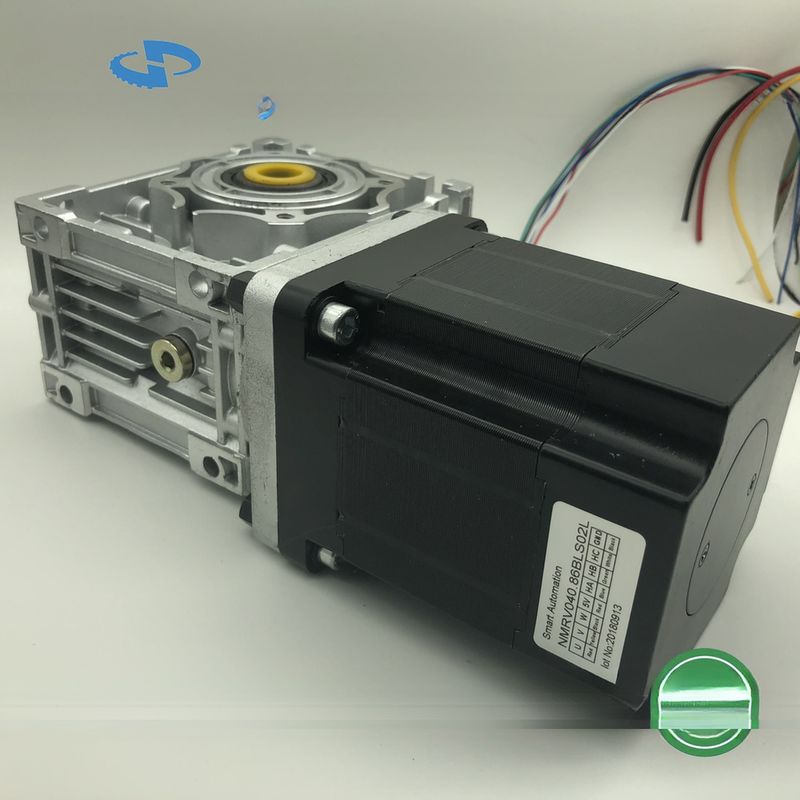

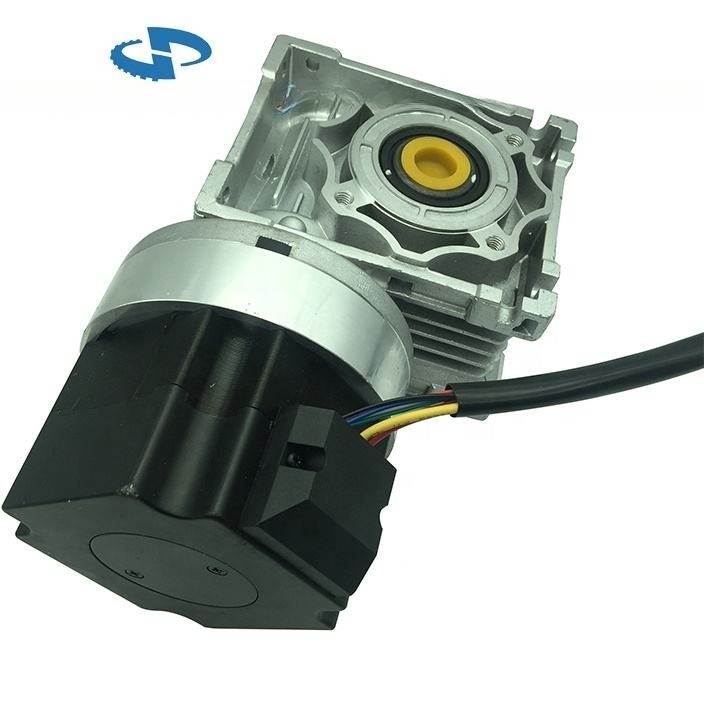

NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w

NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w

Products - Brushless DC Worm Gear Motor
  • Highlight

    NMRV040.86BL Brushless dc Worm Gear Motor

    ,

    NMRV050.86BL brushless worm gear motor

    ,

    NMRV040.86BL brushless worm gear motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Michine
  • Type
    GEAR MOTOR
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    NMRV040.86BLS
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w

  • NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w
  • NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w
  • NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w
  • NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w
  • NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w
Get Price Contact Now

NMRV040.86BLS Series Brushless Dc Worm Gear Motor



General specification

Item Specification
Winding type Star
Hall effect angle 120° (Electrical angle)
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max. radial force 220N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC



Technical Specification:

Model 86BLS-70L 86BLS-80L 86BLS-90L 86BLS-105L 86BLS-130L 86BLS-135L
Number of phase 3
Number of pole 8
Voltage V 48v (Option for 12v 24v up to 320vdc)
No load speed rpm 2500 2500 2500 2500 2500 2500
Rated torque Nm 0.7 1.0 1.3 1.8 2.5 3.0
Rated Speed rpm 2000 2000 2000 2000 2000 2000
Rated Current A 4 5.6 7.3 10 14 16.8
Rated Power W 146 210 272 377 523 628
Weight Kg 1.7 2.1 2.5 3.1 4.1 4.3
Length mm 70 80 90 105 130 135



NMRV040.86BLS-70 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 2.8 4 5.2 7.5 9.8 11.3 12.6 15.4 17.5 18.9 22.4 24.5



NMRV040.86BLS-80 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 4 5.8 7.5 10.8 14 16.2 18 22 25 27 32 35





NMRV040.86BLS-90 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 5.2 7.6 9.7 14 18.2 21.1 23.4 28.6 32.5 35.1 41.6 45.5



NMRV040.86BLS-105 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 7.2 10.5 13.5 19.4 25.2 29.2 32.4 39.6 45 48.6 57.6 63





NMRV040.86BLS-130 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 10 14.6 18.7 27 35 40.6 45 55 62.5 67.5 80 87.5



NMRV040.86BLS-135 Worm Gear Motor Specification:

Reduction ratio   5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency   80﹪ 78﹪ 75﹪ 72﹪ 70﹪ 65﹪ 60﹪ 55﹪ 50﹪ 45﹪ 40﹪ 35﹪
No Load Speed Rpm 500 333 250 166 125 100 83 62 50 41 31 25
Rated Speed Rpm 400 266 200 133 100 80 66 50 40 33 25 20
Rated Torque N.m 12 17.5 22.5 32.4 42 48.7 54 66 75 81 96 105



Gear Motor Dimensions



NMRV040.86BL NMRV050.86BL Brushless DC Worm Gear Motor With NMRV Gear Reducer Big Torque Power 200w 300w 400w 500w 750w 0



NMRV040.86BL NMRV050.86BL Series Brushless dc Worm Gear Motor with NMRV Gear reducer High Torque Large Power upto 750w
