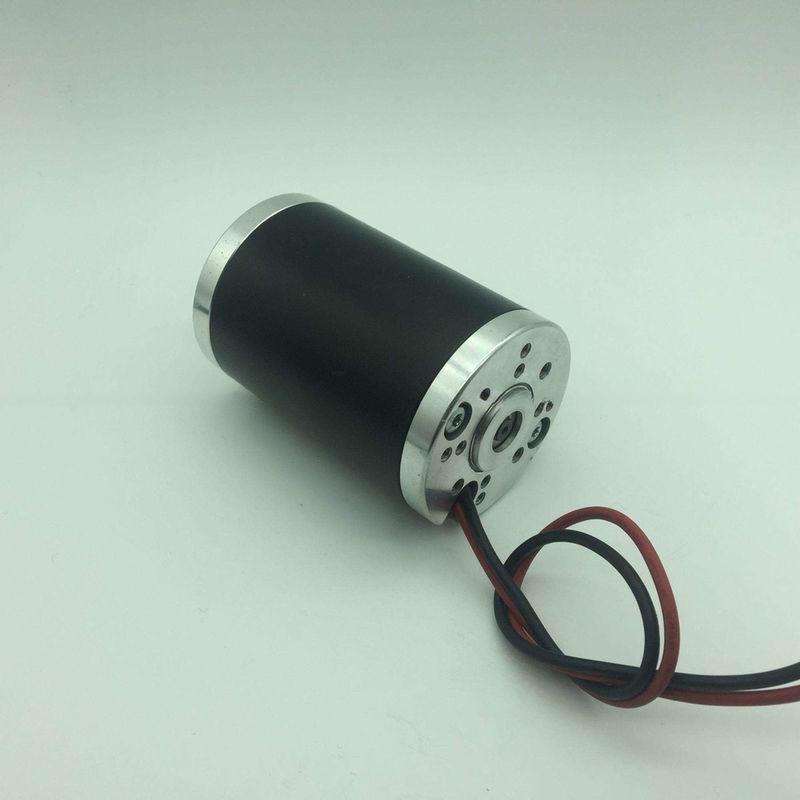

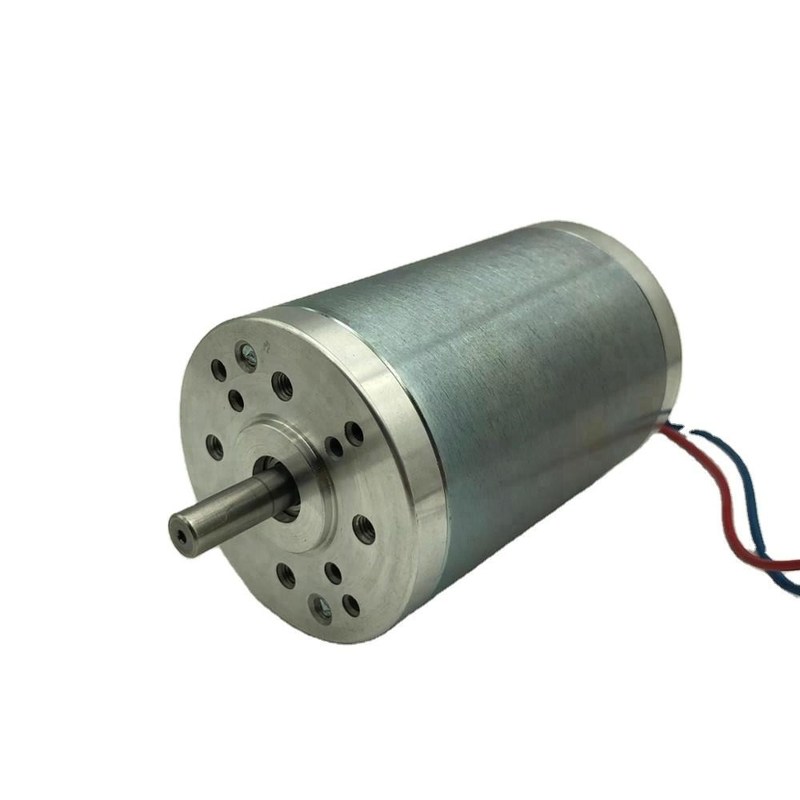

63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W

63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W

Products - Brushed DC Motor
  • Highlight

    63ZYT03A high torque brushed dc motor

    ,

    high torque brushed dc motor 0.40Nm

    ,

    63ZYT03A brushed dc electric motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine
  • Type
    Brush Motor
  • Torque
    0.4N.m
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W

  • 63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W
  • 63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W
  • 63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W
  • 63ZYT03A High Torque Permanet Magnet Brush DC Electrical Motor Dunker Gr63x55 12volt 24volt Rated 0.40Nm 3000rpm 126W
Get Price Contact Now

63ZYT03A high torque Brushed electric dc Motor, rated 0.40Nm 3000rpm 126W



Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation

Model 63ZYT03A
Rated voltage V dc 12 24 40
Continuous rated speed rpm 3000 3000 3000
Continuous rated torque mN.m 400 400 400
Continuous current A 15 7.5 4.5
Starting torque mN.m 2700 2700 2700
Starting current A 80 38.5 23
No load speed rpm 3500 3500 3500
No load current A 3 2.0 1.2
Demagnetization current A 150 75 45
Rotor inertia Gcm2 840 840 840
Weight of motor g 1350 1350 1350
Motor length mm 125 125 125



63ZYT03A high torque Brushed electric dc Motor, rated 0.40Nm 3000rpm 126W







63ZYT03A high torque Brushed electric dc Motor, rated 0.40Nm 3000rpm 126W

WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
