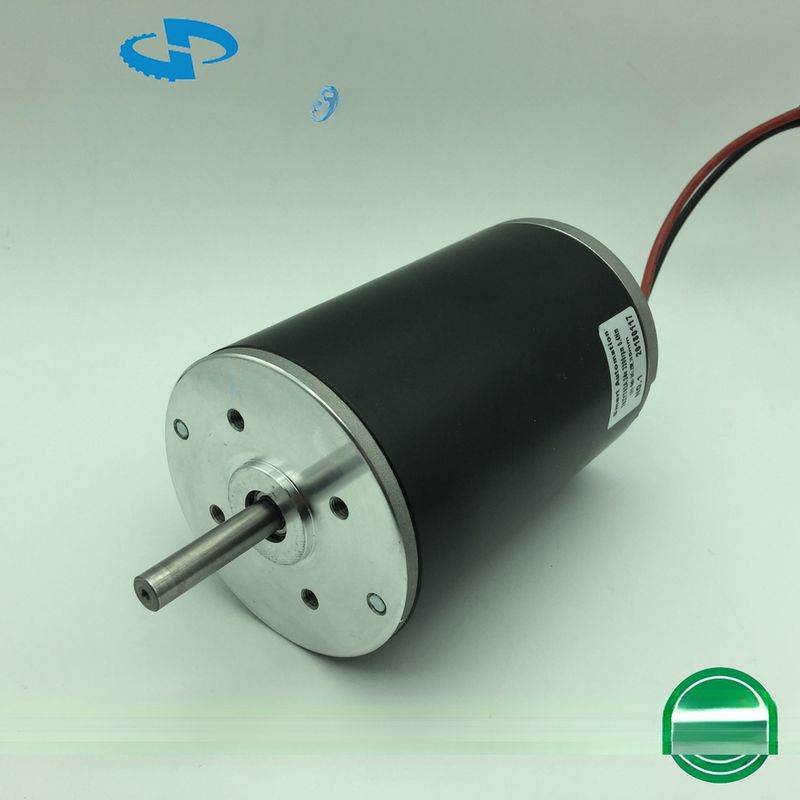

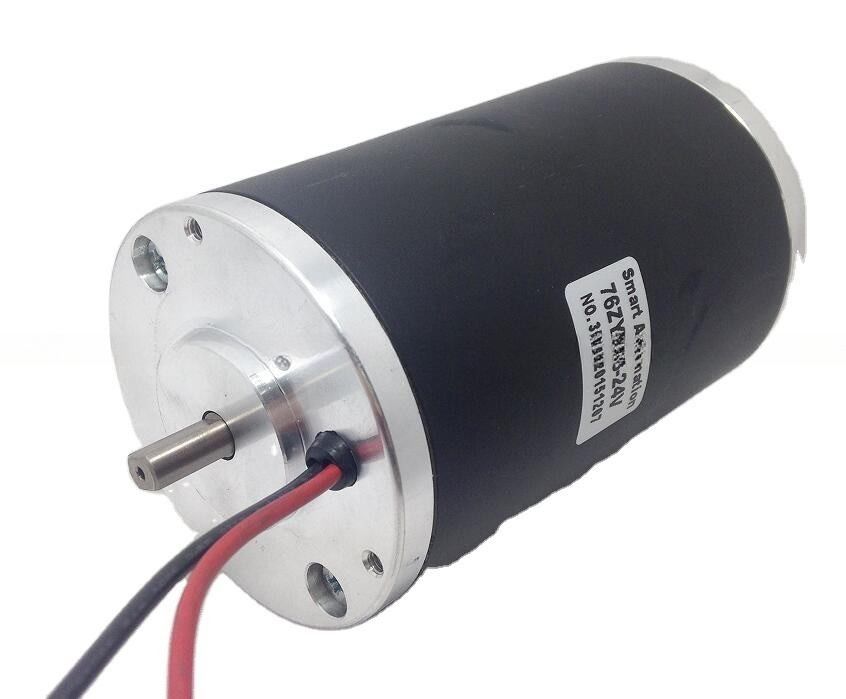

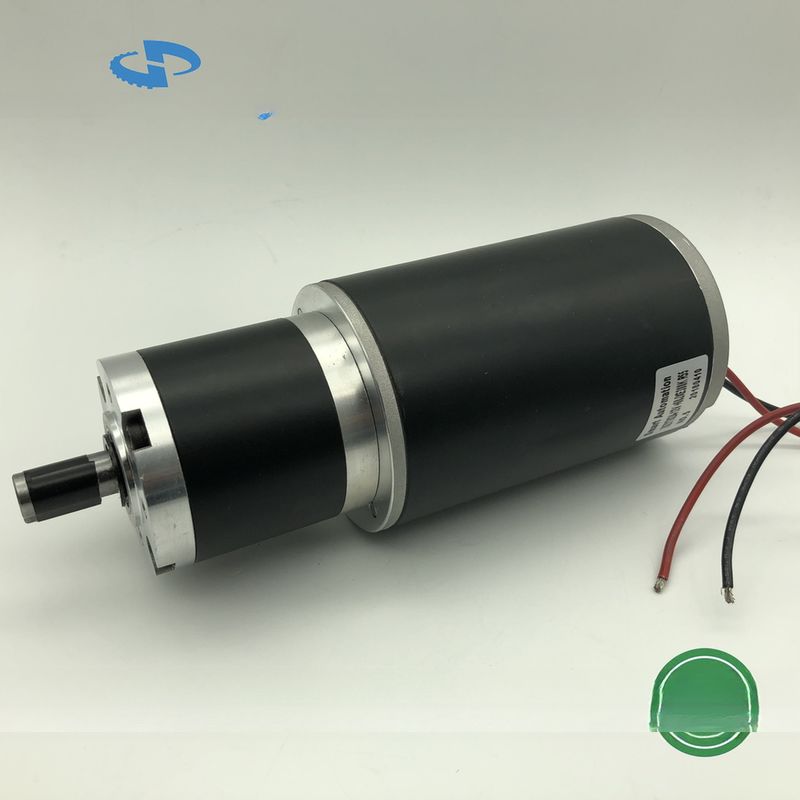

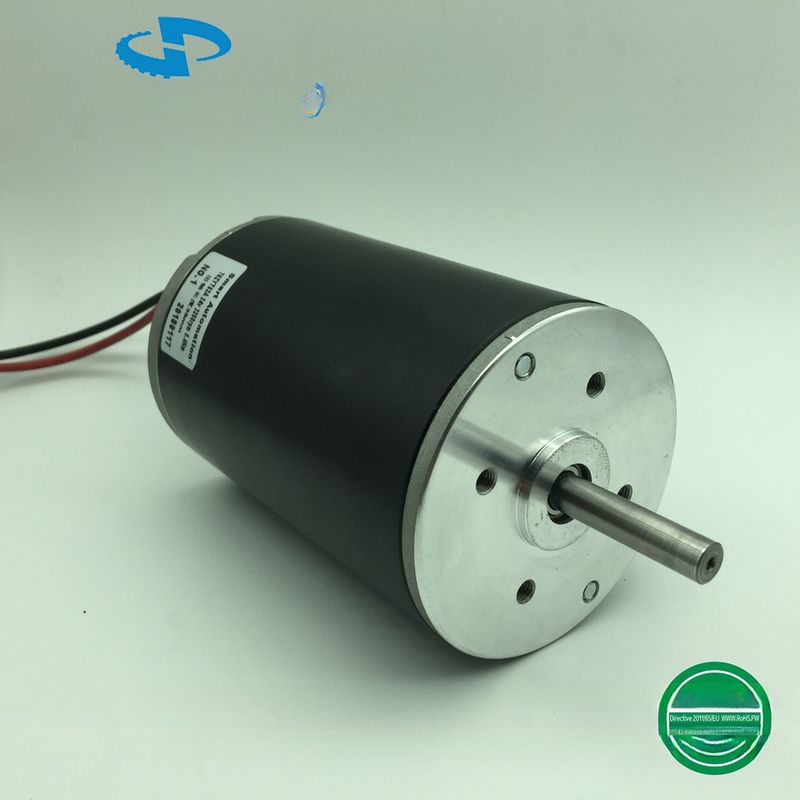

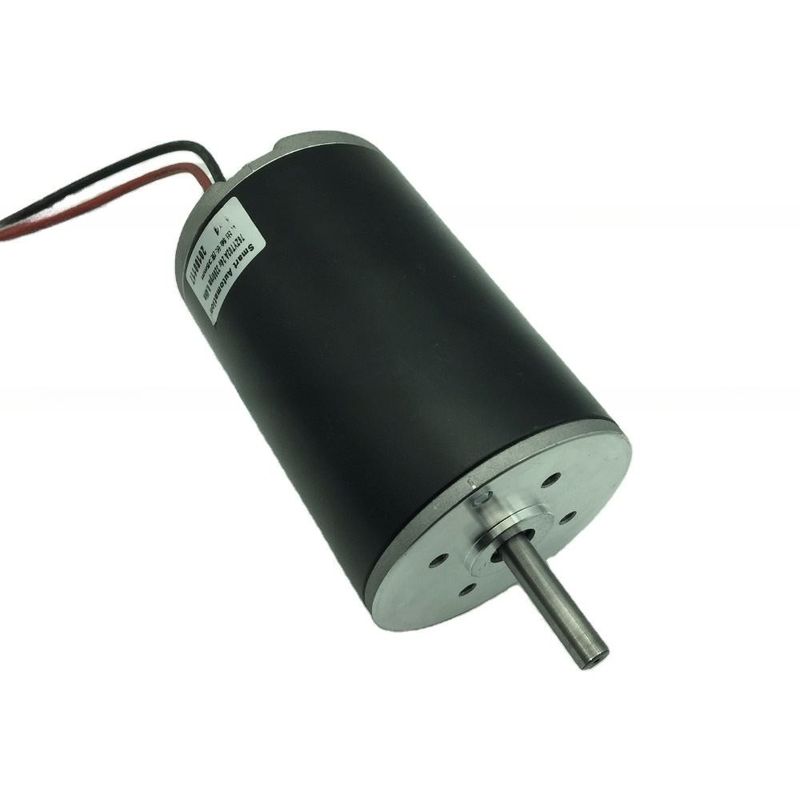

76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
-
Highlight
76ZYT02 Permanent Magnet Brush DC Motor
,76ZYT02 pmdc brushed motor
,pmdc brushed motor 76mm 0.4Nm 2600rpm
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)2600rpm
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Other
-
TypeBrush Motor
-
Torque0.4N.m
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number76ZYT
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor
76ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
| Model | Unit | 76ZYT01A | 76ZYT02A | 76ZYT03A | 76ZYT04A | 76ZYT05A | 76ZYT06A |
| Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||||
| No Load Speed | Rpm | 3900 | 3800 | 3800 | 3800 | 3800 | 3800 |
| Rated Torque | N.m | 0.31 | 0.5 | 0.7 | 0.8 | 0.9 | 1 |
| Rated Speed | Rpm | 3300 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Rated Current | A | 6 | 9.5 | 13 | 15 | 16.5 | 18 |
| Output Power | W | 107 | 167 | 235 | 268 | 301 | 335 |
| Weight | Kg | 1.5 | 2 | 2.5 | 2.8 | 3.05 | 3.3 |
| Motor Length | Mm | 98 | 118 | 138 | 150 | 160 | 171 |
Drawing:
