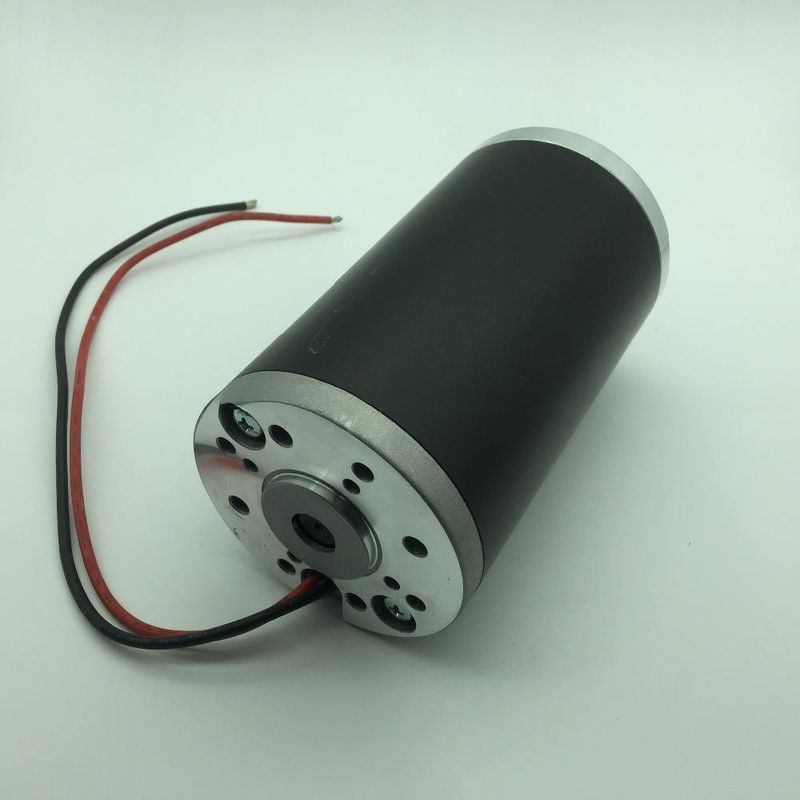

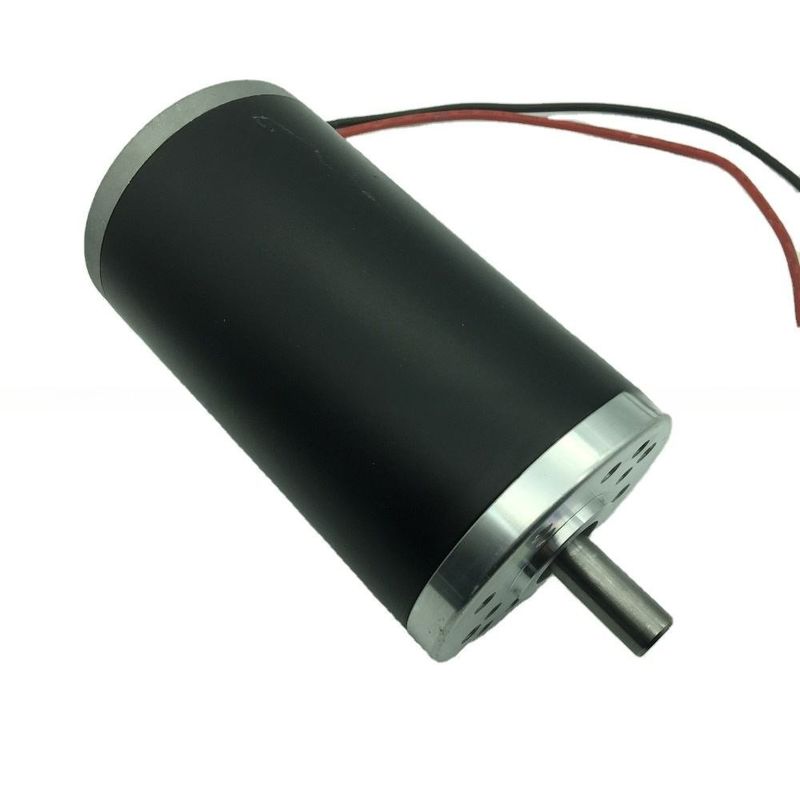

80ZYT01C 12v 24v High Power Brushed Dc Motor Rated 6000rpm To 7000rpm 0.6N.M 300w-500w
-
Highlight
80ZYT01C high power brushed dc motor
,24v brushed dc motor 6000rpm 0.6N.m
,80ZYT01C 12v brushed dc motor
-
Warranty3years
-
PortShanghai
-
Current / Phase1.68A
-
Speed(RPM)6000rpm
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Machineary
-
TypeDc Motor
-
Torque0.6N.m
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
80ZYT01C 12v 24v High Power Brushed Dc Motor Rated 6000rpm To 7000rpm 0.6N.M 300w-500w
80ZYT01C 12v 24v Brushed DC Motor high power, high speed rated 6000rpm to 7000rpm, 0.6N.m, power 300w~500w
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
| Model | 80ZYT01C | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 6000 | 6000 | 6000 |
| Continuous rated torque | N.m | 0.6 | 0.6 | 0.6 |
| Continuous current | A | 44 | 22 | 13.5 |
| Stall torque | N.m | 7.9 | 7.9 | 7.9 |
| Starting current | A | 530 | 265 | 150 |
| No load speed | rpm | 3100 | 3100 | 3100 |
| No load current | A | 4.0 | 3.0 | 2.0 |
| Demagnetization current | A | 1000 | 500 | 300 |
| Rotor inertia | Gcm2 | 1800 | 1800 | 1800 |
| Weight of motor | kg | 1.85 | 1.85 | 1.85 |
