42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
-
Highlight
42ZYT04A carbon brush dc motor
,O.D 42mm carbon brush dc motor
,high torque dc motor 3350rpm 70mNm
-
Warranty3years
-
PortShanghai
-
Current / Phase1.68A
-
Speed(RPM)3350rpm
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Machine
-
TypeMicro Motor
-
Torque70mNm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

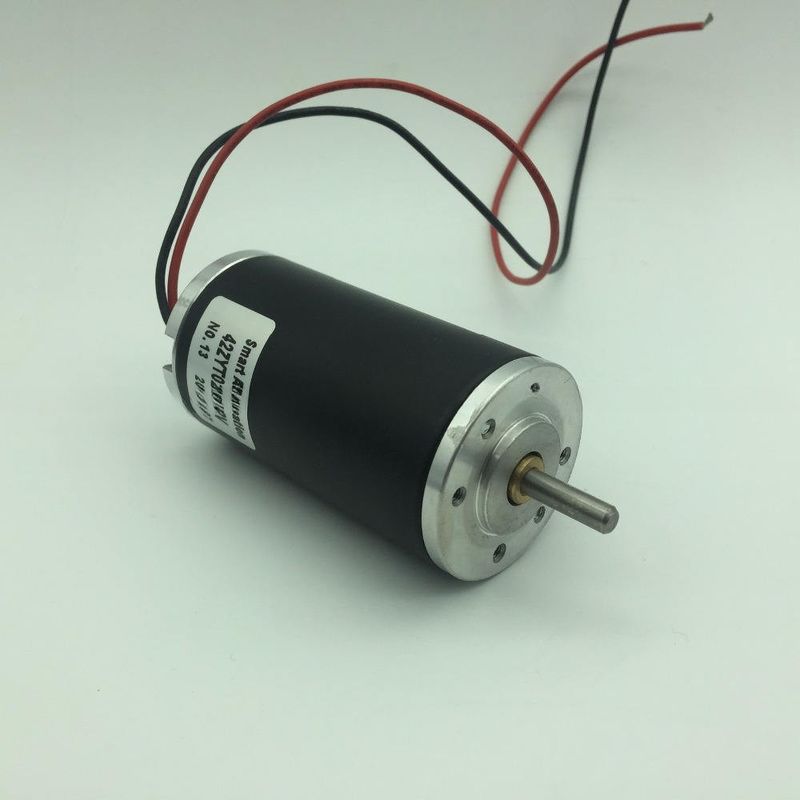

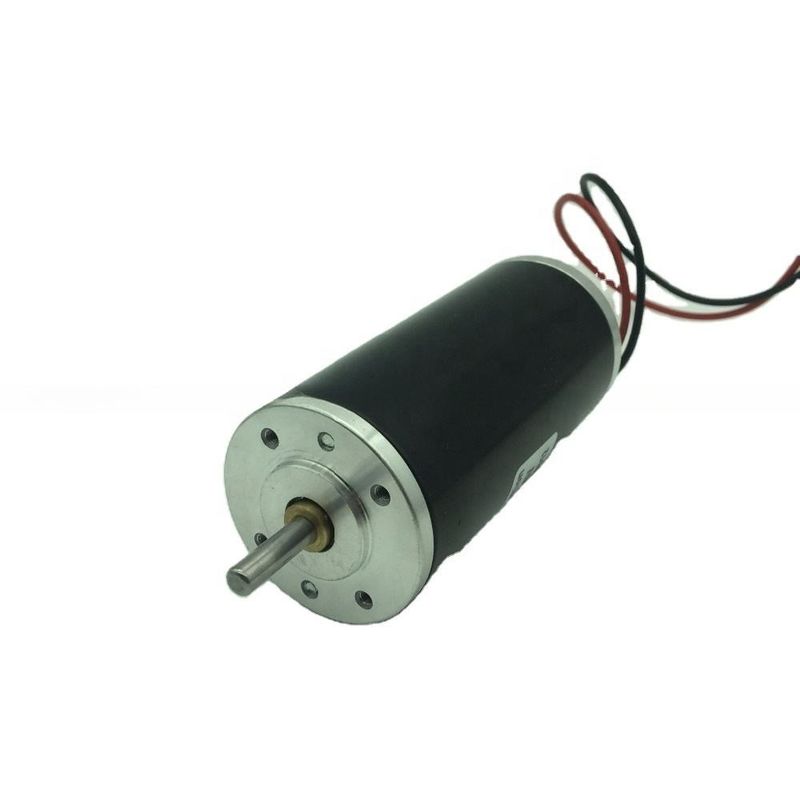

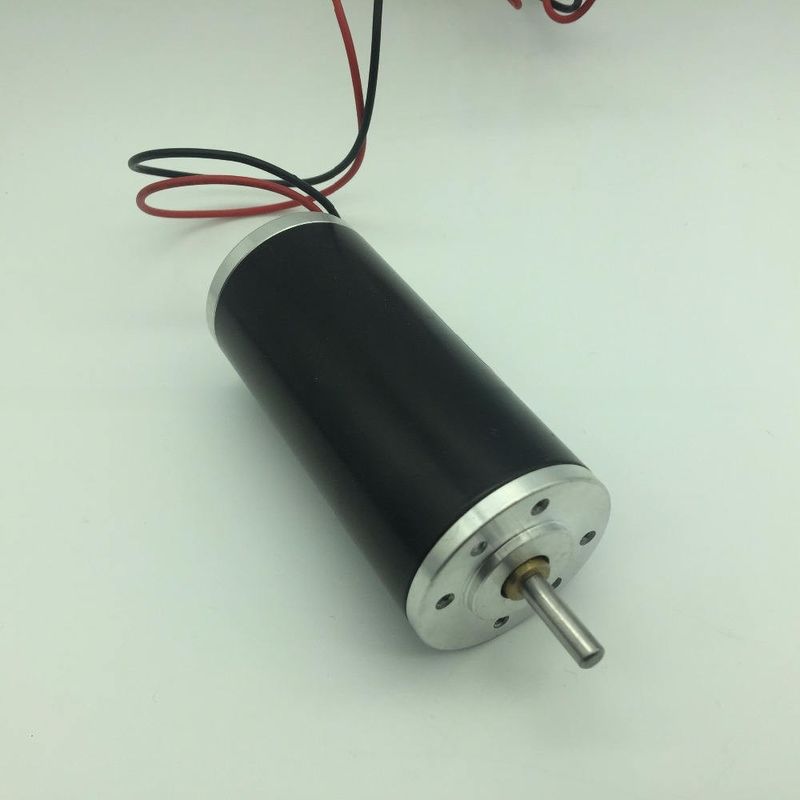

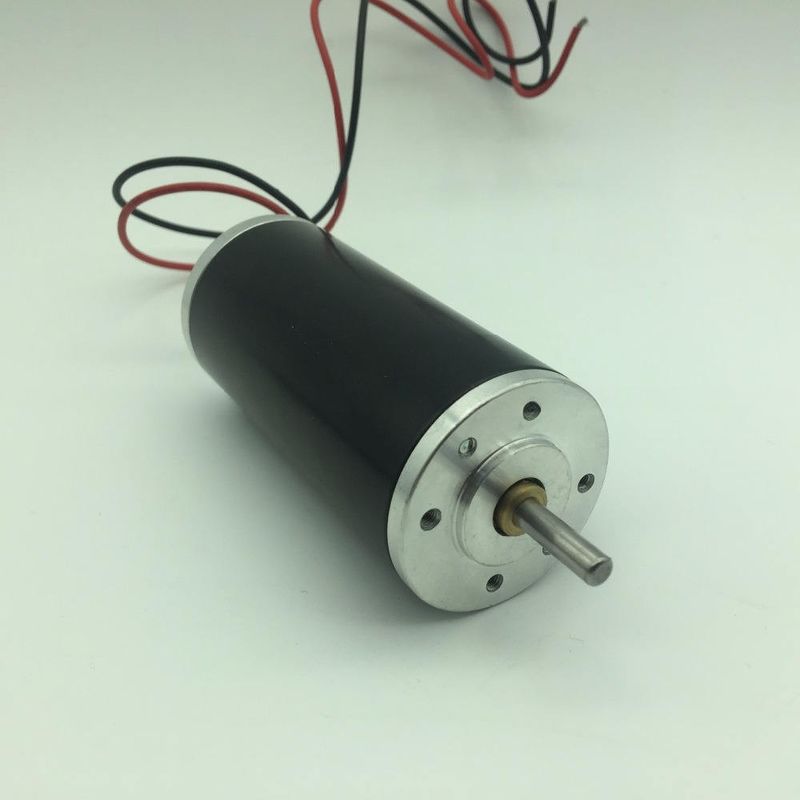

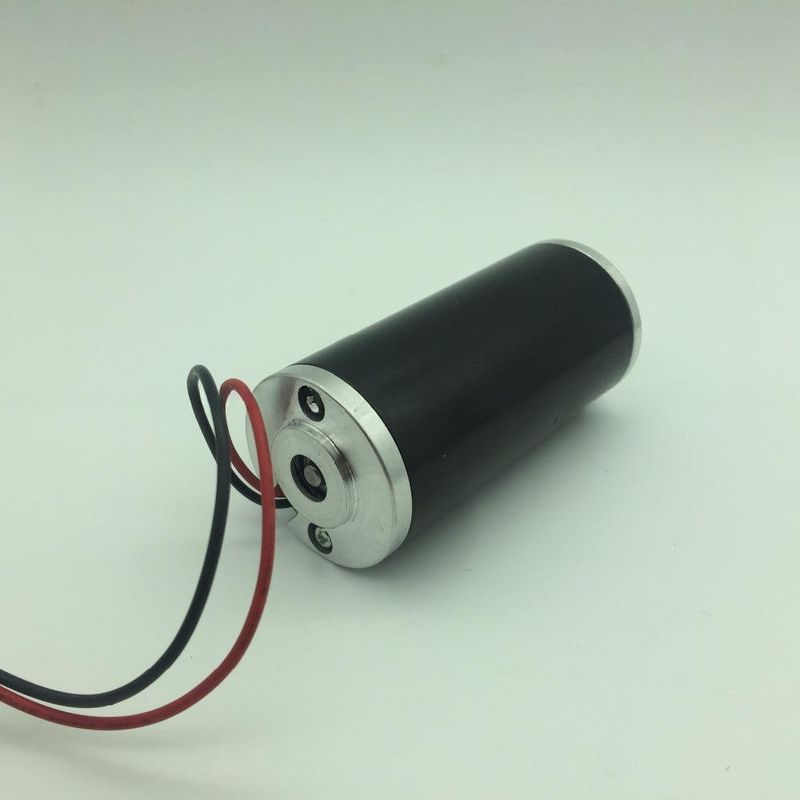

42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush Dc Motor 12v 24v 25w 3350rpm 70mNm
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
| Model | 42ZYT04A | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 3350 | 3350 | 3350 |
| Continuous rated torque | mN.m | 70 | 70 | 70 |
| Continuous current | A | 2.8 | 1.4 | 0.85 |
| Starting torque | mN.m | 400 | 400 | 400 |
| Starting current | A | 15.1 | 7.5 | 4.62 |
| No load speed | rpm | 4000 | 4000 | 4000 |
| No load current | A | 0.35 | 0.25 | 0.15 |
| Demagnetization current | A | 24 | 10.5 | 6.3 |
| Rotor inertia | Gcm2 | 193 | 193 | 193 |
| Weight of motor | g | 600 | 600 | 600 |
| Motor length | Mm | 90 | 90 | 90 |
