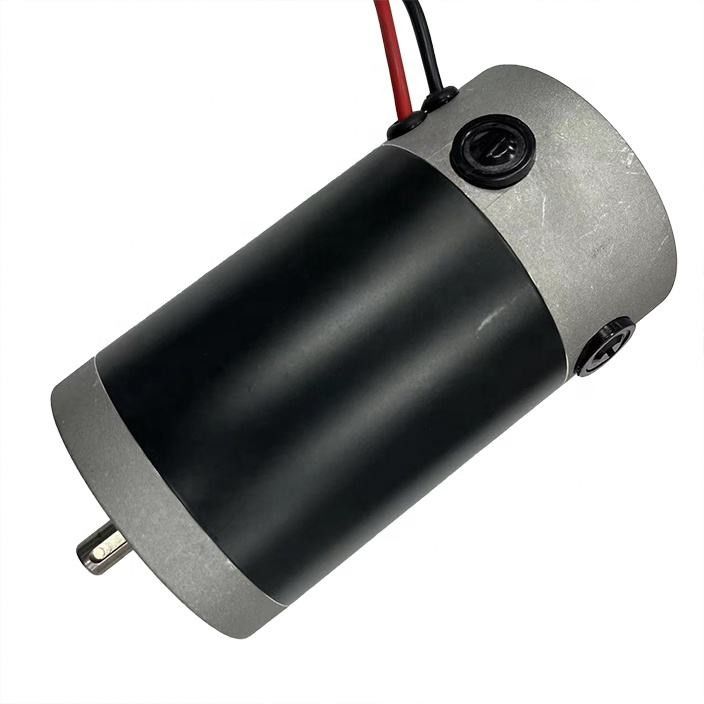

90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

  • Highlight

    90mm brushed dc motor 300w

    ,

    90mm brushed dc motor 400w

    ,

    dc brushed motor 1-2Nm

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    1000rpm 2000rpm~3000rpm
  • Continuous Current(A)
    Customed
  • Usage
    Car, FAN, Home Appliance, Machine
  • Type
    SERVO MOTOR
  • Torque
    1-2Nm
  • Construction
    Permanent Magnet
  • Commutation
    Brushless
  • Protect Feature
    Drip-proof
  • Efficiency
    IE 1
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

90ZYT Series Brushed Dc Motor



90ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3600
Rated Torque N.m 1.2 1.5 1.8
Rated Speed N.m 3150 3200 3250
Rated Current A 21 26 31
Output Power W 396 503 613
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199



Drawing:



90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm 0
