52ZYT01A Permanent Magnet Brush DC Motor Dual Shaft Option Gr53x25 2000RPM-10000RPM
-
Highlight
O.D52mm brush dc motors
,O.D52mm Permanent Magnet Brush DC Motor
,Permanent Magnet Brush DC Motor 52ZYT01A
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)2000RPM~10000RPM
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Machin Robot
-
TypeBrush Motor
-
Torque90mNm ~ 500mNm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
52ZYT01A Permanent Magnet Brush DC Motor Dual Shaft Option Gr53x25 2000RPM-10000RPM
O.D52mm brush dc motors, equalivalent to dunkerenmotor Gr53 customized voltage flange shaft performance
Permanent Magnet Brush DC Motor 52ZYT01A
Motor Specifications:
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
| Model | 52ZYT01A | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 3997 | 3707 | 3787 |
| Continuous rated torque | mN.m | 100 | 100 | 100 |
| Continuous current | A | 4.8 | 2.3 | 1.4 |
| Starting torque | mN.m | 910 | 852 | 868 |
| Starting current | A | 38.6 | 16.4 | 10.2 |
| No load speed | rpm | 4490 | 4200 | 4280 |
| No load current | A | 0.58 | 0.32 | 0.24 |
| Demagnetization current | A | 65 | 32 | 20 |
| Rotor inertia | gcm2 | 230 | 230 | 230 |
| Weight of motor | g | 850 | 850 | 850 |
| Motor length | mm | 95 | 95 | 95 |
52ZYT03A, 60W
| Model | 52ZYT03A | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 2771 | 2779 | 3000 |
| Continuous rated torque | N.m | 0.155 | 0.170 | 0.170 |
| Continuous current | A | 5.2 | 2.8 | 1.9 |
| Starting torque | N.m | 1.154 | 1.173 | 1.245 |
| Starting current | A | 35.6 | 17.6 | 11.9 |
| No load speed | rpm | 3200 | 3250 | 3450 |
| No load current | A | 0.44 | 0.32 | 0.21 |
| Demagnetization current | A | 61 | 31 | 20 |
| Rotor inertia | gcm2 | 460 | 460 | 460 |
| Weight of motor | g | 1160 | 1160 | 1160 |
| Motor length | mm | 125 | 125 | 125 |
52ZYT02A HIGH SPEED
| Model | 52ZYT02A | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 11494 | 9736 | 9406 |
| Continuous rated torque | N.m | 0.2 | 0.2 | 0.2 |
| Continuous current | A | 30.4 | 12.6 | 7.5 |
| Starting torque | N.m | 2.66 | 2.33 | 2.18 |
| Starting current | A | 372.8 | 130.7 | 70.8 |
| No load speed | rpm | 12428 | 10652 | 10356 |
| No load current | A | 2.5 | 1.5 | 1.1 |
| Demagnetization current | A | 400 | 200 | 100 |
| Rotor inertia | gcm2 | 260 | 260 | 260 |
| Weight of motor | g | 980 | 980 | 980 |
| Motor length | mm | 110 | 110 | 110 |

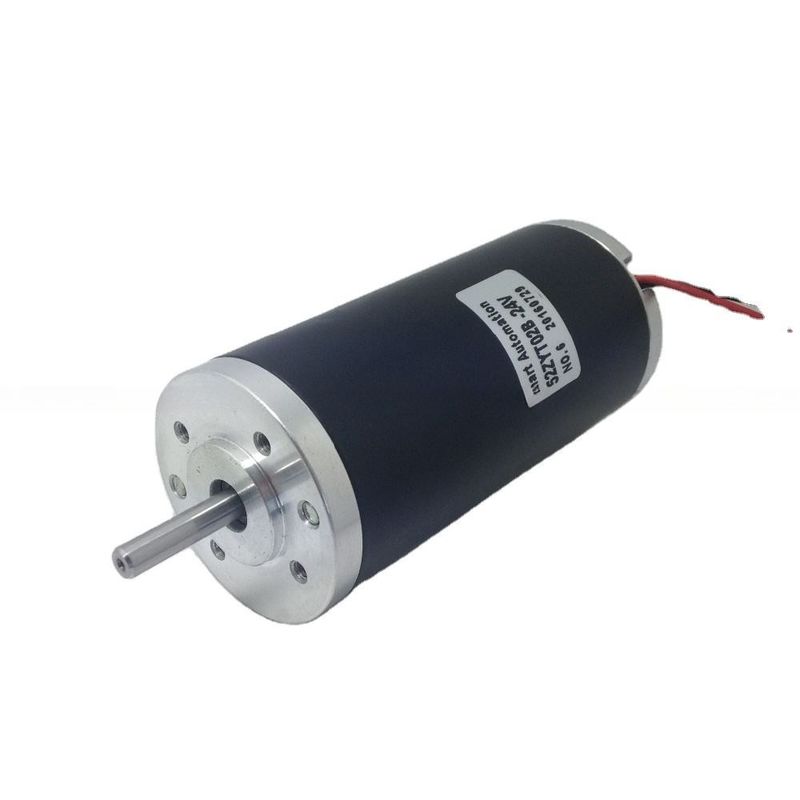

SINGLE SHAFT

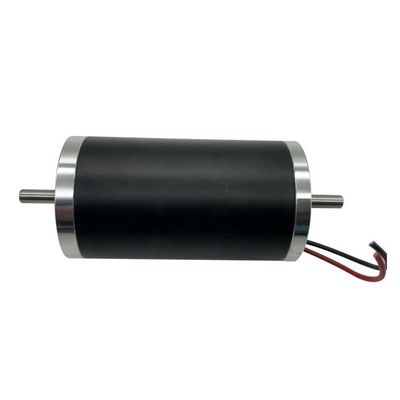

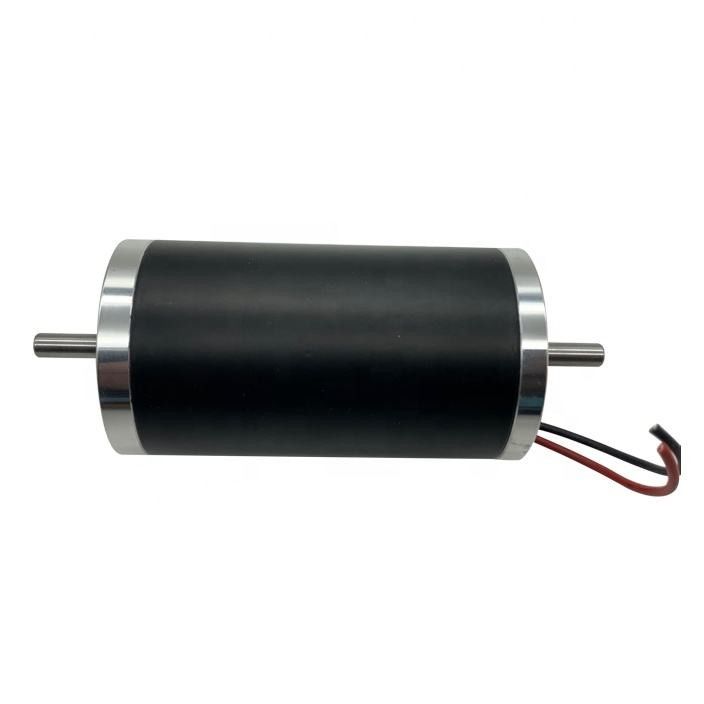

DUAL SHAFT
REPLACEABLE BRUSHES

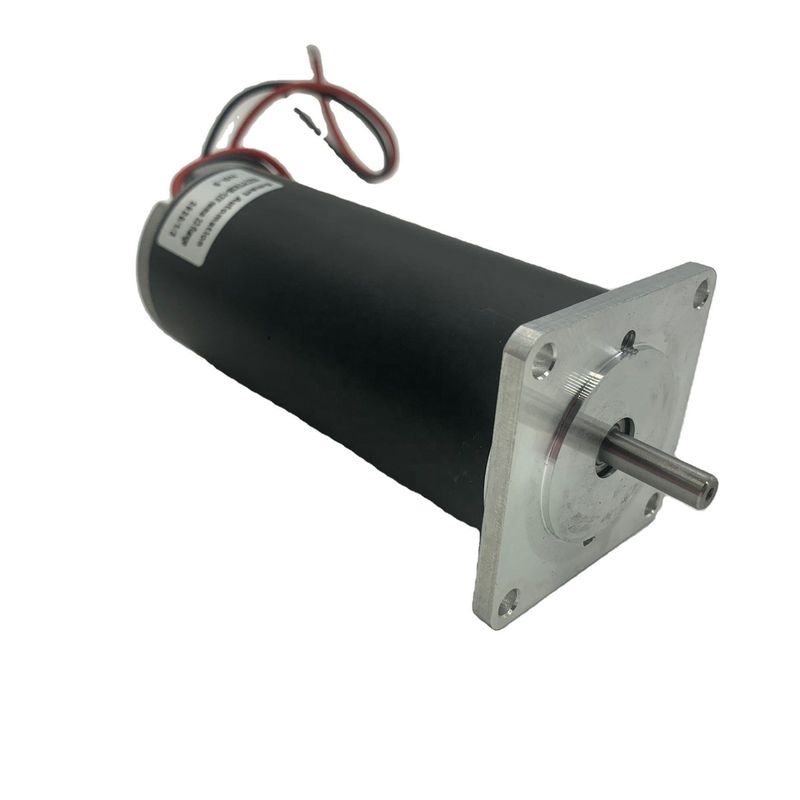

NEMA 23 FLANGE

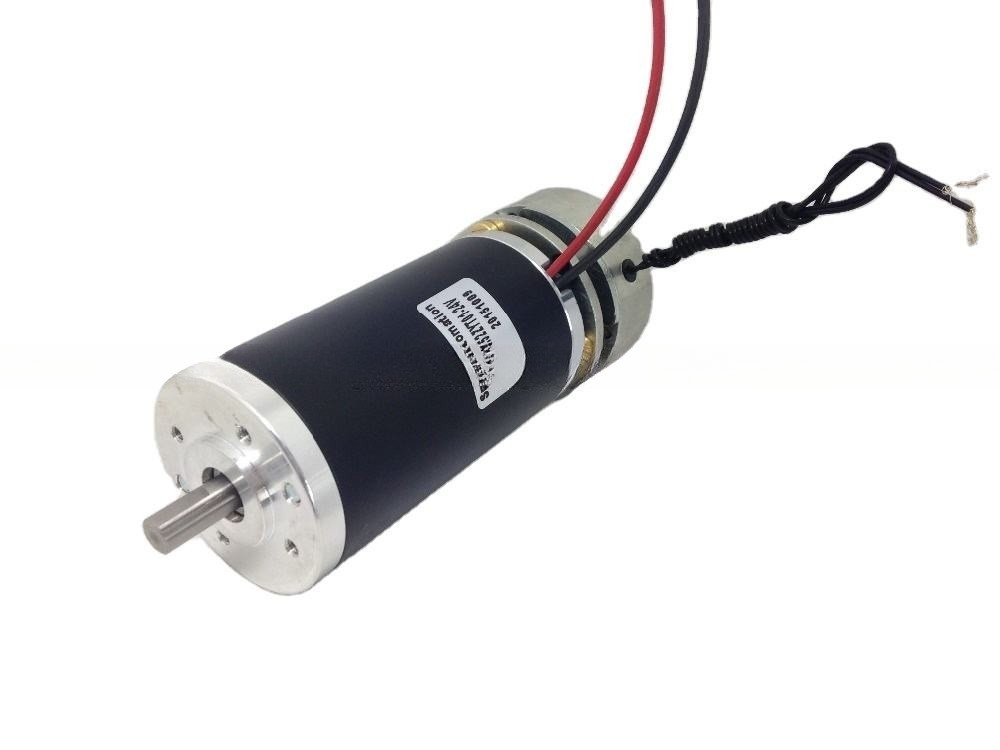

BRAKE INTEGRATED

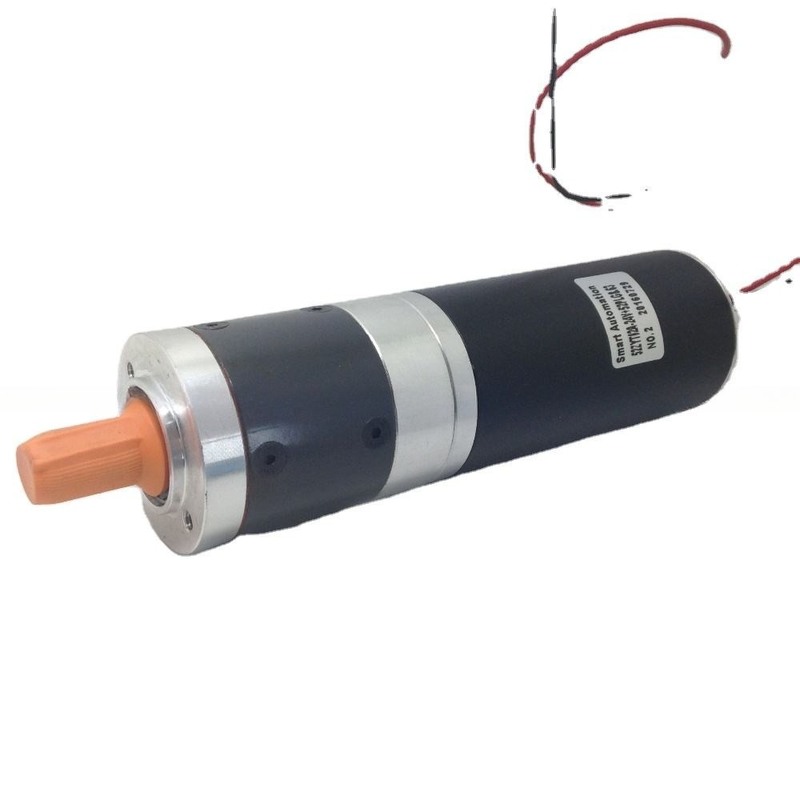

GEARBOX INTEGRATED
