38mm Sintered NdFeB micro brushed dc motor
,micro brushed dc motor 12v 24v
,38mm Sintered NdFeB permanent magnet dc motor
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)Customed
-
Continuous Current(A)Customed
-
UsageFAN, Home Appliance, Robot
-
TypeDc Motor
-
TorqueUPTO 120mNm
-
ConstructionPermanent Magnet
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month

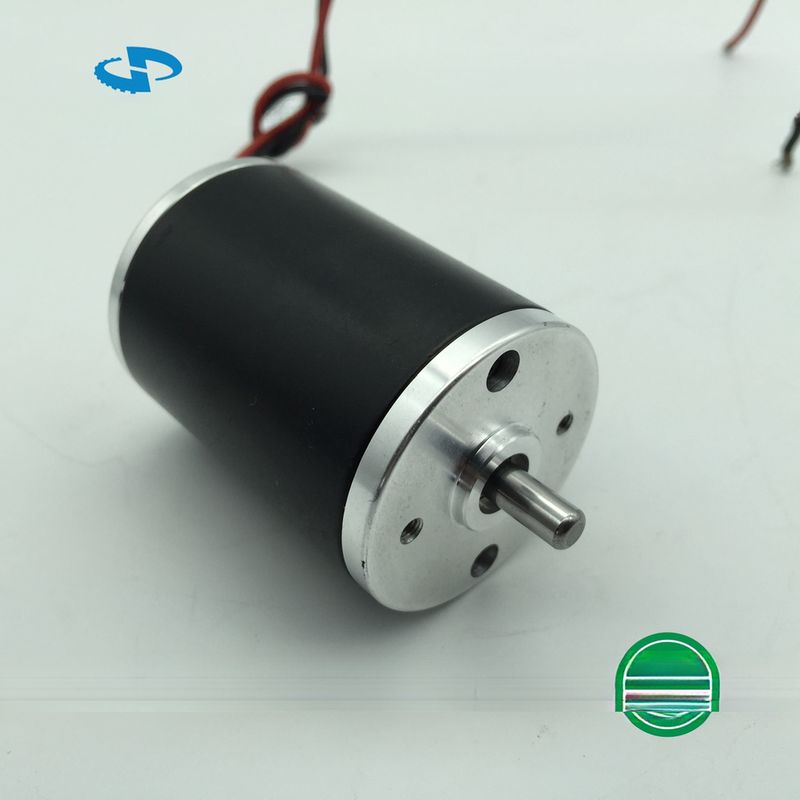

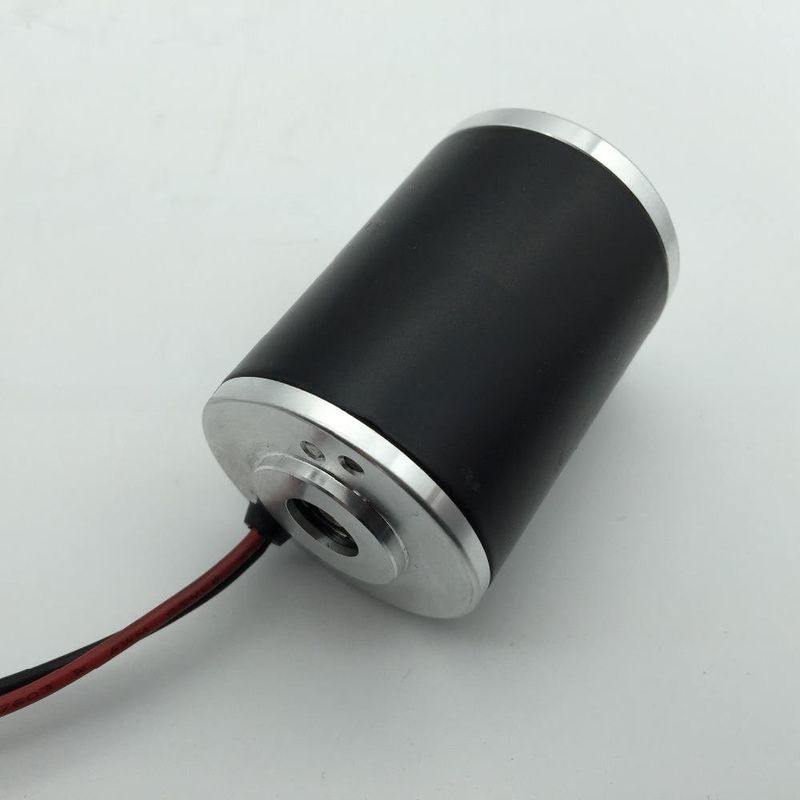

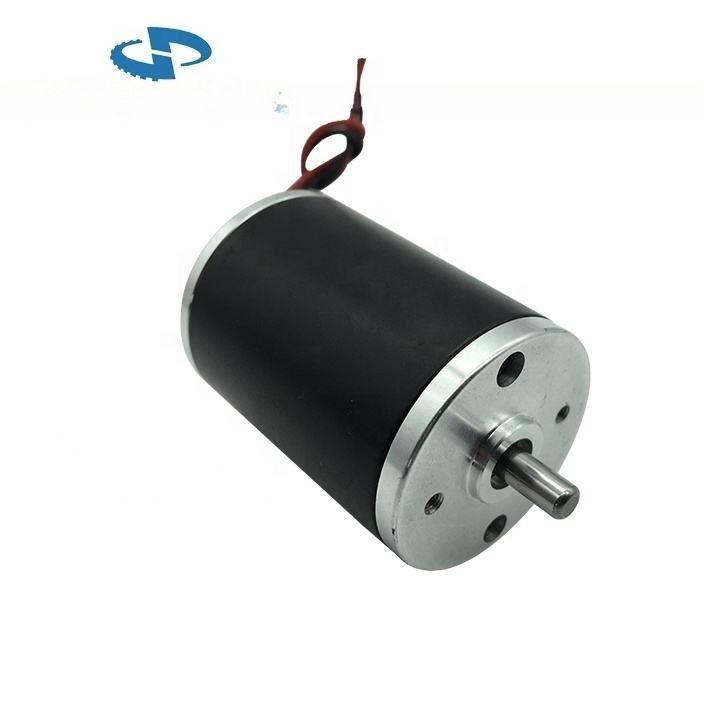

38mm Sintered NdFeB Permanent Magnet Micro Brushed DC Motor 12vdc 24vdc
38mm Sintered NdFeB Magnet Brushed DC Micro Motor 12v 24v, with Small Size Rare Earth Magnet Big Torque
38ZYN Series Brushed Dc Motor
Below are only some typical models.
For more information or a customed motor, Pls contact us.
Option for Electric Brake, Planetary Gearbox, Worm Gearbox, Optical Encoder Integrated
Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP50, option for IP54
Insulation class: F
Certified by CE and ROHS
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Motor Main Characteristics
| Model | 38ZYN01A | 38ZYN02A | 38ZYN03A | 38ZYN03B | 38ZYN04A |
| Rated Voltage V dc | 24v (option for 6v up to 60vdc) | ||||
| Rated Speed rpm | 3300 | 3250 | 3150 | 8500 | 3200 |
| Rated Torque mN.m | 55 | 70 | 100 | 150 | 120 |
| No loadSpeed rpm | 4000 | 3950 | 3950 | 9700 | 4000 |
| Weight g | 260 | 300 | 350 | 350 | 390 |
| Motor Length mm | 60 | 70 | 80 | 80 | 90 |
| Output Power W | 19 | 24 | 33 | 134 | 40 |
Drawing

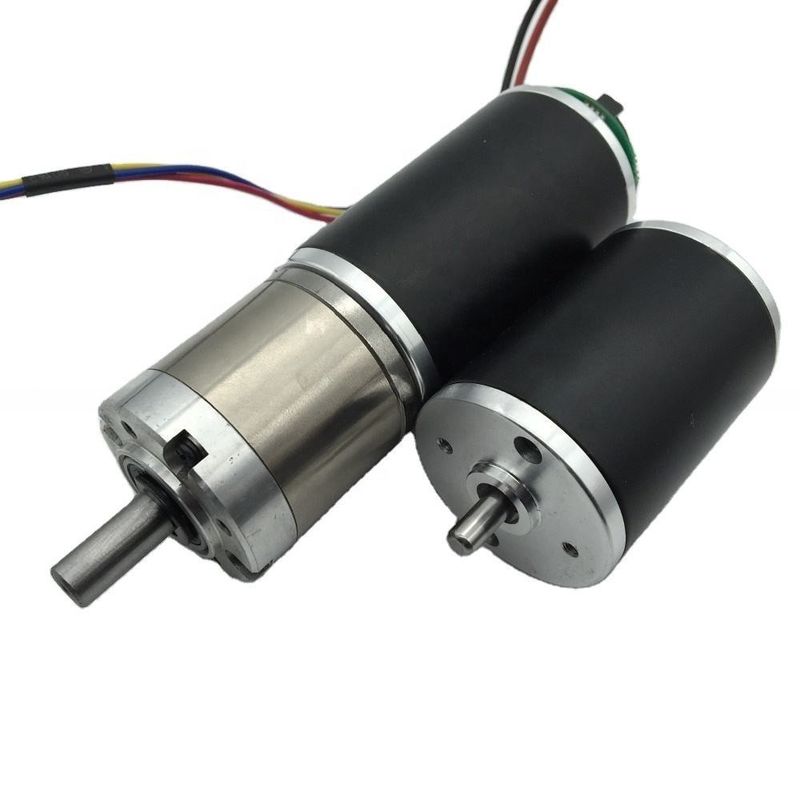

Geared Version
GEARED VERSION-------------------
------------------------
----------------------
